ST Wheel Spacer System AZX 40mm per Axle 5x112/66.6 - M14x1.5

SKU: 56060874
Sale price$398.05 Regular price$419.00
Save $20.95

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

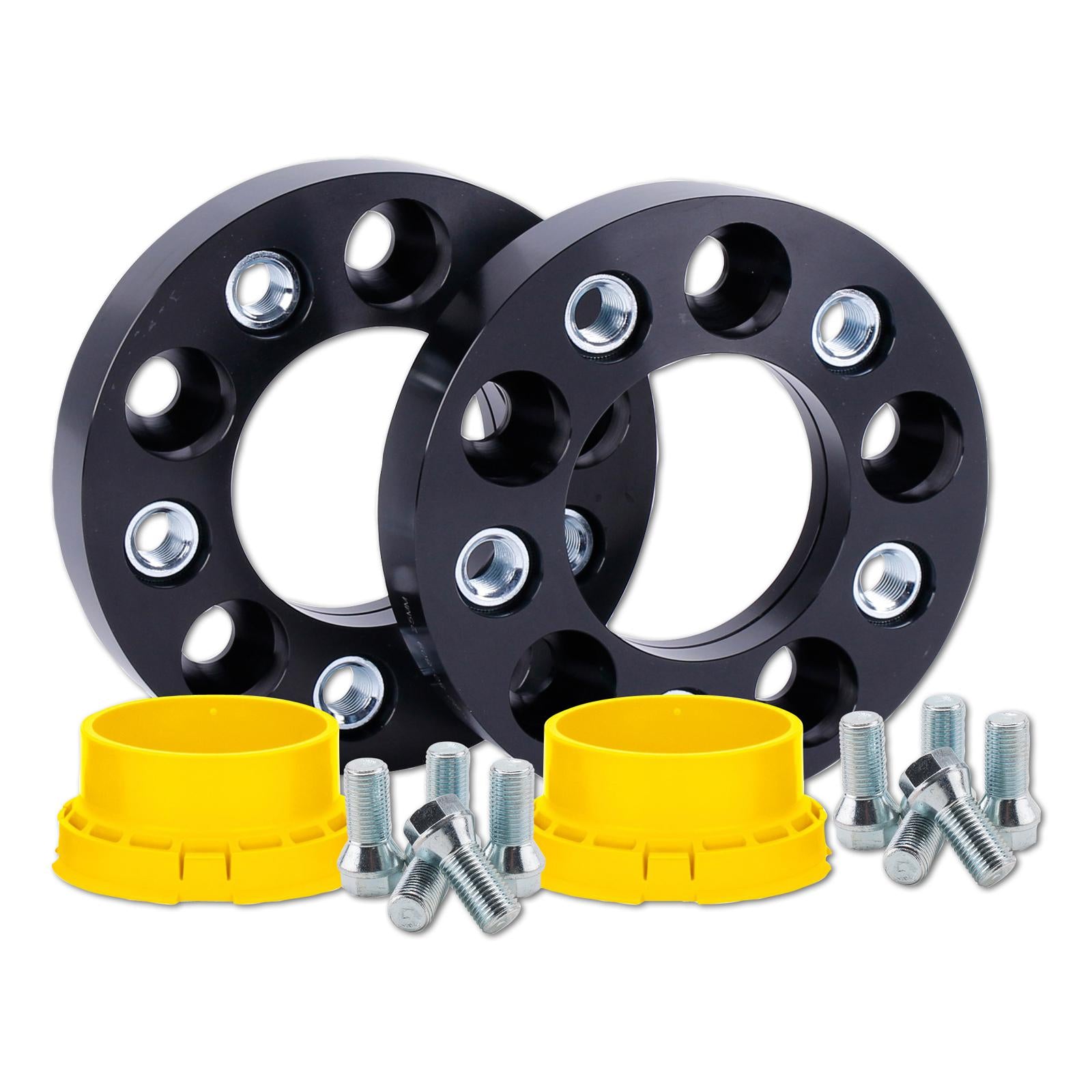

ST's AZX is a bolt-on wheel spacer system with plastic adapter rings for double centring, suiting vehicles with either wheel bolts or wheel studs. The spacer bolts to the hub with the supplied hardware, and the wheel then mounts to the spacer. Interchangeable adapter rings cover different hub centre bores.

Key Features

  • Double centring via interchangeable adapter rings
  • Black anodised for corrosion protection
  • Wider track for a more planted stance

Specifications

  • Width: 40 mm per axle (20 mm per wheel)
  • Bolt pattern (PCD): 5x112
  • Centre bore: 66.6 mm
  • Mounting: Bolt-on (spacer bolts to the hub; wheel fits to the spacer)
  • Centring collar: Yes
  • Vehicle wheel fastening: Wheel bolts, M14x1.5
  • Position: Front or rear axle
  • Material: Aluminium with composite adapters
  • Supplied as: 2 spacer discs, 2 adapters
Note For vehicles with a wheel thread other than M14x1.5, double-threaded studs or wheel bolts are ordered separately.

ATTENTION! For cars with thread size different to M14x1,5, please order double-threaded bolt or wheel bolts separately.

NOT in combination with steel wheels.

References 311. See the Disclaimer tab for reference notes.

Wheel mounting

Bolt pattern5x112
Hub bore66.6mm
Width per axle40mm
SystemAZX
ThreadBolt: M14x1.5x27 Ball R13, 17mm wrench size
Wheel offset limit11
MaterialAluminium, composite material
Supplied as2 spacer discs, 2 adapters
  • Note 311: NOT in combination with steel wheels.
  • Note 329: Please consider the maximum total offset and all mentioned notes and restrictions in the certificate. The total offset is the result of the difference of the offset at the used wheel and the thickness of the wheel spacers (for example rim offset+35mm & wheel spacers 15mm = total offset +20mm).
