ST Wheel Spacer System D2 16mm per Axle 5x114.3/64.1 for Tesla Model 3

SKU: 56020301
Sale price$360.05 Regular price$379.00
Save $18.95

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

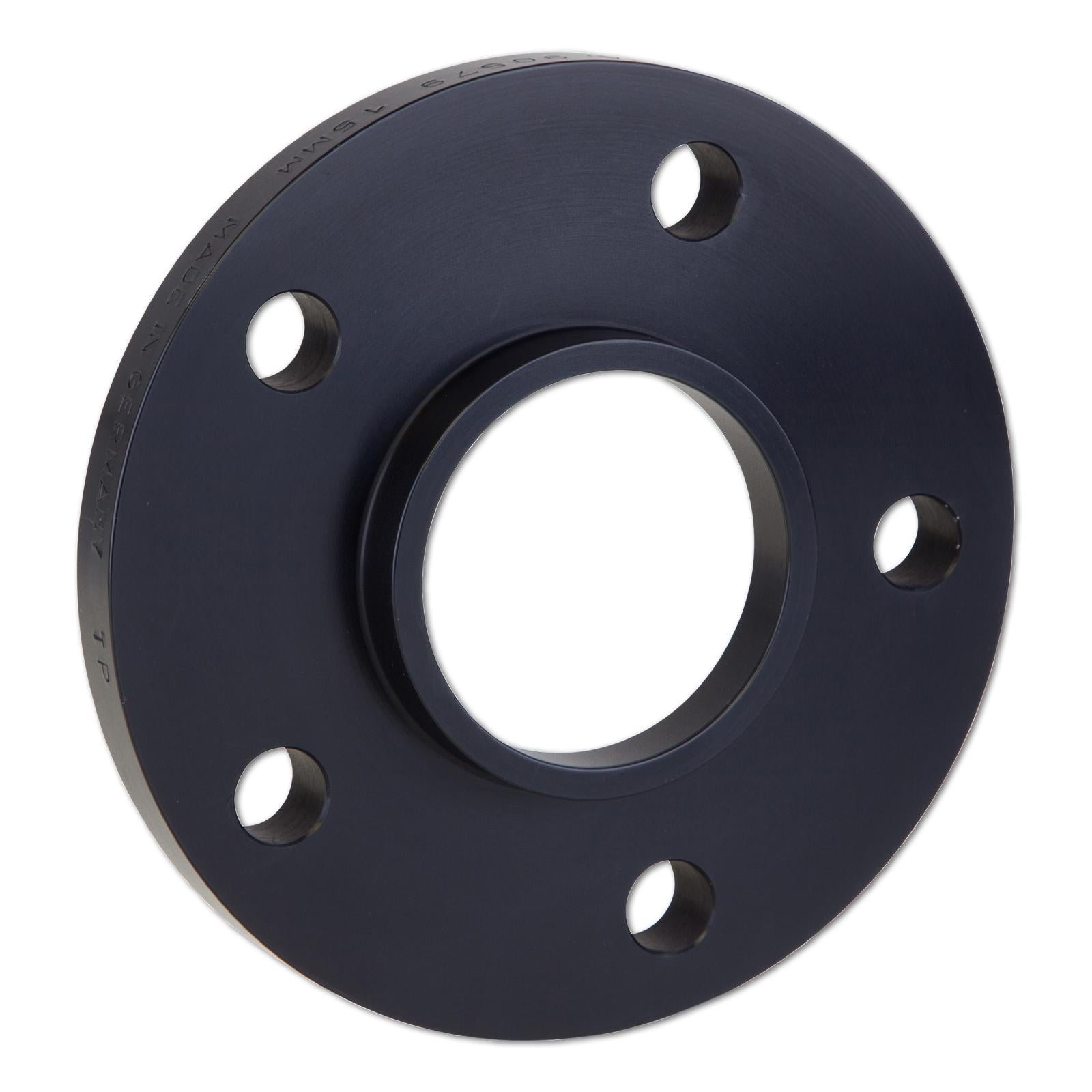

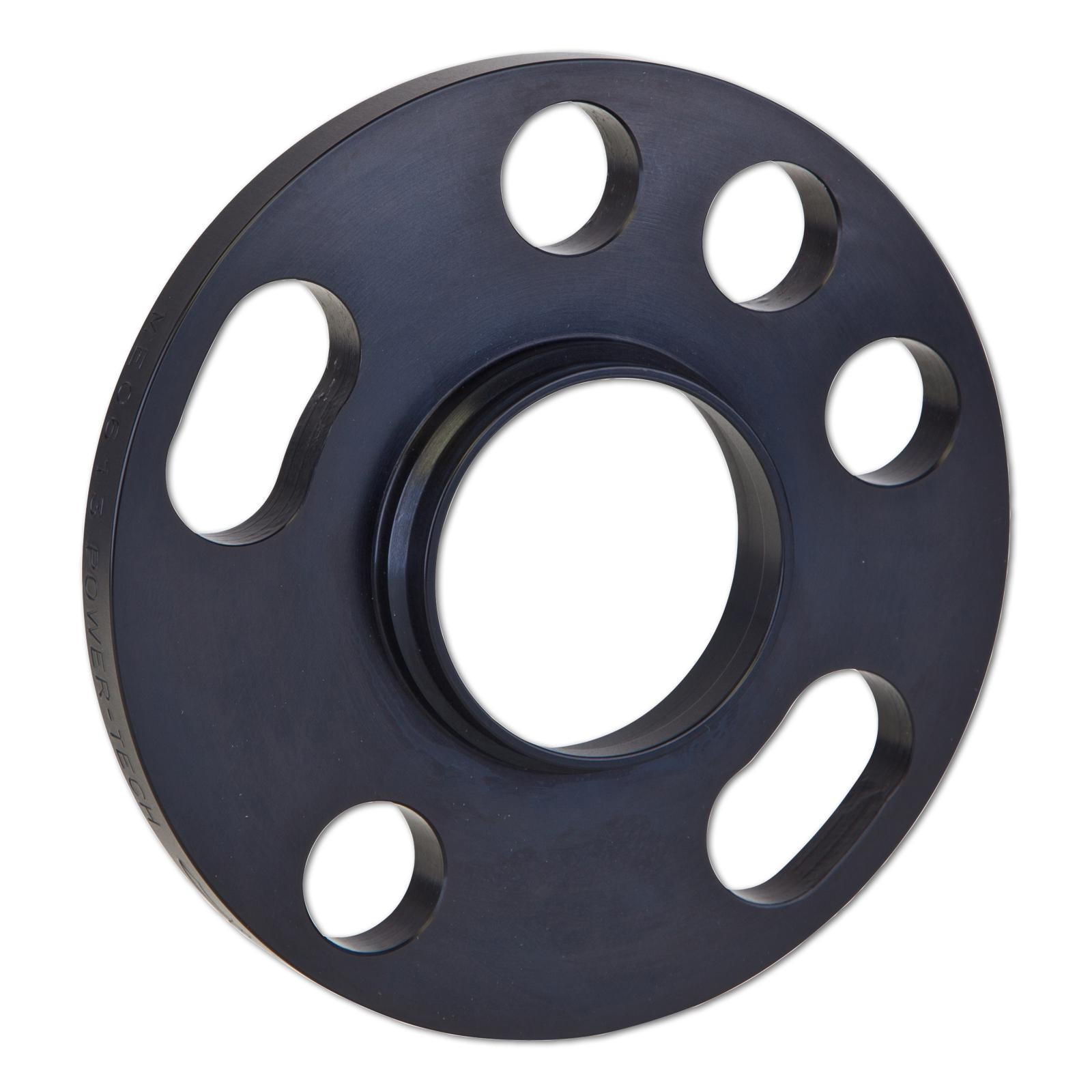

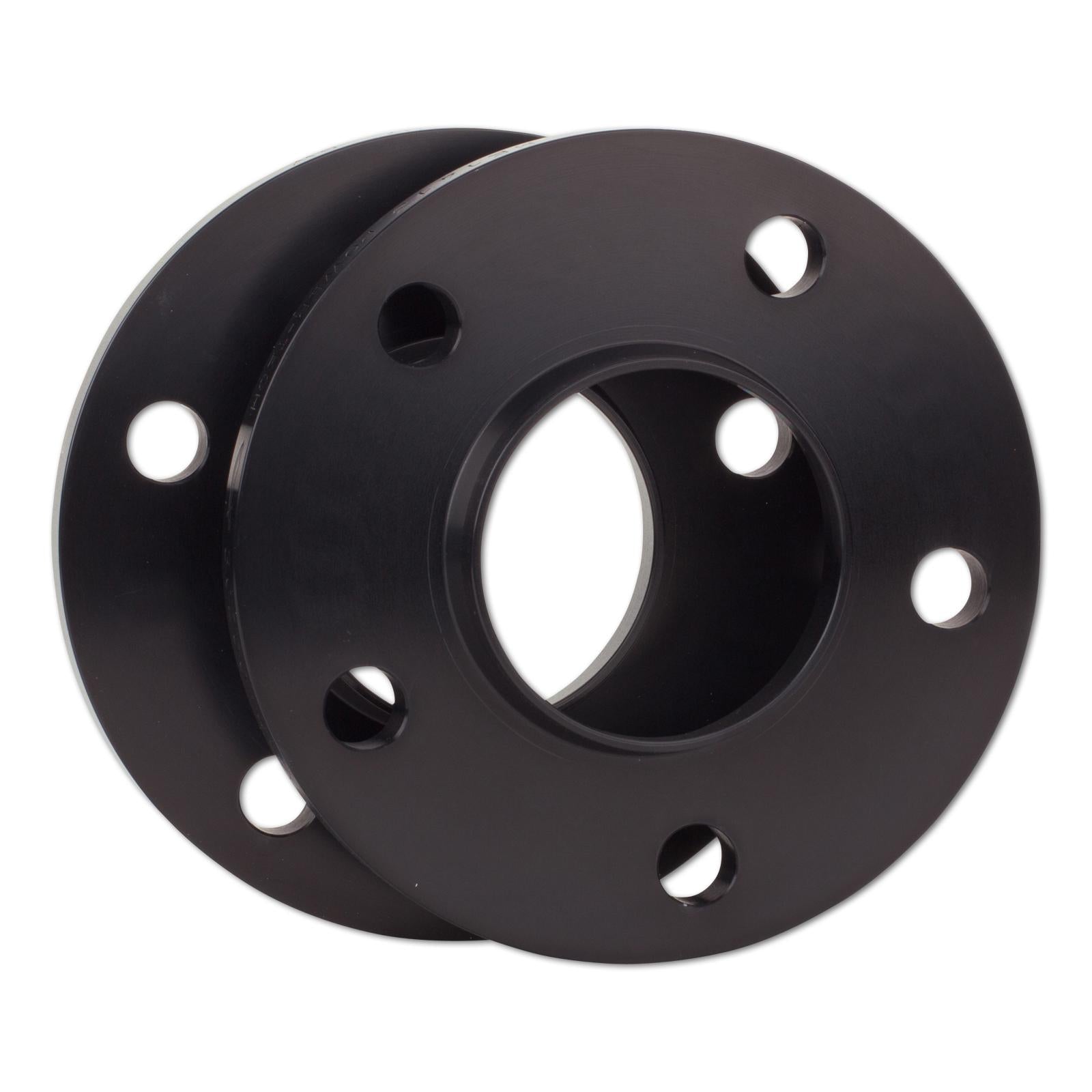

ST's D2 is a bolt-through wheel spacer with double centring: the spacer centres on the hub, and an additional centring collar on the spacer locates the wheel. Longer wheel bolts are required. This part is listed for the Tesla Model 3.

Key Features

  • Double centring
  • Black anodised for corrosion protection
  • Wider track for a more planted stance

Specifications

  • Width: 16 mm per axle (8 mm per wheel)
  • Bolt pattern (PCD): 5x114.3
  • Centre bore: 64.1 mm
  • Mounting: Bolt-through (longer wheel fasteners pass through the spacer)
  • Centring collar: Yes
  • Vehicle wheel fastening: Wheel nuts, M14x1.5
  • Position: Front or rear axle
  • Material: Aluminium
  • Supplied as: Set (2 pcs)

References 333. See the Disclaimer tab for reference notes.

Wheel mounting

Bolt pattern5x114.3
Hub bore64.1mm
Width per axle16mm
SystemD2
ThreadNut: M14x1.5x Taper 60°, 21mm wrench size
Wheel offset limit12.5 (-20)
MaterialAluminium
Supplied asset (2 pcs)
  • Note 333: Only in conjunction with standard wheels. During assembly, please ensure that there is sufficient residual reinforcement on the wheel hub (approx. 2 mm) for the rim. ATTENTION! The minimum screw-in depths must be observed. M12x1.25 at least 8.0 turns (10mm supporting thread) M12x1.50 at least 6.5 turns (10mm supporting thread) M14x1.50 at least 7.5 turns (11mm supporting thread) M15x1.25 at least 10.0 turns (13mm supporting thread) 1/2 at least 8 turns (11mm supporting thread).
