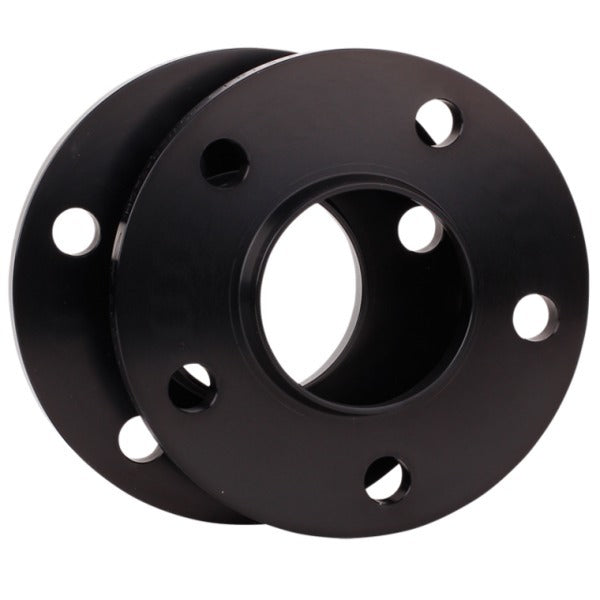

ST Wheel Spacer System D2 18mm per Axle 5x114.3/60.1 for Toyota (GXPA16) GR Yaris

SKU: 56020303
Sale price$360.05 Regular price$379.00
Save $18.95

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


ST's D2 is a bolt-through wheel spacer with double centring: the spacer centres on the hub, and an additional centring collar on the spacer locates the wheel. Longer wheel bolts are required. This part is listed for the Toyota GR Yaris (GXPA16).

Key Features

  • Double centring
  • Black anodised for corrosion protection
  • Wider track for a more planted stance

Specifications

  • Width: 18 mm per axle (9 mm per wheel)
  • Bolt pattern (PCD): 5x114.3
  • Centre bore: 60.1 mm
  • Mounting: Bolt-through (longer wheel fasteners pass through the spacer)
  • Centring collar: Yes
  • Vehicle wheel fastening: Wheel nuts, M12x1.5
  • Position: Rear axle
  • Material: Aluminium
  • Supplied as: Set (2 pcs)

References 308, 313, 337. See the Disclaimer tab for reference notes.

Wheel mounting

Bolt pattern5x114.3
Hub bore60.1mm
Width per axle18mm
SystemD2
ThreadNut: M12x1.5 Flat seat, 21mm wrench size
Wheel offset limit10
MaterialAluminium
Supplied asset (2 pcs)
  • Note 308: Only for rear axle.
  • Note 313: Chamfer of the rim at least 5x45°, length of wheel hub max. 13,0mm.
