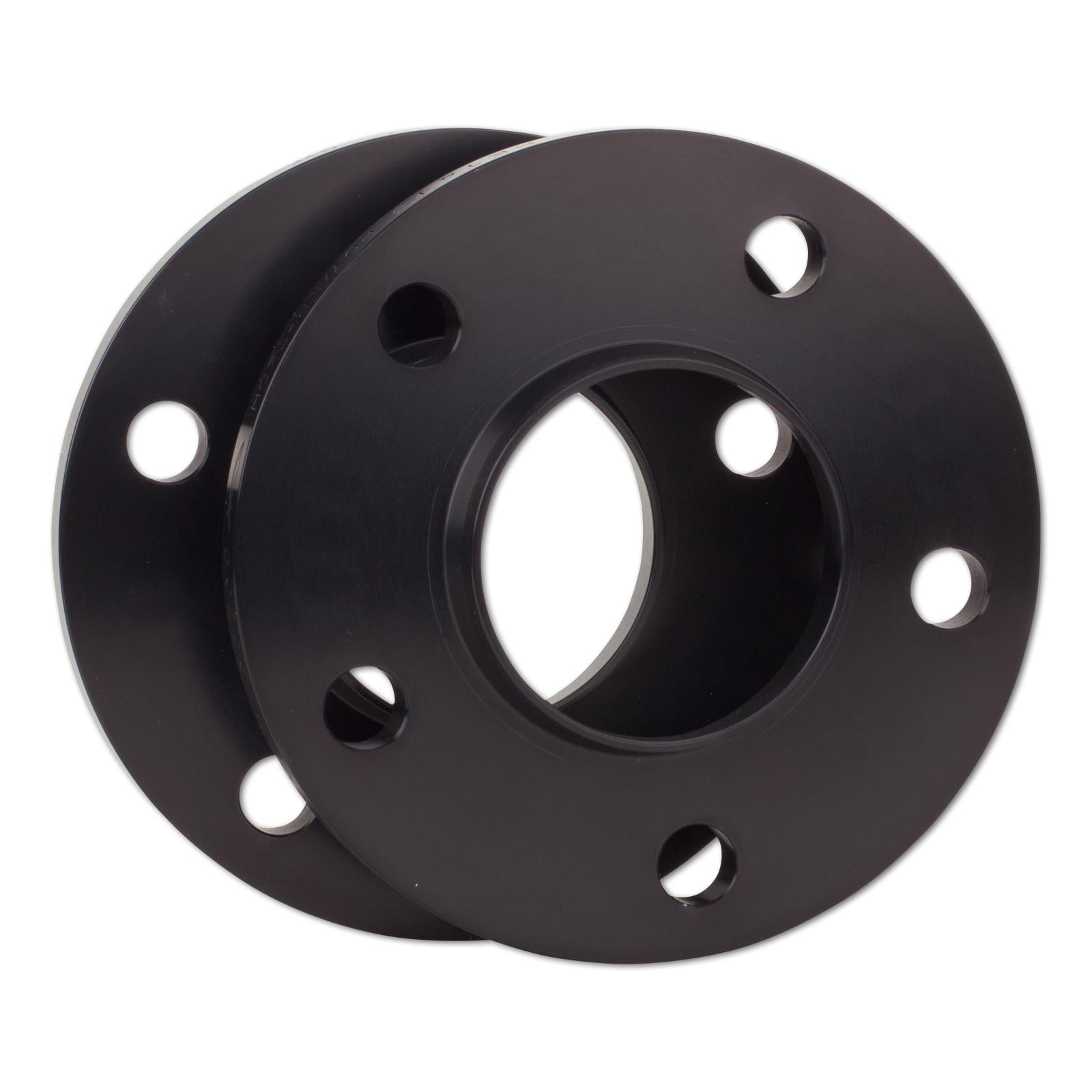

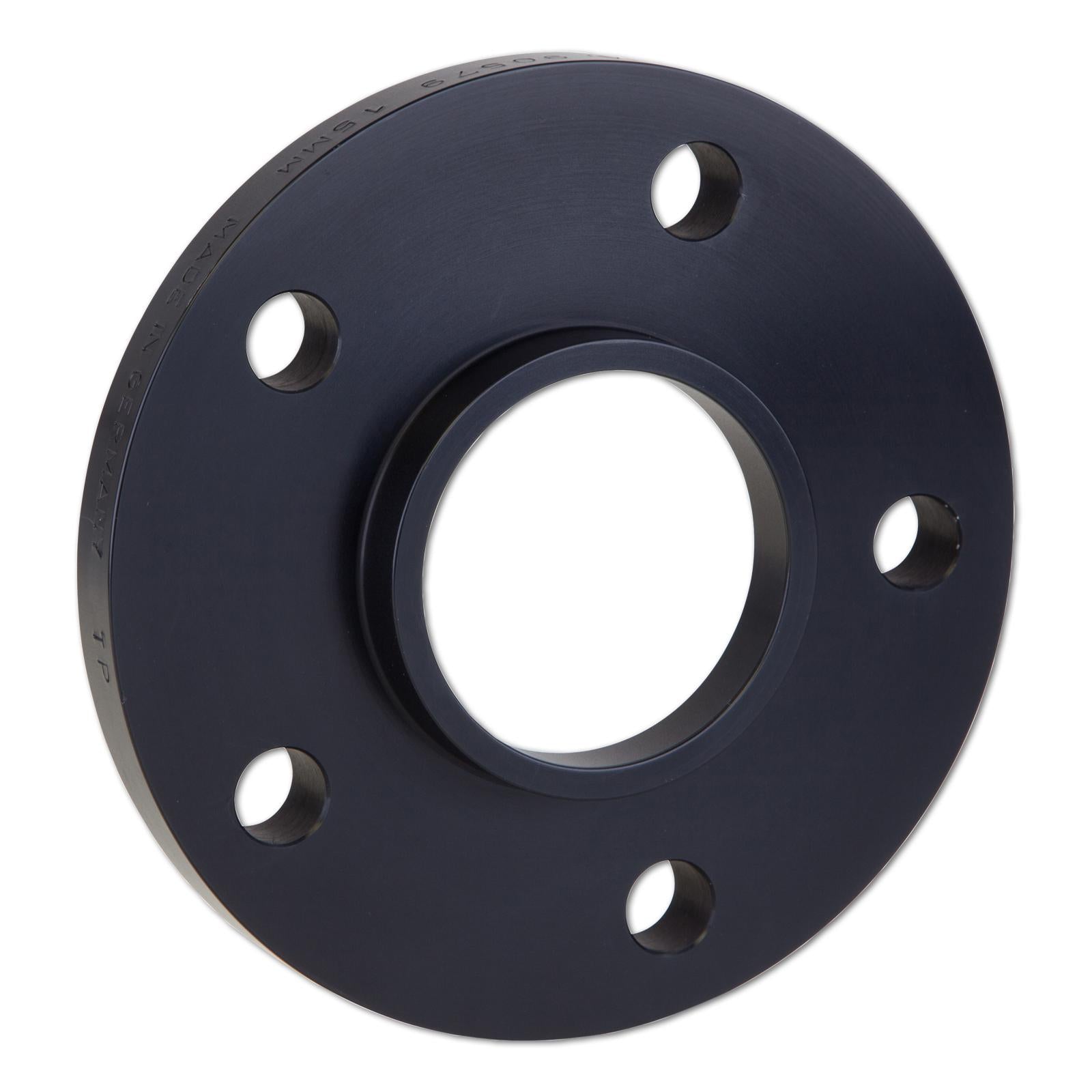

ST Wheel Spacer System D2 20mm per Axle 4x100 - 54.1 Bore

SKU: 56020159
Sale price$322.05 Regular price$339.00
Save $16.95

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


ST's D2 is a bolt-through wheel spacer with double centring: the spacer centres on the hub, and an additional centring collar on the spacer locates the wheel. Longer wheel bolts are required.

Key Features

  • Double centring
  • Black anodised for corrosion protection
  • Wider track for a more planted stance

Specifications

  • Width: 20 mm per axle (10 mm per wheel)
  • Bolt pattern (PCD): 4x100, 5x100
  • Centre bore: 54.1 mm
  • Mounting: Bolt-through (longer wheel fasteners pass through the spacer)
  • Centring collar: Yes
  • Vehicle wheel fastening: Wheel bolts, M12x1.5
  • Position: Front or rear axle
  • Material: Aluminium
  • Supplied as: Set (2 pcs)

Wheel mounting

Bolt pattern4x100
Hub bore54.1mm
Width per axle20mm
SystemD2
ThreadBolt: M12x1.5
Wheel offset limit30
MaterialAluminium
Supplied asset (2 pcs)
  • Note 320: ST shaft nuts with a 60° taper seat must be used to mount the wheel. The mounting holes of the wheel must have 60° taper seat, too. Additionally please check before assembly if the shaft of the ST shaft nut fits through the mounting holes of the wheel. ST shaft nuts can only be used in combination with system DZX. ST shaft nuts must be ordered separately. ATTENTION! Pleases consider minimum thread engagement. M12x1.25 at least 12.0 turns (15mm supporting thread) M12x1.50 at least 10.0 turns (15mm supporting thread) M14x1.50 at least 12.5 turns (19mm supporting thread) 1/2“ at least 12.0 turns (16mm supporting thread).
