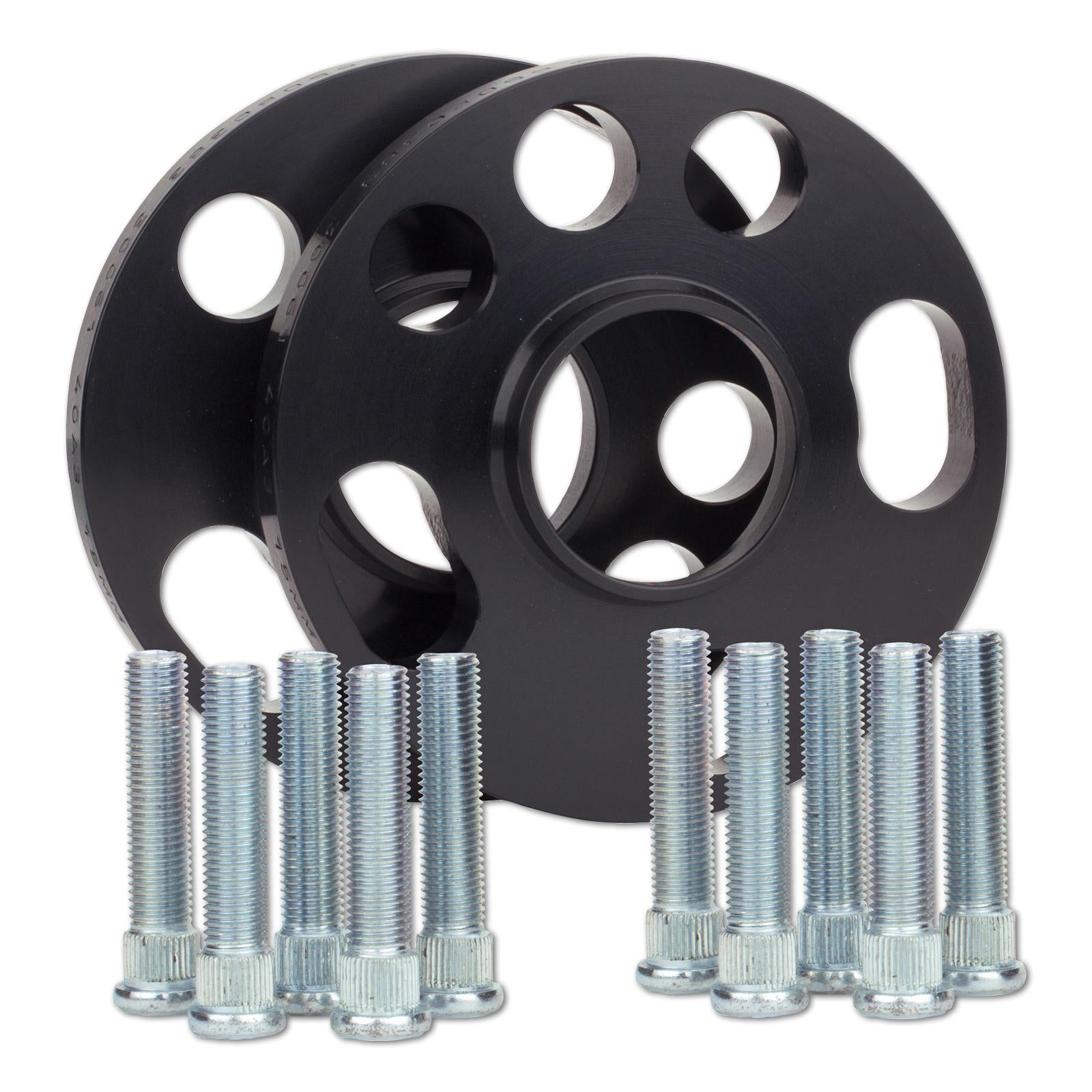

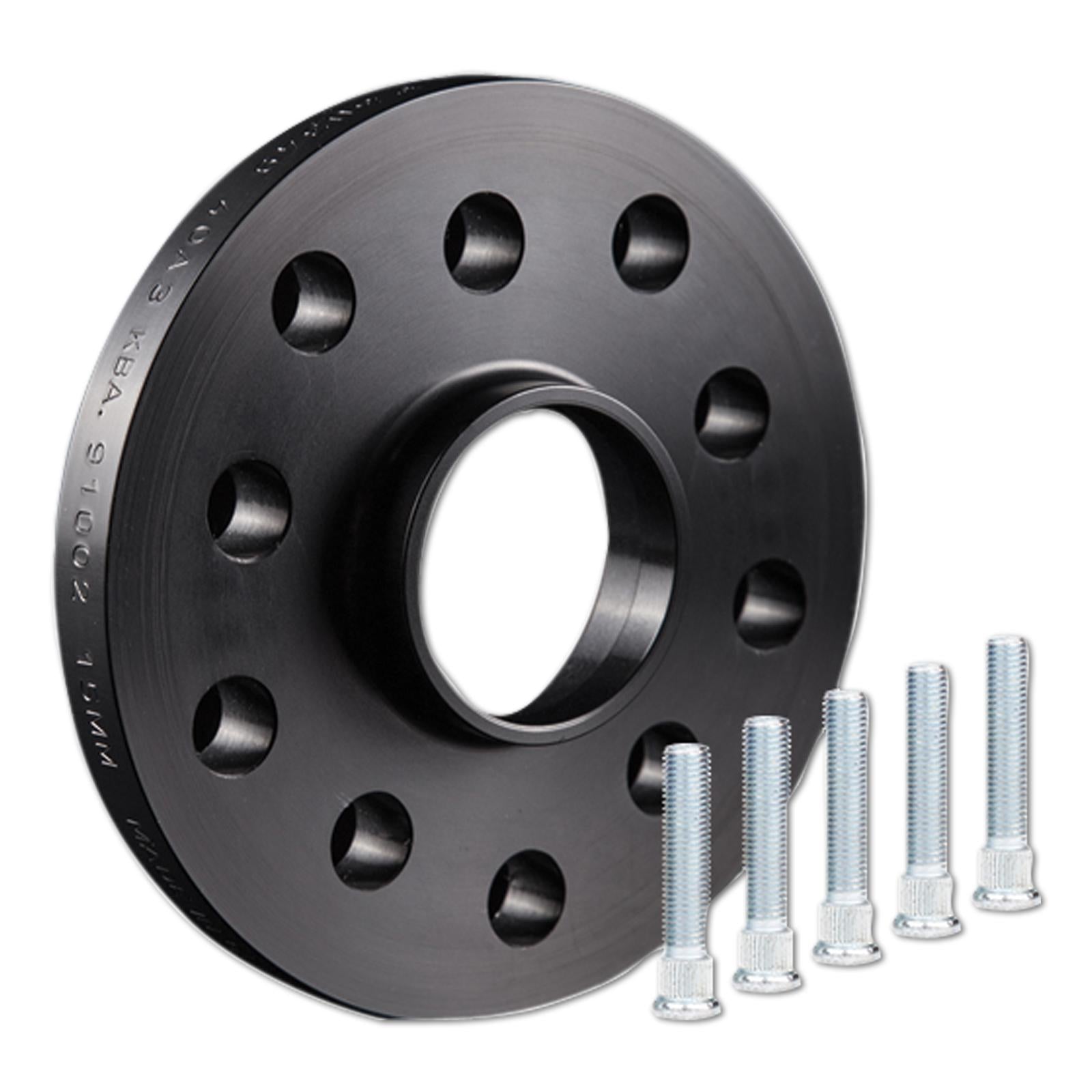

ST's D3 is a bolt-through wheel spacer with double centring for vehicles with wheel studs: the spacer centres on the hub and a collar on the spacer locates the wheel. Longer knurled studs are included. This part is listed for the Toyota GT86 (ZN6) / Subaru BRZ (ZC).
Key Features
- Double centring
- Longer knurled studs included
- Black anodised for corrosion protection
- Wider track for a more planted stance
Specifications
- Width: 20 mm per axle (10 mm per wheel)
- Bolt pattern (PCD): 5x100
- Centre bore: 56.1 mm
- Mounting: Bolt-through (longer wheel fasteners pass through the spacer)
- Centring collar: Yes
- Vehicle wheel fastening: Wheel nuts, M12x1.25
- Position: Front or rear axle
- Material: Aluminium
- Supplied as: Set (2 pcs including knurled bolts)
References 307. See the Disclaimer tab for reference notes.
Wheel mounting
| Bolt pattern | 5x100 |
|---|---|
| Hub bore | 56.1mm |
| Width per axle | 20mm |
| System | D3 |
| Thread | Nut: M12x1.25 Taper 60°, 19mm wrench size |
| Wheel offset limit | 32 |
| Material | Aluminium |
| Supplied as | Set (2 pcs. incl.knurled bolts) |
- Note 307: Please order separately.
