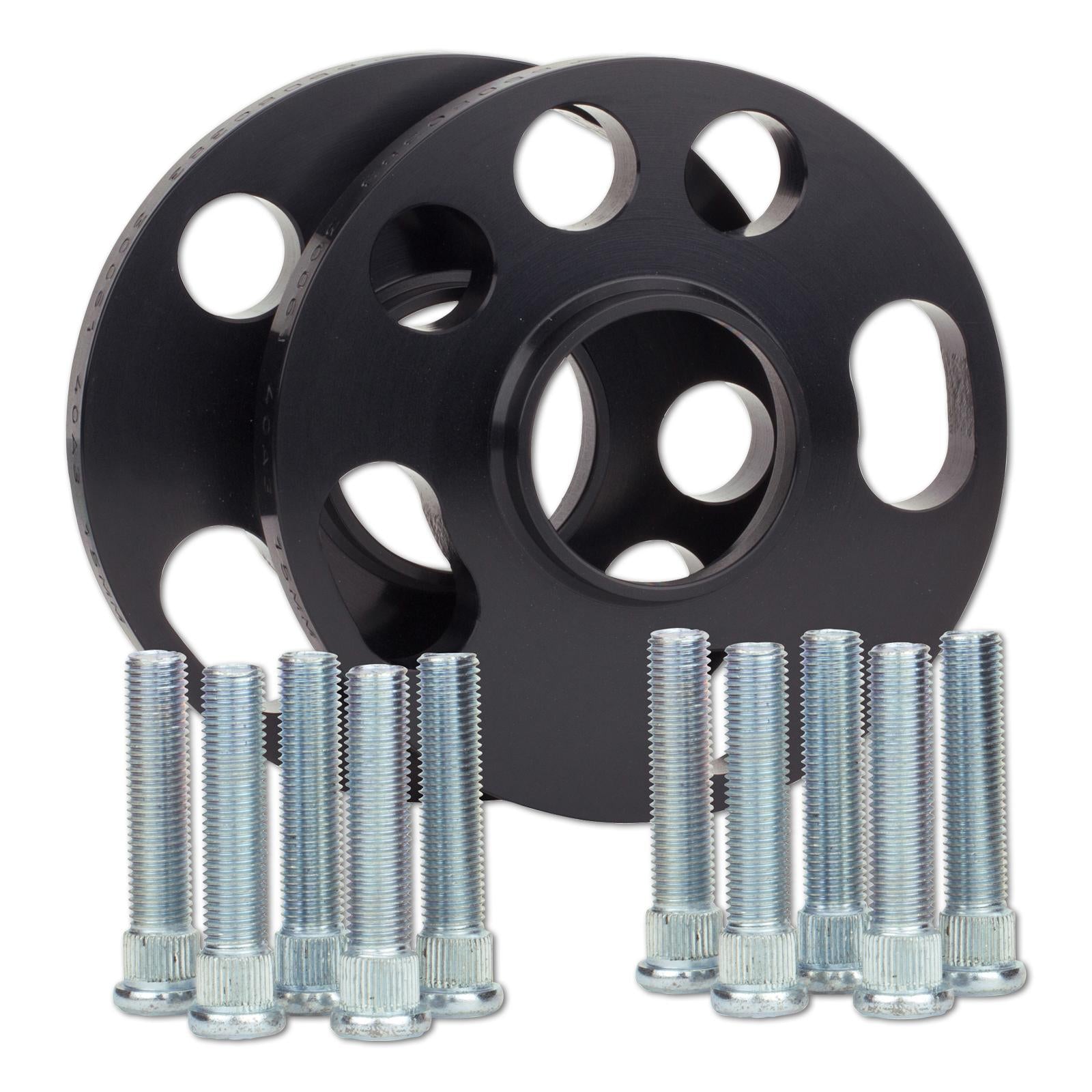

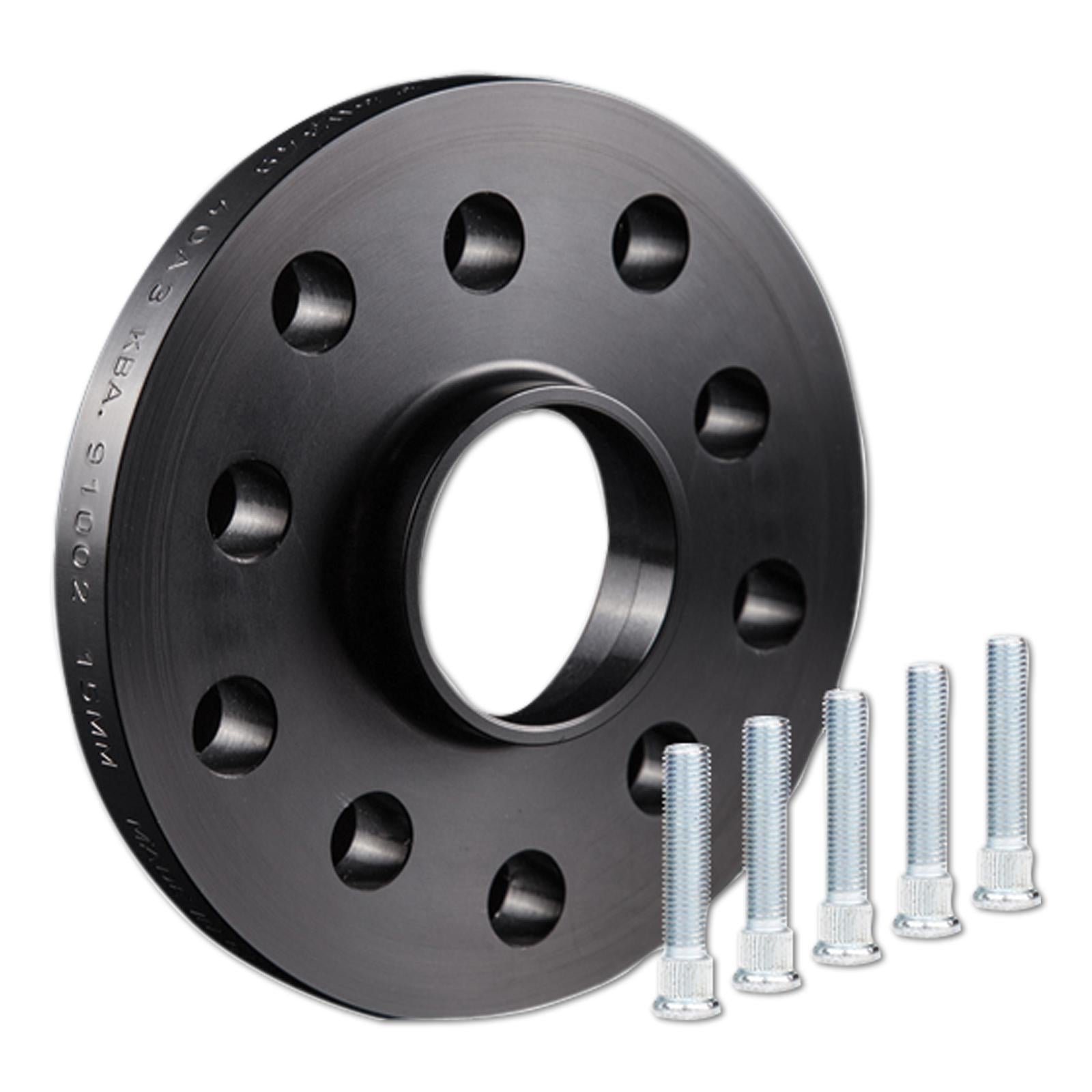

ST Wheel Spacer System D3 24mm per Axle 5x115/70.1 for Opel (P10) Astra J

SKU: 56020197
Sale price$369.55 Regular price$389.00
Save $19.45

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


ST's D3 is a bolt-through wheel spacer with double centring for vehicles with wheel studs: the spacer centres on the hub and a collar on the spacer locates the wheel. Longer knurled studs are included. This part is listed for the Opel Astra J (P10).

Key Features

  • Double centring
  • Longer knurled studs included
  • Black anodised for corrosion protection
  • Wider track for a more planted stance

Specifications

  • Width: 24 mm per axle (12 mm per wheel)
  • Bolt pattern (PCD): 5x115
  • Centre bore: 70.1 mm
  • Mounting: Bolt-through (longer wheel fasteners pass through the spacer)
  • Centring collar: Yes
  • Vehicle wheel fastening: M12x1.5
  • Position: Front or rear axle
  • Material: Aluminium
  • Supplied as: Set (2 pcs including knurled bolts)

References 302, 303, 307. See the Disclaimer tab for reference notes.

Wheel mounting

Bolt pattern5x115
Hub bore70.1mm
Width per axle24mm
SystemD3
ThreadM12x1.5
Wheel offset limit9
MaterialAluminium
Supplied asSet (2 pcs. incl.knurled bolts)
  • Note 302: Wheel arch needs to be rolled / modified.
  • Note 303: Wheel arch modification necessary.
  • Note 307: Please order separately.
