ST Wheel Spacer System D3 40mm per Axle 5x114.3/60.1 for Suzuki (JT) Grand Vitara II / (FR) Kizashi
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

ST Wheel Spacer System D3 40mm per Axle 5x114.3/60.1 for Suzuki (JT) Grand Vitara II / (FR) Kizashi
Sale price$388.55
Regular price$409.00 (/)

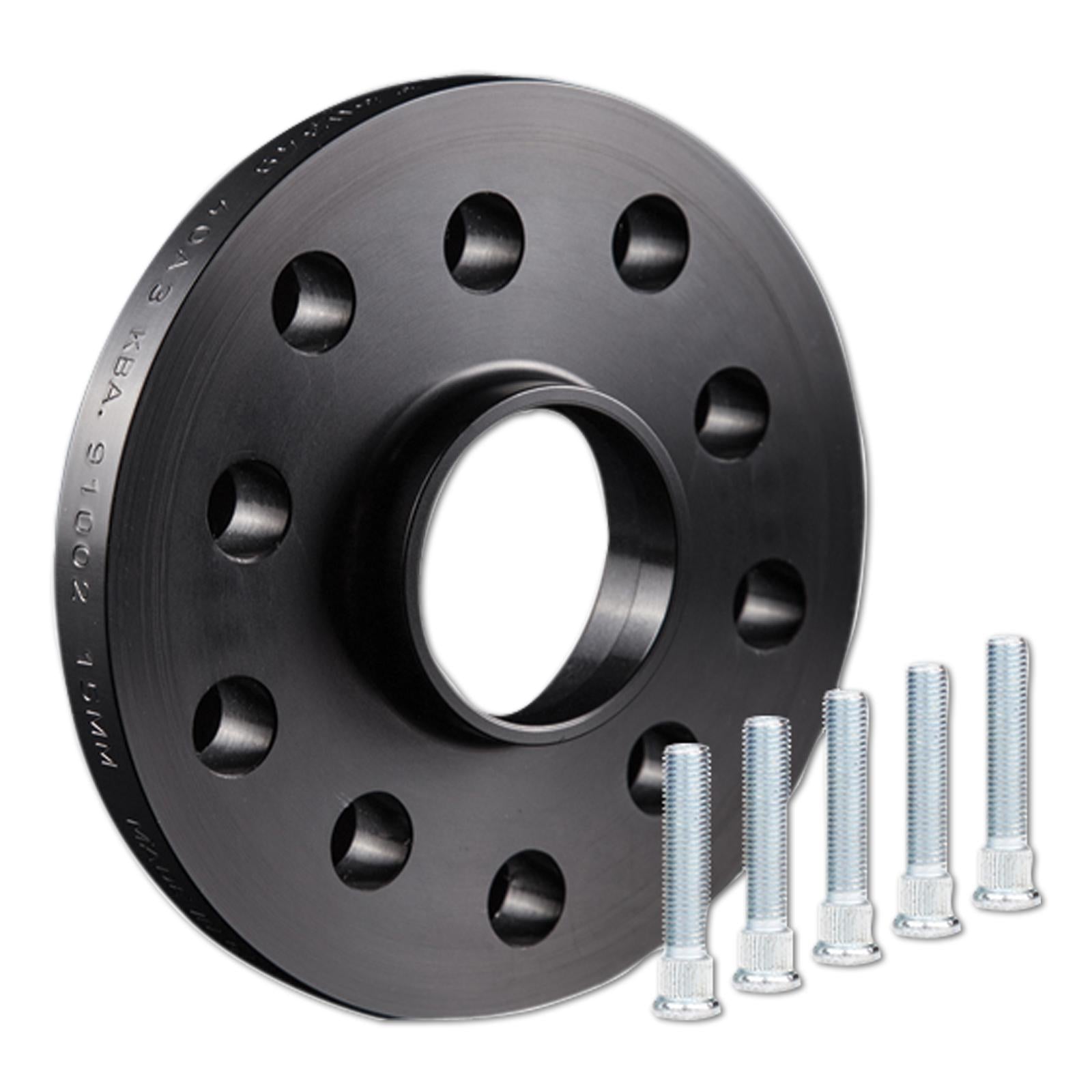

ST's D3 is a bolt-through wheel spacer with double centring for vehicles with wheel studs: the spacer centres on the hub and a collar on the spacer locates the wheel. Longer knurled studs are included. This part is listed for the Suzuki Grand Vitara II (JT) / Kizashi (FR).
Key Features
- Double centring
- Longer knurled studs included
- Black anodised for corrosion protection
- Wider track for a more planted stance
Specifications
- Width: 40 mm per axle (20 mm per wheel)
- Bolt pattern (PCD): 5x114.3
- Centre bore: 60.1 mm
- Mounting: Bolt-through (longer wheel fasteners pass through the spacer)
- Centring collar: Yes
- Vehicle wheel fastening: Wheel nuts, M12x1.25
- Position: Front or rear axle
- Material: Aluminium
- Supplied as: Set (2 pcs including knurled bolts)
References 307, 329. See the Disclaimer tab for reference notes.
Wheel mounting
| Bolt pattern | 5x114.3 |
|---|---|
| Hub bore | 60.1mm |
| Width per axle | 40mm |
| System | D3 |
| Thread | Nut: M12x1.25 Taper 60°, 19mm wrench size |
| Wheel offset limit | 29 |
| Material | Aluminium |
| Supplied as | Set (2 pcs. incl.knurled bolts) |
- Note 307: Please order separately.
- Note 329: Please consider the maximum total offset and all mentioned notes and restrictions in the certificate. The total offset is the result of the difference of the offset at the used wheel and the thickness of the wheel spacers (for example rim offset+35mm & wheel spacers 15mm = total offset +20mm).
