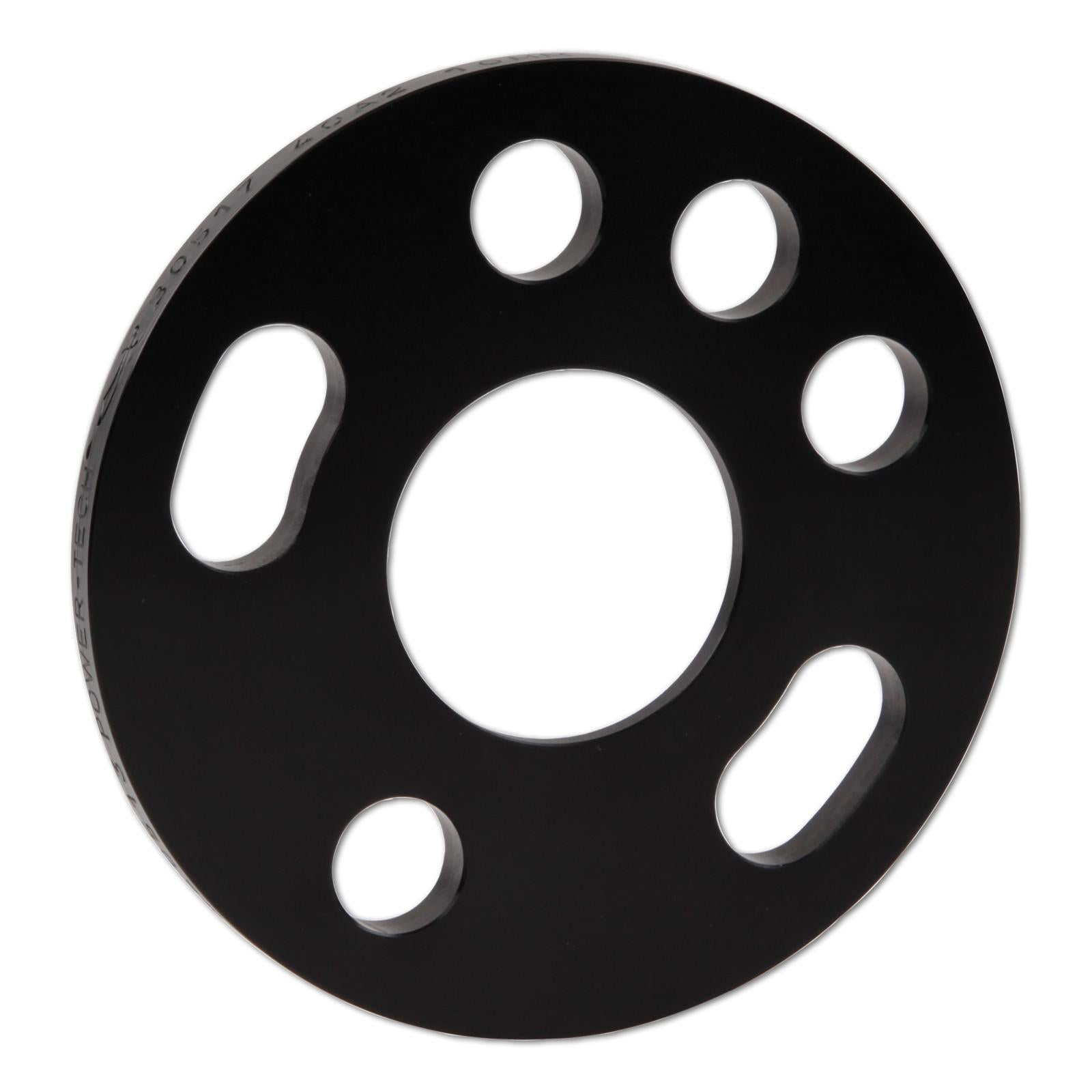

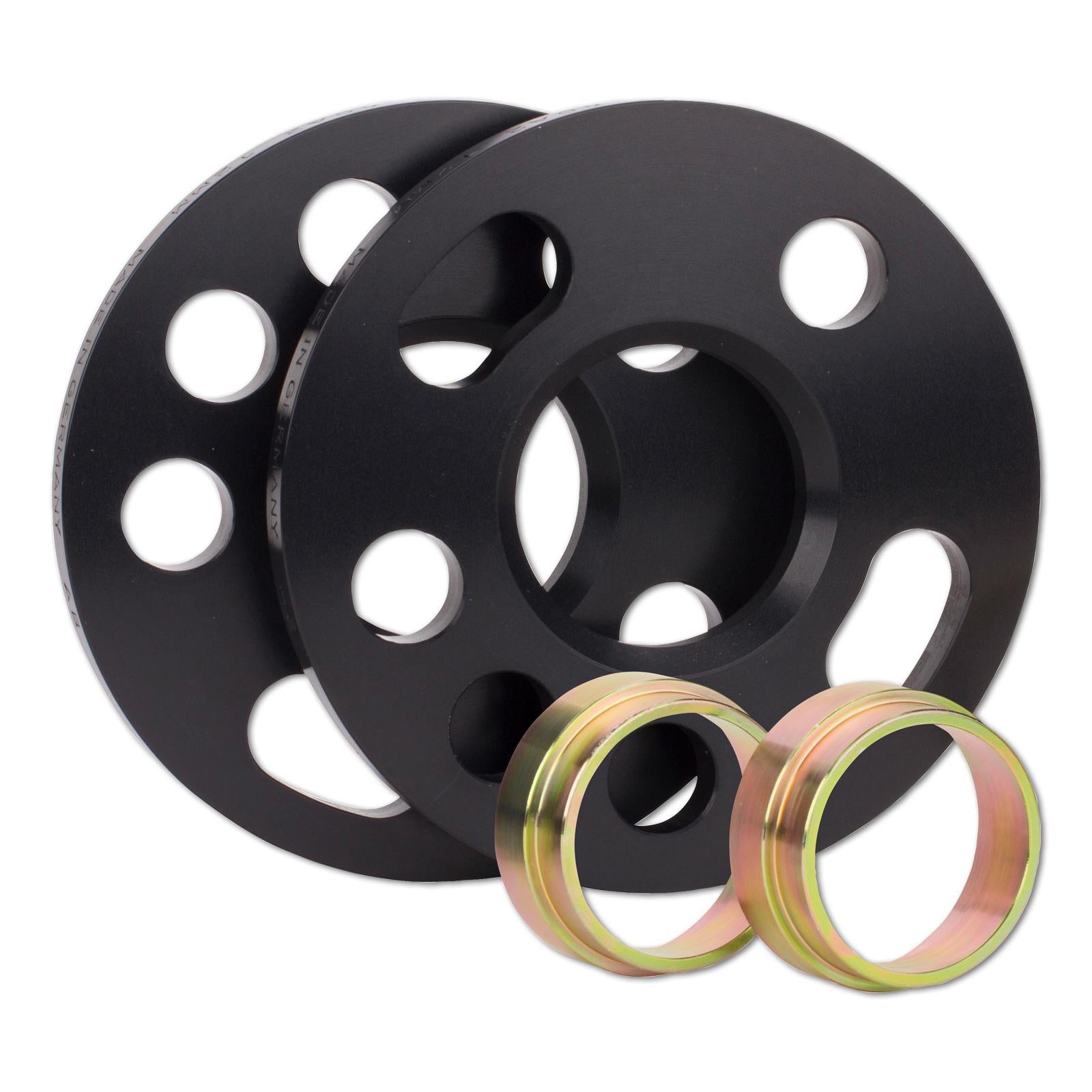

ST Wheel Spacer System DZ 24mm per Axle 5x112/66.5

SKU: 56017006
Sale price$360.05 Regular price$379.00
Save $18.95

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


ST's DZ is a bolt-through wheel spacer system with a centring collar, for vehicles where wheel centring is a challenge. The collar extends the hub spigot so wider spacers can be fitted while the wheel stays hub-centred. Longer wheel bolts are required.

Key Features

  • Extended hub centring collar
  • Black anodised for corrosion protection
  • Wider track for a more planted stance

Specifications

  • Width: 24 mm per axle (12 mm per wheel)
  • Bolt pattern (PCD): 5x112
  • Centre bore: 66.5 mm
  • Mounting: Bolt-through (longer wheel fasteners pass through the spacer)
  • Centring collar: Yes
  • Wheel bolts required: M14x1.5 x 27 mm, radius seat R13, 17 mm wrench
  • Position: Rear axle
  • Material: Aluminium

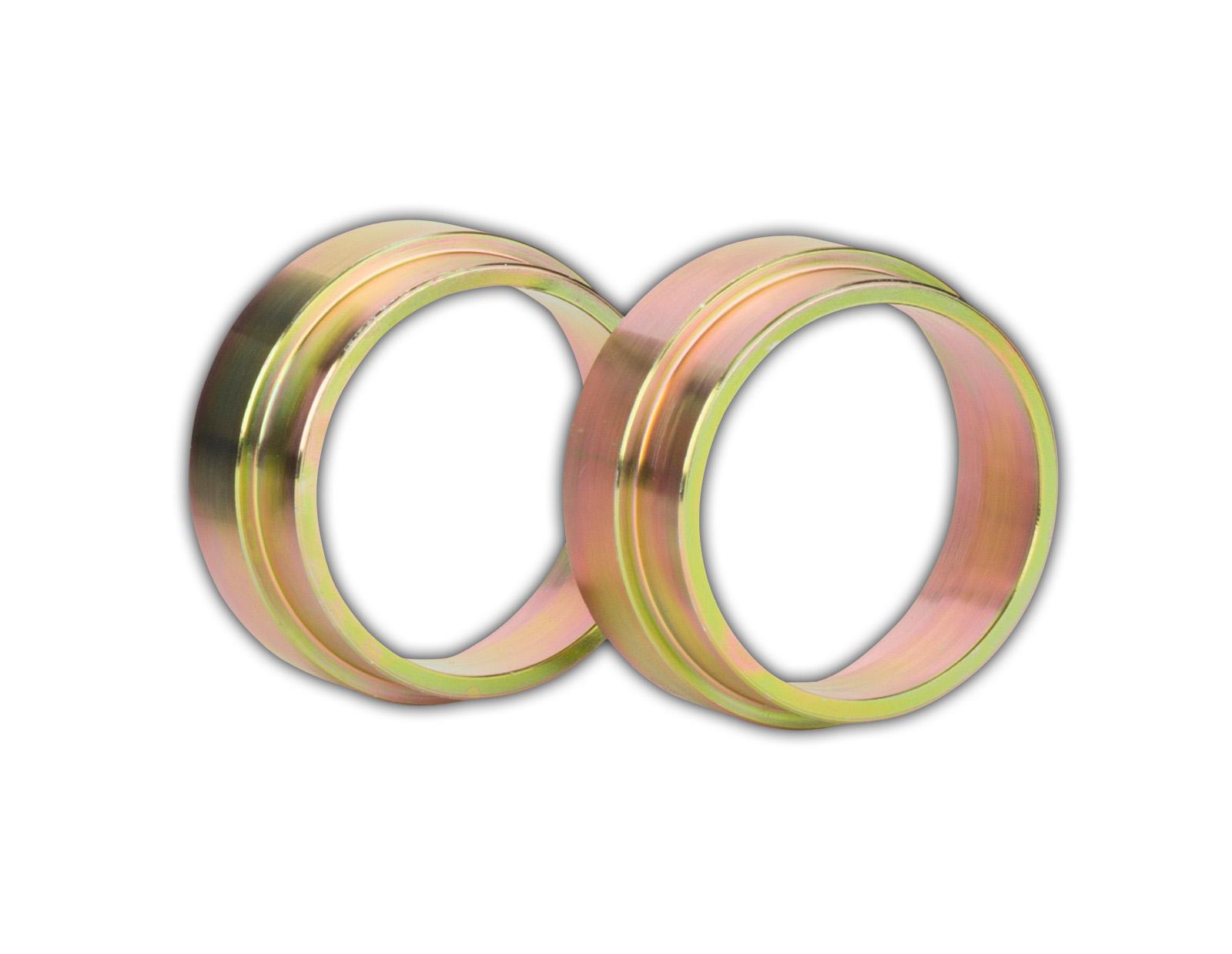

  • Supplied as: Set (2 pcs) including 2 centring collars
Note Longer wheel bolts are required and are ordered separately.

References 308, 322. See the Disclaimer tab for reference notes.

Wheel mounting

Bolt pattern5x112
Hub bore66.5mm
Width per axle24mm
SystemDZ
ThreadBolt: M14x1.5x27 Ball R13, 17mm wrench size
Wheel offset limit11
MaterialAluminium
Supplied asSet (2 pcs.) incl. 2 centering sleeve
  • Note 308: Only for rear axle.
  • Note 322: Not for vehicles with 4WD.
