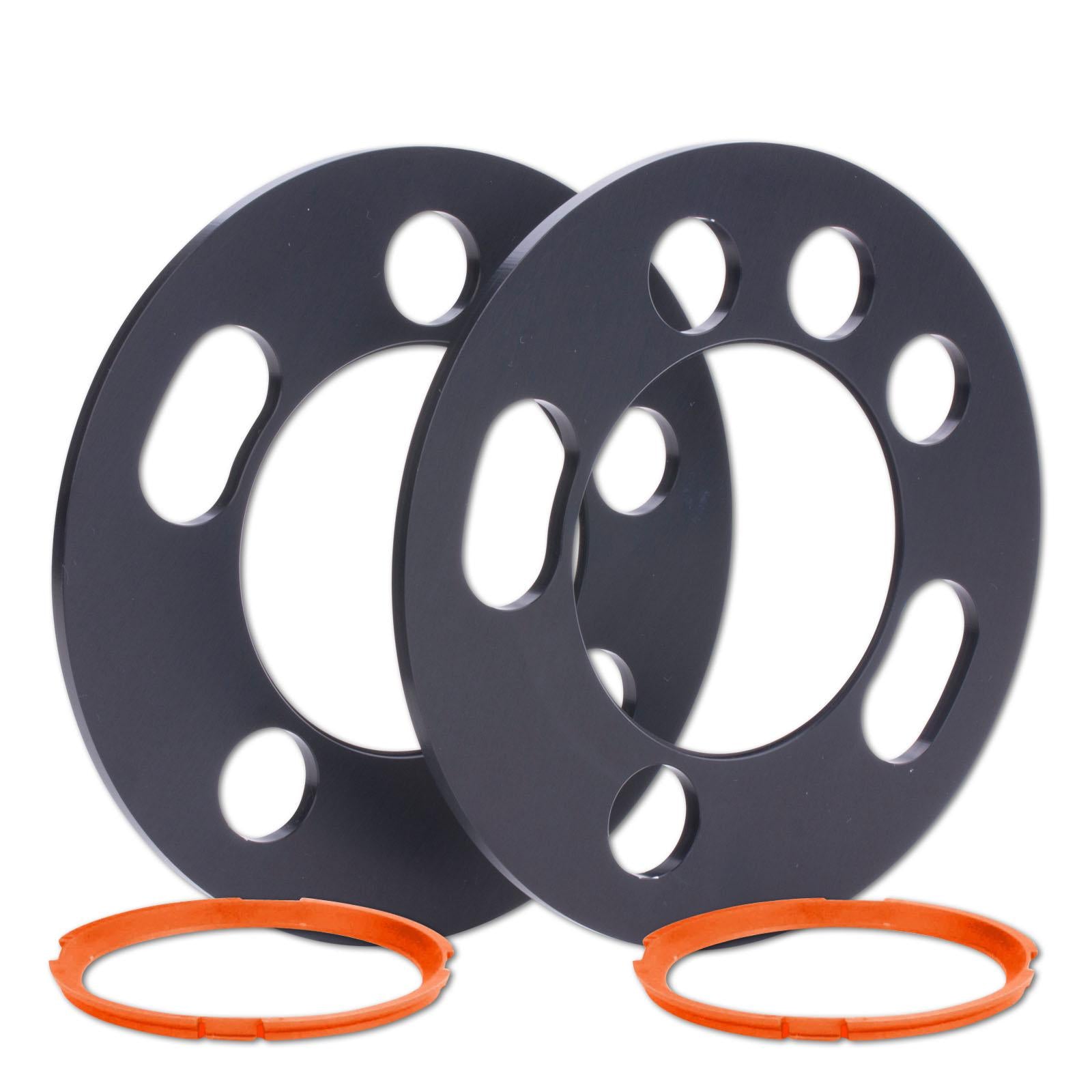

ST Wheel Spacer System DZX 10mm per Axle for VW (7H) Transporter T5 / (SG) T6 / Multivan / California
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

ST Wheel Spacer System DZX 10mm per Axle for VW (7H) Transporter T5 / (SG) T6 / Multivan / California
Sale price$284.05
Regular price$299.00 (/)
ST's DZX is a bolt-through wheel spacer system with multi-PCD bolt holes and interchangeable fibre-reinforced composite adapter rings that centre the spacer on the hub. The modular design suits both 4- and 5-stud hubs and a wide range of centre bores. Longer wheel bolts are required. This part is listed for the VW Transporter T5 (7H) / T6 (SG) / Multivan / California.
Key Features
- Interchangeable composite centring adapters
- Black anodised for corrosion protection
- Wider track for a more planted stance
Specifications
- Width: 10 mm per axle (5 mm per wheel)
- Bolt pattern (PCD): 5x120
- Centre bore: 65.1 mm
- Mounting: Bolt-through (longer wheel fasteners pass through the spacer)
- Centring collar: No
- Vehicle wheel fastening: Wheel bolts, M14x1.5
- Position: Front or rear axle
- Material: Aluminium with composite adapters
- Supplied as: 2 spacer discs, 2 adapters
Note Longer wheel bolts or shaft nuts are required and are ordered separately.
Attention! Additionally please order longer wheel bolts or shaft nuts!
NOT in combination with steel wheels.
References 311. See the Disclaimer tab for reference notes.
Wheel mounting
| Bolt pattern | 5x120 |
|---|---|
| Hub bore | 65.1mm |
| Width per axle | 10mm |
| System | DZX |
| Thread | Bolt: M14x1.5x37 Ball R14 loose, 19mm wrench size |
| Wheel offset limit | 33|34 |
| Material | Aluminium, composite material |
| Supplied as | 2 spacer discs, 2 adapters |
- Note 311: NOT in combination with steel wheels.
