ST Wheel Spacer System DZX 10mm per Axle 4/5-Stud - 67.1mm Bore 5/6x114.3-132

SKU: 56050337
Sale price$284.05 Regular price$299.00
Save $14.95

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

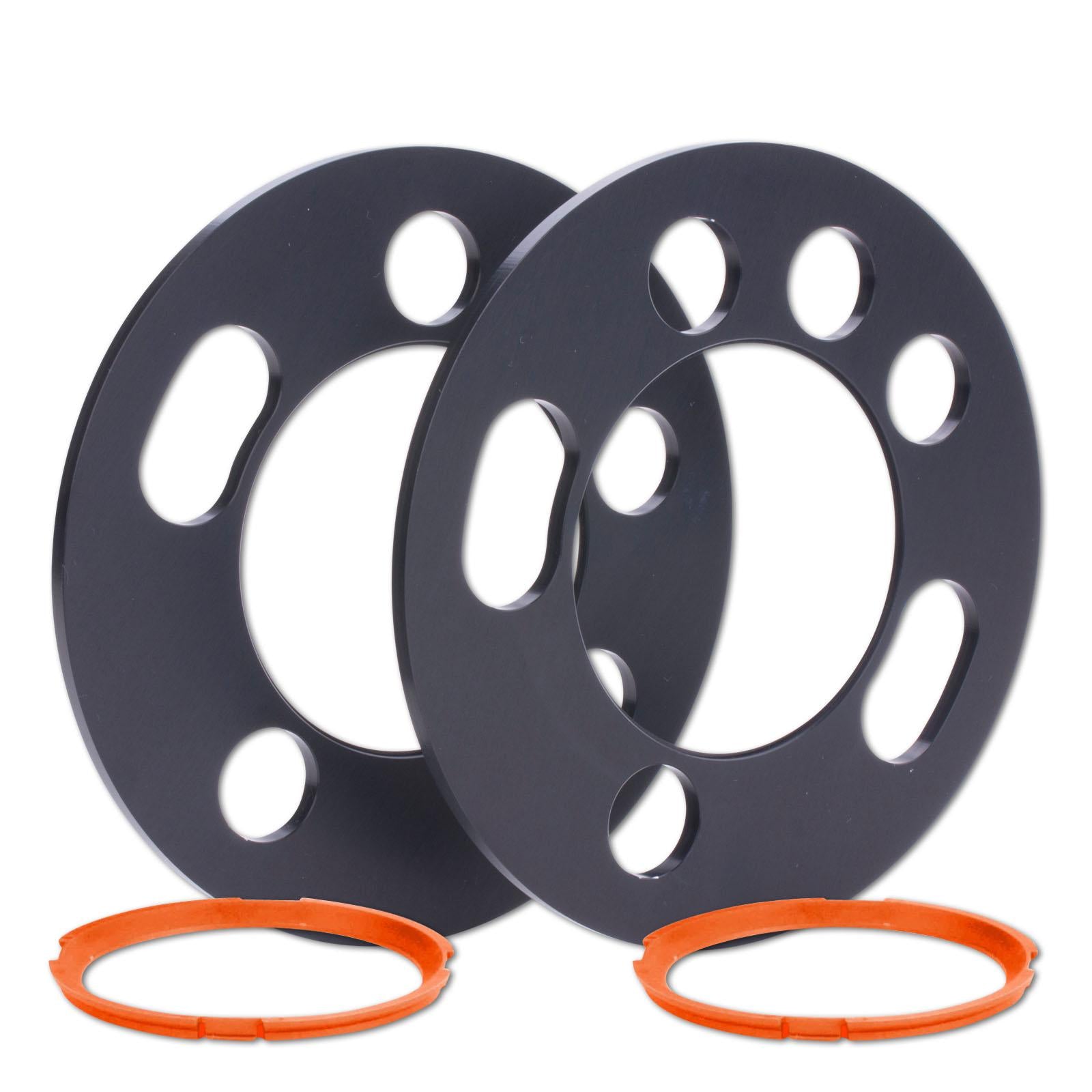

ST's DZX is a bolt-through wheel spacer system with multi-PCD bolt holes and interchangeable fibre-reinforced composite adapter rings that centre the spacer on the hub. The modular design suits both 4- and 5-stud hubs and a wide range of centre bores. Longer wheel bolts are required.

Key Features

  • Interchangeable composite centring adapters
  • Black anodised for corrosion protection
  • Wider track for a more planted stance

Specifications

  • Width: 10 mm per axle (5 mm per wheel)
  • Bolt pattern (PCD): 5x120
  • Centre bore: 67.1 mm
  • Mounting: Bolt-through (longer wheel fasteners pass through the spacer)
  • Centring collar: No
  • Vehicle wheel fastening: Wheel nuts, M14x1.5
  • Position: Front or rear axle
  • Material: Aluminium with composite adapters
  • Supplied as: 2 spacer discs, 2 adapters
Note Longer wheel bolts or shaft nuts are required and are ordered separately.

Attention! Additionally please order longer wheel bolts or shaft nuts!

NOT in combination with steel wheels.

References 310, 311. See the Disclaimer tab for reference notes.

Wheel mounting

Bolt pattern5x120
Hub bore67.1mm
Width per axle10mm
SystemDZX
ThreadNut: M14x1.5 Taper 60°, 22mm wrench size
Wheel offset limitFront 11 / Rear -4
MaterialAluminium, composite material
Supplied as2 spacer discs, 2 adapters
  • Note 310: Please be careful with fitting. There must be enough centering on the wheel hub (approx 2mm).
  • Note 311: NOT in combination with steel wheels.
  • Note 320: ST shaft nuts with a 60° taper seat must be used to mount the wheel. The mounting holes of the wheel must have 60° taper seat, too. Additionally please check before assembly if the shaft of the ST shaft nut fits through the mounting holes of the wheel. ST shaft nuts can only be used in combination with system DZX. ST shaft nuts must be ordered separately. ATTENTION! Pleases consider minimum thread engagement. M12x1.25 at least 12.0 turns (15mm supporting thread) M12x1.50 at least 10.0 turns (15mm supporting thread) M14x1.50 at least 12.5 turns (19mm supporting thread) 1/2“ at least 12.0 turns (16mm supporting thread).
