ST Wheel Spacer System DZX 20mm per Axle for Nissan (K14) Micra V / (X76) Kubistar

SKU: 56050093
Sale price$293.55 Regular price$309.00
Save $15.45

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

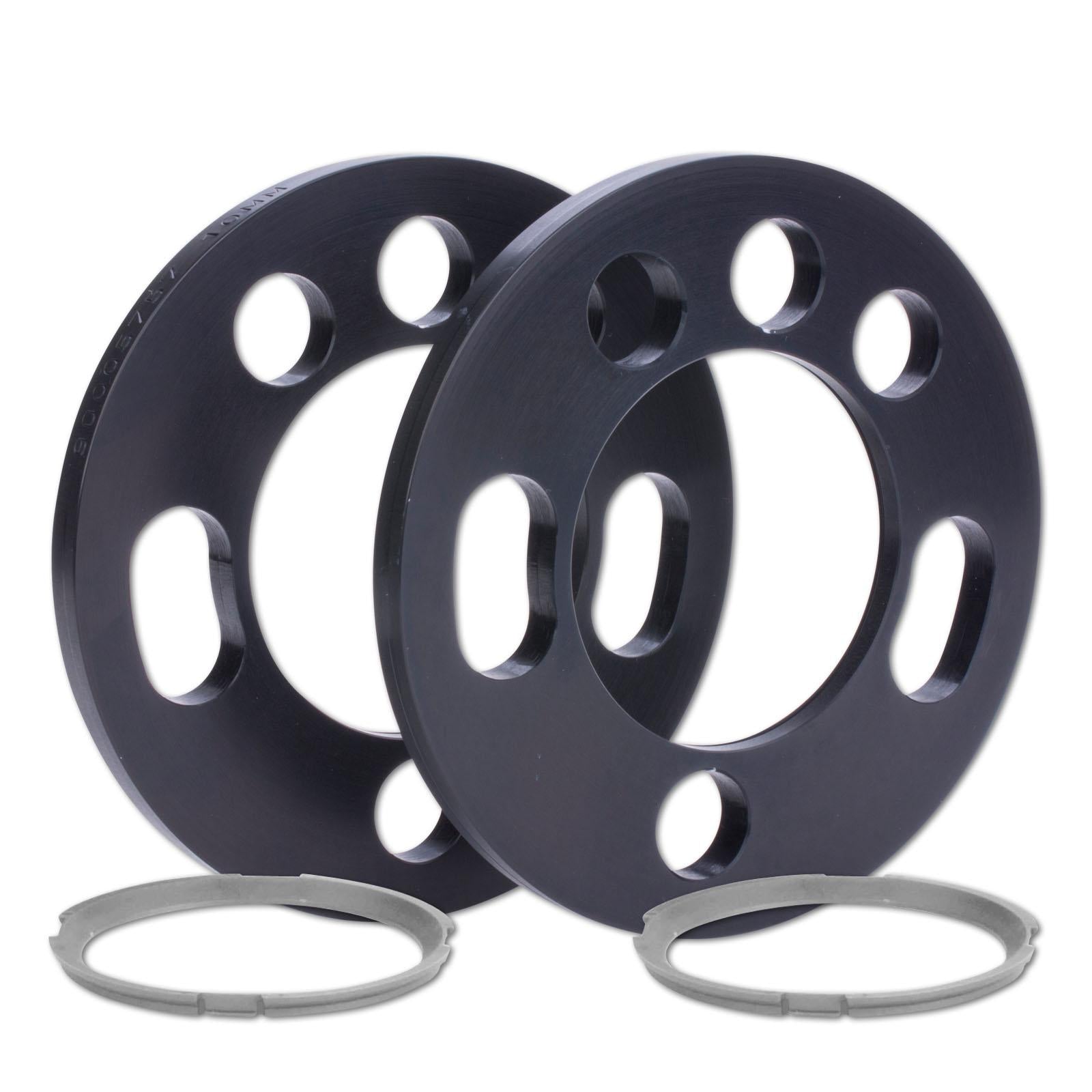

ST's DZX is a bolt-through wheel spacer system with multi-PCD bolt holes and interchangeable fibre-reinforced composite adapter rings that centre the spacer on the hub. The modular design suits both 4- and 5-stud hubs and a wide range of centre bores. Longer wheel bolts are required. This part is listed for the Nissan Micra V (K14) / Kubistar.

Key Features

  • Interchangeable composite centring adapters
  • Black anodised for corrosion protection
  • Wider track for a more planted stance

Specifications

  • Width: 20 mm per axle (10 mm per wheel)
  • Bolt pattern (PCD): 4x100
  • Centre bore: 60.1 mm
  • Mounting: Bolt-through (longer wheel fasteners pass through the spacer)
  • Centring collar: No
  • Vehicle wheel fastening: Wheel nuts, M12x1.5
  • Position: Front or rear axle
  • Material: Aluminium with composite adapters
  • Supplied as: 2 spacer discs, 2 adapters
Note Longer wheel bolts or shaft nuts are required and are ordered separately.

Attention! Additionally please order longer wheel bolts or shaft nuts!

NOT in combination with steel wheels.

References 311. See the Disclaimer tab for reference notes.

Wheel mounting

Bolt pattern4x100
Hub bore60.1mm
Width per axle20mm
SystemDZX
ThreadNut: M12x1.5x25 Taper 60°, 19mm wrench size
MaterialAluminium, composite material
Supplied as2 spacer discs, 2 adapters
  • Note 308: Only for rear axle.
  • Note 310: Please be careful with fitting. There must be enough centering on the wheel hub (approx 2mm).
  • Note 311: NOT in combination with steel wheels.
