ST Wheel Spacer System DZX 25mm per Axle 4/5-Stud - 5x120 72.6mm Bore
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

ST Wheel Spacer System DZX 25mm per Axle 4/5-Stud - 5x120 72.6mm Bore
Sale price$322.05
Regular price$339.00 (/)

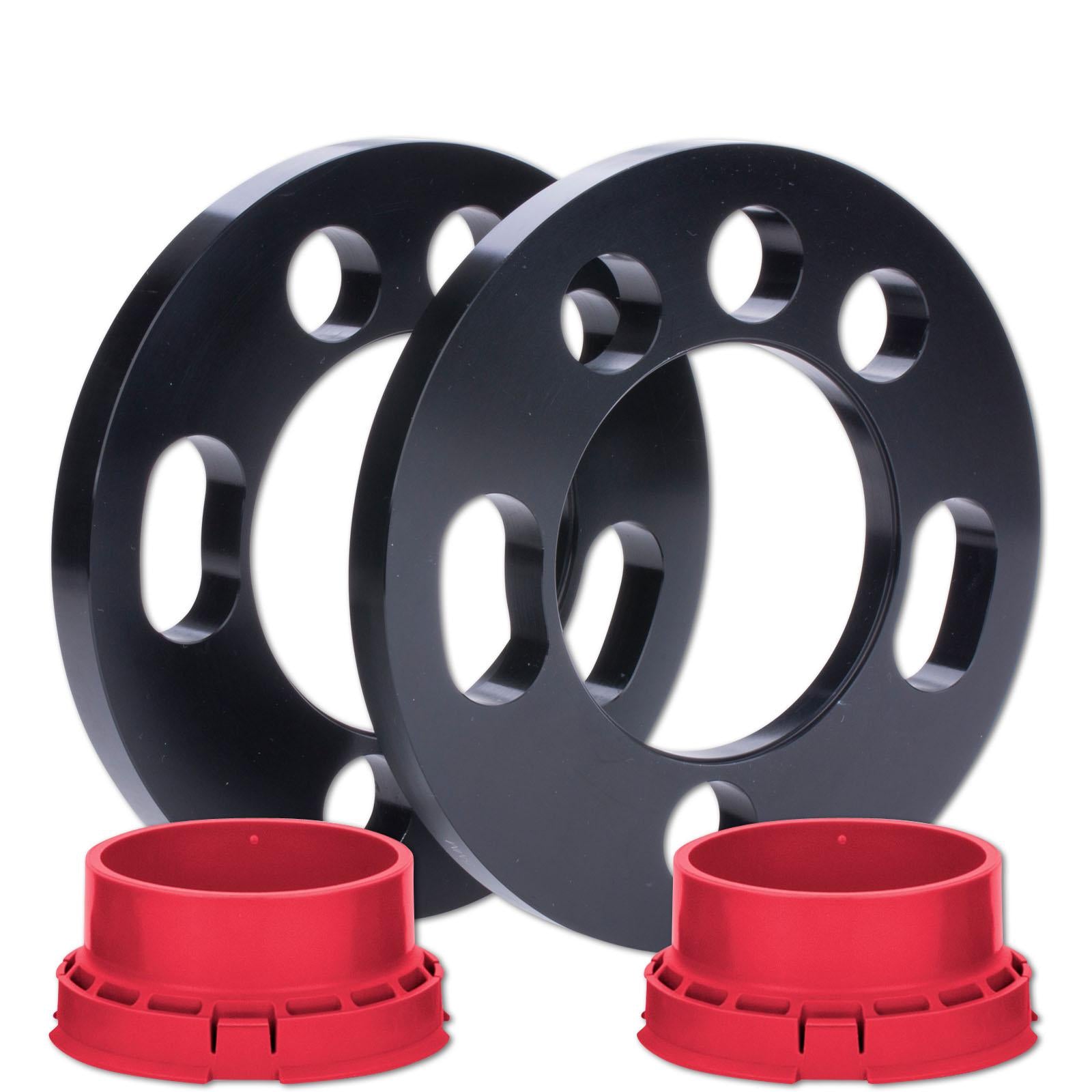

ST's DZX is a bolt-through wheel spacer system with multi-PCD bolt holes and interchangeable fibre-reinforced composite adapter rings that centre the spacer on the hub. The modular design suits both 4- and 5-stud hubs and a wide range of centre bores. Longer wheel bolts are required.
Key Features
- Interchangeable composite centring adapters
- Black anodised for corrosion protection
- Wider track for a more planted stance
Specifications
- Width: 25 mm per axle (12.5 mm per wheel)
- Bolt pattern (PCD): 5x120
- Centre bore: 72.6 mm
- Mounting: Bolt-through (longer wheel fasteners pass through the spacer)
- Centring collar: Yes
- Vehicle wheel fastening: Wheel bolts, M14x1.25
- Position: Front or rear axle
- Material: Aluminium with composite adapters
- Supplied as: 2 spacer discs, 2 adapters
Note Longer wheel bolts or shaft nuts are required and are ordered separately.
Attention! Additionally please order longer wheel bolts or shaft nuts!
NOT in combination with steel wheels.
References 311. See the Disclaimer tab for reference notes.
Wheel mounting
| Bolt pattern | 5x120 |
|---|---|
| Hub bore | 72.6mm |
| Width per axle | 25mm |
| System | DZX |
| Thread | Bolt: M14x1.25x27 Taper 60°, 17mm wrench size |
| Wheel offset limit | 31 |
| Material | Aluminium, composite material |
| Supplied as | 2 spacer discs, 2 adapters |
- Note 311: NOT in combination with steel wheels.
- Note 318: If the car is equipped with additional wheel hub caps this caps possibly have to be removed and have to be replaced by other sealing measures. The wheel spacer disc must fit the wheel hub without any play or float.
