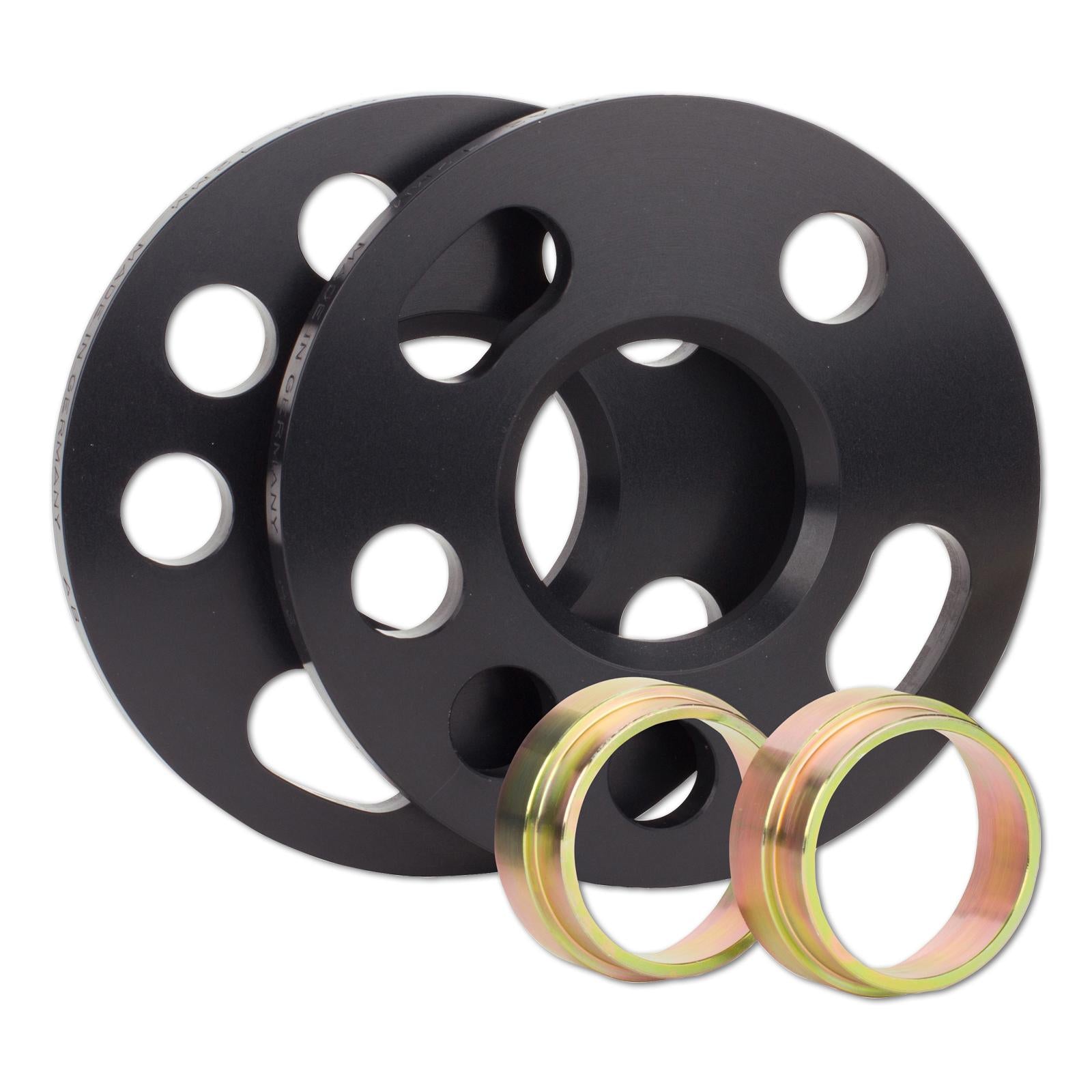

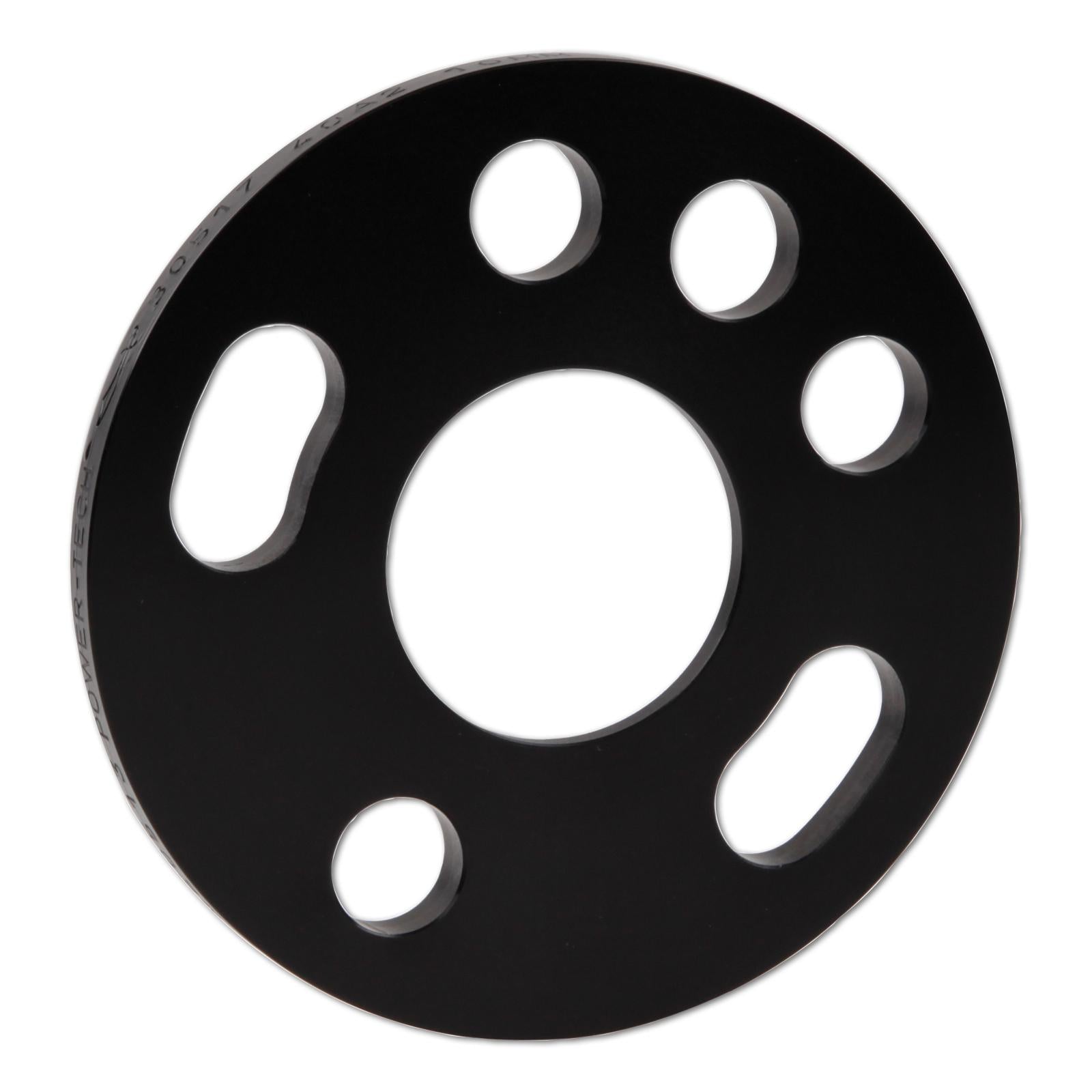

ST Wheel Spacer System DZX+ 25mm per Axle 5x112/66.6
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

ST Wheel Spacer System DZX+ 25mm per Axle 5x112/66.6
Sale price$350.55
Regular price$369.00 (/)

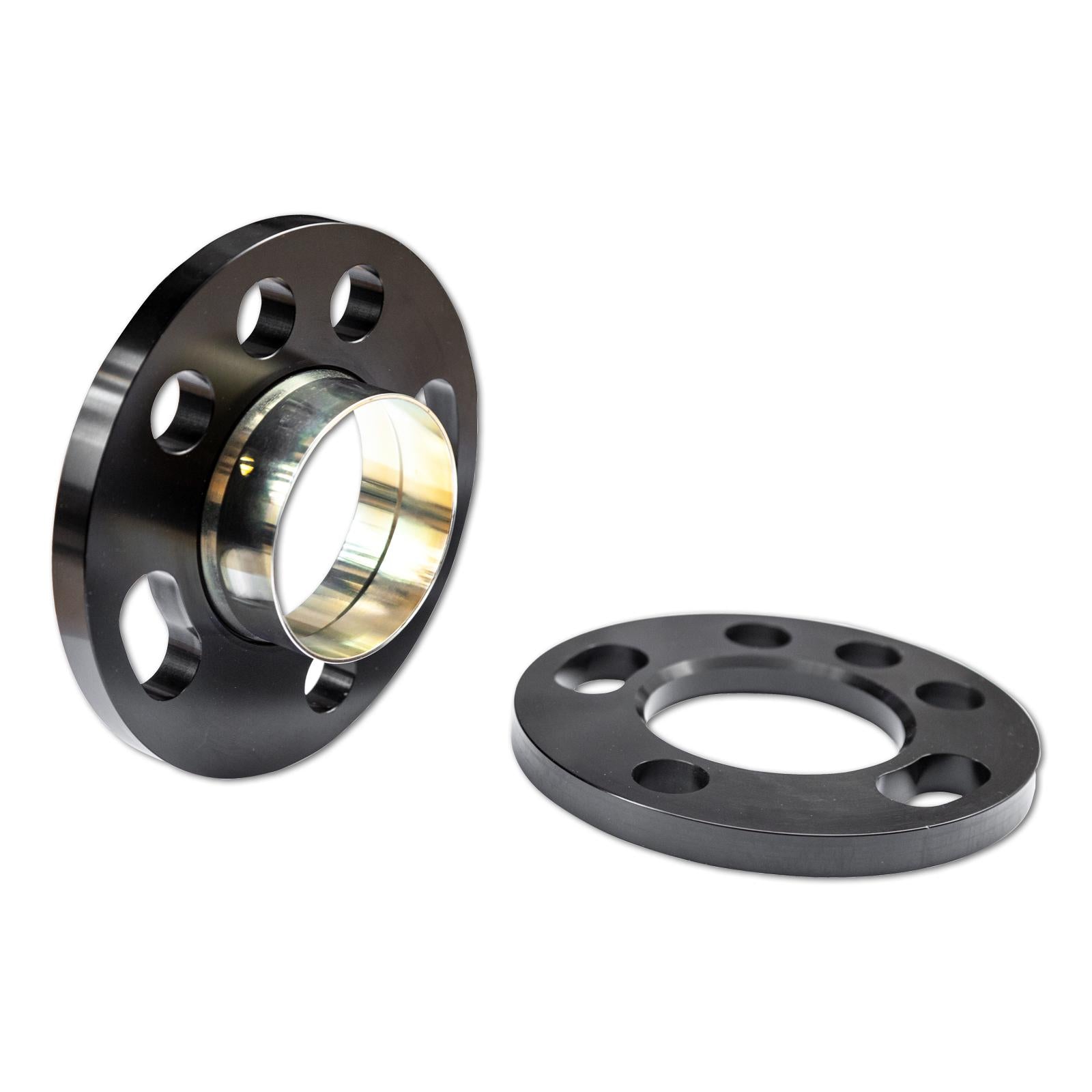

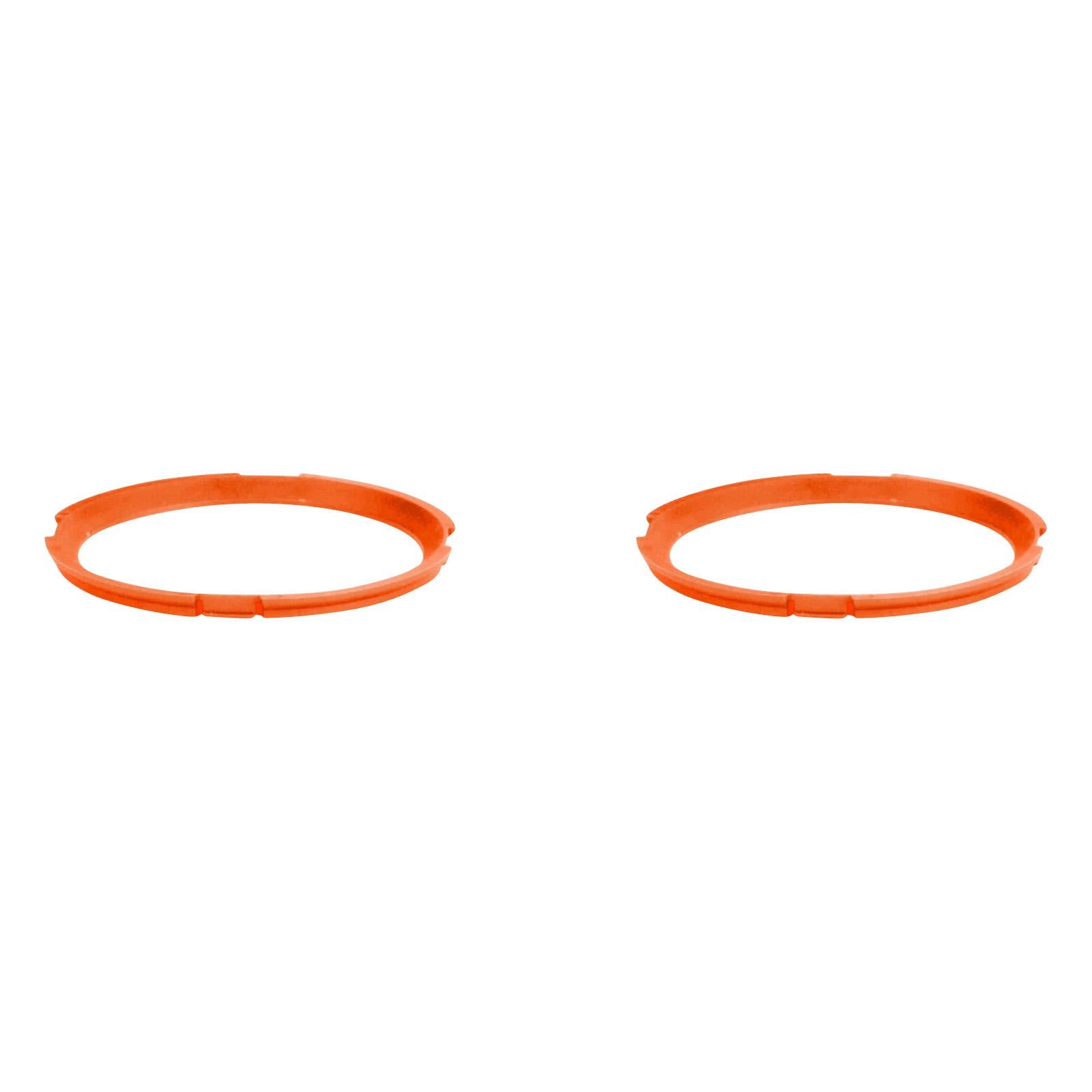

ST's DZX+ is a bolt-through system with a polyamide adapter ring and an additional centring sleeve that extends the vehicle's hub. It is used where the car's design limits wheel centring: the wheel centres on the extended hub rather than the spacer, allowing wider spacers. Longer wheel bolts are ordered separately.
Key Features
- Hub extension centring sleeves
- Black anodised for corrosion protection
- Wider track for a more planted stance
Specifications
- Width: 25 mm per axle (12.5 mm per wheel)
- Bolt pattern (PCD): 5x112
- Centre bore: 66.6 mm
- Mounting: Bolt-through (longer wheel fasteners pass through the spacer)
- Centring collar: Yes
- Vehicle wheel fastening: Wheel bolts, M14x1.5
- Position: Front axle
- Material: Aluminium
- Supplied as: 2 wheel spacer discs, 2 centering sleeves
References 312, 327. See the Disclaimer tab for reference notes.
Wheel mounting
| Bolt pattern | 5x112 |
|---|---|
| Hub bore | 66.6mm |
| Width per axle | 25mm |
| System | DZX+ |
| Thread | Bolt: M14x1.5x45 Ball R14, 17mm wrench size |
| Wheel offset limit | 21 |
| Material | Aluminium |
| Supplied as | 2 wheel spacer discs, 2 centering sleeves |
- Note 312: Only for front axle.
- Note 327: Two part disc with steel centring.
