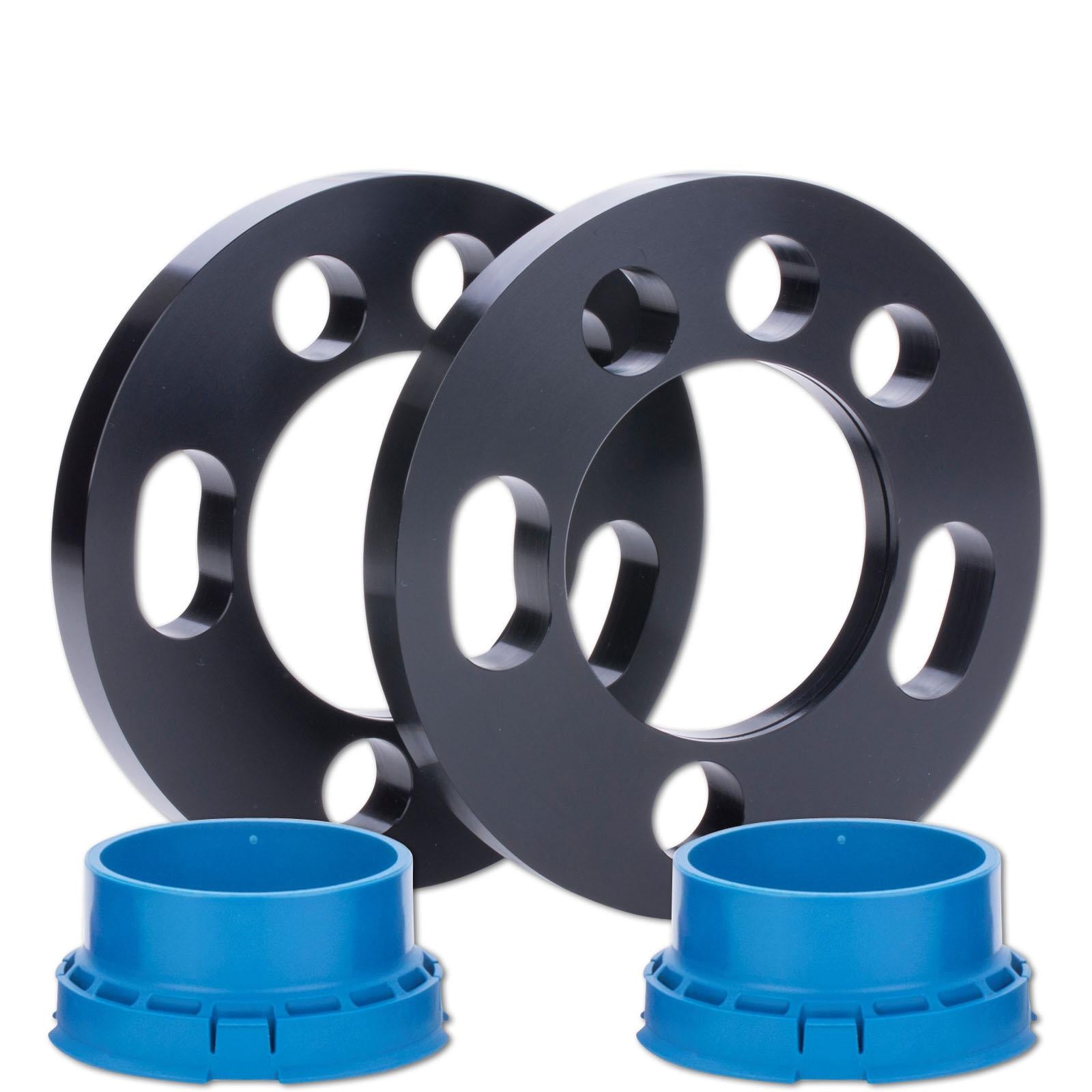

ST Wheel Spacer System DZX 30mm per Axle 4/5-Stud - 4x100/5x100 56.1mm Bore

SKU: 56050125
Sale price$350.55 Regular price$369.00
Save $18.45

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


ST's DZX is a bolt-through wheel spacer system with multi-PCD bolt holes and interchangeable fibre-reinforced composite adapter rings that centre the spacer on the hub. The modular design suits both 4- and 5-stud hubs and a wide range of centre bores. Longer wheel bolts are required.

Key Features

  • Interchangeable composite centring adapters
  • Black anodised for corrosion protection
  • Wider track for a more planted stance

Specifications

  • Width: 30 mm per axle (15 mm per wheel)
  • Bolt pattern (PCD): 4x100, 5x100
  • Centre bore: 56.1 mm
  • Mounting: Bolt-through (longer wheel fasteners pass through the spacer)
  • Centring collar: Yes
  • Vehicle wheel fastening: Wheel nuts, M12x1.5
  • Position: Front or rear axle
  • Material: Aluminium with composite adapters
  • Supplied as: 2 spacer discs, 2 adapters
Note Longer wheel bolts or shaft nuts are required and are ordered separately. Not for cars with ABS.

Attention! Additionally please order longer wheel bolts or shaft nuts!

Not for cars with ABS.

NOT in combination with steel wheels.

References 311. See the Disclaimer tab for reference notes.

Wheel mounting

Bolt pattern4x100, 5x100
Hub bore56.1mm
Width per axle30mm
SystemDZX
ThreadNut: M12x1.5
MaterialAluminium, composite material
Supplied as2 spacer discs, 2 adapters
  • Note 302: Wheel arch needs to be rolled / modified.
  • Note 311: NOT in combination with steel wheels.
  • Note 320: ST shaft nuts with a 60° taper seat must be used to mount the wheel. The mounting holes of the wheel must have 60° taper seat, too. Additionally please check before assembly if the shaft of the ST shaft nut fits through the mounting holes of the wheel. ST shaft nuts can only be used in combination with system DZX. ST shaft nuts must be ordered separately. ATTENTION! Pleases consider minimum thread engagement. M12x1.25 at least 12.0 turns (15mm supporting thread) M12x1.50 at least 10.0 turns (15mm supporting thread) M14x1.50 at least 12.5 turns (19mm supporting thread) 1/2“ at least 12.0 turns (16mm supporting thread).
