ST Wheel Spacer System DZX 35mm per Axle 4/5-Stud - 5x112 66.6mm Bore R13 Ball Seat

SKU: 56050013
Sale price$350.55 Regular price$369.00
Save $18.45

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

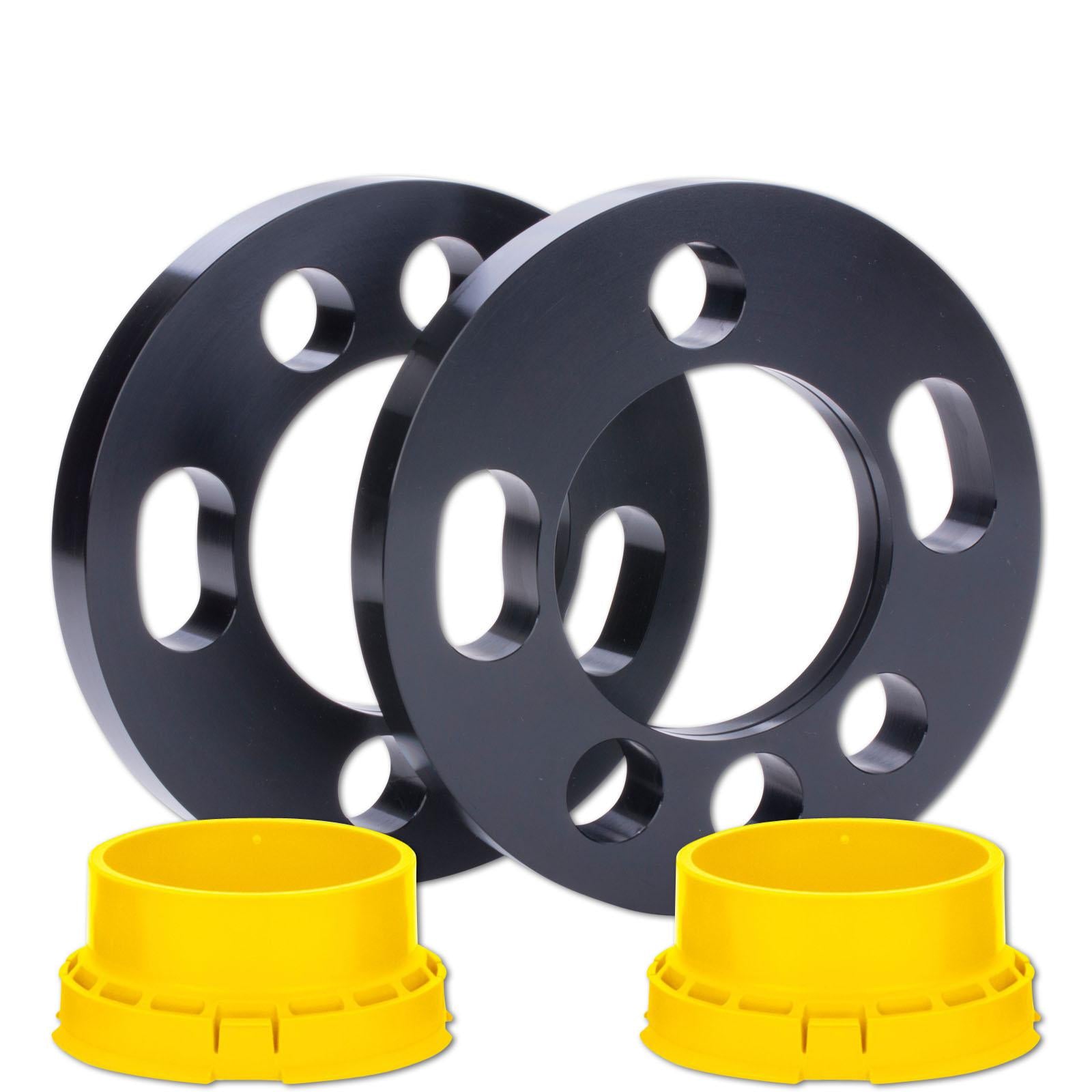

ST's DZX is a bolt-through wheel spacer system with multi-PCD bolt holes and interchangeable fibre-reinforced composite adapter rings that centre the spacer on the hub. The modular design suits both 4- and 5-stud hubs and a wide range of centre bores. Longer wheel bolts are required.

Key Features

  • Interchangeable composite centring adapters
  • Black anodised for corrosion protection
  • Wider track for a more planted stance

Specifications

  • Width: 35 mm per axle (17.5 mm per wheel)
  • Bolt pattern (PCD): 5x112
  • Centre bore: 66.6 mm
  • Mounting: Bolt-through (longer wheel fasteners pass through the spacer)
  • Centring collar: Yes
  • Vehicle wheel fastening: Wheel bolts, M14x1.5
  • Position: Front or rear axle
  • Material: Aluminium with composite adapters
  • Supplied as: 2 spacer discs, 2 adapters
Note Longer wheel bolts or shaft nuts are required and are ordered separately.

Attention! Additionally please order longer wheel bolts or shaft nuts!

NOT in combination with steel wheels.

References 311. See the Disclaimer tab for reference notes.

Wheel mounting

Bolt pattern5x112
Hub bore66.6mm
Width per axle35mm
SystemDZX
ThreadBolt: M14x1.5x27 Ball R13, 17mm wrench size
Wheel offset limit11
MaterialAluminium, composite material
Supplied as2 spacer discs, 2 adapters
  • Note 311: NOT in combination with steel wheels.
