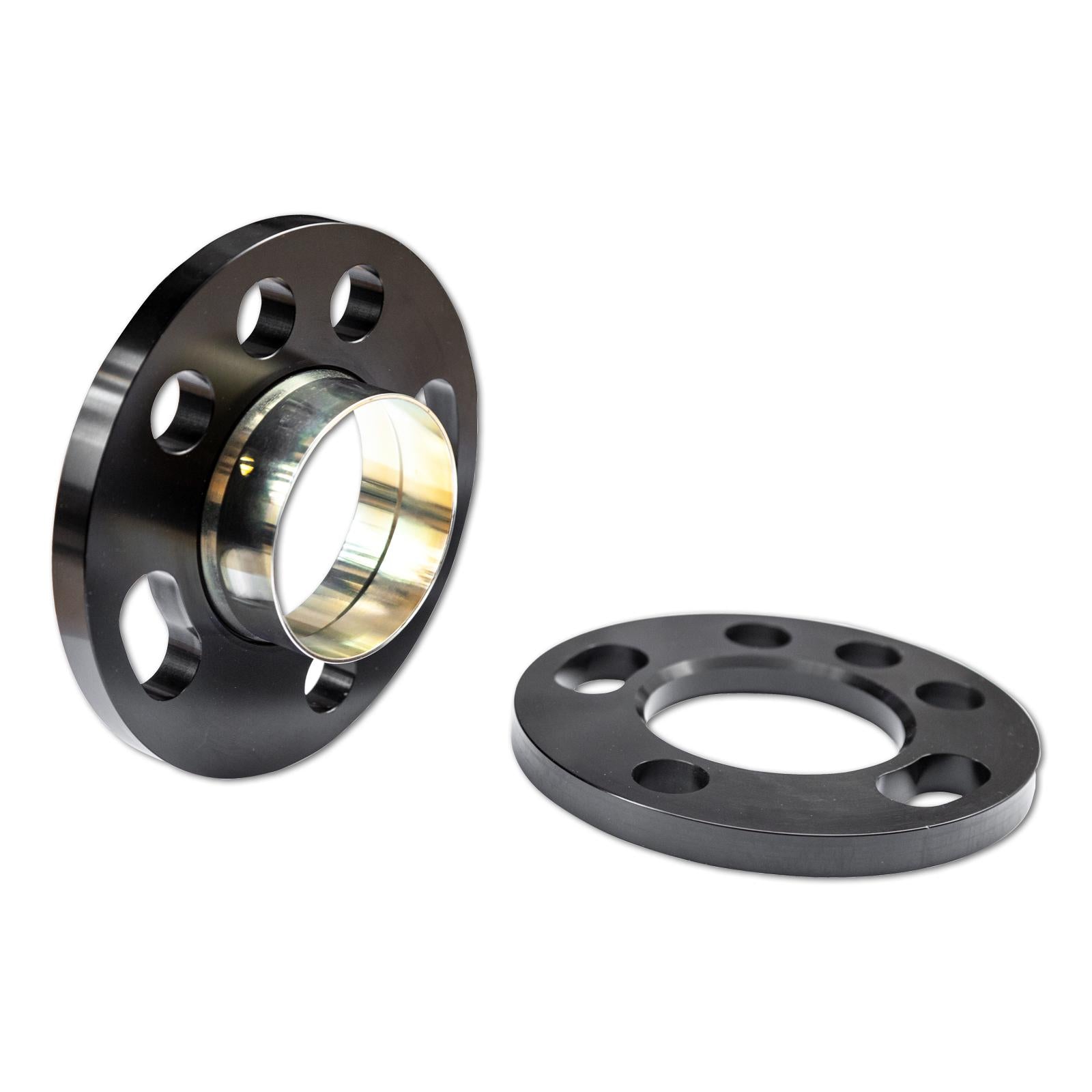

ST Wheel Spacer System DZX+ 35mm per Axle 5x112/66.6

SKU: 56050053
Sale price$369.55 Regular price$389.00
Save $19.45

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


ST's DZX+ is a bolt-through system with a polyamide adapter ring and an additional centring sleeve that extends the vehicle's hub. It is used where the car's design limits wheel centring: the wheel centres on the extended hub rather than the spacer, allowing wider spacers. Longer wheel bolts are ordered separately.

Key Features

  • Hub extension centring sleeves
  • Black anodised for corrosion protection
  • Wider track for a more planted stance

Specifications

  • Width: 35 mm per axle (17.5 mm per wheel)
  • Bolt pattern (PCD): 5x112
  • Centre bore: 66.6 mm
  • Mounting: Bolt-through (longer wheel fasteners pass through the spacer)
  • Centring collar: Yes
  • Vehicle wheel fastening: Wheel bolts, M14x1.5
  • Position: Front axle
  • Material: Aluminium
  • Supplied as: 2 wheel spacer discs, 2 centering sleeves

References 312, 327. See the Disclaimer tab for reference notes.

Wheel mounting

Bolt pattern5x112
Hub bore66.6mm
Width per axle35mm
SystemDZX+
ThreadBolt: M14x1.5x45 Ball R14, 17mm wrench size
Wheel offset limit21
MaterialAluminium
Supplied as2 wheel spacer discs, 2 centering sleeves
  • Note 312: Only for front axle.
  • Note 327: Two part disc with steel centring.
