ST Wheel Spacer System DZX 50mm per Axle 4/5-Stud for Lamborghini Countach / Opel (Z18) Insignia B

SKU: 56050189
Sale price$388.55 Regular price$409.00
Save $20.45

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

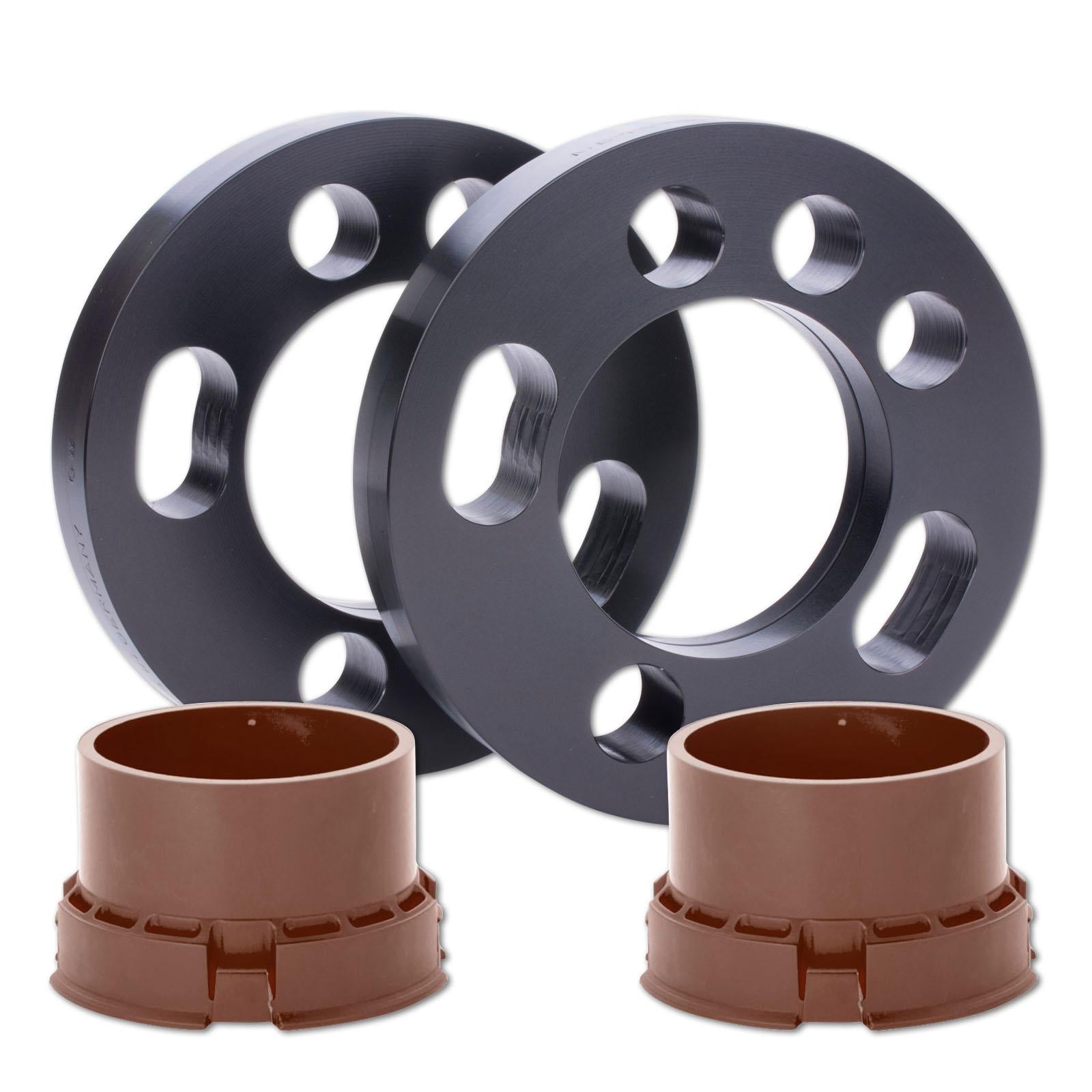

ST's DZX is a bolt-through wheel spacer system with multi-PCD bolt holes and interchangeable fibre-reinforced composite adapter rings that centre the spacer on the hub. The modular design suits both 4- and 5-stud hubs and a wide range of centre bores. Longer wheel bolts are required. This part is listed for the Lamborghini Countach / Opel Insignia B (Z18).

Key Features

  • Interchangeable composite centring adapters
  • Black anodised for corrosion protection
  • Wider track for a more planted stance

Specifications

  • Width: 50 mm per axle (25 mm per wheel)
  • Bolt pattern (PCD): 5x115, 5x120
  • Centre bore: 70.2 mm
  • Mounting: Bolt-through (longer wheel fasteners pass through the spacer)
  • Centring collar: Yes
  • Vehicle wheel fastening: Wheel bolts, M12x1.5
  • Position: Front or rear axle
  • Material: Aluminium with composite adapters
  • Supplied as: 2 spacer discs, 2 adapters
Note Longer wheel bolts or shaft nuts are required and are ordered separately.

Attention! Additionally please order longer wheel bolts or shaft nuts!

NOT in combination with steel wheels.

References 311. See the Disclaimer tab for reference notes.

Wheel mounting

Bolt pattern5x115, 5x120
Hub bore70.2mm
Width per axle50mm
SystemDZX
ThreadBolt: M12x1.5
MaterialAluminium, composite material
Supplied as2 spacer discs, 2 adapters
  • Note 306: Longer studs are required (NOT included to scope of delivery).
  • Note 311: NOT in combination with steel wheels.
