ST Wheel Spacer System DZX 50mm per Axle 4/5-Stud - 5x120 67.1mm Bore
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

ST Wheel Spacer System DZX 50mm per Axle 4/5-Stud - 5x120 67.1mm Bore
Sale price$388.55
Regular price$409.00 (/)

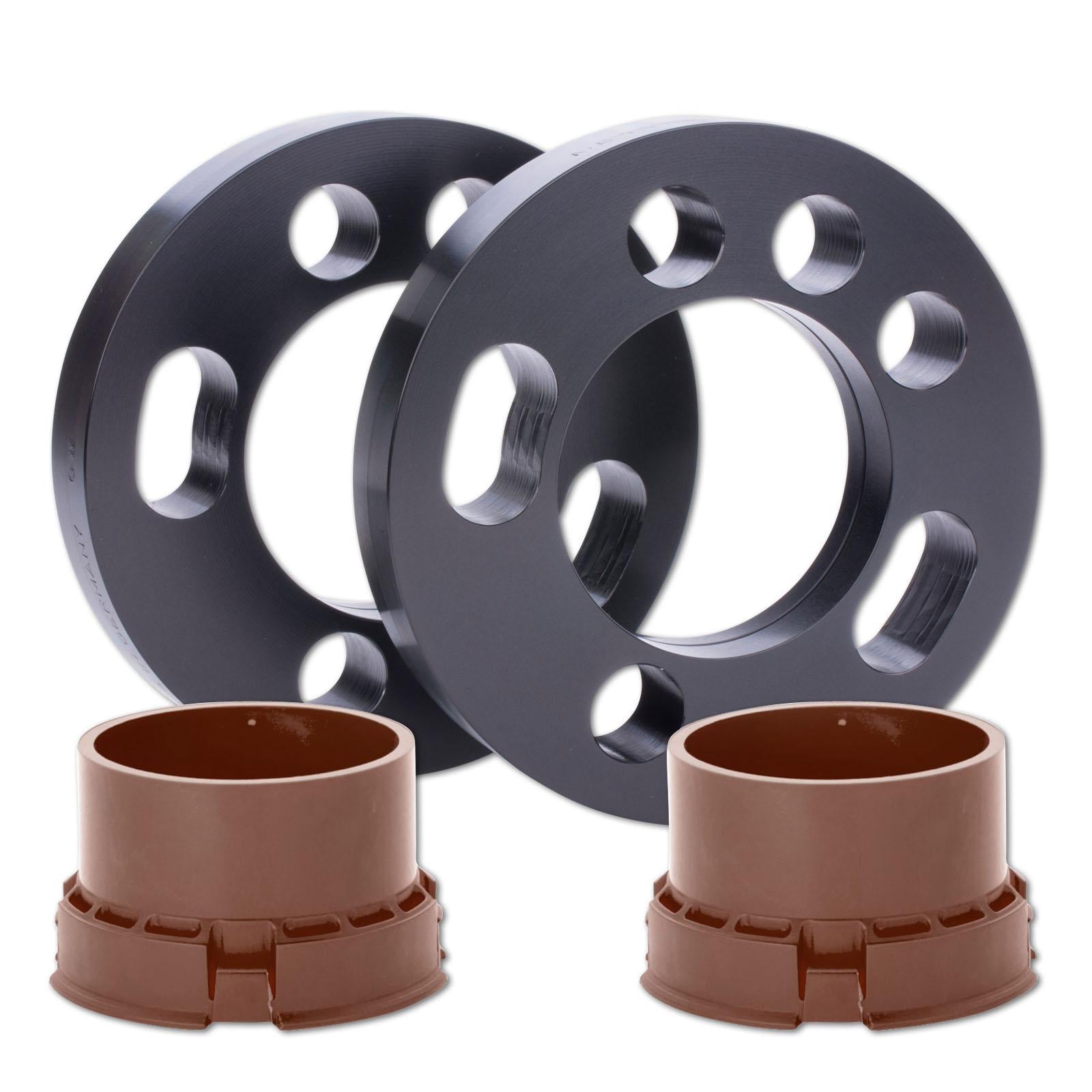

ST's DZX is a bolt-through wheel spacer system with multi-PCD bolt holes and interchangeable fibre-reinforced composite adapter rings that centre the spacer on the hub. The modular design suits both 4- and 5-stud hubs and a wide range of centre bores. Longer wheel bolts are required.
Key Features
- Interchangeable composite centring adapters
- Black anodised for corrosion protection
- Wider track for a more planted stance
Specifications
- Width: 50 mm per axle (25 mm per wheel)
- Bolt pattern (PCD): 5x120
- Centre bore: 67.1 mm
- Mounting: Bolt-through (longer wheel fasteners pass through the spacer)
- Centring collar: Yes
- Vehicle wheel fastening: Wheel bolts, M14x1.5
- Position: Front or rear axle
- Material: Aluminium with composite adapters
- Supplied as: 2 spacer discs, 2 adapters
Note Longer wheel bolts or shaft nuts are required and are ordered separately.
Attention! Additionally please order longer wheel bolts or shaft nuts!
NOT in combination with steel wheels.
References 311. See the Disclaimer tab for reference notes.
Wheel mounting
| Bolt pattern | 5x120 |
|---|---|
| Hub bore | 67.1mm |
| Width per axle | 50mm |
| System | DZX |
| Thread | Bolt: M14x1.5x25 Taper 60° loose, 17mm wrench size |
| Material | Aluminium, composite material |
| Supplied as | 2 spacer discs, 2 adapters |
- Note 306: Longer studs are required (NOT included to scope of delivery).
- Note 311: NOT in combination with steel wheels.
