AWE Exhaust Suite FOR AUDI B9 S5 COUPE 3.0T

Meet the perfected B9 S5 soundtrack.

• Max gains of 16 hp and 17 ft-lbs of torque at the crank (exhaust)
• Available as sophisticated Touring Edition, unleashed Track Edition, and valved SwitchPath
• Touring Edition Exhausts features AWE's proprietary drone-canceling solution, ;180 Technology
• SwitchPath Exhaust can be controlled with optional handheld remote, or factory valve programming
• Downpipes and precision-engineered x-pipe included in all editions
• Specifically engineered downpipe resonators for use with aftermarket catalysts available separately
• Compatible with standard and sport differentials
• 90mm or 102mm double-walled tips available in chrome silver or diamond black
• Proudly engineered, designed, and manufactured in-house at AWE, in the USA
• Less is more: clean, straight-through design maximizes performance
• Handcrafted from dual 2.5 CNC mandrel-bent U.S.-sourced .065 wall T304L stainless steel
• Direct bolt-on system, factory-like install simplicity
• Perfect fitment - guaranteed
• No Check Engine Light - guaranteed
• Featuring the AWE Lifetime Exhaust Warranty

The Options:

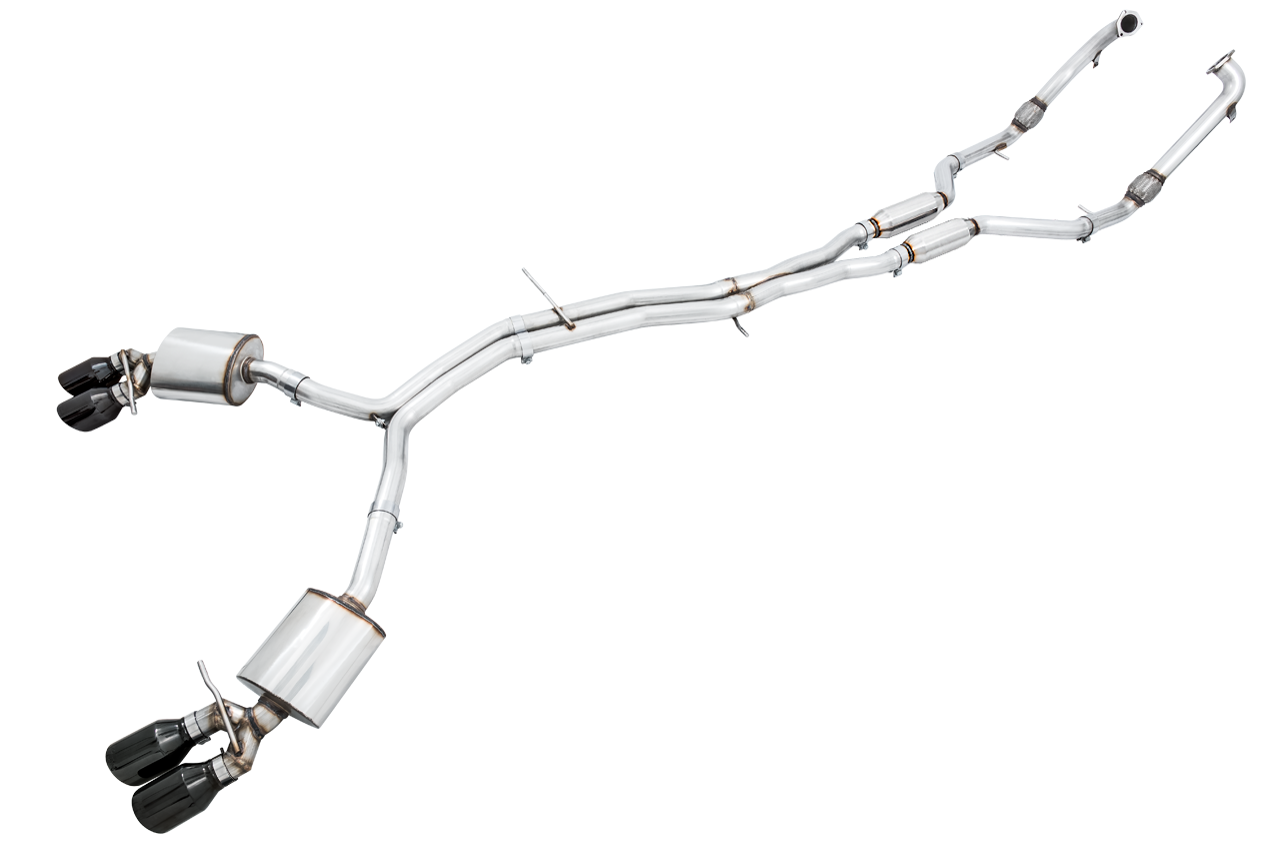

Touring Edition Exhaust

The best just got better. ; ;

Signature AWE howl, delivered. The Touring Edition is the sophisticated member of the B9 S5 exhaust family.

The Touring Edition Exhaust removes the factory valving and replaces it with AWE's 180 Technology drone-cancelling resonators (and electronic valve simulators). This solution provides for a perfect, signature AWE experience: civil within the cabin while cruising, yet all the pops and burbles during acceleration and downshifts.

The Touring Edition Exhaust comes complete with 180 Technology resonators, a precision-engineered x-pipe, resonated downpipes, and your choice of 90 or 102mm tips in either diamond black or chrome silver.

Sound Perfection: AWE 180 Technology

Perfect tone, compliments of AWE 180 Technology.

As exhaust gases exit the 3.0T engine and flow into an AWE 180 Technology ;equipped resonator, they pass through strategically located ports, and into reflection chambers. Sound waves, carried by these exhaust gasses, bounce off the walls of the reflection chambers. By controlling the size and location of the ports and the chambers, we also control when the sound waves exit the chambers.

The specific timing of when the reflected sound waves rejoin the main exhaust flow creates a one-hundred-and-eighty-degree out-of-phase sound wave that cancels out problematic frequencies. Cool, right? Learn more on AWE's 180 Technology in the tab above.

Exhaust configurations recommended for use with aftermarket catalysts: ;

Given the increase of airflow when introducing an aftermarket catalyst, special resonators were developed to keep sound frequencies in check. These larger resonators are included in exhaust configurations labeled as Resonated for Performance Catalyst, ;and available independently (to be added to existing AWE exhausts) via the Resonator Conversion Kit. ;

Please note: exhausts labeled Resonated for Performance Catalyst and the Resonator Conversion Kit are recommended ;to be used with ;an aftermarket catalyst.

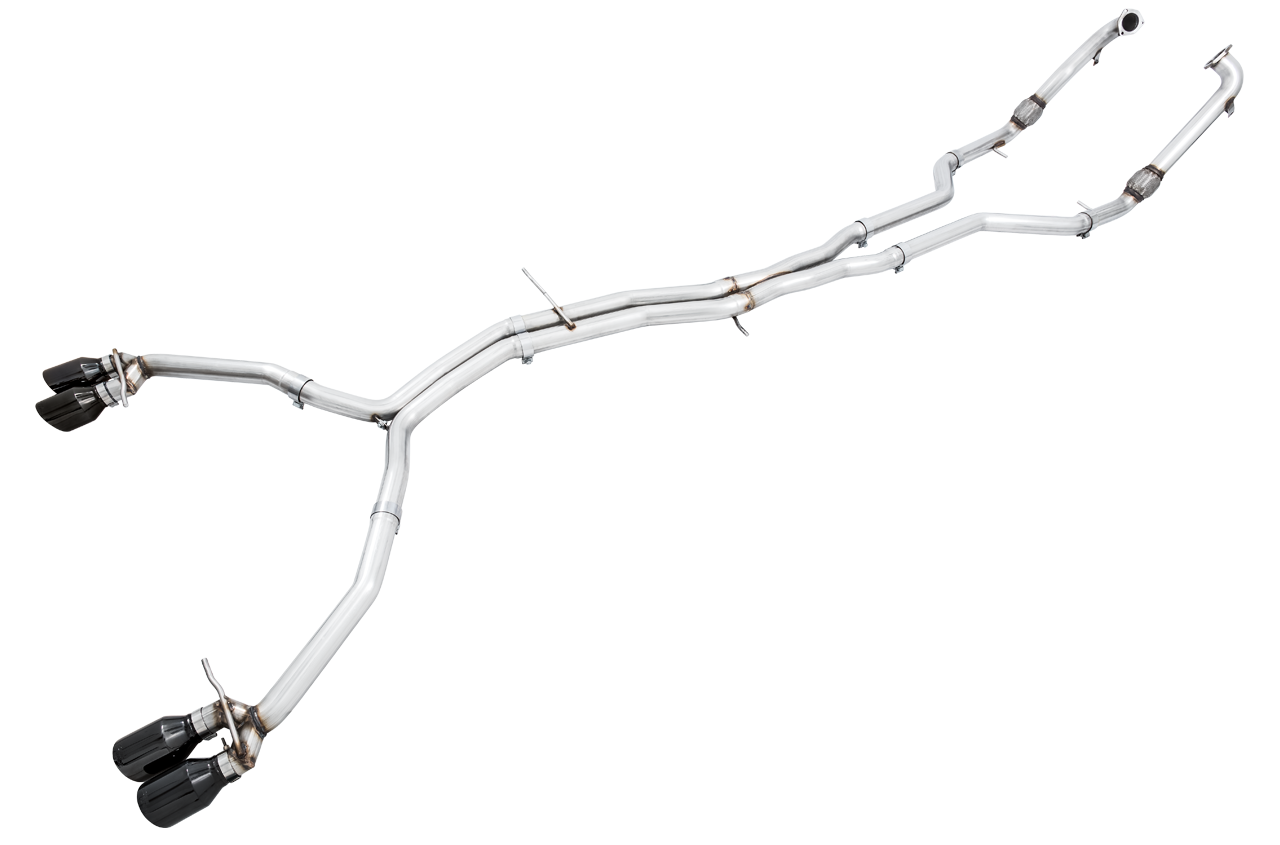

Track Edition Exhaust

For those who like it loud, go Track.

The Track Edition Exhaust is equipped with the same precision-engineering as its Touring Edition counterpart, minus the resonators up front and 180 Technology resonators in the rear. Instead, the Track Edition comes complete with non-resonated downpipes and straight pipe sections -- leaving the integrated x-pipe as the only filter.

This version is known to get rowdy, and may be too much for many. For that reason, this particular version cannot be returned due to sound preference. Prepare yourself.

SwitchPath Exhaust

The SwitchPath valved solution is for those who want complete control of their S5's volume and tone, at their fingertips.

The SwitchPath Exhaust comes complete with non-resonated downpipes, a precision-engineered x-pipe mid-section, and two valved muffler sections which can be controlled via the SwitchPath Remote.

Sneaking out in the morning? Keep the valve closed.

Ready to rumble? Open the valve and let them know you're coming. ;

Note: we recommend and encourage pairing the SwitchPath Exhaust with the SwitchPath Remote versus using the factory operation for the best SwitchPath experience.

Tip Options

All tip options include the AWE logo, and double walling to ensure a mirror finish even under hard usage. All tips are individually adjustable, allowing depth into the bumper to be set according to personal taste.

• 102mm or 90mm diamond black tips
• 102mm or 90mm chrome silver tips

What's in the box?

Complete SwitchPath, Touring or Track Edition Edition Exhaust, four double-walled tips in chosen color and size, resonated or non-resonated downpipes, installation instructions, and required hardware.

You've got questions? We've got answers. +612 9114 6886 ;or click Ask a Question above.

;
