AWE Exhaust Suite FOR BMW F22 M240I / M235I

Compact powerhouse. The athletic M240i/M235i gets a voice to match the bite. Introducing the AWE Exhaust Suite for the BMW F22 M240i/M235i.

• Available for road use as sophisticated Touring Edition Axle-back
• Touring Edition Axle-back features AWE's proprietary drone-canceling solution, 180 Technology
• Max gains of 9 hp and 11 ft-lbs of torque at the crank (M240i)
• Max gains of 8hp and 15ft-lbs of torque at the crank (M235i)
• Less is more: clean, non-baffled, straight-through design maximizes performance
• Handcrafted from U.S.-sourced CNC mandrel-bent .065 wall T304L stainless steel
• Tip options include 90 or 102mm double-walled tips in chrome silver or diamond black, and 96mm stainless steel tips with carbon fiber sleeve
• Engineered, designed, and manufactured in-house at AWE Tuning
• Perfect fitment - guaranteed
• No Check Engine Light Guarantee
• Featuring the AWE Lifetime Exhaust Warranty

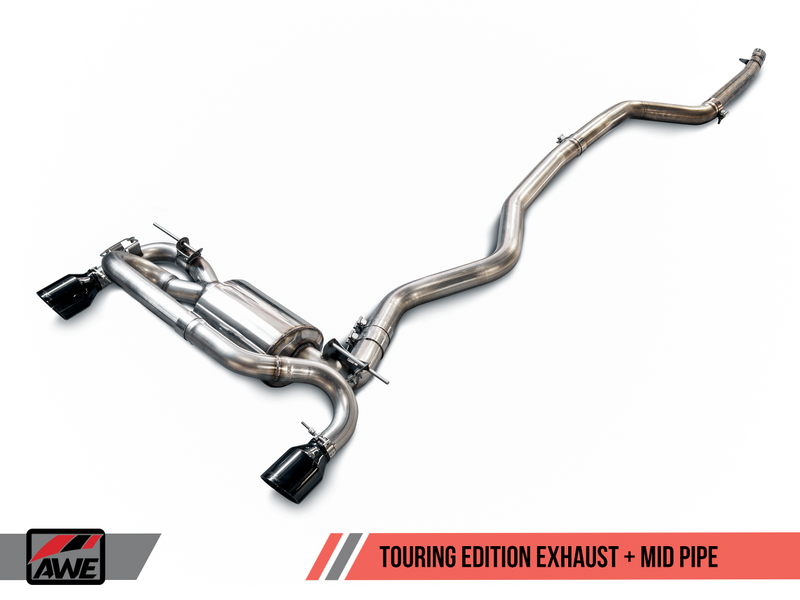

The F22 M240i/M235i Exhaust Suite:

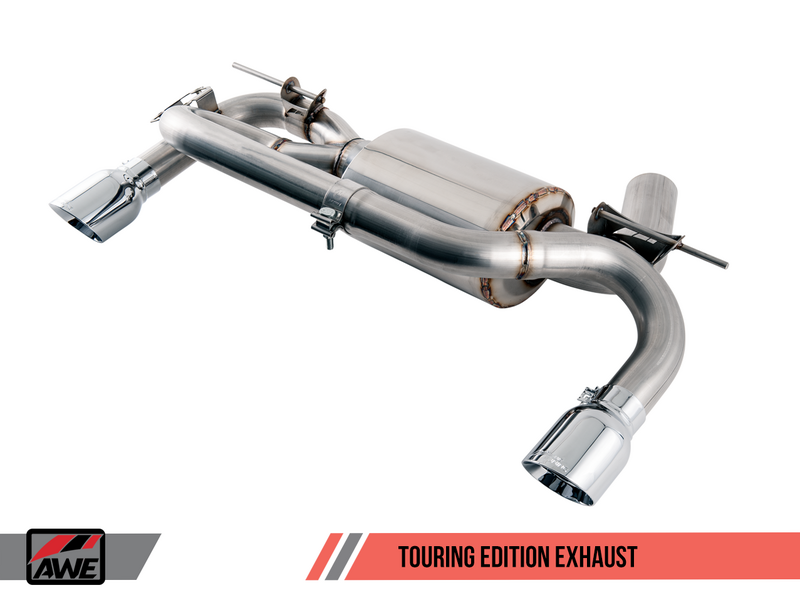

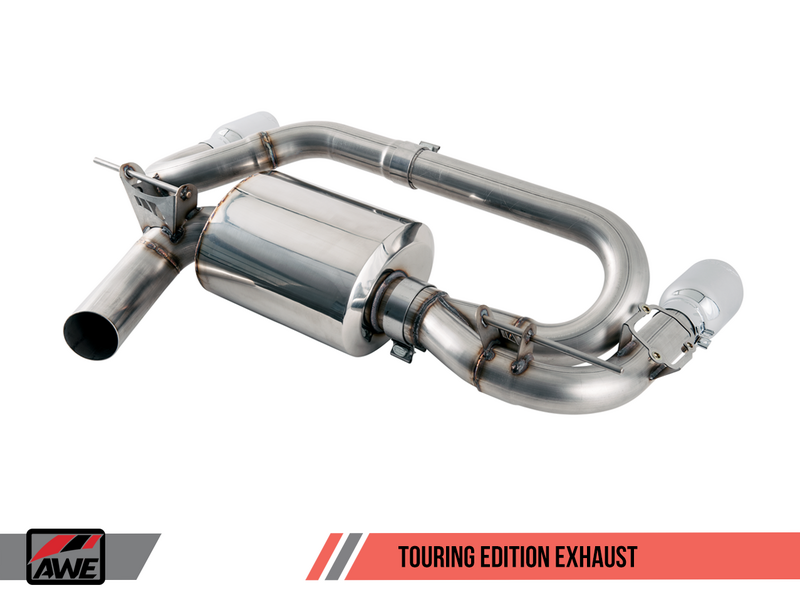

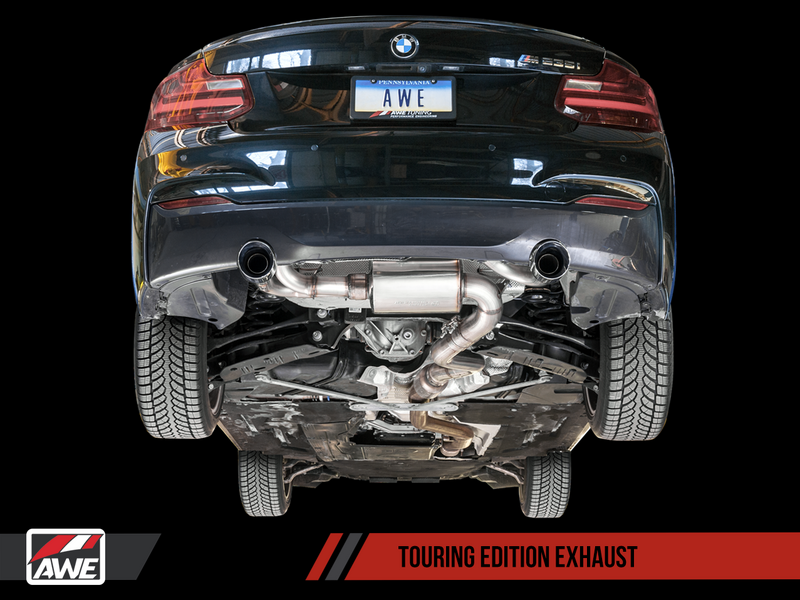

AWE Touring Edition Axle-back Exhaust

The AWE Touring Edition Exhaust is an axle-back system that leverages AWE's proprietary sound cancellation solution, 180 Technology, to produce the a signature, sophisticated, drone-free exhaust note. If you're unfamiliar with 180 Technology, learn more through this brief 180 Technology video.

AWE Performance Mid Pipe

The AWE Performance Mid Pipe is non-resonated and replaces the factory resonated section with straight-through 3-inch T304L stainless steel tubing that delivers the perfect exhaust note for those looking for all-out aggression. Ready to rumble.

The AWE F22 M240i/M235i Performance Mid Pipe is only confirmed to fit with AWE Touring Edition Exhausts. Fitment with stock, or other axle back units is not guaranteed.

Sound Perfection: AWE 180 Technology

As exhaust gases exit the N55/B58 engines and flow into an AWE 180 Technology equipped resonator, they pass through strategically located ports, and into reflection chambers. Sound waves, carried by these exhaust gasses, bounce off the walls of the reflection chambers. By controlling the size and location of the ports and the chambers, we also control when the sound waves exit the chambers. The specific timing of when the reflected sound waves rejoin the main exhaust flow creates a one-hundred-and-eighty-degree out-of-phase sound wave that cancels out problematic frequencies. More on AWE 180 Technology in the tab above.

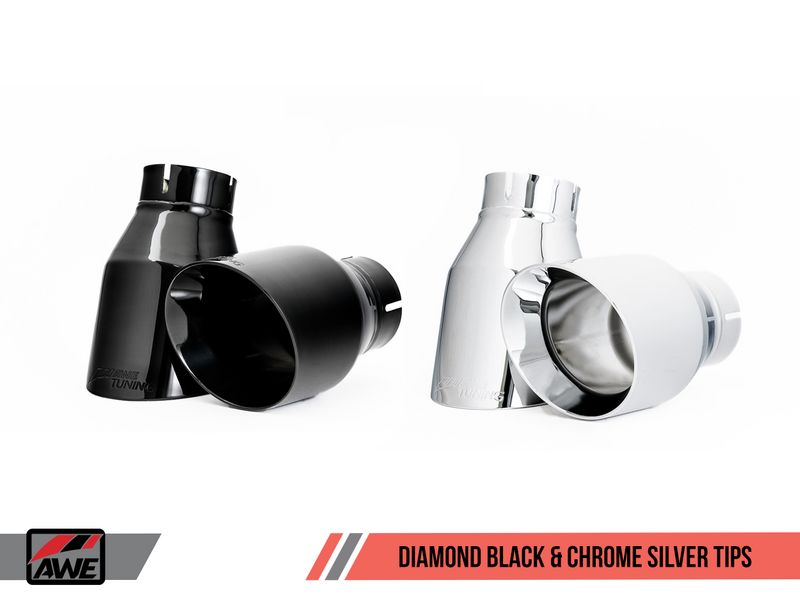

Tip Options:

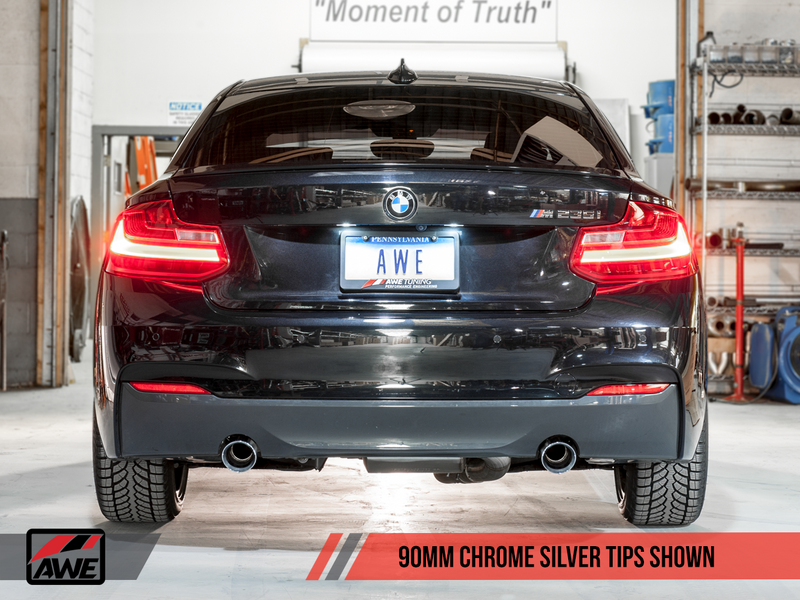

AWE logo. Double-walling. Individually adjustable. Available as 90mm or 102mm in either chrome silver or diamond black, or as our 96mm stainless steel tips with carbon fiber sleeve. Lookin' good.

What's in the box?

Complete AWE Touring Edition Axle-back, Performance Mid Pipe (if chosen), two tips in the desired finish, and all necessary hardware for installation.

You've got questions? We've got answers. +612 9114 6886 ;or click Ask a Question ;above.

Search Terms: 3010-32028, 3010-33038, 3010-32030, 3010-33034, 3015-11026, 3015-11034
