AWE TOURING EDITION Exhaust SYSTEMS FOR B8 A5 2.0T

A5 Research and Development has yielded an exhaust that is remarkably civil while idling / part throttle cruising, but unleashed at full throttle it produces what some have called a war-cry wail. Sophisticated, refined, and powerful, all in one package.

Highlights

• Featuring AWE Tuning 180 Technology ;
• Crafted from mandrel bent T-304 Stainless Steel
• Dyno proven gains of +8-9 Horsepower and +6-7 lb ft of torque at the crank
• Available with Chrome Silver or Diamond Black Tips
• Engineered, developed and tested in-house
• Lifetime Exhaust Warranty

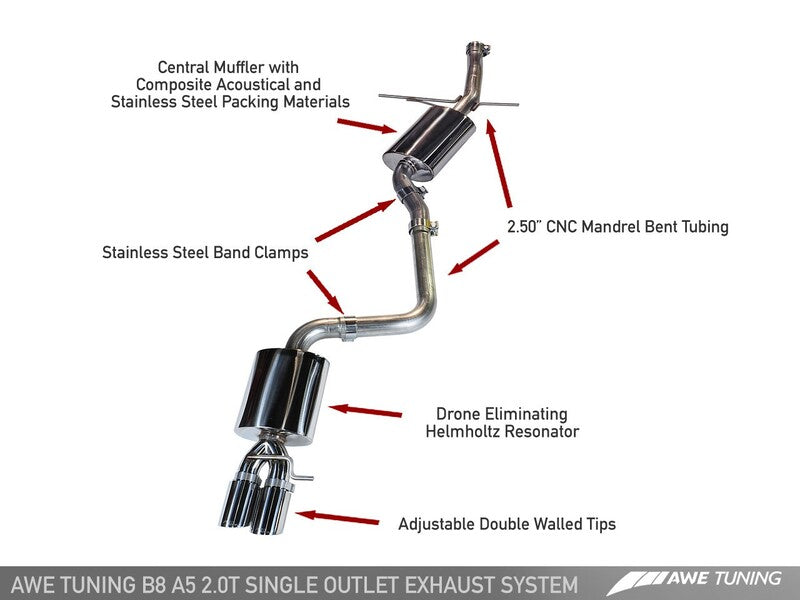

The stock exhaust system on a B8 A5 is full of crimped tubing that impedes exhaust flow and robs horsepower. The AWE Tuning B8 A5 2.0T Touring Edition Exhaust and Downpipe Systems are designed using CAD modeling software to produce smooth gradual bends and to eliminate any interruption to the flow of exhaust gasses. Our improvements to the exhaust path result in gains of 8-9 horsepower and 6-7 lb ft of torque at the crank.

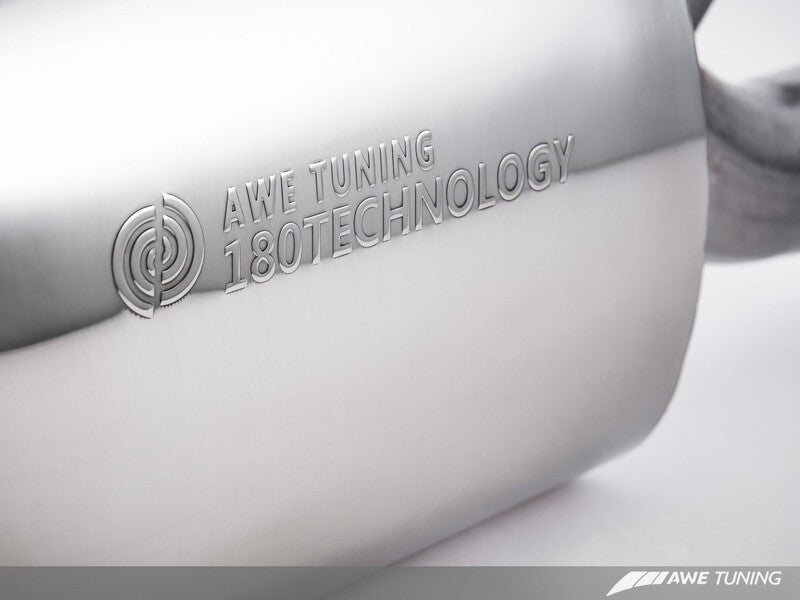

Sound Perfection: AWE Tuning 180 Technology

As exhaust gases exit the 2.0L Turbo engine and flow into an AWE Tuning 180 Technology equipped resonator, they pass through strategically located ports, and into reflection chambers. Sound waves, carried by these exhaust gasses, bounce off the walls of the reflection chambers. By controlling the size and location of the ports and the chambers, we also control when the sound waves exit the chambers. ; The specific timing of when the reflected sound waves re-join the main exhaust flow creates a one-hundred-and-eighty-degree out-of-phase sound wave that cancels out problematic frequencies. More on AWE Tuning 180 Technology in the tab above.

Additional sound level tuning

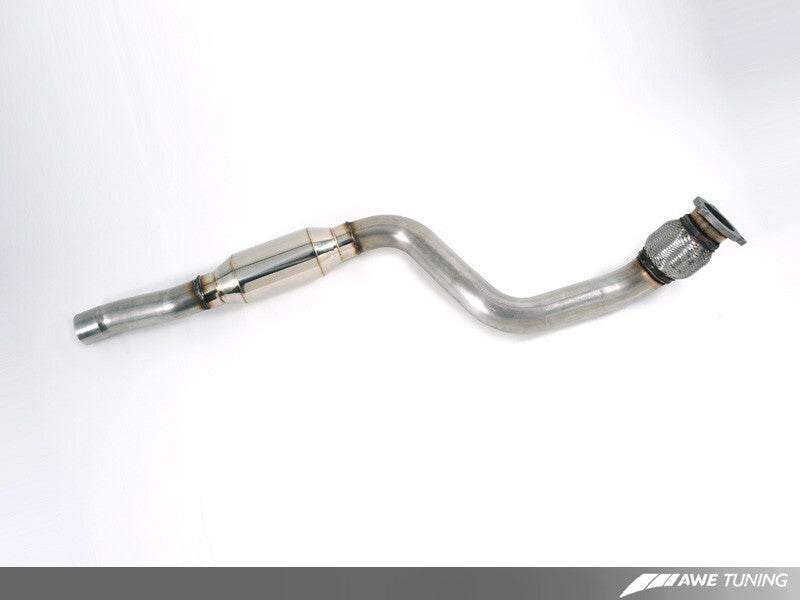

For the enthusiast interested in a more aggressive sound, we offer our Downpipe. The factory unit contains a fairly large straight through resonator. By replacing this large piece with a more compact but still straight through resonator, we were able to increase sound volume while adding a slightly deeper tone. Testing showed no power increase in adding the downpipe. It will mate to our exhaust system or any other exhaust designed to work with the stock downpipe.

Please note: This product cannot be returned or exchanged based upon sound satisfaction.

Tips, valances and options

Our A5 2.0T Touring Edition ;Exhaust Systems are available in the following configurations:

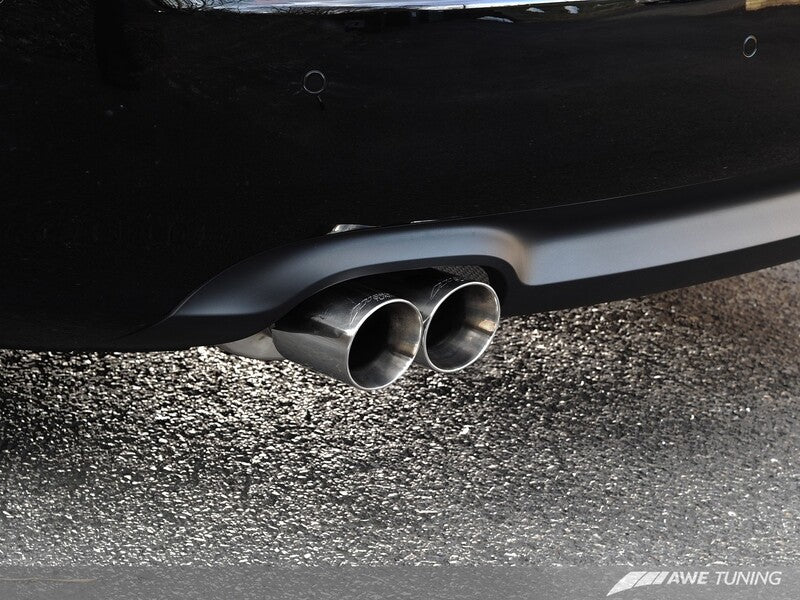

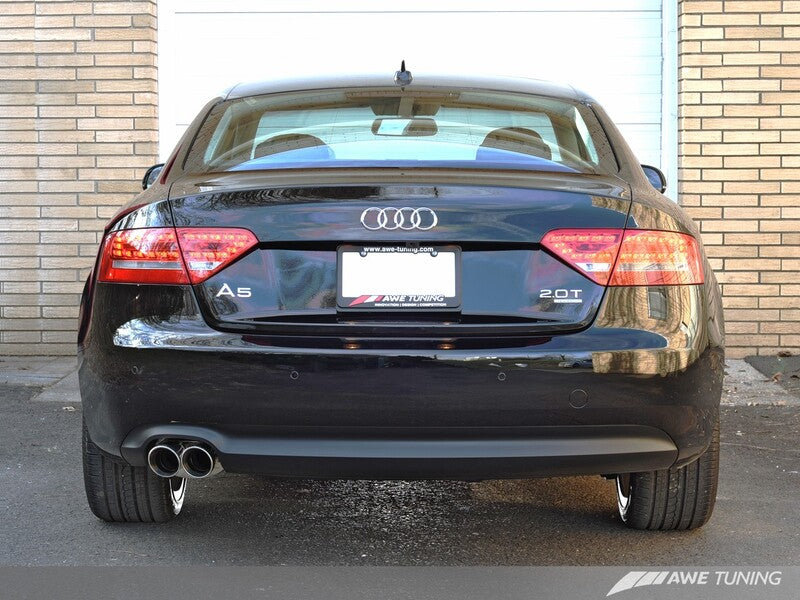

• Single Outlet, Dual 90mm (3.50 inch) slash cut tips designed to work with the factory rear coupe valance where both tips are on the left side of the car

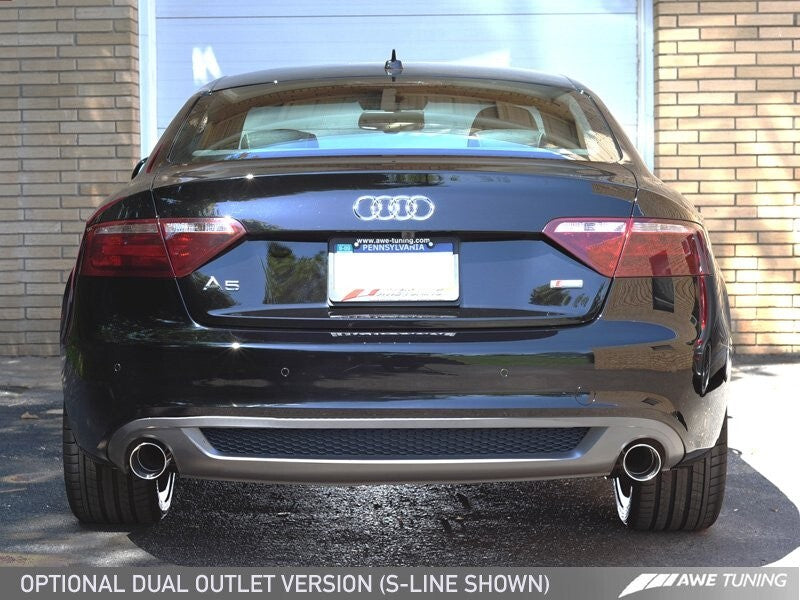

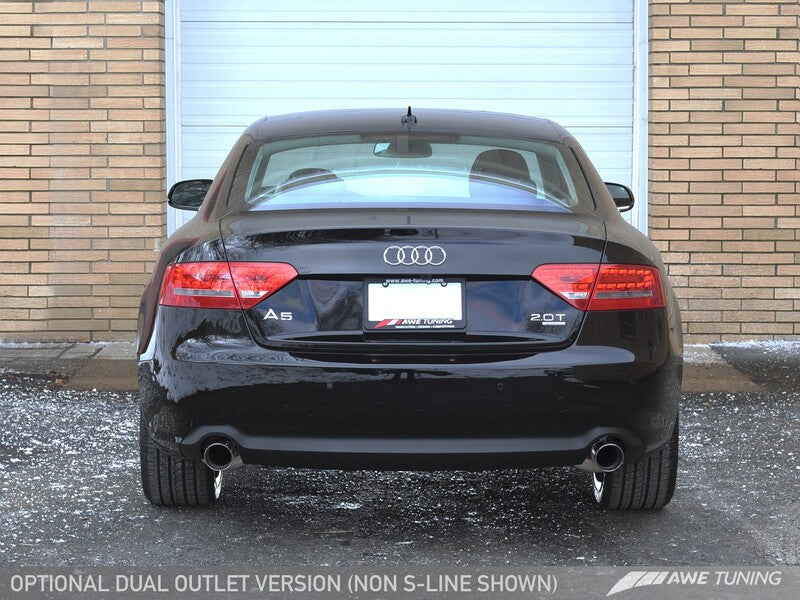

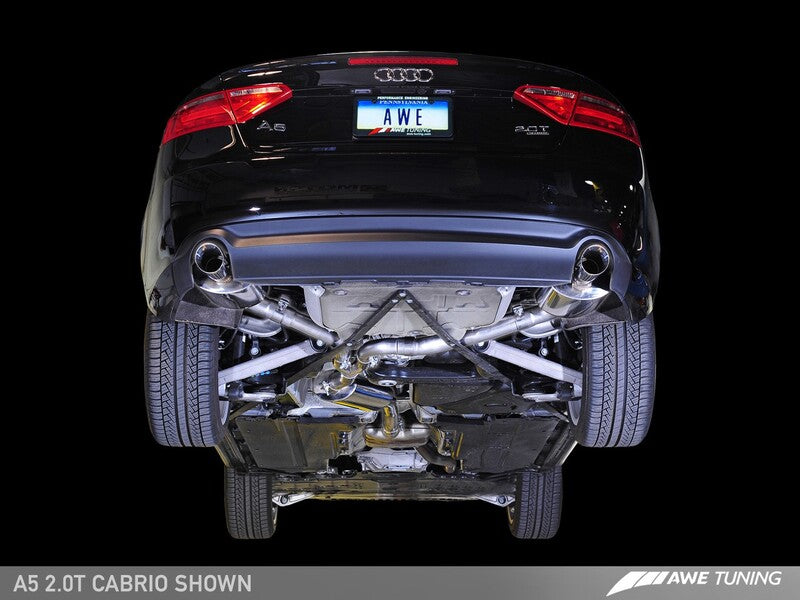

• Dual Outlet, Single 90mm (3.50 inch) slash cut tips designed to work with the factory cabrio or A5 3.2L rear valance, which has one tip on each side of the car

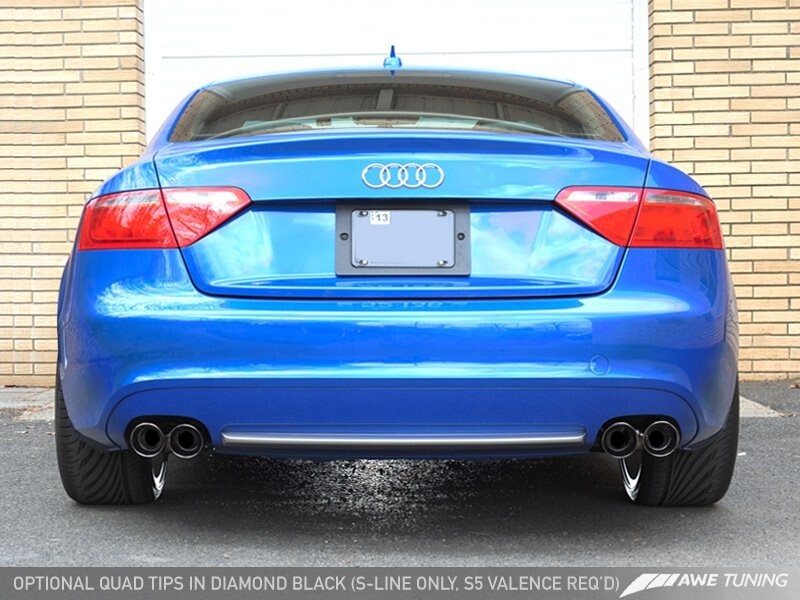

• Quad 90mm (3.50 inch) slash cut tips designed to work with the S5 rear valance

Click here for a PDF breakdown of the bumper parts needed to fit our Dual and Quad exhaust variations to your A5.

All these options! Questions? We're here for you. 1 888 565 2257, or performance@AWE-Tuning.com

Search Terms: 3215-11020, 3015-22012, 3015-23012, 3015-32022, 3015-33026, 3015-42022, 3015-43024
