About this product

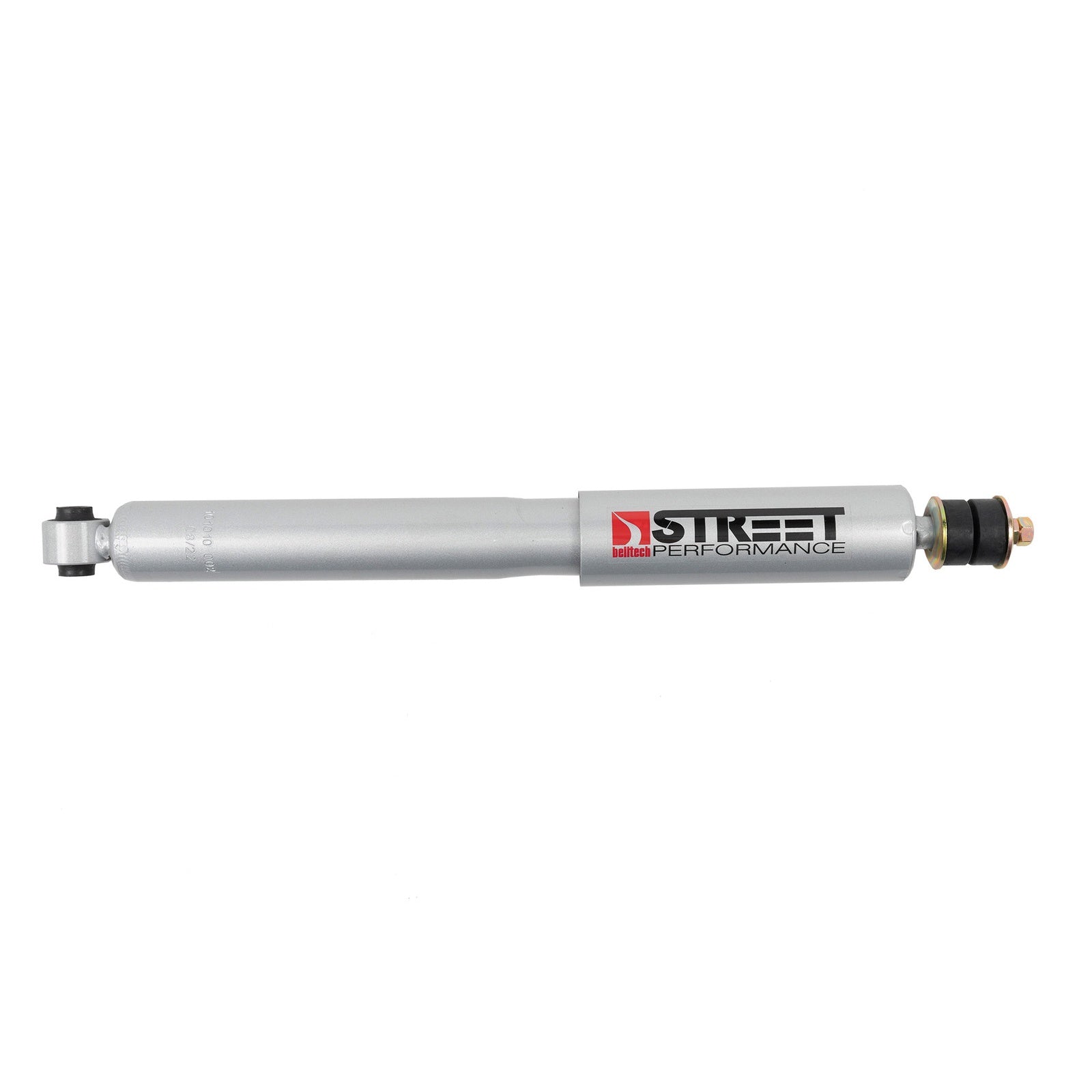

BelltechÕs precision-engineered suspension lift kit for the 2019+ Ram 1500 2WD enhances ride quality, handling and durability while retaining factory alignment cams, track width and steering feel. The system integrates height-adjustable Trail Performance coilovers up front with Trail Performance twin-tube rear shocks.

Upgraded spindles reduce weight and increase strength while maintaining factory steering angle and ball joint geometry. A 1/4 inch laser-cut skid plate adds protection, with high-clearance crossmembers, stainless braided brake line extensions and outer tie rods completing the front-end package.

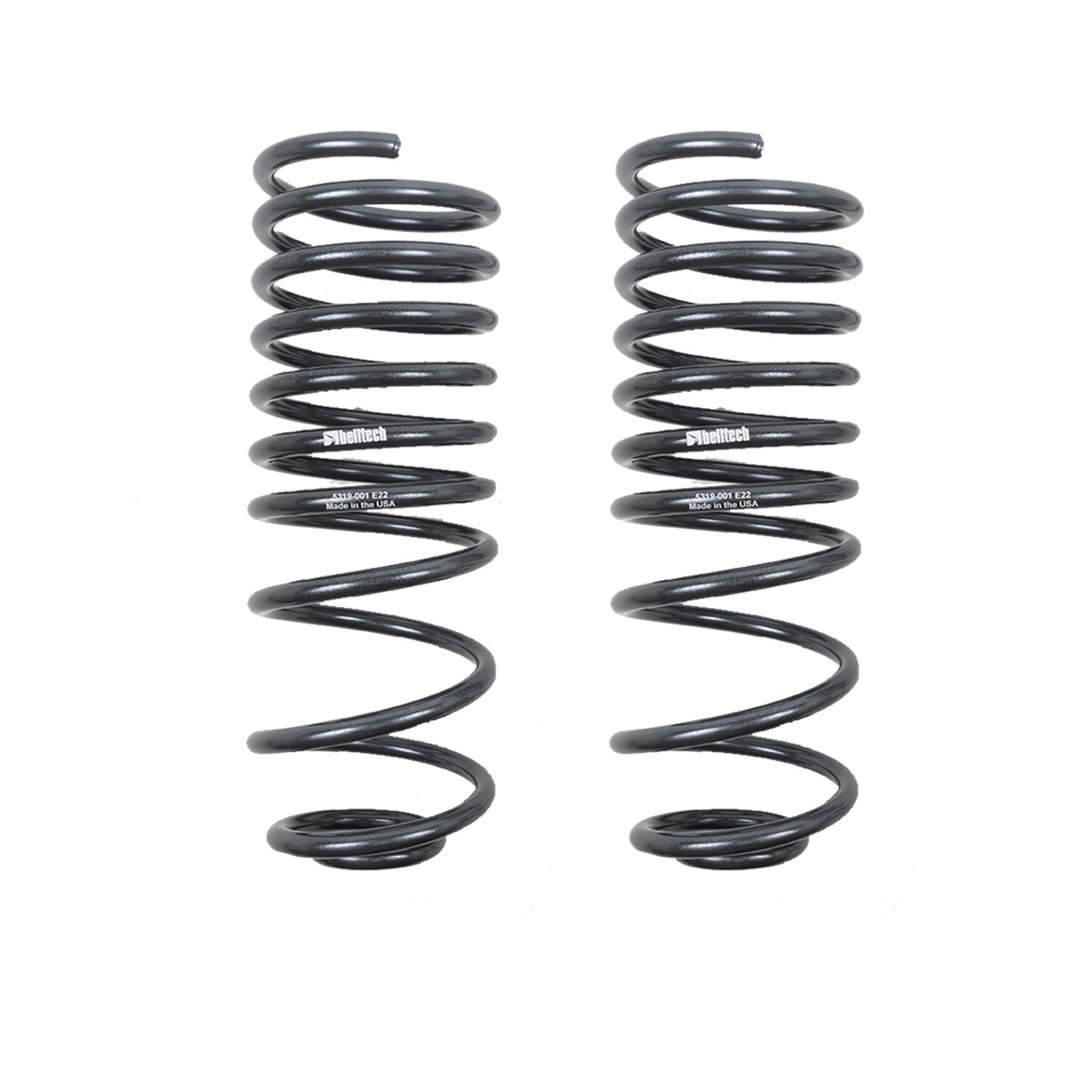

At the rear, a control arm drop bracket preserves wheelbase and centres the wheel in the arch, while progressive-rate coils, brake line relocation brackets, extended sway-bar links, tuned twin-tube shocks, bump stop extensions and a track bar relocation bracket improve stability and comfort.

The kit is a direct bolt-on solution using high-quality hardware, requiring minimal cutting and no welding, and is backed by a Limited Lifetime Warranty.

Tyre and wheel combinations

• 35_12.5 with 20_10 and _18 offset
• 35_12.5 with 20_10 and _19 offset
• 35_12.5 with 20_10 and _25 offset
• 35_12.5 with 20_9 and 0 to +1 offset
• 35_12.5 with 20_9 and _12 offset
• 35_12.5 with 22_10 and _18, _19 or _25 offset
