About this product

Fits: 2019+ Ram 1500 2WD / 4WD

Precision and performance are the objectives for the new line of Belltech 2019+ RAM 1500 lowering kits. Our kit lowers the front of your vehicle -3" to -4" and the rear -4" or -5", to improve appearance and a lower centre of gravity. We go well beyond looks and deliver the ride quality you have been dreaming of.

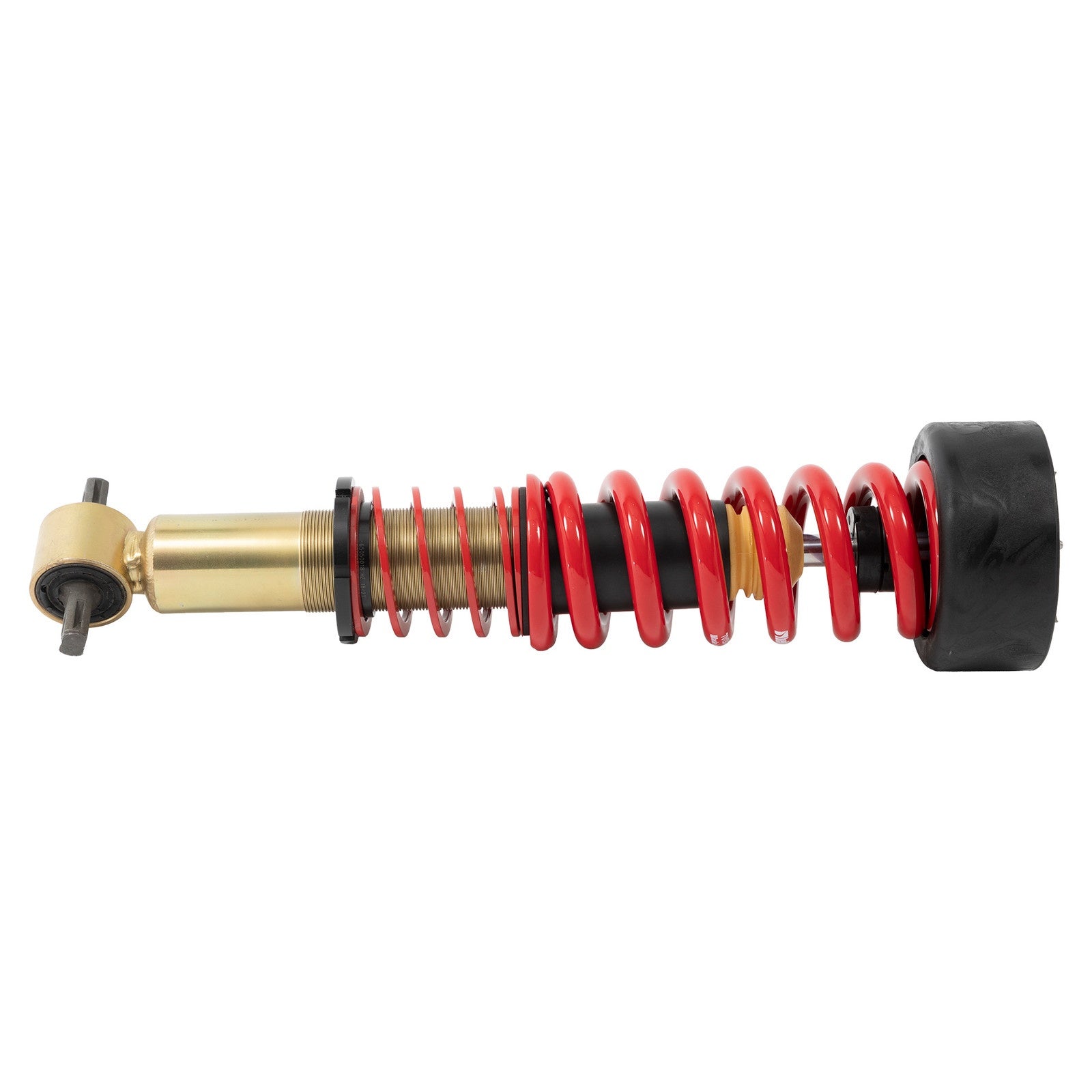

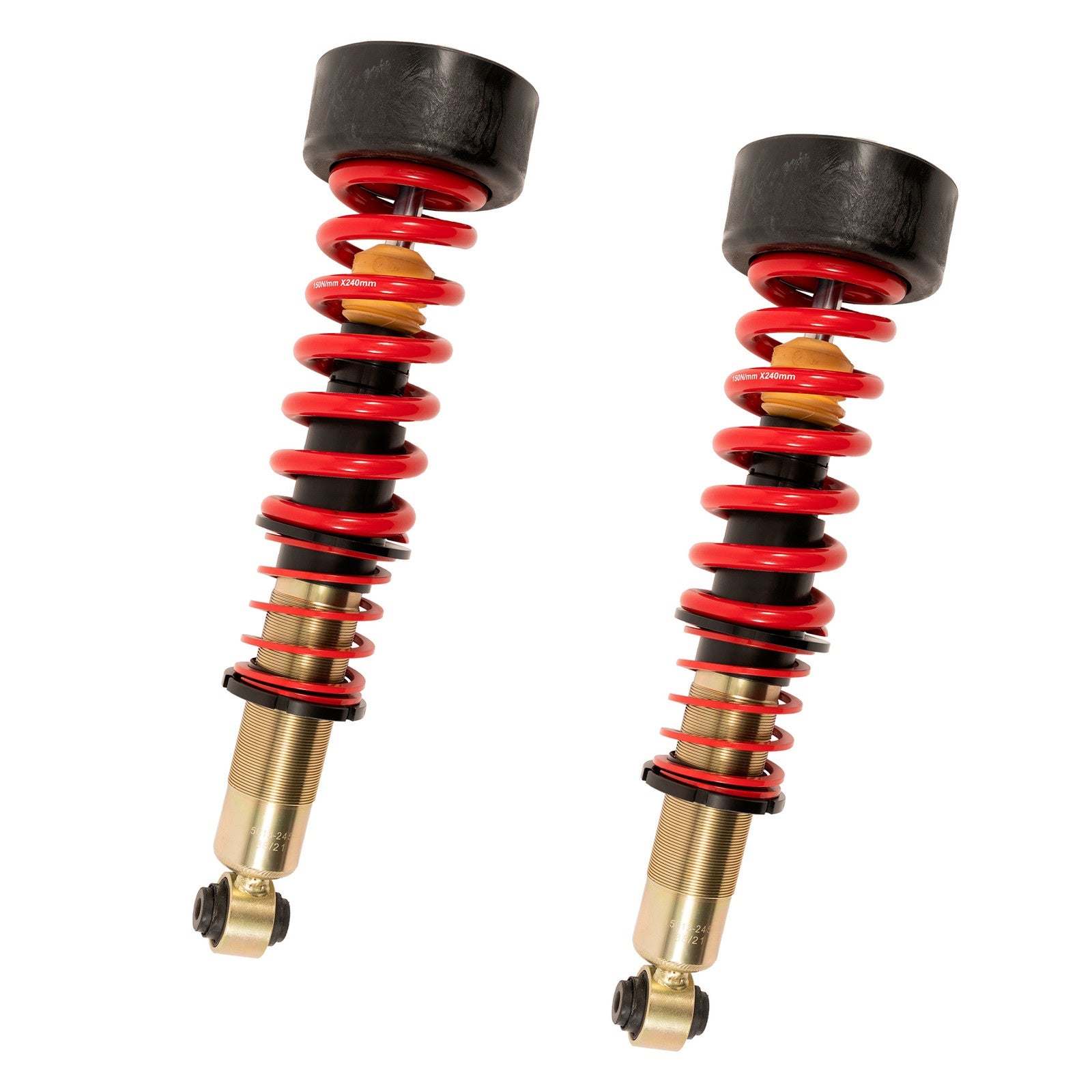

The front suspension includes robust Belltech lowering coilovers designed using high-quality, multi-functional components that are built to last. Each coilover includes a finely tuned Belltech damper that features a large, 2.4" (60mm) damper body and 35mm independent rebound and compression valves. Together, these details keep oil cool and deliver precise, consistent damping throughout travel. The external threads and spring perch offer customisable height adjustability. We feature a large main spring and smaller helper spring. Both the main spring and the helper spring are made of cold-formed tensile steel and are powder-coated to prevent rust and wear. The coilover uses a progressive rate polymer, open-cell bump stop for ideal bump stop engagement, and the OE top mounts for simplified installation. We include spindles to complete the front-end lowering with another -2" by bringing your wheelsÕ mounting position up higher and settling your vehicle closer to the ground.

The rear end of the vehicle showcases Belltech Street Performance shocks that are perfectly tuned for your RAM. They sport large 2.2" (55mm) damper bodies and use 35mm independent rebound and compression valves, for more exact, luxurious damping. To achieve -4" or -5" in lowering, our kit includes replacement coil springs and 1" spacers. To gain additional lowering for a full 5", the spacer is removed. Belltech springs are made of cold-formed steel and are powder coated to prevent rust and wear. Our spacers are constructed of solid steel and powder coated making them extremely durable. The roll centre correction bracket keeps the axle centred under the vehicle to maintain proper suspension geometry. Preserving correct anti-sway bar angles, our kit includes an adjustable end link assembly. To accommodate the new ride height, we also include a progressive rate polymer, open-cell bump stop. For lateral control we include a 1-3/8" diameter solid front sway bar and 13/16" diameter hollow rear sway bar that are made of cold-formed steel.

• Customisable front lowering options of -3" or -4"
• Customisable rear lowering options of -4" or -5"
• Large-bodied 2.4" (60mm) preset front Street Performance dampers
• Large-bodied 2.2" (55mm) preset rear Street Performance shocks
• 35mm independent rebound and compression valves
• Robust drop spindles
• 1-3/8" diameter solid front sway bar and 13/16" diameter hollow rear sway bar

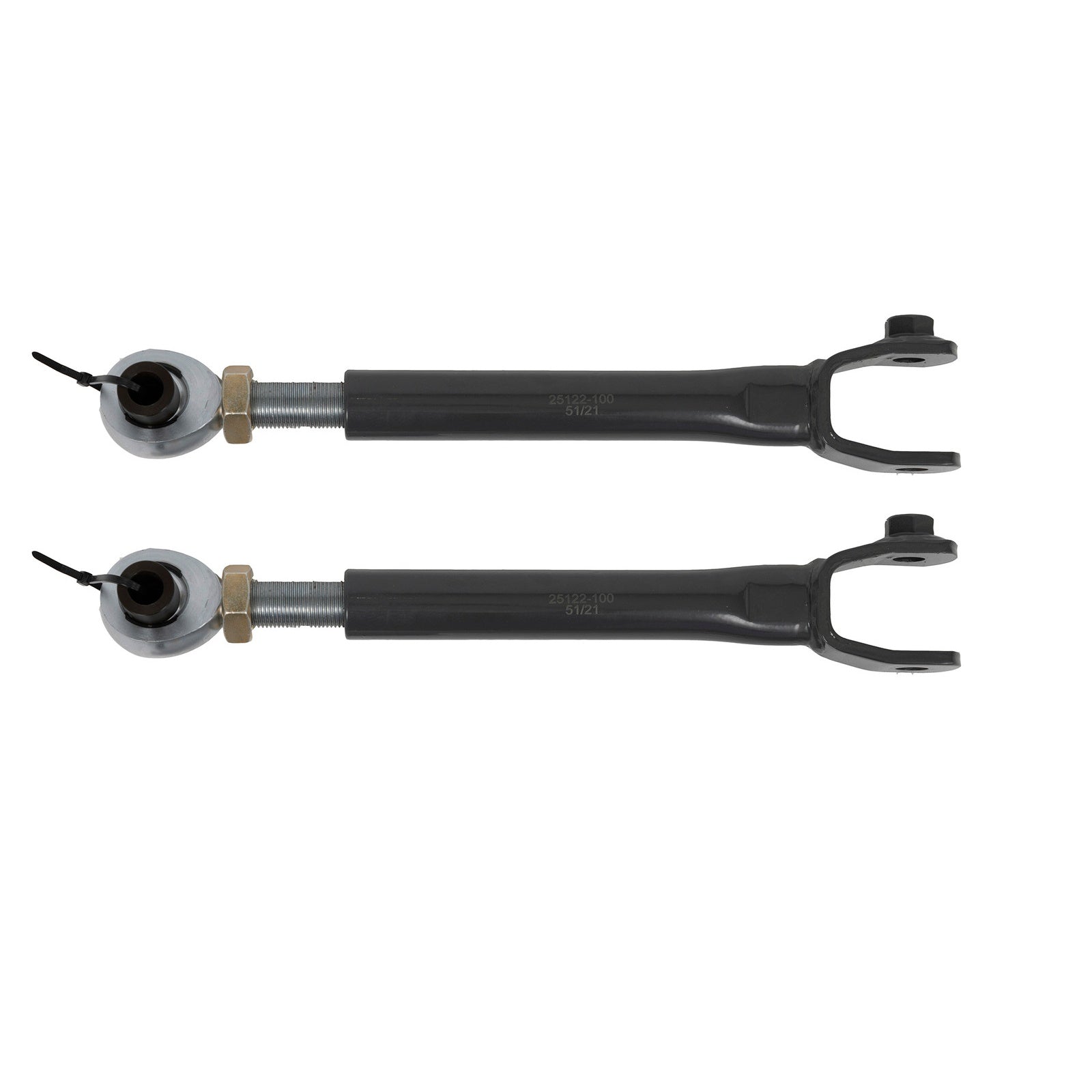

• Adjustable length heim joint end links
• Preserves OE ride quality and suspension geometry
• Engineered to exemplify ride quality and performance with a lowered centre of gravity
