About this product

Fits: 2019+ Ram 1500 2WD / 4WD

Precision and performance are the objectives for the new line of Belltech 2019+ RAM 1500 lowering kits. This kit lowers the front of your vehicle -3 to -4 inches and the rear -4 or -5 inches to improve appearance and provide a lower centre of gravityÑwhile delivering the ride quality you have been dreaming of.

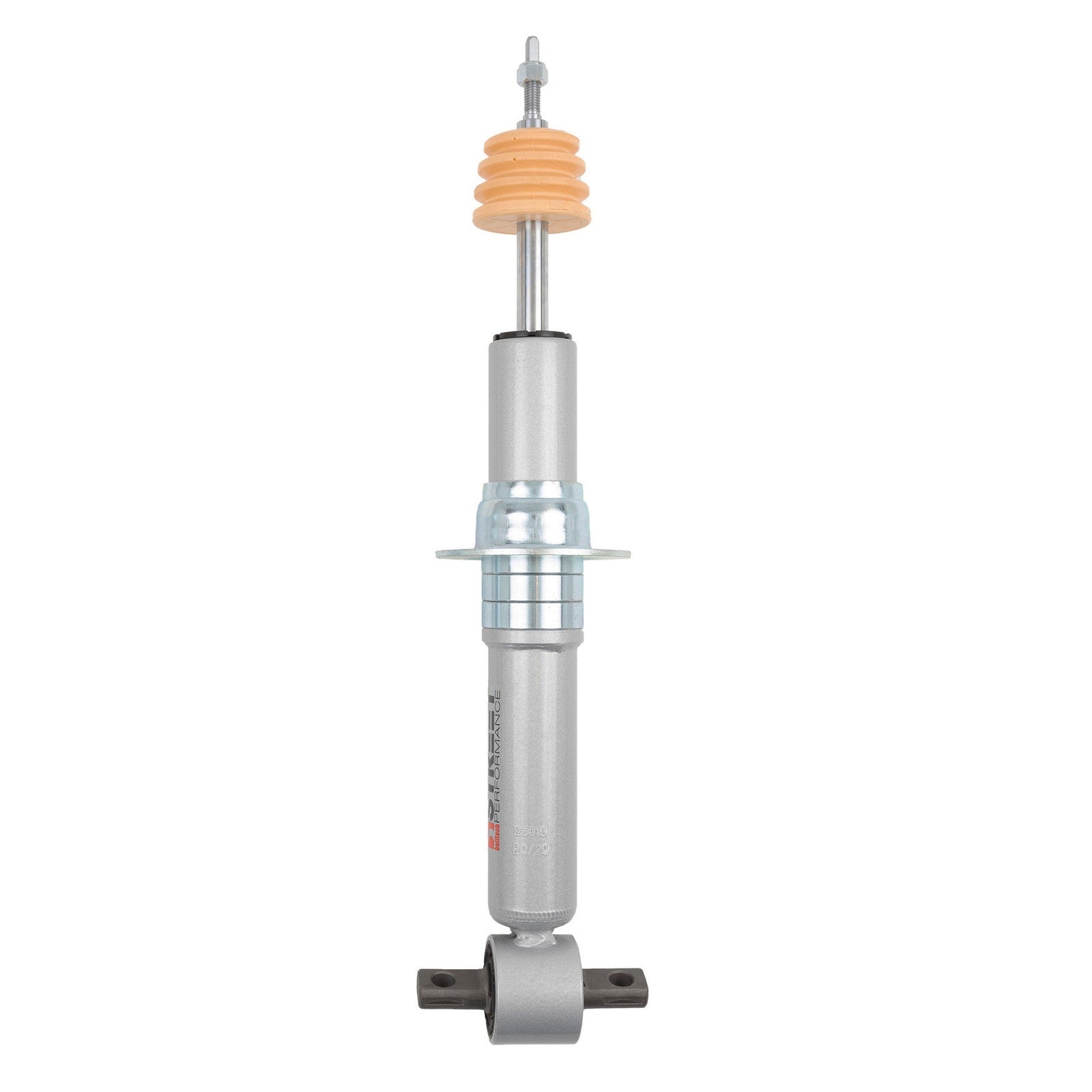

The front suspension includes robust Belltech Street Performance struts with large 2 inch (50 mm) damper bodies and 35 mm independent rebound and compression valves to keep oil cool and ensure precise, consistent damping. A patented ring spacer design offers height adjustability from 1 to -3 inches in half_inch increments. Included spindles complete the front end lowering with another -2 inches by positioning the wheel mounts higher and settling the vehicle closer to the ground.

The rear showcases Belltech Street Performance shocks tuned for your RAM with large 2.2 inch (55 mm) damper bodies and 35 mm independent valving for refined damping. To achieve -4 or -5 inches, the kit includes replacement coil springs and 1 inch spacers (remove the spacer for the full 5 inch drop). Cold_formed, powder_coated springs resist rust and wear; durable powder_coated spacers are built to last. A roll_centre correction bracket keeps the axle centred to maintain proper suspension geometry, while adjustable end links preserve anti_sway bar angles. A progressive_rate polymer, open_cell bump stop accommodates the new ride height. For lateral control, a 1_3/8 inch solid front sway bar and 13/16 inch hollow rear sway bar (cold_formed, powder_coated, and 2_way adjustable) are included.

BelltechÕs complete lowering kit gives your truck an eye_catching appearance and extraordinary performance. Easy installation plus quality components result in a refined ride for years to come.

• Customisable front lowering options of -3 or -4 inches
• Customisable rear lowering options of -4 or -5 inches
• Large_bodied 2.0 inch (50 mm) preset front Street Performance struts
• Large_bodied 2.2 inch (55 mm) preset rear Street Performance shocks
• 35 mm independent rebound and compression valves
• Robust drop spindles

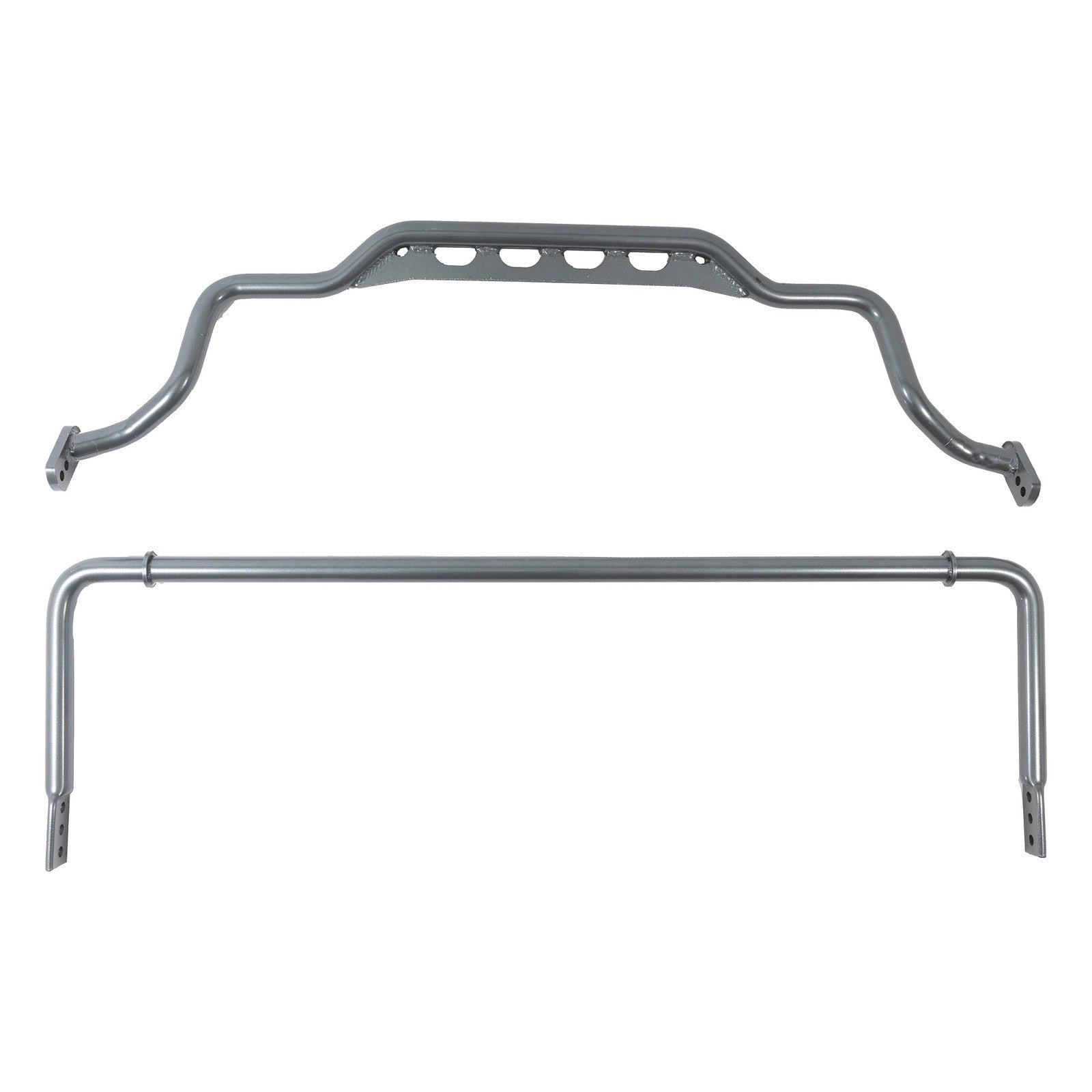

• 1_3/8 inch solid front sway bar and 13/16 inch hollow rear sway bar

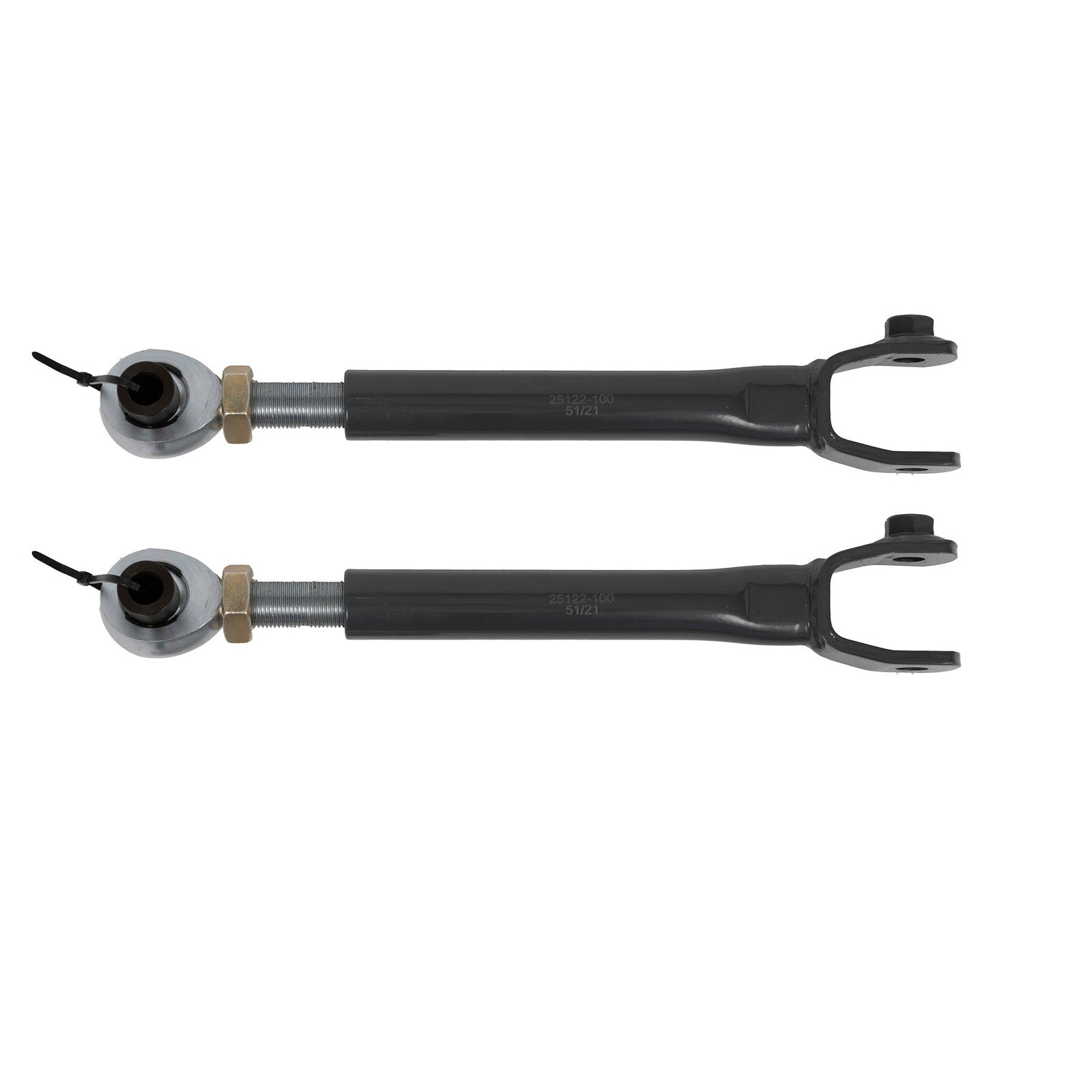

• Adjustable_length heim joint end links
• Preserves OE ride quality and suspension geometry
• Engineered to exemplify ride quality and performance with a lowered centre of gravity
