BELLTECH 150203TPC 7-9 INCH LIFT KIT | FRONT AND REAR TRAIL PERFORMANCE COILOVERS/SHOCKS
$On Request
Description
Product Disclaimers:
- Vehicle compatibility: 2021+ Ford F-150 2WD.
- Lowering range: Front 0 to 3.5", Rear 4.5".
- Does not fit models equipped with Ford's Continuously Controlled Damping (CCD).
- For vehicles with a 2-piece driveline, order CCB relocation kit #4993.
- Does not fit models with Max Trailer Tow Package (53C).
About this product
Outstanding performance, improved handling, and enhanced style are just a few of the upgrades you gain when swapping your OE suspension for BelltechÕs 2021+ Ford F-150 2WD Performance Handling Lowering Kit. Our kit drops the front of your vehicle from 1" to 3.5" and the rear 4.5", giving it a drastically improved appearance and a lower centre of gravity. We go well beyond looks and deliver the ride quality you have been dreaming of.

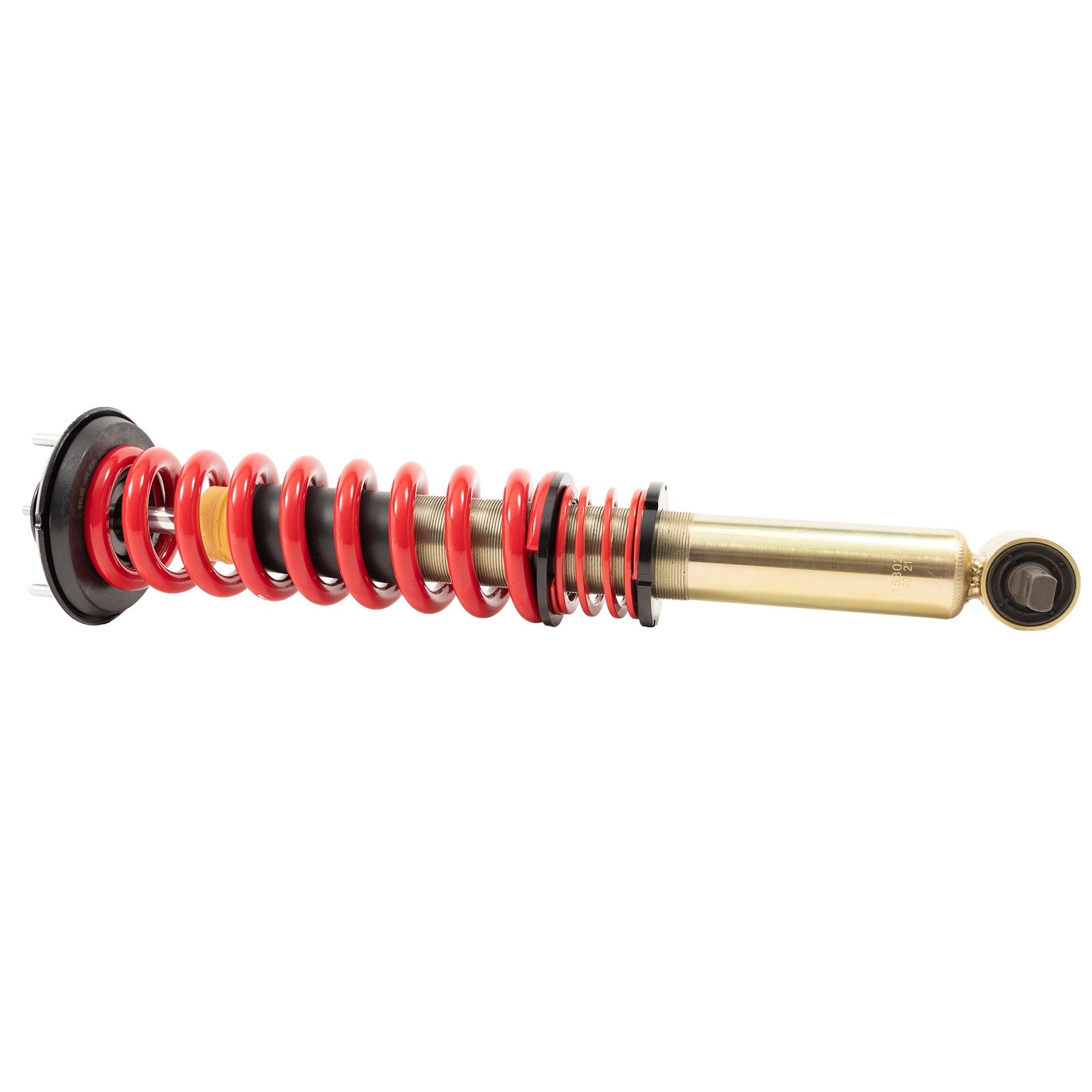

The front suspension includes robust Belltech lowering coilovers created with high-quality, multi-functional components that are built to last. Each coilover has a centrally located finely tuned preset Street Performance threaded damper. The dampers feature a large 2.4" (60mm) body and 35mm independent rebound and compression valves. Together, these details keep oil cool and deliver precise, consistent damping throughout all journeys. The external threads and spring perch offer height adjustability from 1" to 3.5". Our F-150 coilovers include a large main spring and smaller helper spring. Both springs are made of cold-formed tensile steel and are powder-coated to prevent rust and wear. A progressive-rate polymer, open-cell bump stop provides ideal bump stop engagement, and OE-style top mounts simplify installation.

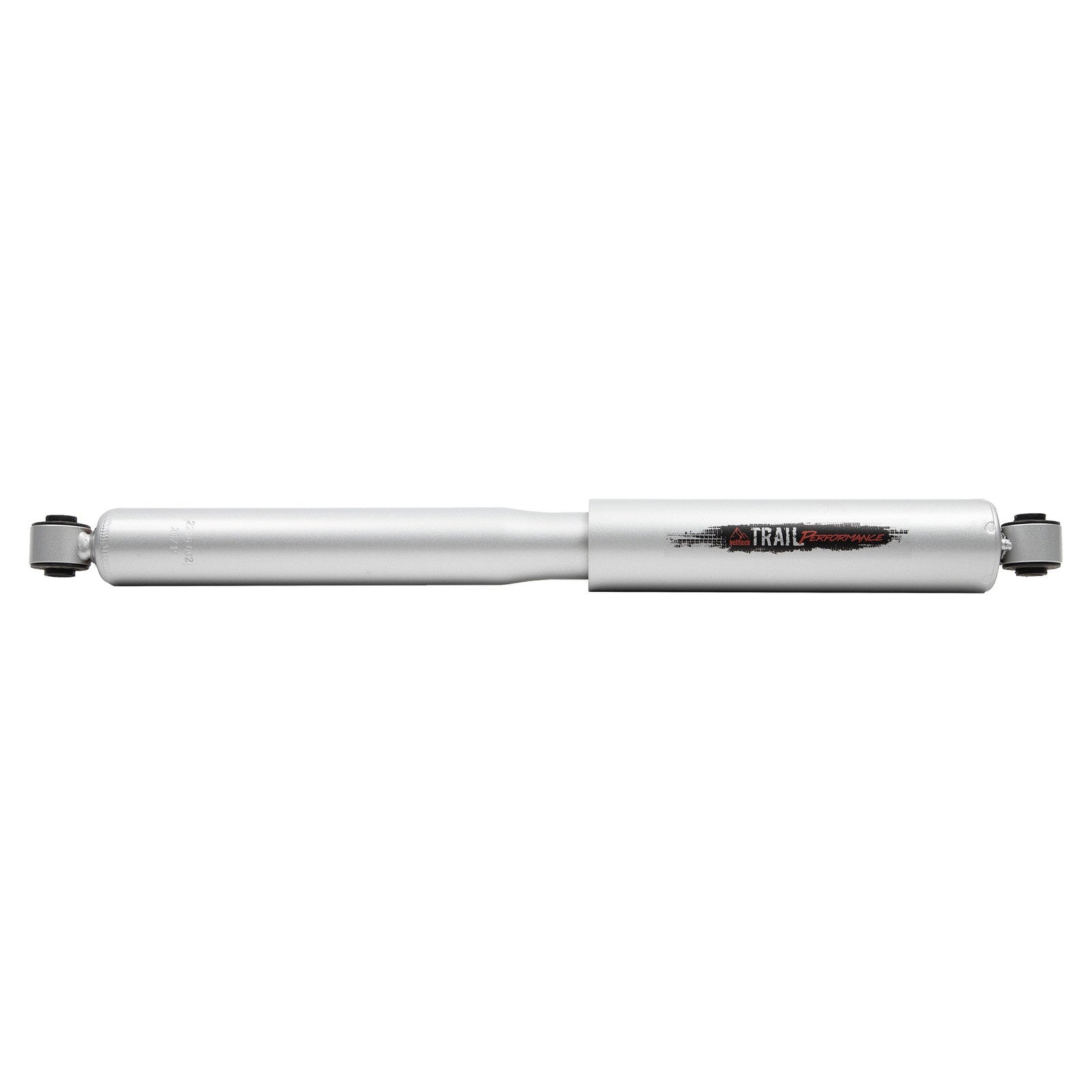

The rear end showcases Belltech preset Street Performance shocks that are perfectly tuned for your F-150. They feature large 2" (50mm) damper bodies and use 35mm independent rebound and compression valves to deliver precise, luxurious damping. Like the coilover dampers, our shocks are made with a low-friction design and use a rust-preventative coating to increase their lifespans. To achieve 4.5" of lowering, Belltech includes an easy-to-install flip kit containing high-quality hardware and durable components. It seamlessly repositions your axle without cutting or interfering with any OE parts.
BelltechÕs Performance Handling Lowering Kit delivers advanced, meticulous technology to give you a smooth, balanced-feeling ride with an eye-catching, high-performance level.
- 1" to 3.5" lowering in the front and 4.5" in the rear
- Large 2.4" (60mm) Street Performance dampers in front
- Street Performance 2" (50mm) shocks in rear
- 35mm independent rebound and compression valves
- Vehicle-specific preset, consistent damping
- High-quality bolt-on flip kit
- Enhanced performance and handling
- Reduced body roll
- Improved ride quality
- Lowers centre of gravity
- Easy installation
Fitments
| Year | Make | Model | Submodel | Drive Type | Engine | Fuel Type | Body Type | Notes |
|---|---|---|---|---|---|---|---|---|
| 2021 - 2023 | Ford | F-150 | King Ranch | RWD | 3.5L | GAS | Crew Cab Pickup | F10: For Vehicles with a 2-piece driveline order CCB relocation kit #4993; F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD); Lowering Rate: F: 0.0-3.5" / R: 4.5" |
| 2021 - 2023 | Ford | F-150 | King Ranch | RWD | 5.0L | FLEX | Crew Cab Pickup | F10: For Vehicles with a 2-piece driveline order CCB relocation kit #4993; F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD); Lowering Rate: F: 0.0-3.5" / R: 4.5" |
| 2021 - 2023 | Ford | F-150 | Lariat | RWD | 2.7L | GAS | Crew Cab Pickup | F10: For Vehicles with a 2-piece driveline order CCB relocation kit #4993; F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD); Lowering Rate: F: 0.0-3.5" / R: 4.5" |
| 2021 - 2023 | Ford | F-150 | Lariat | RWD | 2.7L | GAS | Extended Cab Pickup | F10: For Vehicles with a 2-piece driveline order CCB relocation kit #4993; F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD); Lowering Rate: F: 0.0-3.5" / R: 4.5" |
| 2021 - 2023 | Ford | F-150 | Lariat | RWD | 3.5L | GAS | Crew Cab Pickup | F10: For Vehicles with a 2-piece driveline order CCB relocation kit #4993; F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD); Lowering Rate: F: 0.0-3.5" / R: 4.5" |
| 2021 - 2023 | Ford | F-150 | Lariat | RWD | 3.5L | GAS | Extended Cab Pickup | F10: For Vehicles with a 2-piece driveline order CCB relocation kit #4993; F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD); Lowering Rate: F: 0.0-3.5" / R: 4.5" |
| 2021 - 2023 | Ford | F-150 | Lariat | RWD | 5.0L | FLEX | Crew Cab Pickup | F10: For Vehicles with a 2-piece driveline order CCB relocation kit #4993; F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD); Lowering Rate: F: 0.0-3.5" / R: 4.5" |
| 2021 - 2023 | Ford | F-150 | Lariat | RWD | 5.0L | FLEX | Extended Cab Pickup | F10: For Vehicles with a 2-piece driveline order CCB relocation kit #4993; F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD); Lowering Rate: F: 0.0-3.5" / R: 4.5" |
| 2021 - 2023 | Ford | F-150 | Limited | RWD | 3.5L | GAS | Crew Cab Pickup | F10: For Vehicles with a 2-piece driveline order CCB relocation kit #4993; F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD); Lowering Rate: F: 0.0-3.5" / R: 4.5" |
| 2021 - 2023 | Ford | F-150 | Platinum | RWD | 3.5L | GAS | Crew Cab Pickup | F10: For Vehicles with a 2-piece driveline order CCB relocation kit #4993; F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD); Lowering Rate: F: 0.0-3.5" / R: 4.5" |
| 2021 - 2023 | Ford | F-150 | Platinum | RWD | 5.0L | FLEX | Crew Cab Pickup | F10: For Vehicles with a 2-piece driveline order CCB relocation kit #4993; F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD); Lowering Rate: F: 0.0-3.5" / R: 4.5" |
| 2024 - 2025 | Ford | F-150 | STX | RWD | 2.7L | GAS | Crew Cab Pickup | F10: For Vehicles with a 2-piece driveline order CCB relocation kit #4993; F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD); Lowering Rate: F: 0.0-3.5" / R: 4.5" |
| 2024 - 2025 | Ford | F-150 | STX | RWD | 2.7L | GAS | Extended Cab Pickup | F10: For Vehicles with a 2-piece driveline order CCB relocation kit #4993; F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD); Lowering Rate: F: 0.0-3.5" / R: 4.5" |
| 2024 - 2025 | Ford | F-150 | STX | RWD | 5.0L | FLEX | Crew Cab Pickup | F10: For Vehicles with a 2-piece driveline order CCB relocation kit #4993; F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD); Lowering Rate: F: 0.0-3.5" / R: 4.5" |
| 2024 - 2025 | Ford | F-150 | STX | RWD | 5.0L | FLEX | Extended Cab Pickup | F10: For Vehicles with a 2-piece driveline order CCB relocation kit #4993; F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD); Lowering Rate: F: 0.0-3.5" / R: 4.5" |
| 2021 - 2025 | Ford | F-150 | XL | RWD | 2.7L | GAS | Crew Cab Pickup | F10: For Vehicles with a 2-piece driveline order CCB relocation kit #4993; F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD); Lowering Rate: F: 0.0-3.5" / R: 4.5" |
| 2021 - 2025 | Ford | F-150 | XL | RWD | 2.7L | GAS | Extended Cab Pickup | F10: For Vehicles with a 2-piece driveline order CCB relocation kit #4993; F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD); Lowering Rate: F: 0.0-3.5" / R: 4.5" |
| 2021 - 2025 | Ford | F-150 | XL | RWD | 2.7L | GAS | Standard Cab Pickup | F10: For Vehicles with a 2-piece driveline order CCB relocation kit #4993; F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD); Lowering Rate: F: 0.0-3.5" / R: 4.5" |
| 2021 - 2023 | Ford | F-150 | XL | RWD | 3.3L | FLEX | Crew Cab Pickup | F10: For Vehicles with a 2-piece driveline order CCB relocation kit #4993; F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD); Lowering Rate: F: 0.0-3.5" / R: 4.5" |
| 2021 - 2023 | Ford | F-150 | XL | RWD | 3.3L | FLEX | Extended Cab Pickup | F10: For Vehicles with a 2-piece driveline order CCB relocation kit #4993; F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD); Lowering Rate: F: 0.0-3.5" / R: 4.5" |
| 2021 - 2023 | Ford | F-150 | XL | RWD | 3.3L | FLEX | Standard Cab Pickup | F10: For Vehicles with a 2-piece driveline order CCB relocation kit #4993; F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD); Lowering Rate: F: 0.0-3.5" / R: 4.5" |
| 2021 - 2025 | Ford | F-150 | XL | RWD | 3.5L | GAS | Crew Cab Pickup | F10: For Vehicles with a 2-piece driveline order CCB relocation kit #4993; F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD); Lowering Rate: F: 0.0-3.5" / R: 4.5" |
| 2021 - 2025 | Ford | F-150 | XL | RWD | 3.5L | GAS | Extended Cab Pickup | F10: For Vehicles with a 2-piece driveline order CCB relocation kit #4993; F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD); Lowering Rate: F: 0.0-3.5" / R: 4.5" |
| 2021 - 2025 | Ford | F-150 | XL | RWD | 3.5L | GAS | Standard Cab Pickup | F10: For Vehicles with a 2-piece driveline order CCB relocation kit #4993; F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD); Lowering Rate: F: 0.0-3.5" / R: 4.5" |
| 2021 - 2025 | Ford | F-150 | XL | RWD | 5.0L | FLEX | Crew Cab Pickup | F10: For Vehicles with a 2-piece driveline order CCB relocation kit #4993; F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD); Lowering Rate: F: 0.0-3.5" / R: 4.5" |
