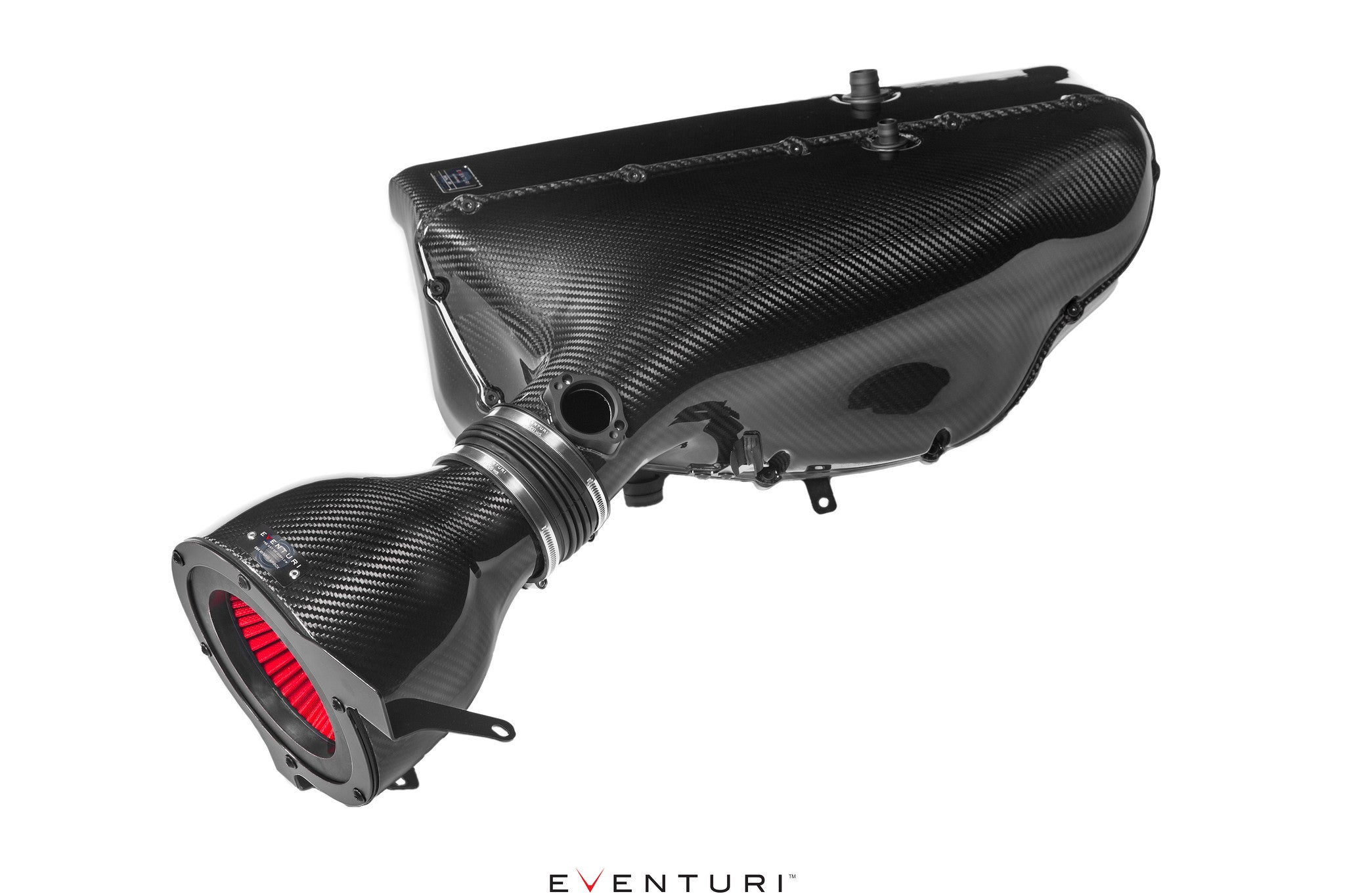

Eventuri Hybrid Carbon Airbox w/ Full Carbon Intake for BMW M3 (E46)
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

The Eventuri Hybrid Airbox System is a world-first intake solution for the BMW E46 M3. It delivers the aggressive, race-inspired sound of the CSL airbox with the driveability and plug-and-play simplicity of a traditional intake. Until now, E46 M3 owners wanting the CSL airbox sound had to run the engine without the MAF sensor, which often meant expensive ECU conversions or remaps and hurt throttle response and driveability. The Hybrid Airbox uses the OEM MAF sensor, so no remap is needed.
The airbox uses Eventuri's patented Venturi carbon fibre housing, which provides an aerodynamically efficient airflow path. It is not just another cone filter with a heat shield but a unique design that invokes the Venturi effect and maintains laminar flow to reduce drag on the engine. The carbon pod shrouds the reverse-mounted filter and removes the tortuous flow path of the OEM airbox, so airflow enters the MAF tube section smoothly and the sensor operates without errors. The cold air scoop clicks into the front right-hand brake duct, takes up half the height of the duct so brake airflow continues, and saturates the mouth of the intake with cold air, so even after a hard drive the aluminium cowl at the mouth of the intake stays cold to the touch.
Key Features
- Main airbox in prepreg carbon fibre houses the 6 trumpets and the breather system connectors, and is designed to resonate under load to produce the sought-after CSL sound
- Trumpets are injection moulded from glass fibre reinforced thermoplastic for accuracy and smooth internal surfaces, with CNC-machined stainless steel rings so they do not deform when the silicone couplers are tightened
- Mechanical fasteners and gaskets between the trumpets and airbox, and on the breather adapters, give an airtight seal that is not affected by heat cycles and vibration
- Snorkel channels airflow smoothly from the intake to the trumpet area and incorporates the MAF tube section, where the OEM sensor is secured to a CNC-machined MAF boss; custom screws cut into plastic securing clips so they do not loosen under vibration

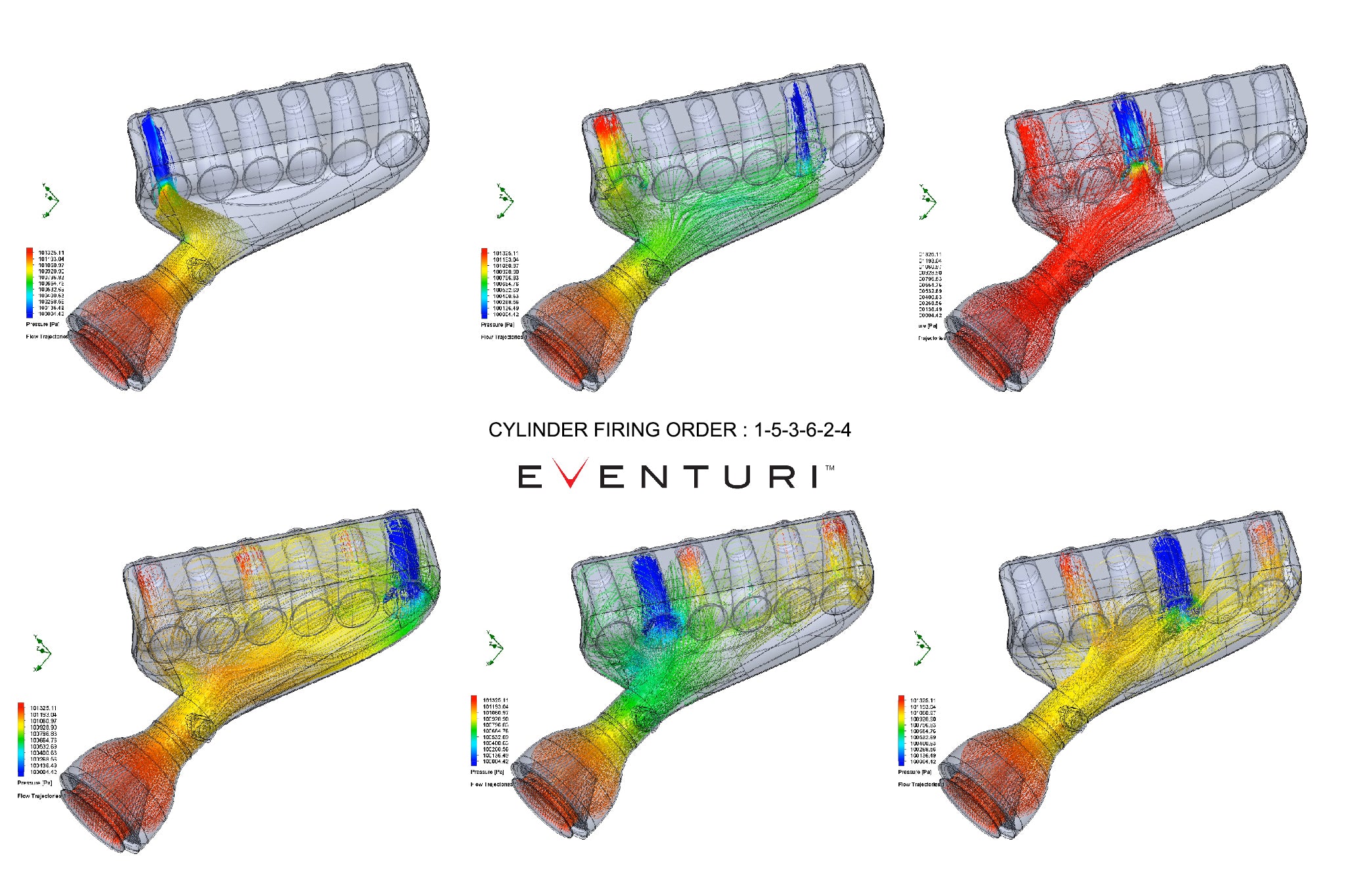

- Airbox shape was optimised over several iterations with CFD simulation so the trumpets have adequate flow without starvation
- Complete package including the breather hoses; the OEM MAF sensor is retained, so no aftermarket tune is needed
- Eventuri quotes a performance increase of 20-22hp, 8-13ft-lb with an OEM ECU tune
Specifications
- Configuration: Full Hybrid Airbox with Eventuri intake (also offered without the intake)
- Airbox: Carbon fibre main airbox and carbon fibre airbox snorkel with MAF tube
- Trumpets: 6 thermoplastic moulded, with stainless steel reinforcement rings
- Filter: Bespoke dry high-flow Generation 2 filter in a carbon fibre filter housing
- Scoop: 100% prepreg carbon fibre cold air scoop with CNC-machined collar
- Hardware: Stainless steel brackets and flanges, CNC-machined breather adapters, custom EPDM flexible coupler, silicone couplers
- Hoses: Crankcase breather hose and additional vacuum tubing
Vehicle compatibility
- BMW E46 M3.
