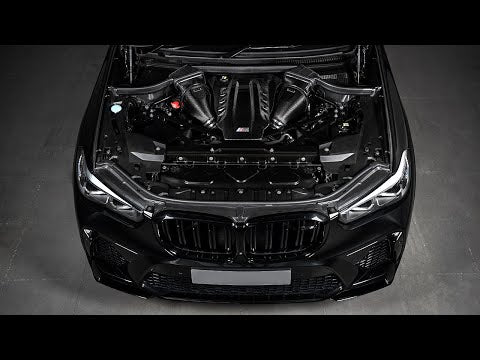

Eventuri Carbon Intake for BMW X5M/X6M (F9X) / XM (G09) / X5 M60i - Gloss
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

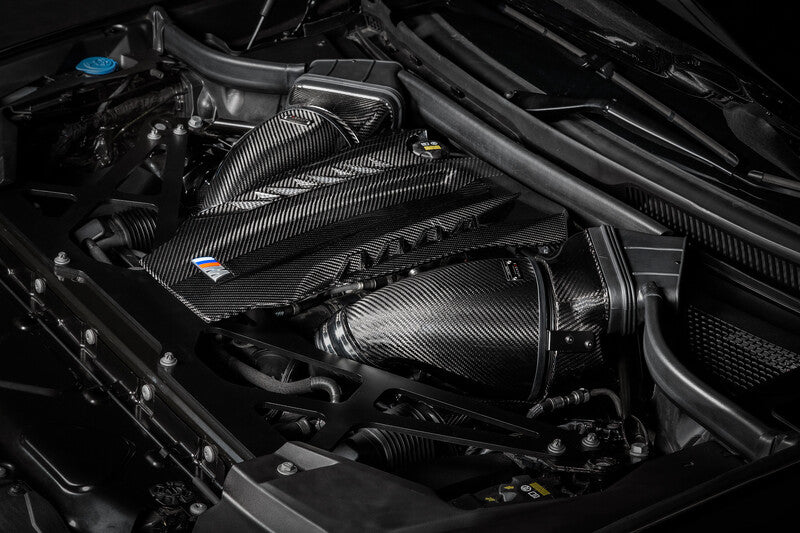

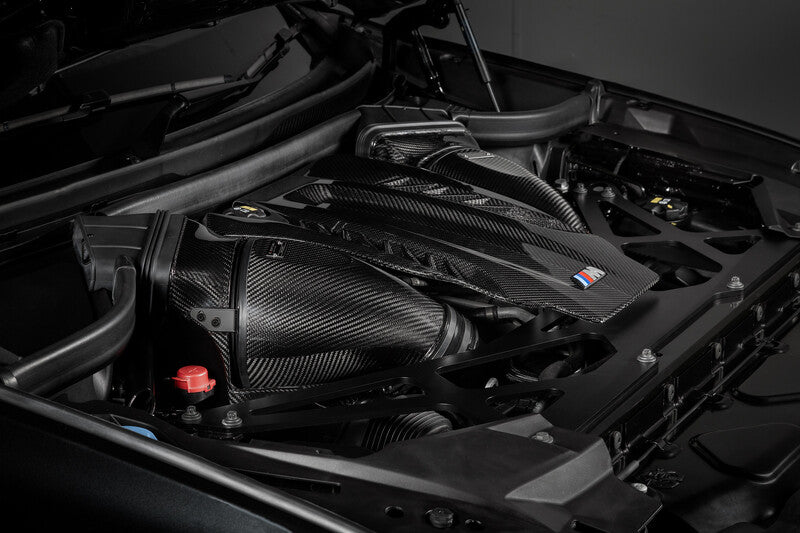

The Eventuri Carbon Intake for the BMW F9X X5M/X6M, G09 XM and X5 M60i in gloss finish is the result of extensive R&D and testing to improve on the flow path of the stock system. It is a complete redesign of the stock airboxes, aiming to reduce pressure loss and increase flow rate while keeping inlet temperatures low. With the stock cold air feeds at the front of the car and the turbo inlets facing the rear, airflow in the stock system has to negotiate a 180 degree turn through each airbox, which restricts flow.
To overcome this, Eventuri adds a second cold air feed from the scuttle panel for a more direct flow path to the turbo inlets, allowing a higher flow rate while keeping IATs low. With the intake openings now facing the cabin, turbo flutter and pressure release sounds are clearly audible. The system uses Eventuri's Patented carbon fibre housings with Gen 2 bespoke filters, giving an aerodynamically efficient airflow path from the filter to the turbos. It is not just another cone filter with a heat shield but a unique design that invokes the Venturi effect and maintains laminar flow to reduce drag on the turbo.
Key Features
- The OEM airbox turns the airflow through 90 degrees to pass the panel filter and through 90 degrees again to reach the tube section; here air enters the front of the filter housing and moves into the turbo inlet section without abrupt direction changes, so the turbos work with less drag
- Twin air ducts have an additional opening at the top, taking cold air from the scuttle panel as well as through the OEM feeds, for a higher flow rate and less tortuous path to the turbos

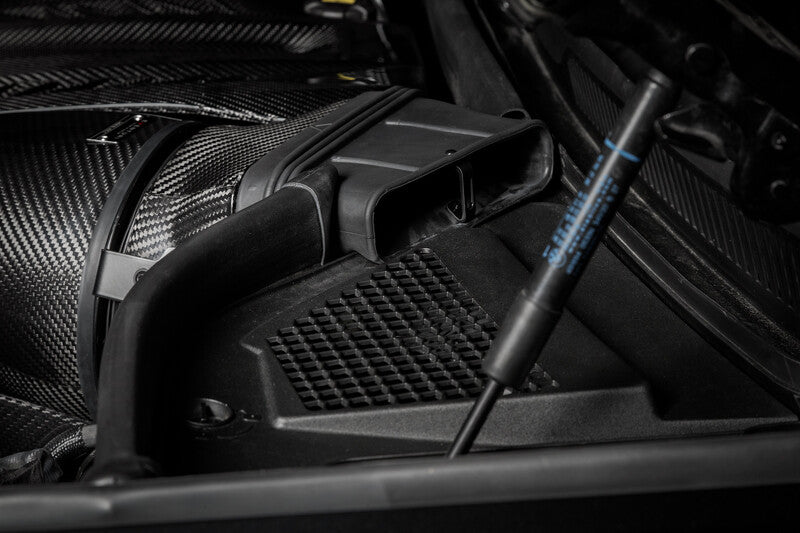

- EPDM rear feeds seal the secondary air inlets on the carbon ducts and route to the scuttle area, which is sealed off from the engine bay once the bonnet is closed

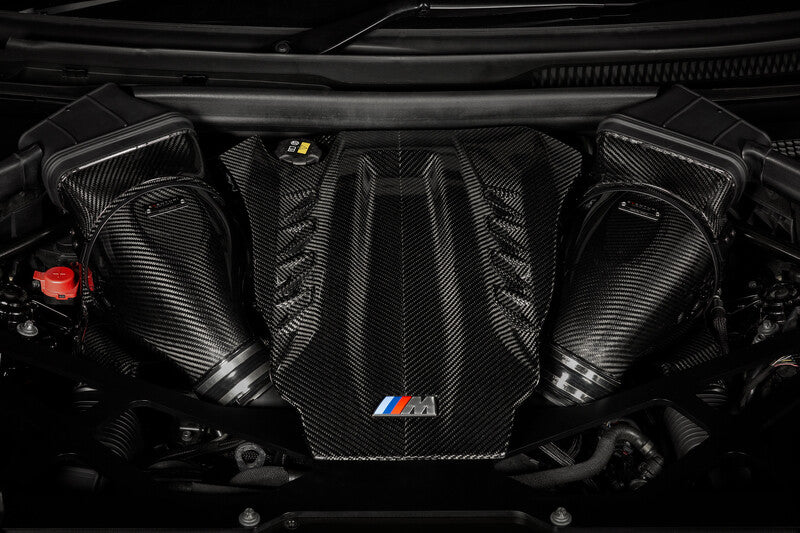

- Modified carbon engine cover replaces the OEM cover, which no longer fits the larger filter housings, with gaps left so engine heat dissipates rather than soaking into the intake
- Filter medium is ISO tested to ensure filtration is in line with OEM standards, and is dry
- Eventuri quotes a performance gain of 18-25hp, 15-18ft-lb with up to 30hp peak gain
- Max flow rates: stock 774 CFM, Eventuri 900 CFM
Specifications
- Finish: Gloss
- Material: 100% pre-preg carbon fibre with no fibreglass, for a smooth internal surface

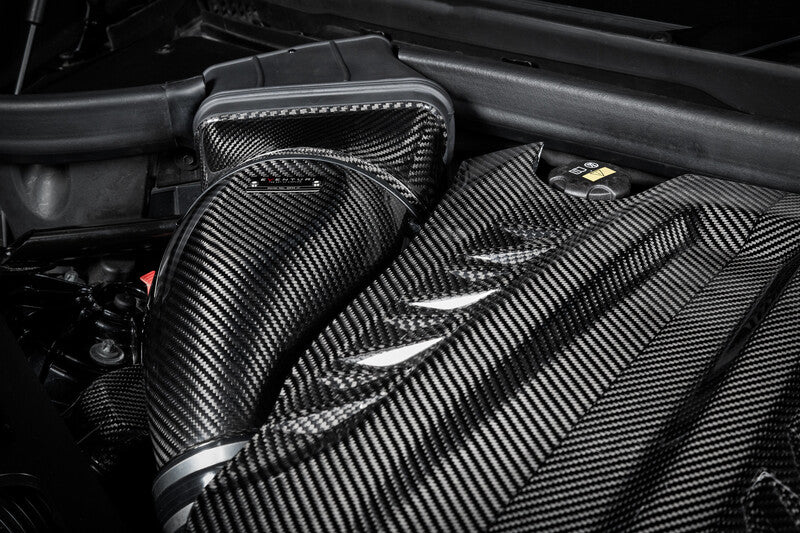

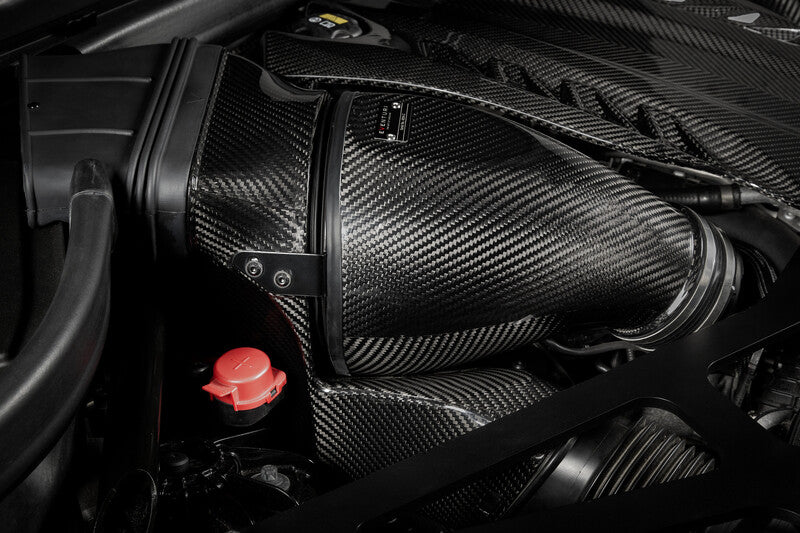

- Housings: 2 x carbon fibre patented Venturi filter housings
- Filters: 2 x bespoke high-flow dry cone filters
- Ducts: 2 x carbon fibre twin air ducts
- Engine cover: Carbon fibre
- Rear air feeds: 2 x EPDM
- Inlet cowls: Aluminium
- Brackets: Stainless steel, with CNC-machined bracket mounts
- Hardware: Silicone couplers
- Fitment: F95 X5M, X6M, G09 XM, X5 M60i
Vehicle compatibility
- BMW F95 X5M.
- BMW X6M.
- BMW G09 XM.
- BMW X5 M60i.
