CSF Charge Air Cooler Set for BMW X5 M (F95) / X6 M (F96) / XM (G09)

SKU: CSF8315
Sale price$4,481.10 Regular price$4,979.00
Save $497.90

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

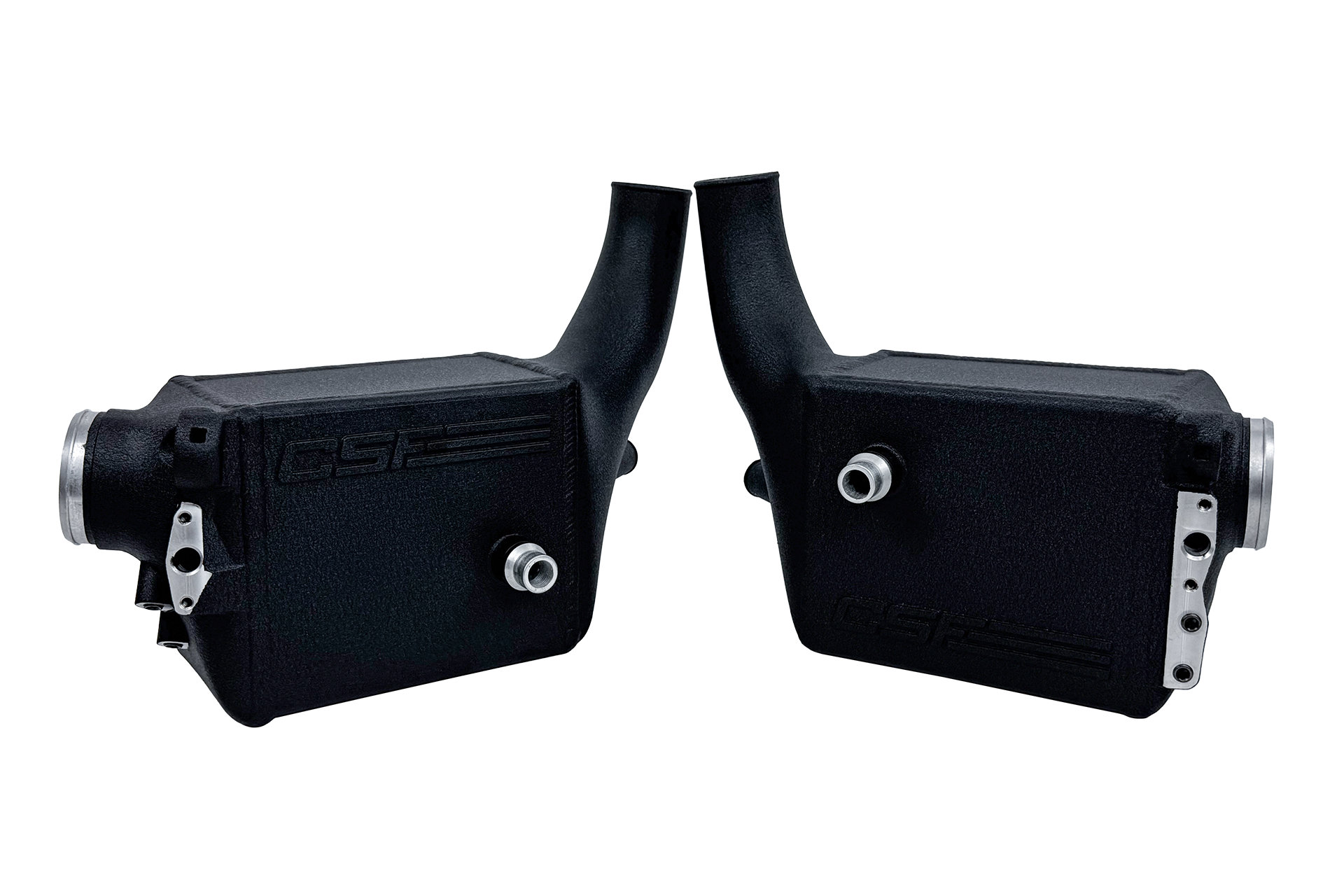

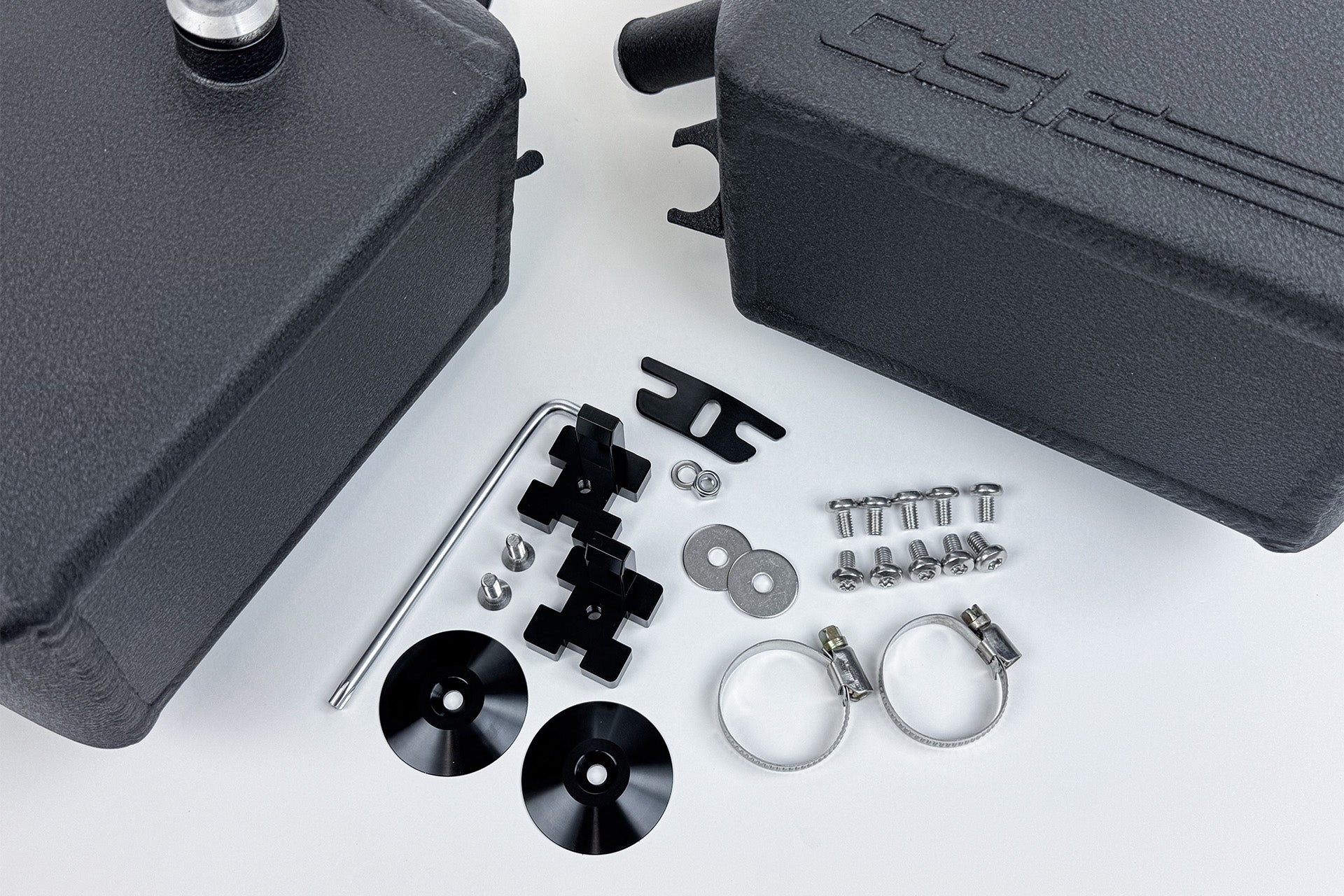

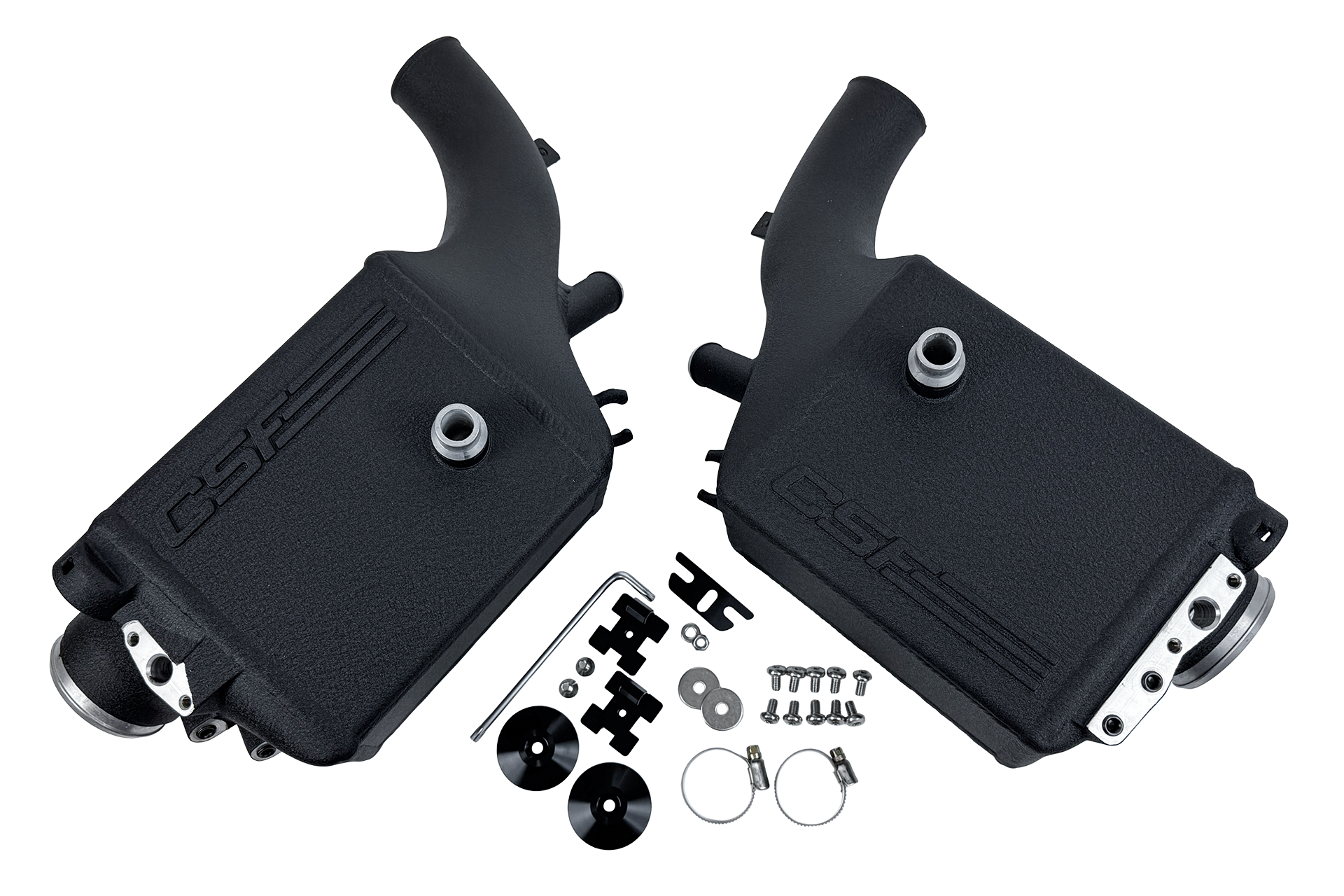

CSF BMW X5 M / X6 M / XM High-Performance Charge-Air Coolers are supplied in a crinkle black powder-coated finish as a complete left and right cooler set with installation hardware.

The liquid-to-air intercooler cores were developed using CFD analysis and testing. Each core has approximately twice the volume of the factory cooler. The drop-in design requires no modifications for installation.

Key Features

  • One-piece air inlet end tanks with integrated charge pipes
  • TIG-welded cast end tanks

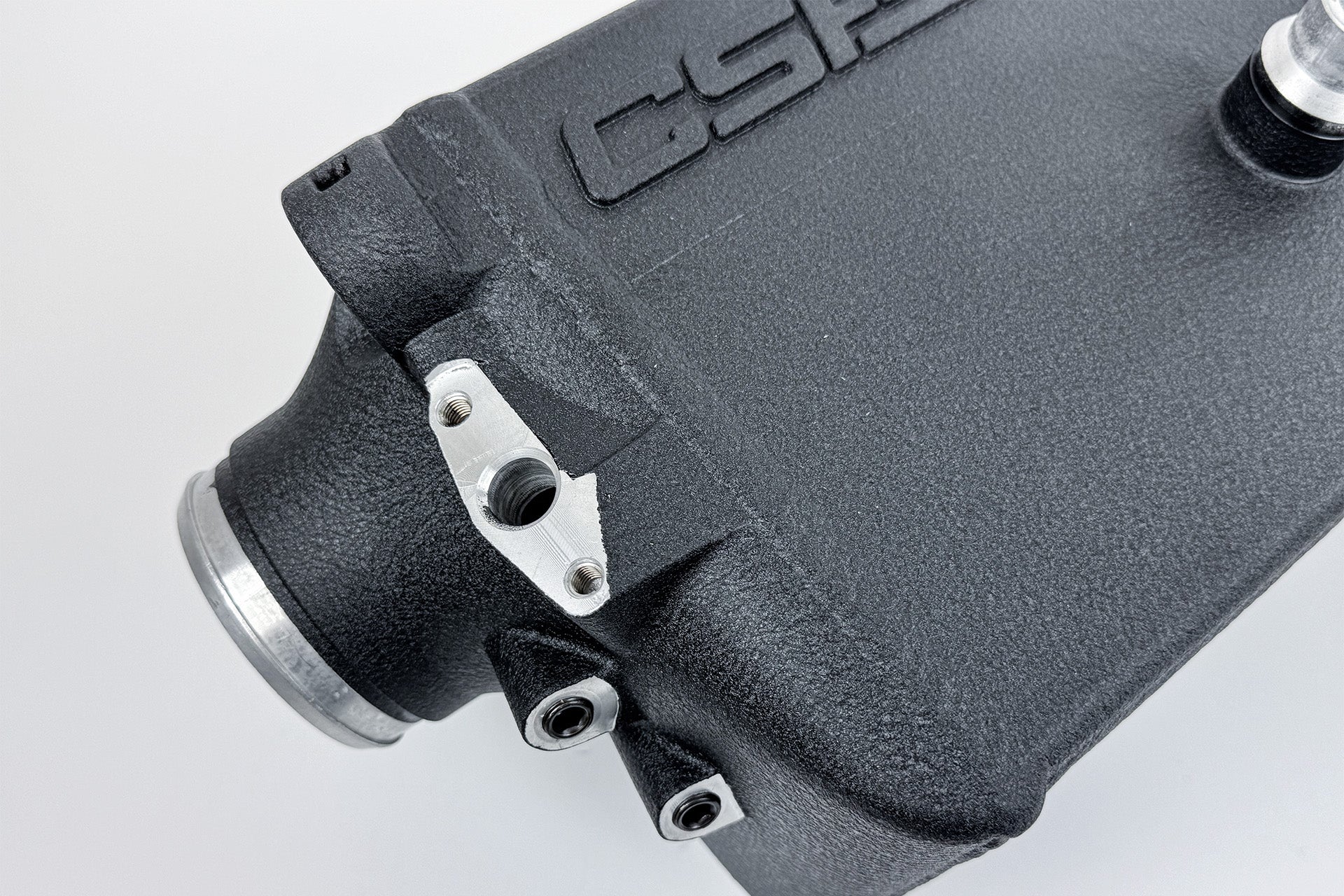

  • Dual 1/8 NPT injection ports per cooler in the outlet air tanks
  • OEM-style quick-connect water connections and sensor ports

Specifications

  • Core volume: About 100% larger than the OEM coolers
  • End tanks: Cast, 100% TIG-welded (OEM crimped plastic)
Important CSF applications also include the BMW G05 X5 M60i, G06 X6 M60i and G07 X7 M60i, restricted to the S68 engine. Custom finishes are not included with this standard crinkle black article. These charge-air coolers cannot be anodised.

Vehicle compatibility

Engine: Turbocharged 4.4L V8

  • BMW X5 M (F95) 2020–2023
  • BMW X5 M Competition (F95) 2020–2025
  • BMW X6 M (F96) 2019–2023
  • BMW X6 M Competition (F96) 2020–2025
  • BMW XM (G09) 2023–2025
  • BMW XM Label (G09) 2024–2025
  • BMW X5 M60i (G05) 2024–2026; S68 Engine Only
  • BMW X6 M60i (G06) 2024–2026; S68 Engine Only
  • BMW X7 M60i (G07) 2023–2026; S68 Engine Only
