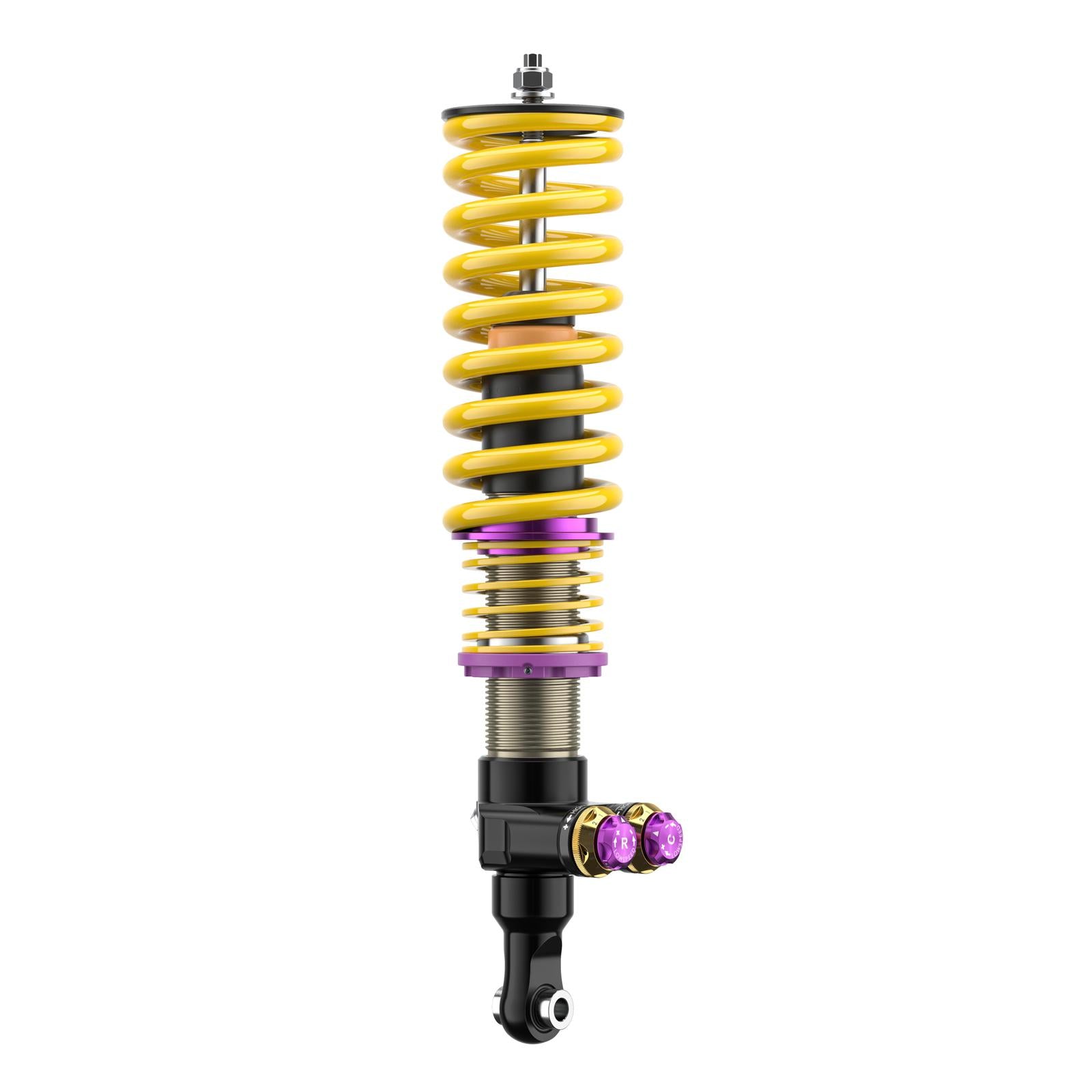

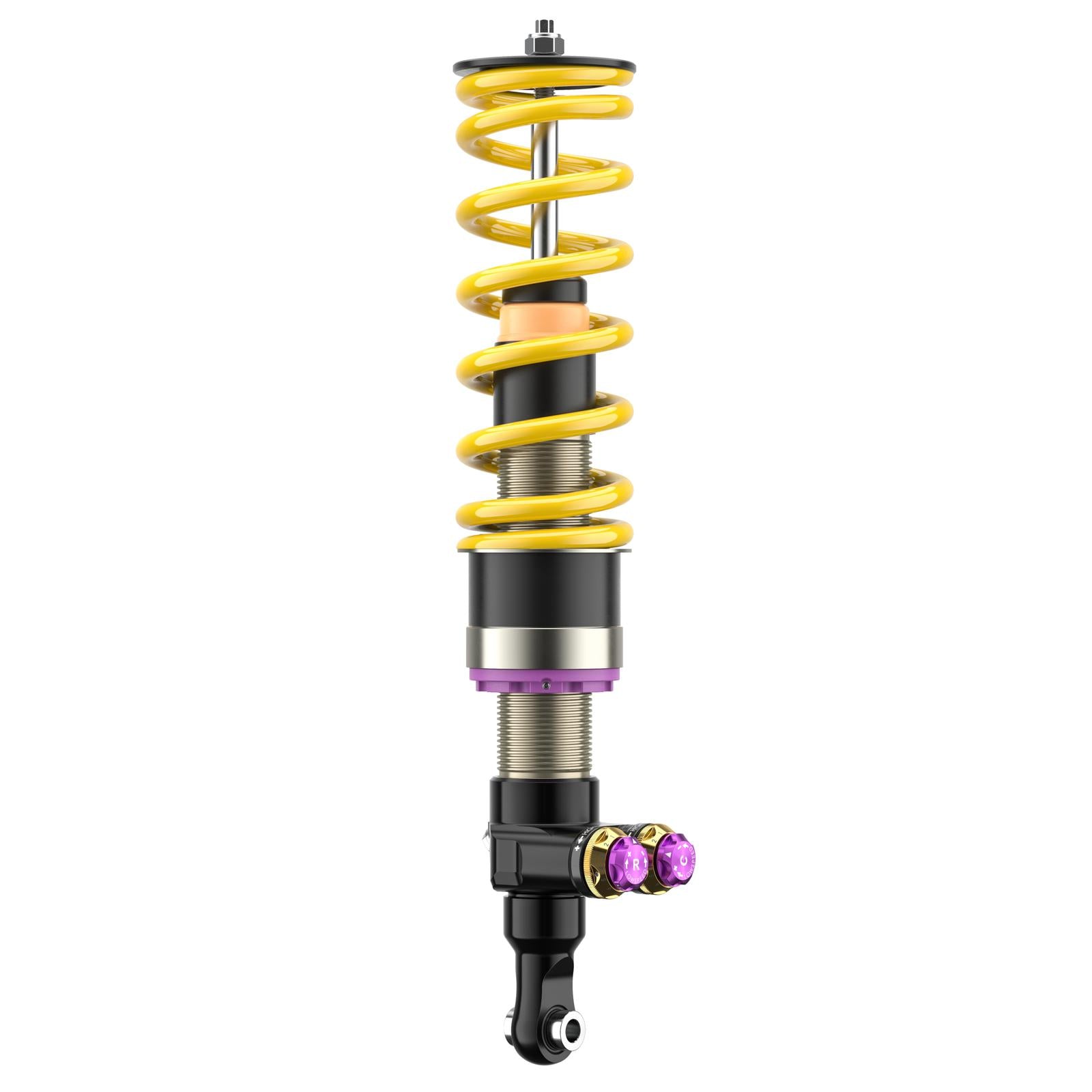

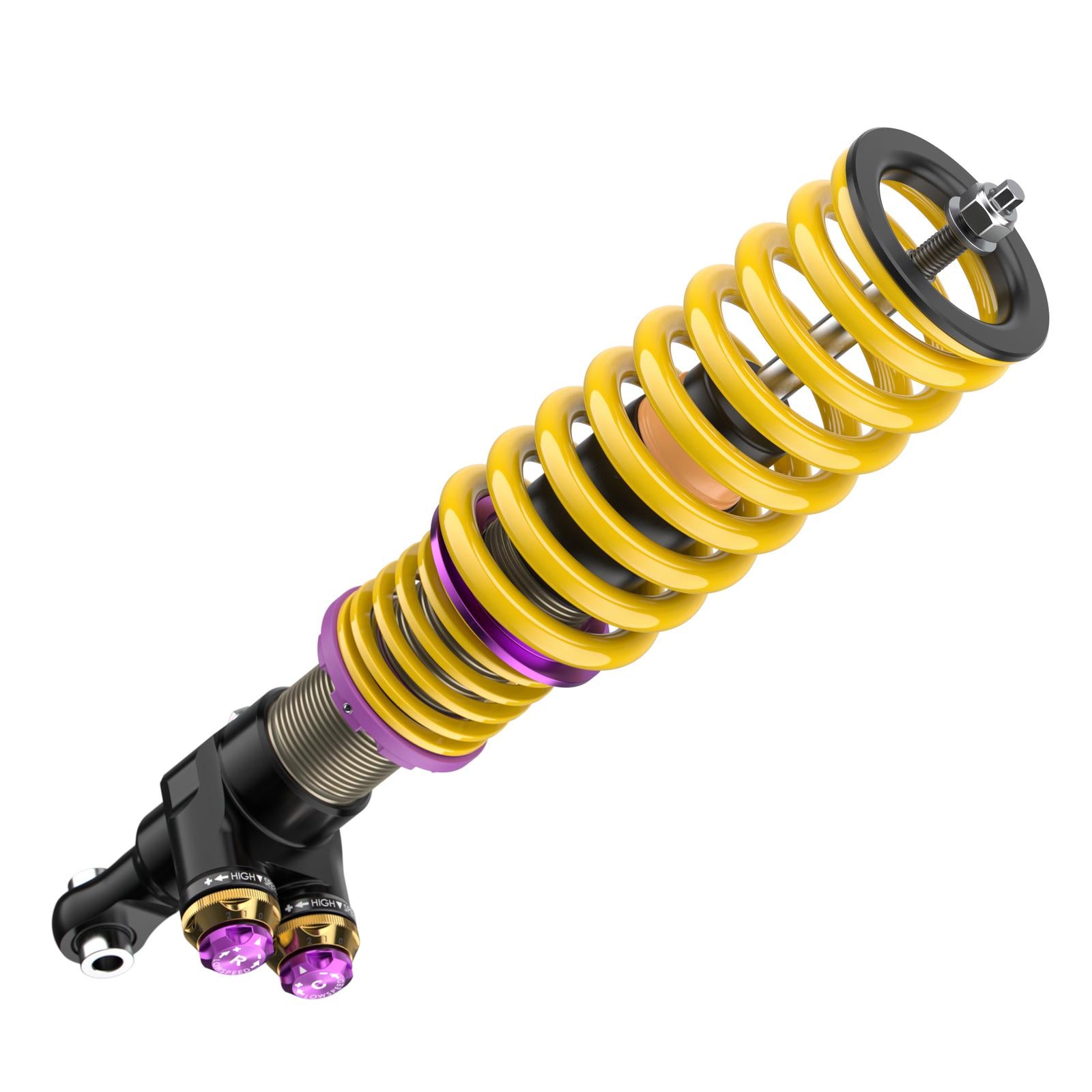

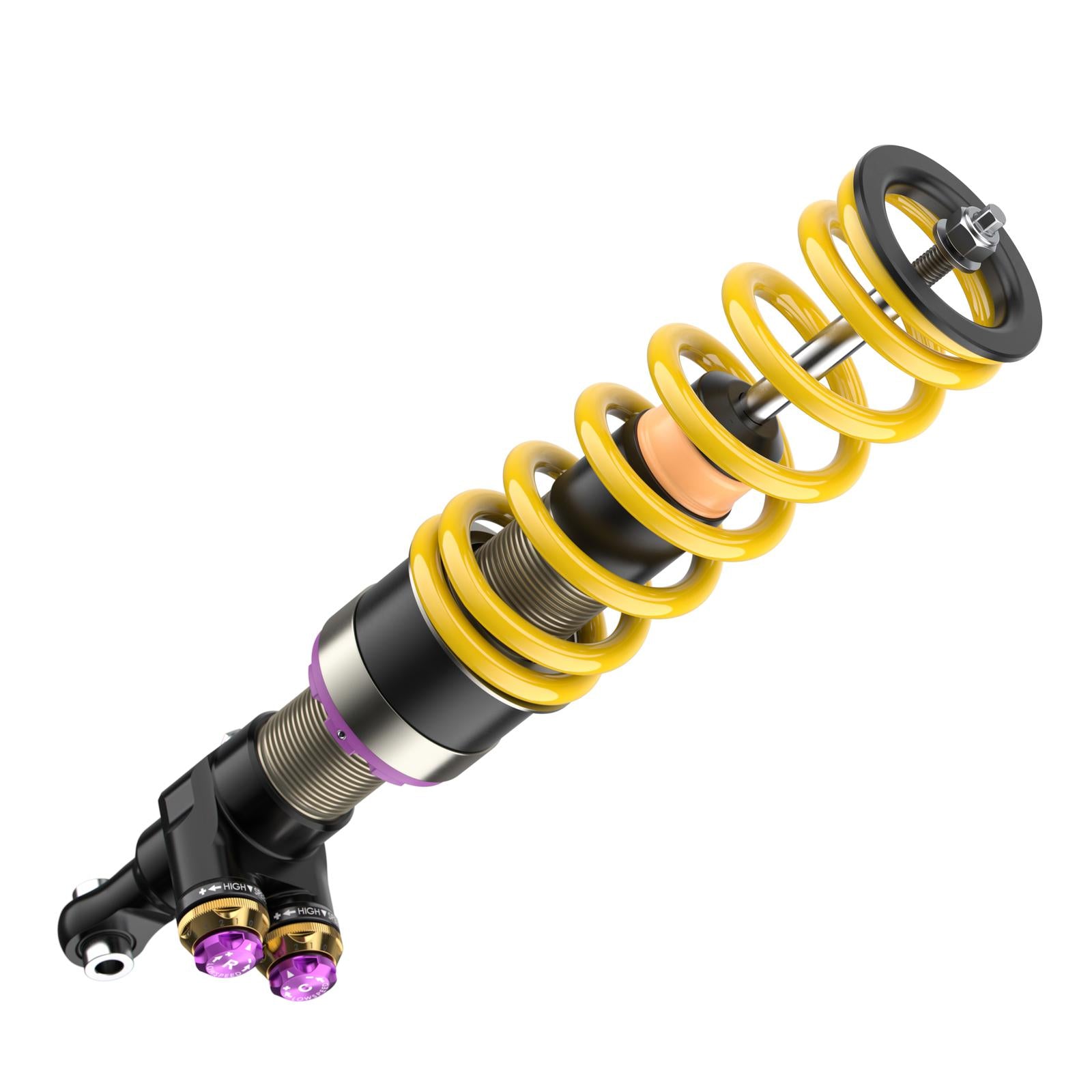

KW Coilover Kit V5 for Ferrari F12 Berlinetta w/ HLS 2 Hydraulic Lift System & Deactivation for Electronic Dampers
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

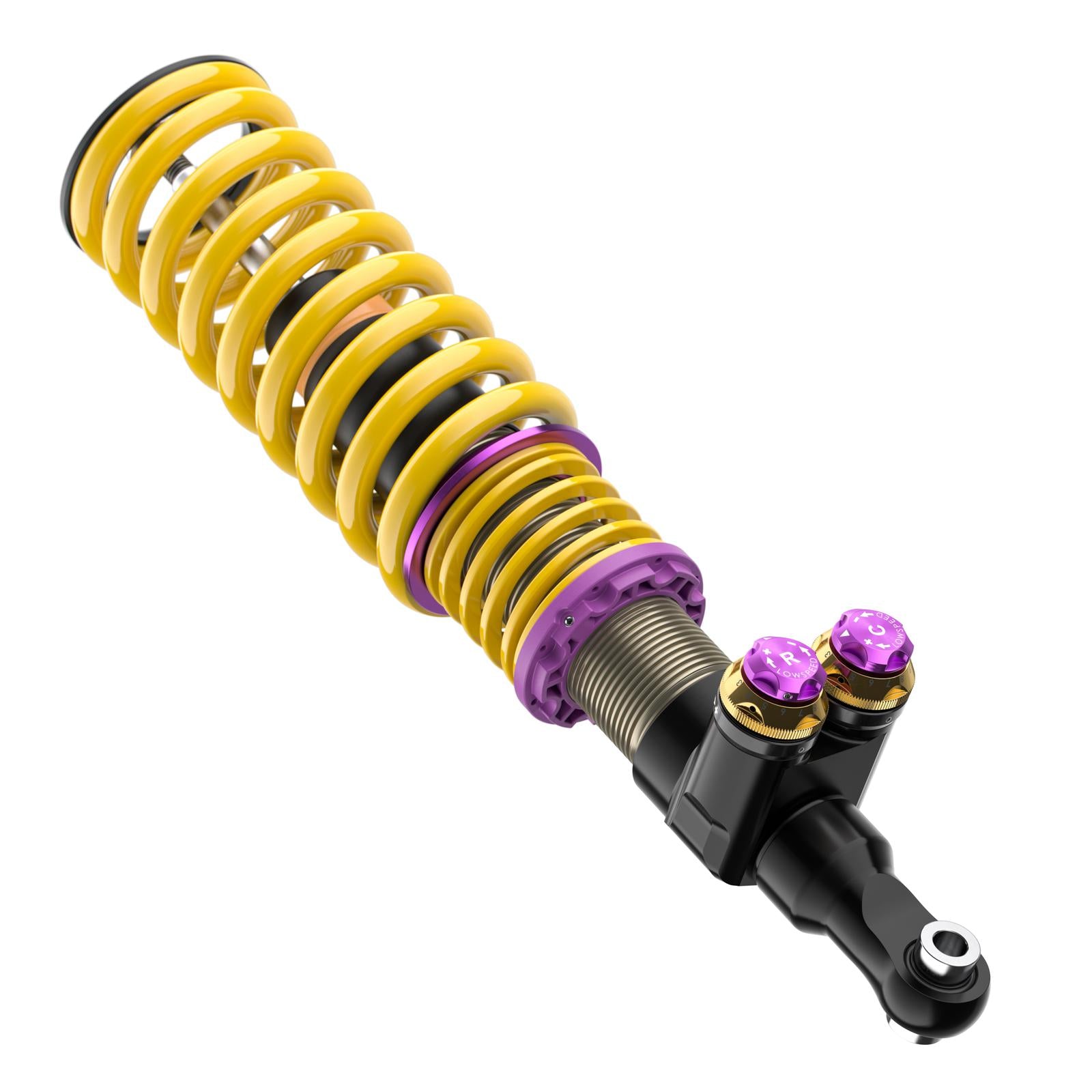

This kit combines a KW coilover suspension with KW's Hydraulic Lift System (HLS). At the push of a button the HLS raises the front axle (HLS 2) or both axles (HLS 4), depending on version, by up to 45 mm, helping the car clear speed humps, steep driveways and car park ramps without damage to splitters, underbody panels or the sump. Hydraulic lines and pump are matched to the vehicle. This kit is developed for the Ferrari F12 Berlinetta.
Key Features
- Hydraulic lift at the push of a button
- Vehicle-specific hydraulic lines and pump
Specifications
- Version: HLS 2
- Lift axle(s): Front axle
- Damping: Adjustable rebound and compression
- Material: Aluminium
- Front lowering: 15–35 mm
- Rear lowering: 15–35 mm
- Front axle load: up to 900 kg
- Rear axle load: up to 1,100 kg
Front axle load up to 900 kg; Rear axle load up to 1,100 kg.
For vehicles without a factory lift system.
See the Disclaimer tab for reference notes.
| Year | Make | Model | Variant | Engine | Drive | Refs |
|---|---|---|---|---|---|---|
| 2012+ | Ferrari | F12 Berlinetta (F152) | 6.3 | Petrol · 544 kW · 6.3L · 12-cyl | Rear-Wheel Drive | 1, 67, 88, 90, 403 |
- Note 1: Height adjustable on the front and rear axles (threaded strut housings).
- Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
- Note 88: Electronic damping control has to be deactivated. Deactivation kit is included in the delivery.
- Note 90: Aluminium suspensions struts.
- Note 403: Not for cars with original lift system.
