ST Coilover XA Kit for Cupra (KH7) Ateca 2.0L
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

ST Coilover XA Kit for Cupra (KH7) Ateca 2.0L
Sale price$2,036.30
Regular price$2,909.00 (/)
ST XA coilovers add adjustable rebound damping to height-adjustable ST struts, with up to 16 clicks adjusted at the top of the chrome-plated piston rod. More rebound force gives more stability and less body roll; less gives a more comfortable ride. Height is set on a continuous thread on the galvanised strut, and the twin-tube dampers are manufactured by KW Automotive. This kit is developed for the Cupra Ateca (KH7) 2.0 4Drive.
Key Features
- Rebound damping adjustable in up to 16 clicks
- Continuous thread height adjustment
- Galvanised coilover struts
Specifications
- Version: XA
- Damping: Adjustable rebound
- Material: Galvanised steel
- Front lowering: 35–55 mm
- Rear lowering: 25–50 mm
- Front axle load: up to 1,120 kg
- Rear axle load: up to 1,110 kg

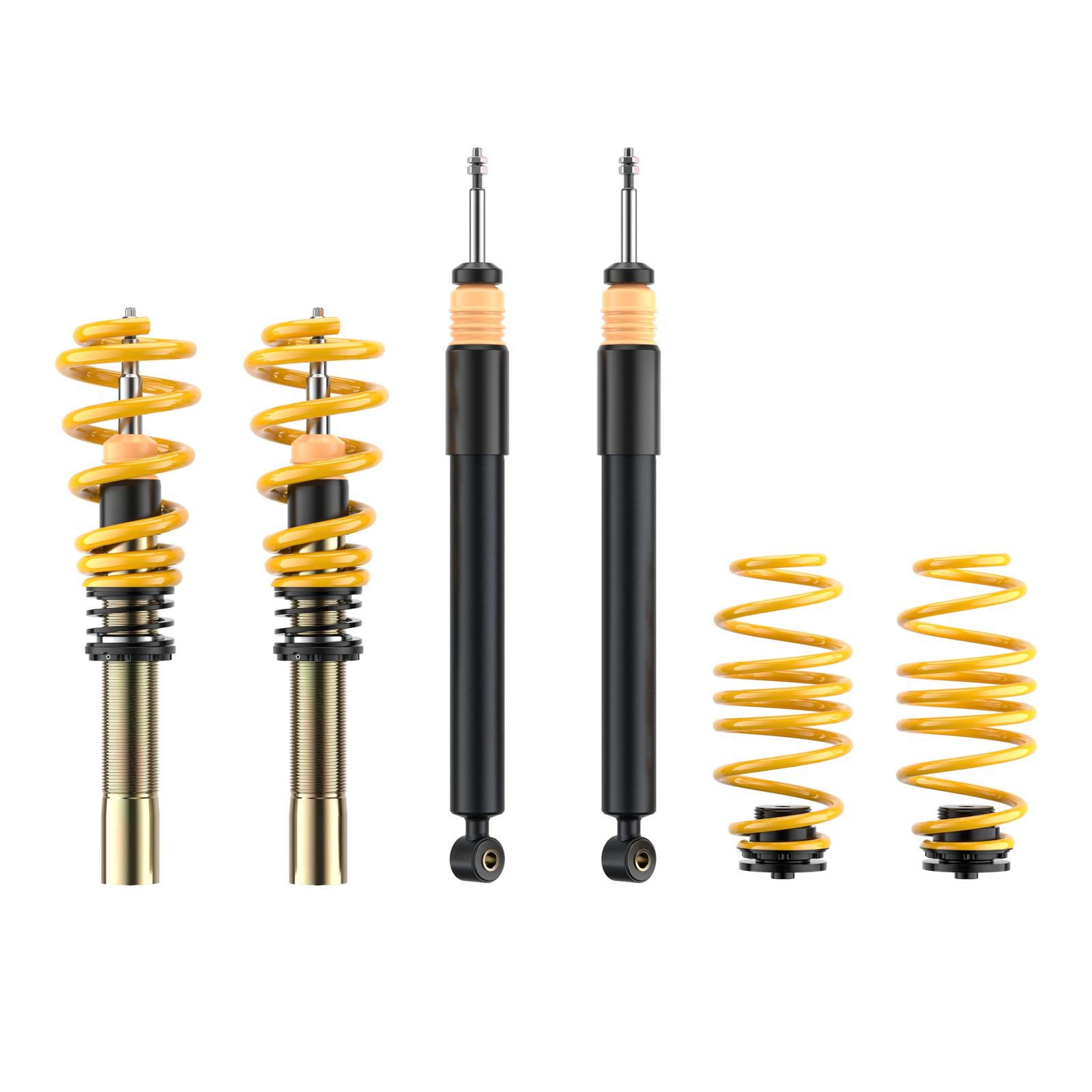

- Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers
Front axle load up to 1,120 kg; Rear axle load up to 1,110 kg.
See the Disclaimer tab for reference notes.
| Year | Make | Model | Variant | Engine | Drive | Refs |
|---|---|---|---|---|---|---|
| 2018+ | Cupra | Ateca (KH7) 5FP | 2.0 TSI 4Drive | Petrol · 221 kW · 2.0L · 4-cyl | All-Wheel Drive | 71, 260 |
- Note 71: Only for cars with a clamp diameter of 55 mm on the front axle.
- Note 260: At vehicles equipped with electronic damping, the electronic damping control needs to be deactivated. Deactivation kit KW Part-no. 68511098.
