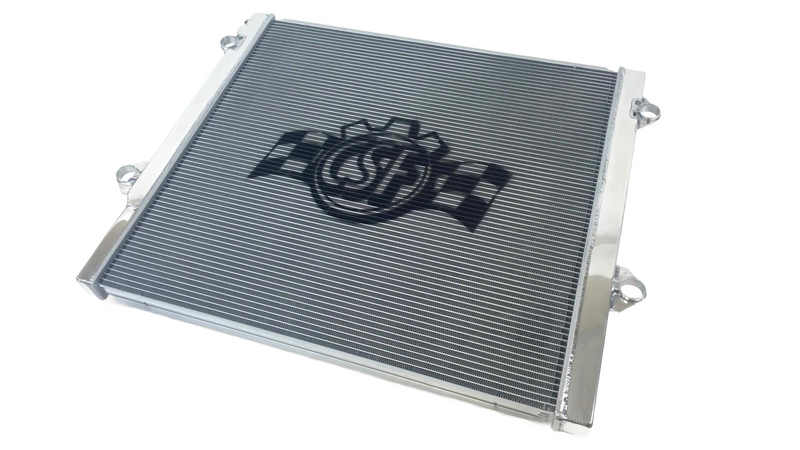

CSF Heavy-Duty Aluminium Radiator for Toyota 4Runner (2003-2009) / FJ Cruiser (2006-2014)
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

CSF Heavy-Duty Aluminium Radiator for Toyota 4Runner (2003-2009) / FJ Cruiser (2006-2014)
Sale price$926.10
Regular price$1,029.00 (/)
The CSF Heavy-Duty All-Aluminium Radiator features a smooth satin finish and is designed for on-road and off-road use.
Key Features
- Dual core featuring CSF B-Tube technology
- Multi-louvred fins
- CNC-machined quick-connect inlet/outlet connections
- CNC-machined brackets and fittings
- All-aluminium race-style drain plug
- The B-Tube design increases the heat transfer surface area of the tubes by approximately 15% over regular tubes
The drop-in design requires no modifications and accepts the original quick-connect hoses, air conditioning condenser, mounting brackets and fan shroud.
Specifications
- Core: 2-row, 42 mm
- Fin height: 6.5 mm
- OEM part numbers: Toyota: 16400 31354, 16400 31353, 16400 31352, 16400 31351, 16400 31350, 16400 75454, 16400 75453, 16400 75452, 16400 75451, 16400 31465
- Warranty: 2-year
Vehicle compatibility
- Toyota 4Runner (4th Gen) 2003–2009; 4.0L V6
- Toyota FJ Cruiser (XJ10) 2007–2014; 4.0L V6 (Manual)
- Toyota FJ Cruiser (XJ10) 2007–2014; 4.0L V6 (Automatic)
