CSF Race-Spec Dual-Pass Oil Cooler for BMW 3-Series (E36) - S54 Swap w/ A/C
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

CSF Race-Spec Dual-Pass Oil Cooler for BMW 3-Series (E36) - S54 Swap w/ A/C
Sale price$863.10
Regular price$959.00 (/)

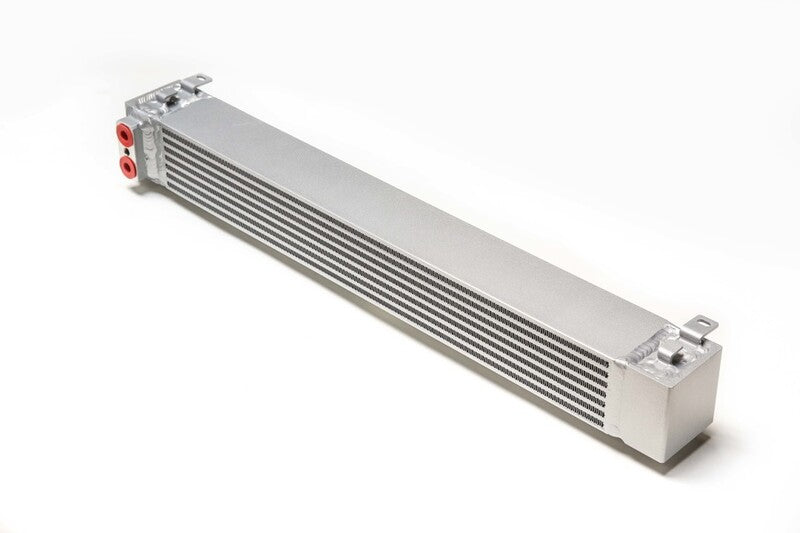

Suits the BMW E36 with an S54 swap and air conditioning (A/C). Designed to work with CSF's S54 Swap All-Aluminium Radiator (7211), this oil cooler has a shorter right-hand side to allow A/C lines to follow the OEM path.
Key Features
- Top/bottom dual-pass design

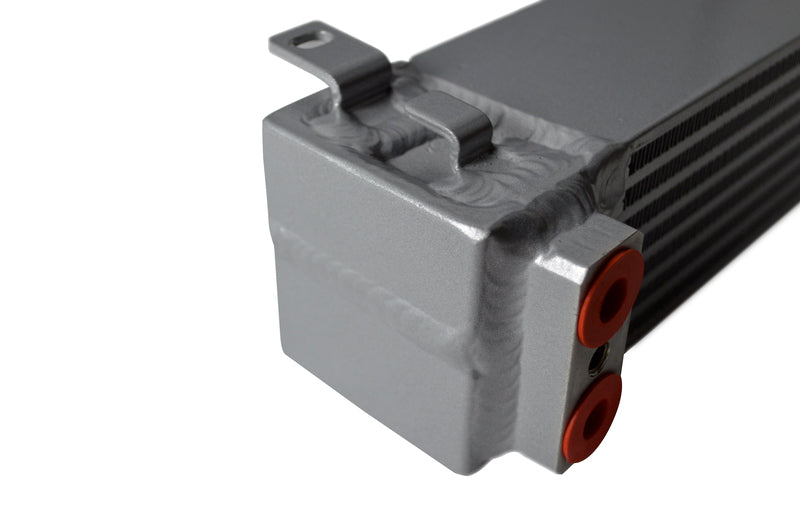

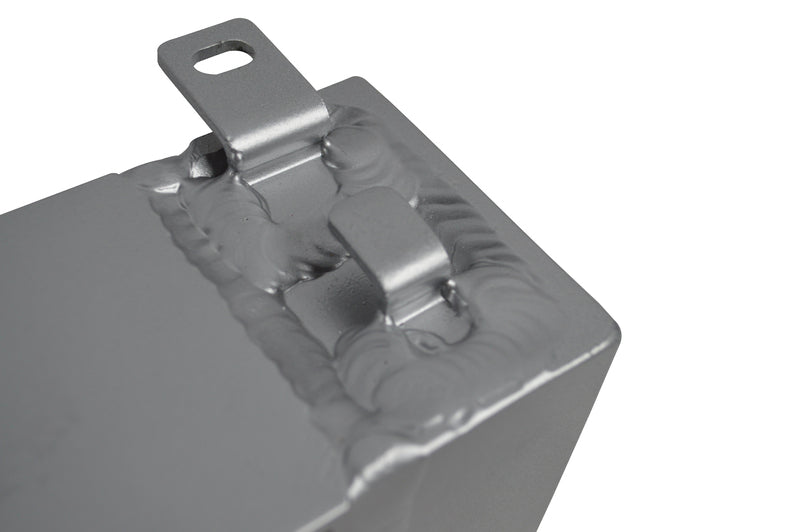

- Fully TIG-welded extruded end tanks
- Turbulated heavy-duty bar/plate construction
- 8 cooling rows with a high-density multi-louvred fin pitch design
- Motorsport Silver finish
- Accepts factory S54 oil-line connections
Important CSF recommends Europe Spec E36 M3 oil cooler lines for S54 swaps. OEM S54 oil cooler lines can be used but may require minor bending and adjustments to fit properly. The relevant oil cooler pipes are BMW PN: 17212227235 for E36 Euro Spec oil cooler lines and BMW PN: 17222283209 for E46 M3 oil cooler lines.
Important CSF offers a fitting adapter kit for custom -10 AN oil lines. Its adapter fitting kit bracket can also secure the OEM S54 oil cooler lines.
Important For S54 swap vehicles without air conditioning, CSF offers the alternative Dual Pass Race Spec Oil Cooler (8032), developed with Rogue Engineering. That alternative does not allow air conditioning to be retained in an S54 swap.
Important 2-year warranty.
⚠ Fitment Notes
Note Suits S54-swapped E36 and Z3 models with air conditioning retained; designed for use with the CSF #7211 S54-swap radiator. For S54 swaps without air conditioning, see CSF #8032.
S54 oil cooler lines
CSF recommends the European-specification E36 M3 oil cooler lines for S54 swaps. The OEM S54 lines can be used but may need minor bending and adjustment; the CSF #8241 adapter fitting kit bracket can secure them.
- E46 M3 oil cooler lines (pipe): BMW 17222283209
- E36 European-specification oil cooler lines (pipe): BMW 17212227235
Vehicle compatibility
- BMW 323i (E36) 1998; 2.5L L6
- BMW 323is (E36) 1998–1999; 2.5L L6
- BMW 325i (E36) 1992–1995; 2.5L L6
- BMW 325is (E36) 1992–1995; 2.5L L6
- BMW 328i (E36) 1996–1998; 2.8L L6
- BMW 328is (E36) 1996–1999; 2.8L L6
- BMW M3 (E36) 1995; 3.0L L6
- BMW M3 (E36) 1996–1999; 3.2L L6
- BMW Z3 Coupe (E36/7/8) 1999–2000; 2.8L L6
- BMW Z3 Coupe (E36/7/8) 2001–2002; 3.0L L6
- BMW Z3 M Coupe (E36/7/8) 1999–2002; 3.2L L6
- BMW Z3 M Roadster (E36/7/8) 1998; 3.2L L6
- BMW Z3 M Roadster (E36/7/8) 1999–2002; 3.2L L6
- BMW Z3 Roadster (E36/7/8) 1997–1998; 2.8L L6
- BMW Z3 Roadster (E36/7/8) 1999–2000; 2.8L L6
- BMW Z3 Roadster (E36/7/8) 2001–2002; 3.0L L6
