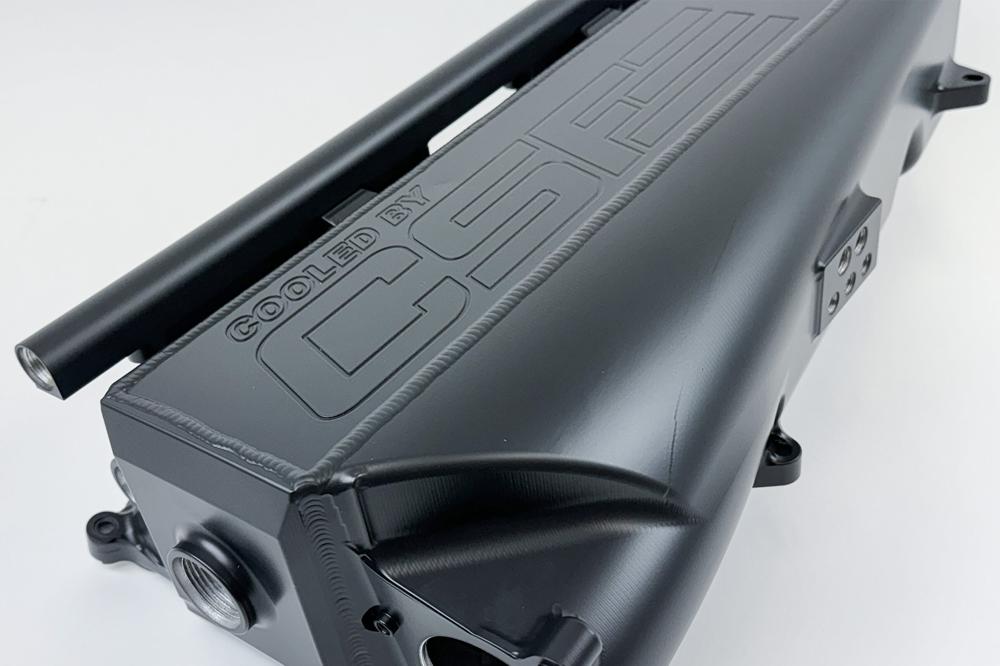

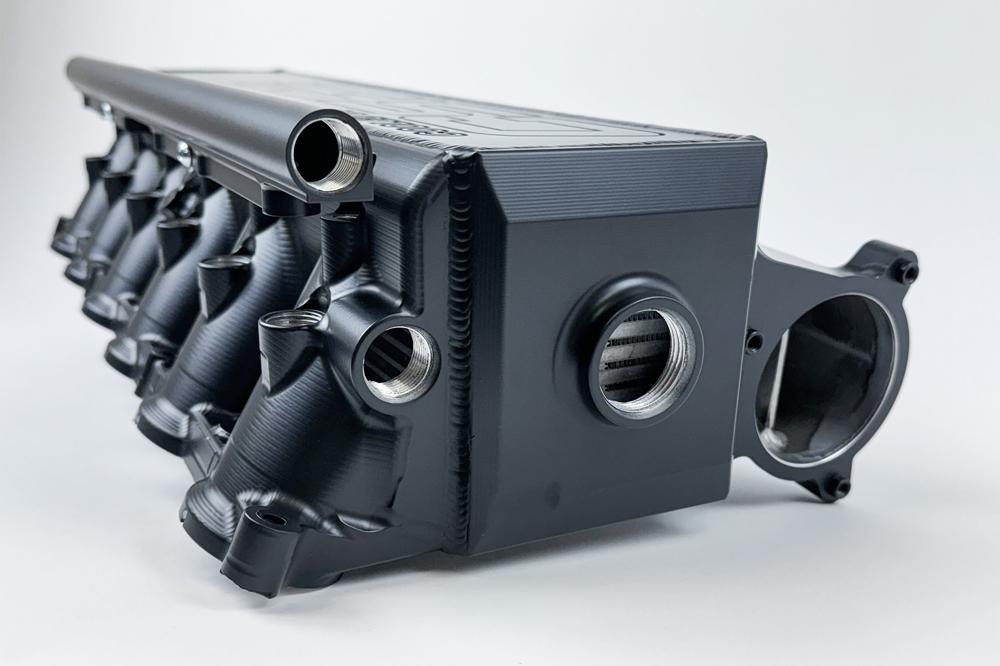

CSF Gen 2 B58 Race X Charge-Air-Cooler Manifold - Thermal Black Finish
Description
- Utilizes a High Performance, Motorsports-Grade Bar/Plate Air-to-Water Intercooler Core
- 25% larger than the standard Gen-2 B58 Super Manifold (CSF#8200) 15 Rows of Water Cooling vs. CSF #8200 12 Rows and OEM 6 Rows
- Core can be setup for dual or single pass configuration
- The -16 ORB bung on front water end plate can be used to adjust the flow configuration to single-pass and/or to be used with an ice-box setup. Comes with CNC machined plug to use in dual-pass configuration
- Designed in SolidWorks Using Computational Fluid Dynamics (CFD)

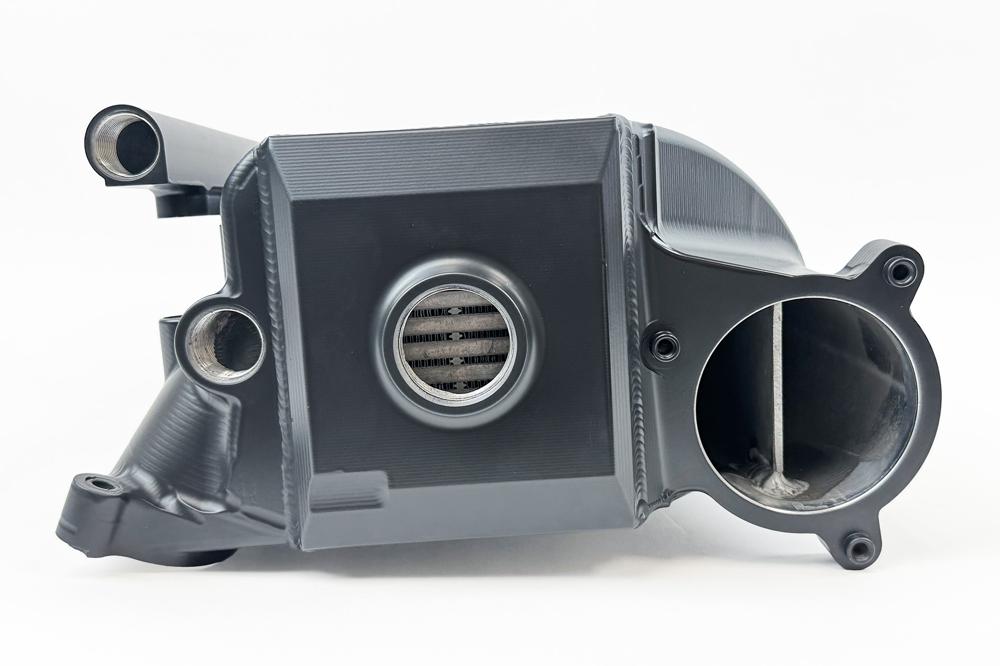

- Integrated Air Divider in Inlet Tank Evenly Distributes Airflow Throughout the Core
- Improved slotted mounting holes on throttle body side for easier installation
- Easy Access to Spin-Off Oil Filter for Quick Oil Changes

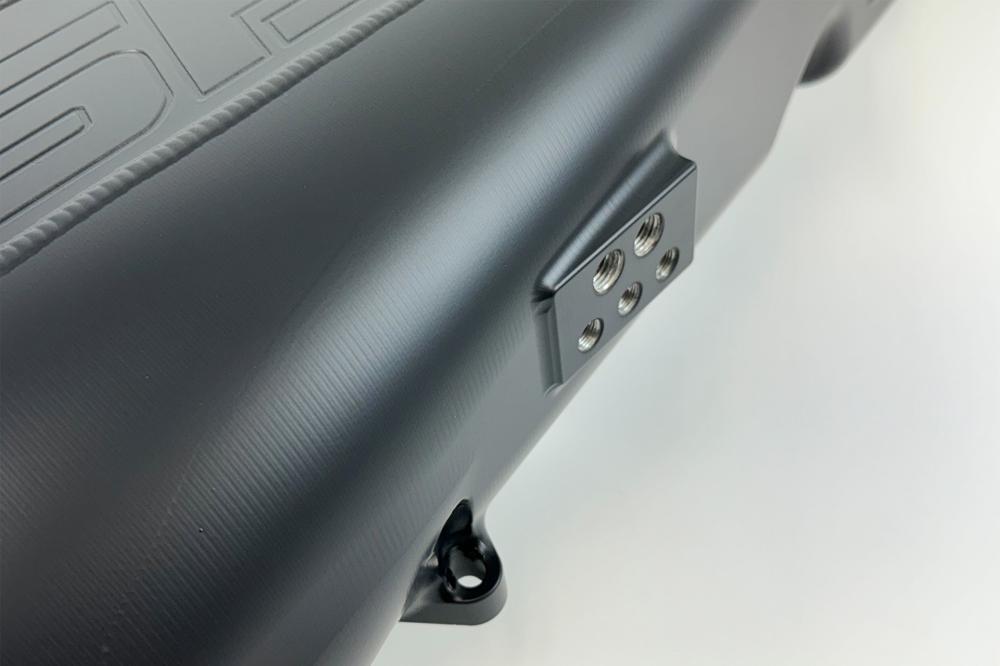

- Integrated Sensor Pad with Two 1/4 and Three 1/8 NPT Ports to Measure Additional Parameters or Extra Sources of Vacuum
- Included Fuel Rail for Top Feed Port Injection

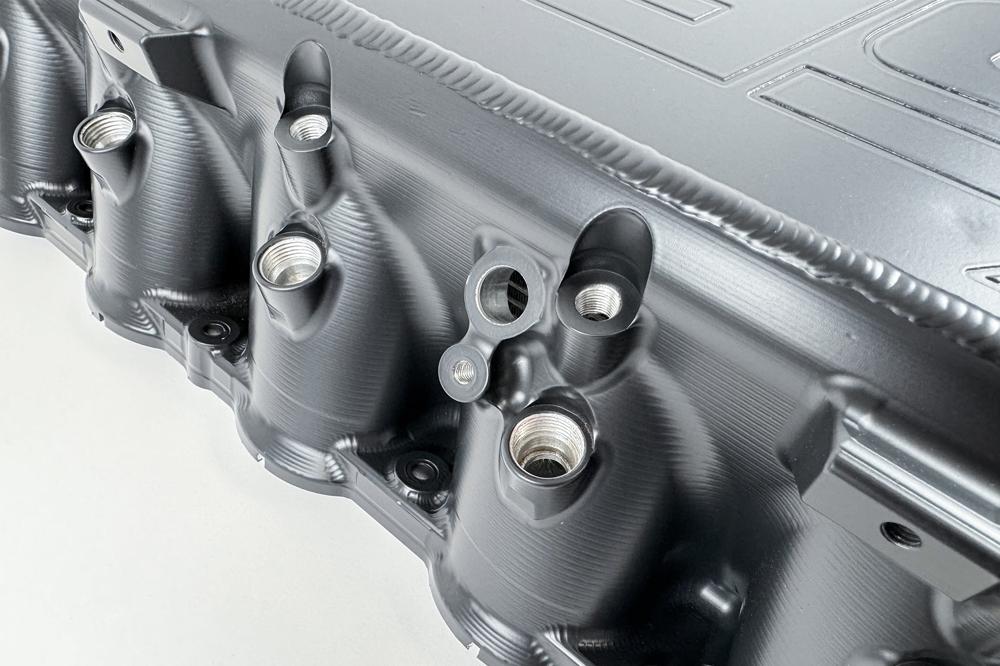

- Individual 1/8 NPT Ports on the Top of Each Cylinder Runner for Nitrous or Meth Injection
- Allows for Even Spray Distribution and Control for Maximum Performance

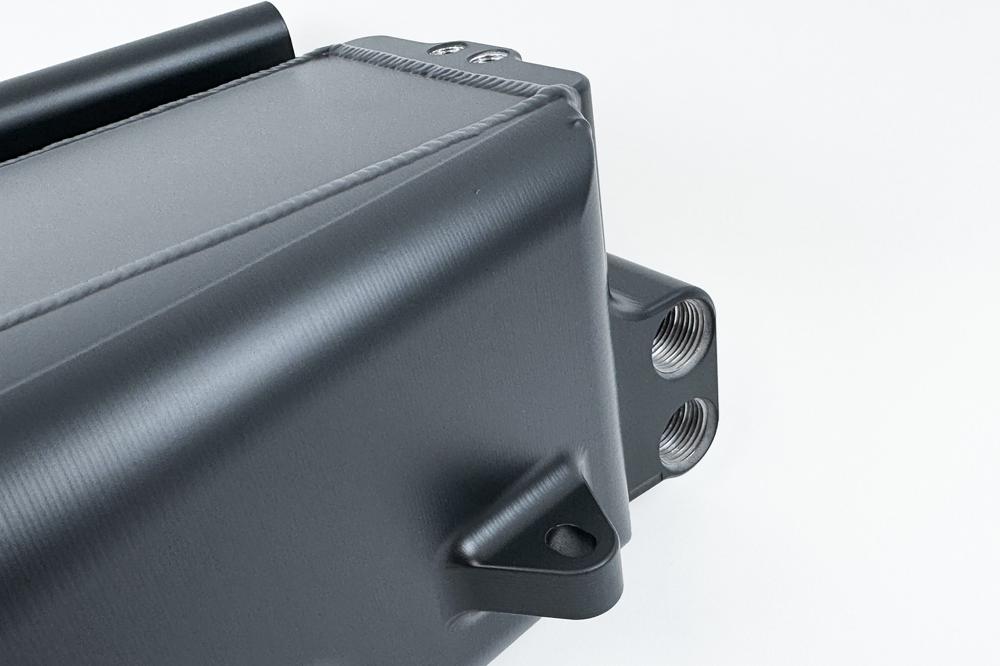

- Individual 1/8 NPT Breather Ports for Both Inlet/Outlet Water Connections on Back of Manifold for Easy Bleeding
- Included KIYLEX Thermal Rejection Manifold Spacer*
- Made from KIYLEX A patented revolutionary high-performance final stage polymer
- Acts as a thermal barrier that dissipates heat between the cylinder head and intake manifold
- Proven to lower intake manifold temperatures by up to 15%
- Lowers Intake Air Temps (IATs)
- Some modifications to install this product is intended to be installed only by a skilled and experience technician who is familiar with the B58 engine platform
- Includes Hardware and Installation Kit with Picture Diagrams and Instructions
- Finish: Raw Billet Made by World-Leading Automotive Machinist Custom Plenum Creations in Australia
- Optional Powder-Coating and Thermal Rejection Finishes Available CSF #8400C / #8400B
CSF Gen 2 B58 Race X Charge-Air-Cooler Manifold - Thermal Black Finish
Sale price$11,879.00
Regular price (/)
