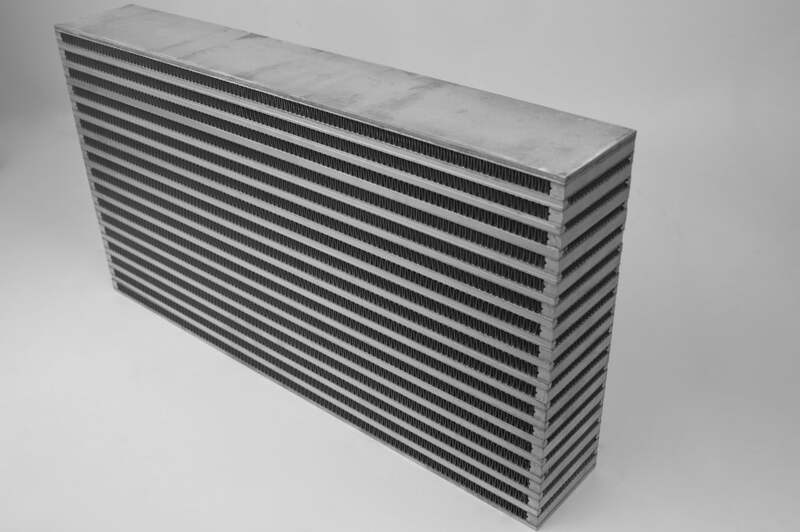

CSF Bar & Plate Intercooler Core 24L x 12H x 3W
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

CSF Bar & Plate Intercooler Core 24L x 12H x 3W
Sale price$512.11
Regular price$569.00 (/)
The CSF High-Performance Bar & Plate Intercooler Core is a universal horizontal-flow core for custom intercooler applications.
Each core is hand-built using jigs and fixtures in a clean room to maintain straightness and prepare clean surfaces for future welding. The cores are batch brazed in a digital vacuum brazing oven and individually pressure tested at 120 psi.
Key Features
- Heavy-duty bar and plate construction
- Horizontal cross-flow configuration
- Multi-louvred, high-precision staggered fins on both the ambient and pressure sides
- Hand-built using jigs and fixtures for core alignment
- Individual pressure testing at 120 psi
Specifications
- Dimensions: 24 x 12 x 3" (610 x 300 x 75 mm)
- Power rating: 850 WHP
- Flow: Horizontal cross-flow
Vehicle compatibility
- Universal
