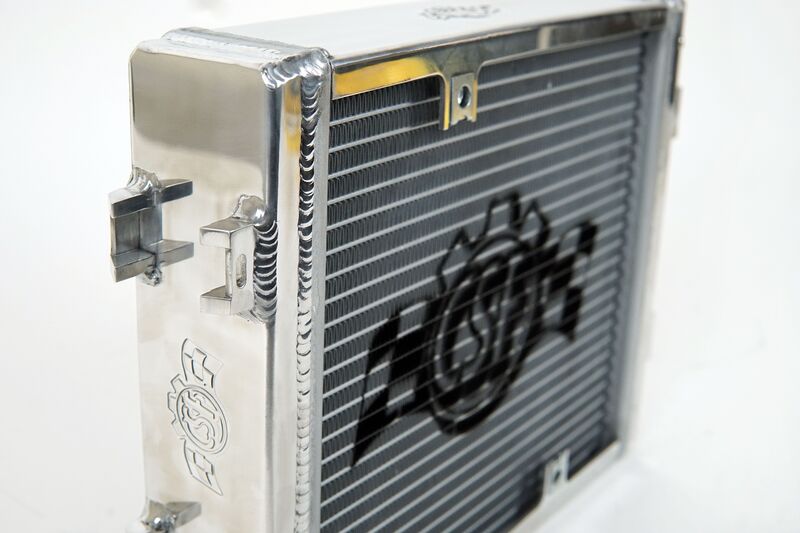

CSF Mercedes AMG W205 Auxiliary Radiator
Description
Note: Sold individually
Fits OEM # 099-500-05-01 / 099-500-53-03 / 099-500"59-03
- 17+ Mercedes AMG GT " R190 (Fits Left & Right " 2 Per Vehicle)
- 16-17 Mercedes Benz AMG GT S " R190 (Fits Left & Right " 2 Per Vehicle)
- 16-20 Mercedes Benz C 63 AMG " W205 (1 Per Vehicle)
- 15-20 Mercedes Benz C 63 AMG S " W205 (Fits Left & Right " 2 Per Vehicle)
- 16-19 Mercedes Benz GLE 63 AMG " X292 (Fits Left & Right " 2 Per Vehicle)
- 16-19 Mercedes Benz GLE 63 AMG S " X292 (Fits Left & Right " 2 Per Vehicle)
- 17-19 Mercedes Benz GLS 63 AMG " X292 (Fits Left & Right " 2 Per Vehicle)
The High-Performance All-Aluminum Auxiliary Radiators work in conjunction with the rest of the cooling system to reduce temperatures throughout. This is critical as the Auxiliary Radiators not only help keep engine water temperatures lower, but also are utilised as the heat exchange medium in the air-to-water charge-air coolers for the turbocharger system to reduce intake air temperatures (IATs). Overall, the Auxiliary Radiators larger capacity prolongs the heat soak threshold and assists in keeping temperatures in optimal ranges.
- 2-Row High-Performance Core Featuring CSF's B-Tube Technology
- Core Features Ultra-Efficient 6.5mm Tall Fins with a Multi-Louvered Design for Maximum Surface Area Contact
- Approx. Double the Capacity of OEM (~100% More Capacity " OEM 26mm Core vs. CSF 42mm Core)
- 100% All-Aluminum TIG-Welded Construction
- CNC Machined Mounting Brackets and OEM Style "Quick Connect" Inlet/Outlet

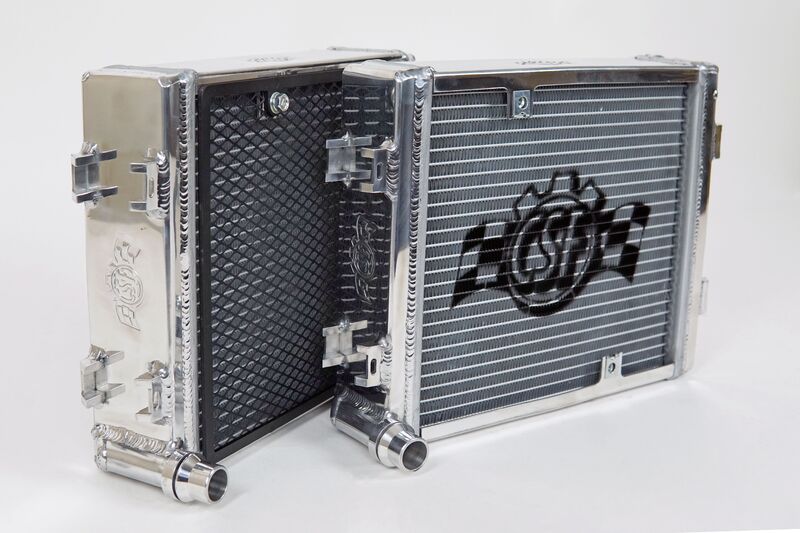

- Includes Detachable Rock Guard
- Multi-Fit " Fits Both Left & Right Side (For Vehicles With One or Two Auxiliary Radiators)
- True "Drop-in Fit" Requires No Modifications to Install
- Individually Leak and Pressure Tested
- High-Performance Upgrade Suitable for Professional Racing, Street Performance, or OEM Replacement
- 1 Hour "Mirror Finish" Hand Polish
- 2 Year Limited Warranty
C63 Models With Larger Wheels/Tires (i.e. 20"3 Wheels) May Require Trimming Plastic Shroud (See Diagram " Approx. 1"3)
CSF recommends purchasing two Auxiliary Radiators to replace both left and right OEM units (for vehicles with two from the factory). For maximum cooling performance, we advise installing in conjunction with the front mount heat exchanger.
