CSF Aluminium Radiator for Ford Focus ST (Mk3)

SKU: CSF7238
Sale price$980.10 Regular price$1,089.00
Save $108.90

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

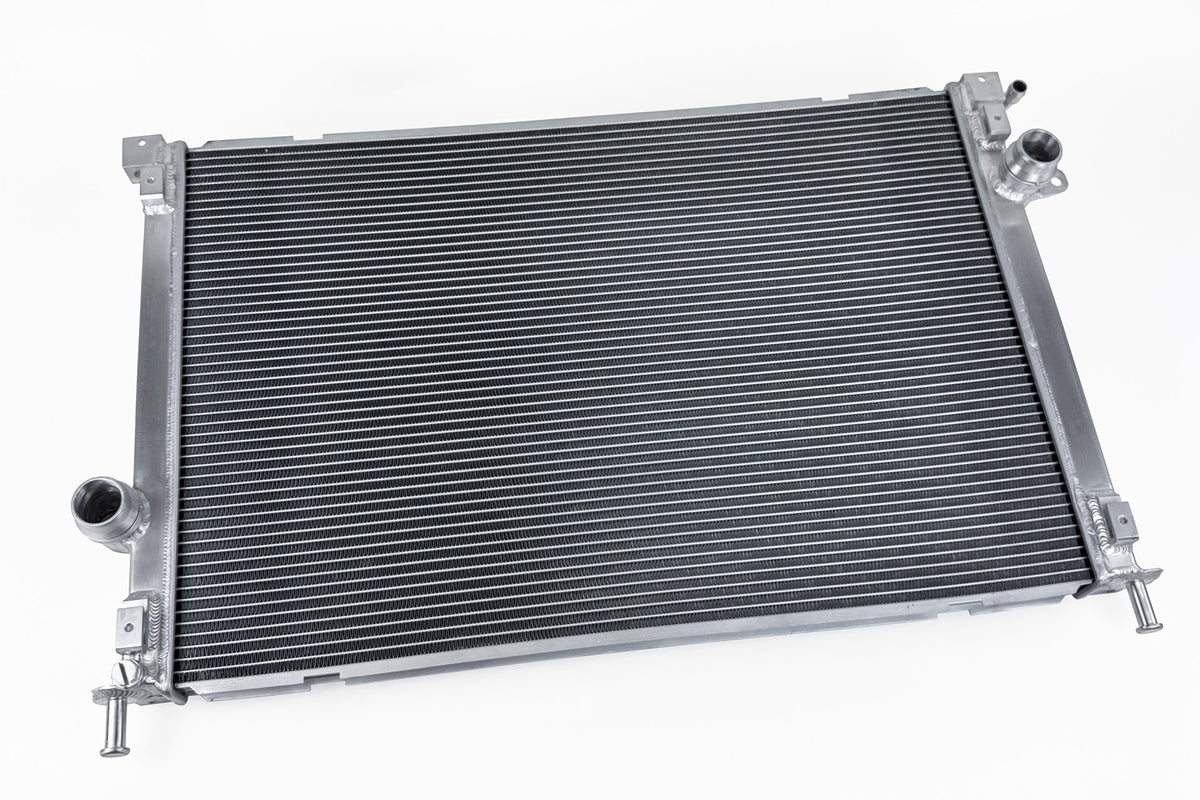

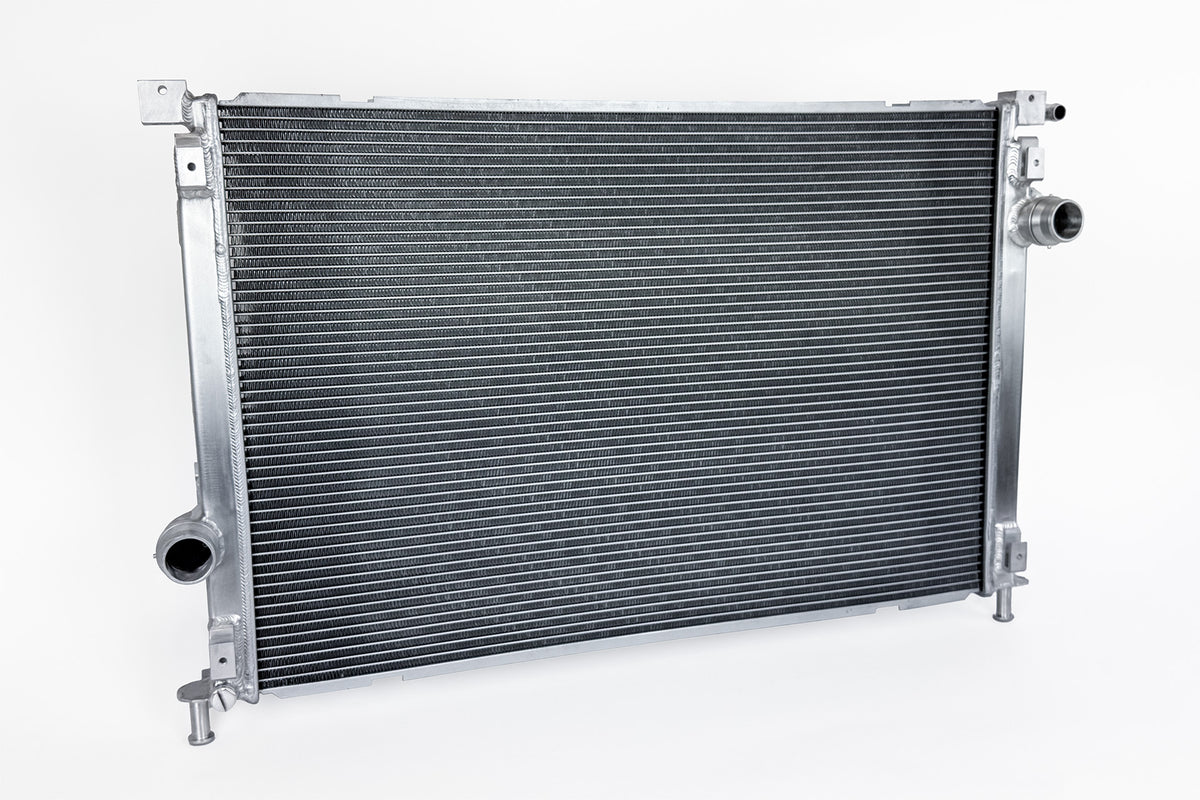

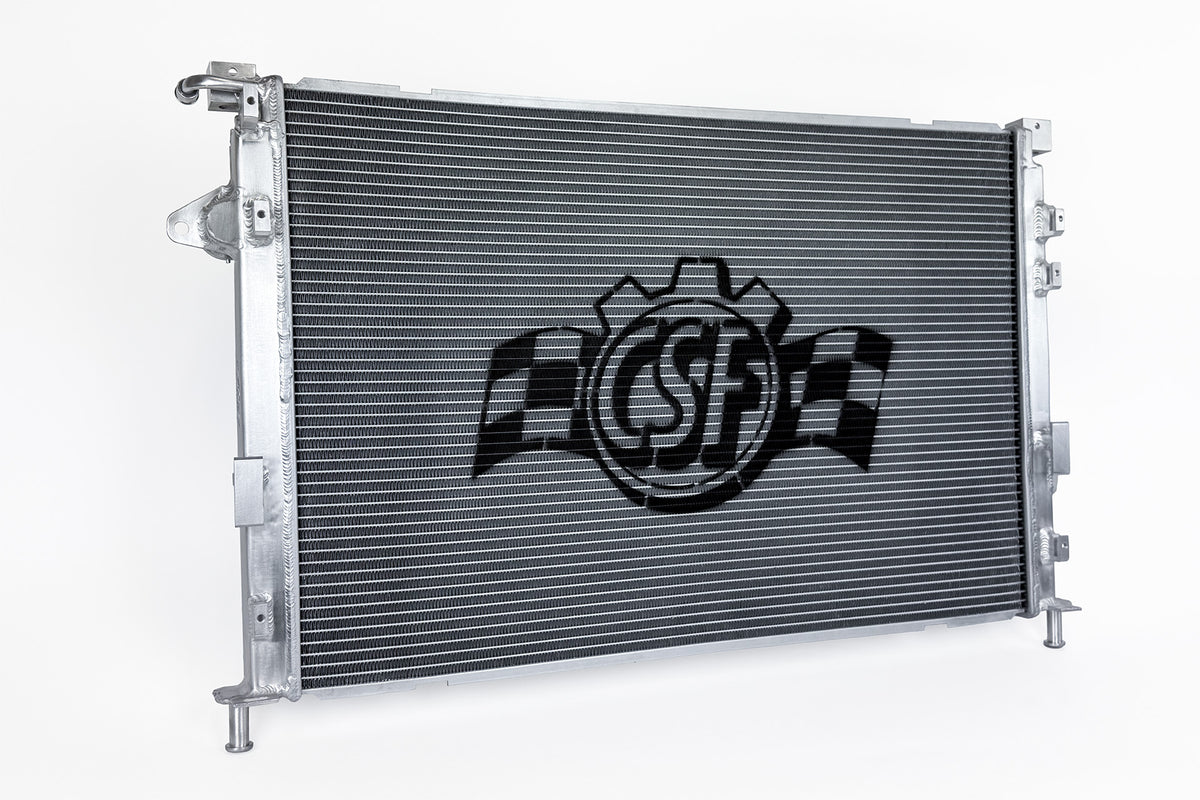

The CSF High-Performance All-Aluminium Radiator suits the 2013-2018 Ford MK3 Focus ST with the turbocharged 2.0L L4 EcoBoost engine. It features a triple-pass design that routes coolant across the core three times before exiting.

Key Features

  • Aluminium core with CSF B-Tube technology and seam-brazed, B-shaped cooling tubes
  • Multi-louvred fins
  • 100% TIG-welded all-aluminium construction, including aluminium tanks

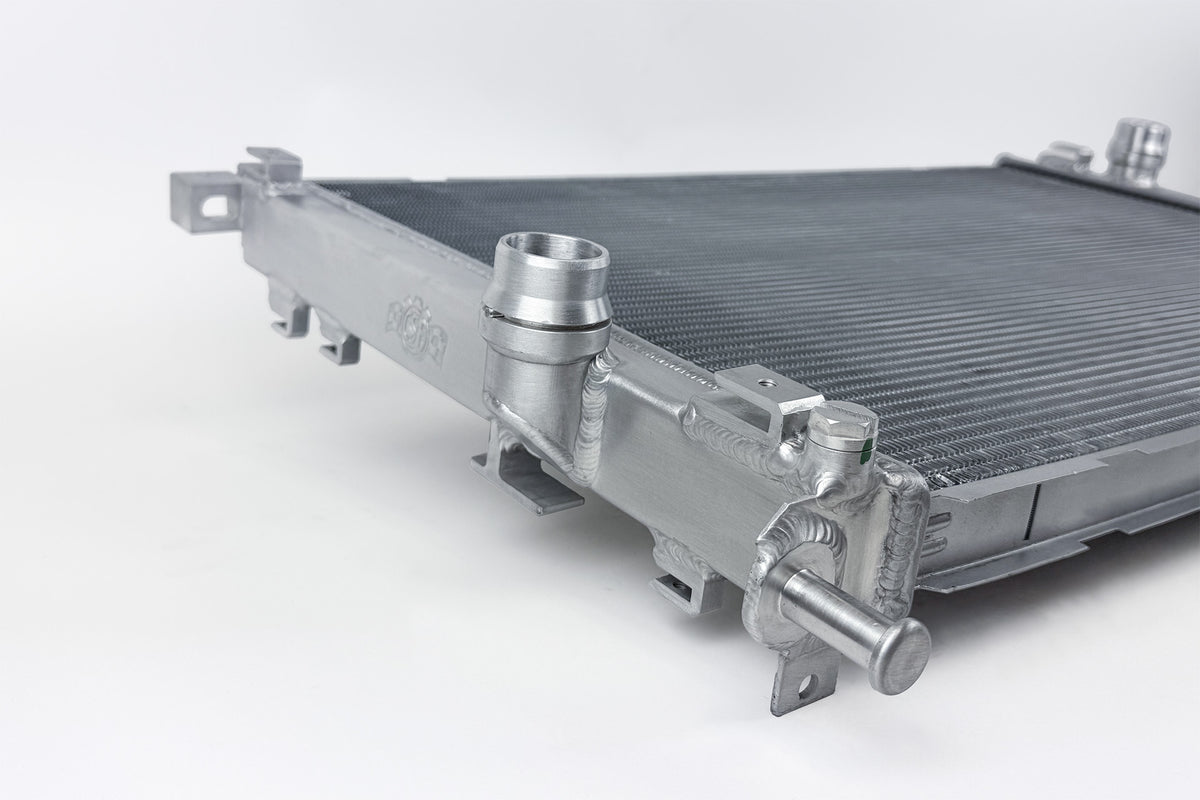

  • CNC-machined mounting pins and welded OE-style brackets

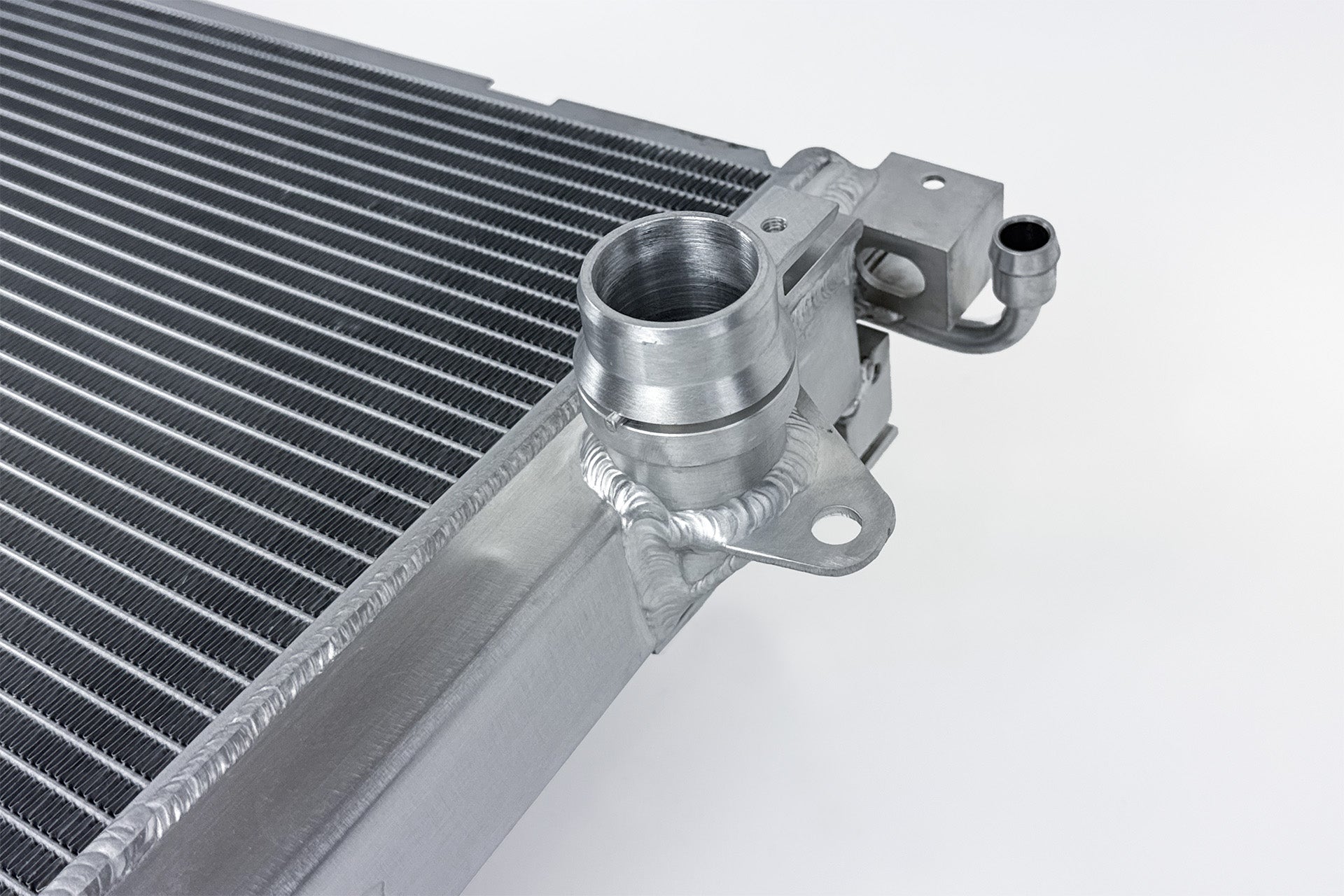

  • OE-style inlet and outlet connections compatible with OEM or aftermarket hoses
  • Individually leak and pressure tested
  • The B-Tube design increases the heat transfer surface area of the tubes by approximately 15% over regular tubes

Specifications

  • Core: 1-row, 31 mm aluminium
  • Cooling tubes: 52
  • Fin rows: 53
  • Fin height: 6.5 mm
  • OEM part numbers: Ford CV6Z-8005-U and CV6Z-8005-T
  • Warranty: 2-year limited

The drop-in design requires no modifications to install. CSF's B-Tube design provides dual liquid laminar flow, and the fin specifications are tested in its wind-tunnel laboratory.

Vehicle compatibility

Engine: Turbocharged 2.0L L4

  • Ford Focus ST (MK3) 2013–2018
