CSF Motorsport Dual-Pass Competition Radiator
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

CSF Motorsport Dual-Pass Competition Radiator
Sale price$1,997.11
Regular price$2,219.00 (/)
The CSF Motorsport Dual-Pass Competition Radiator is a universal, radiator-only design developed for drift vehicles and other racing or motorsport applications. It suits remote or rear-mounted setups, with the inlet and outlet on the same side.

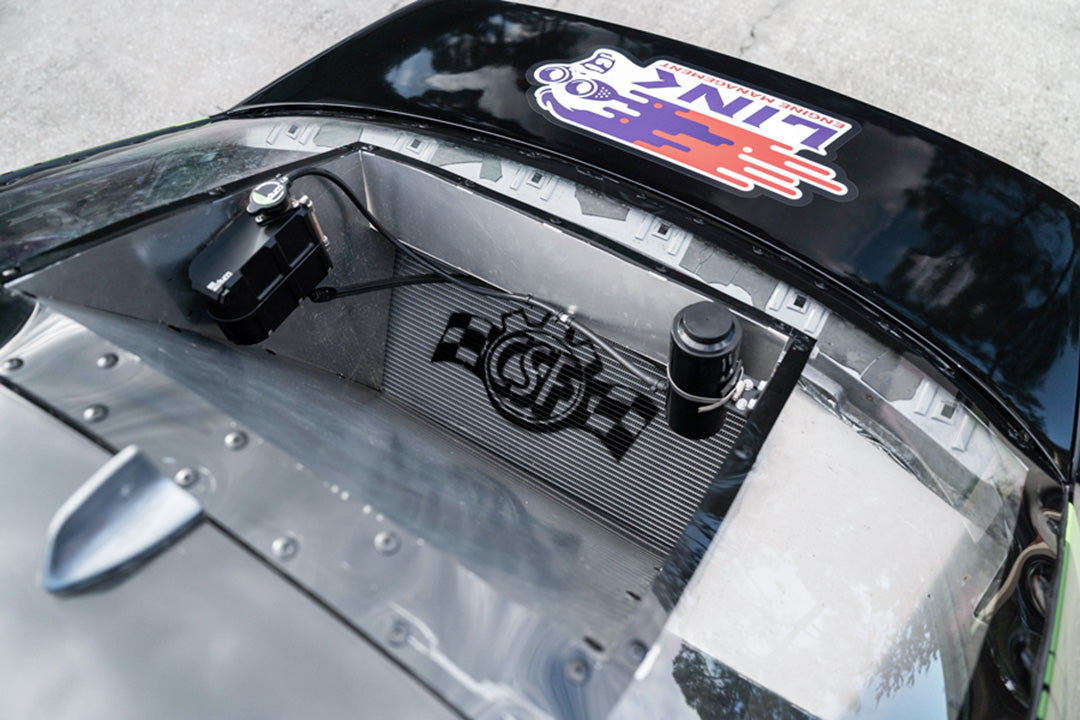

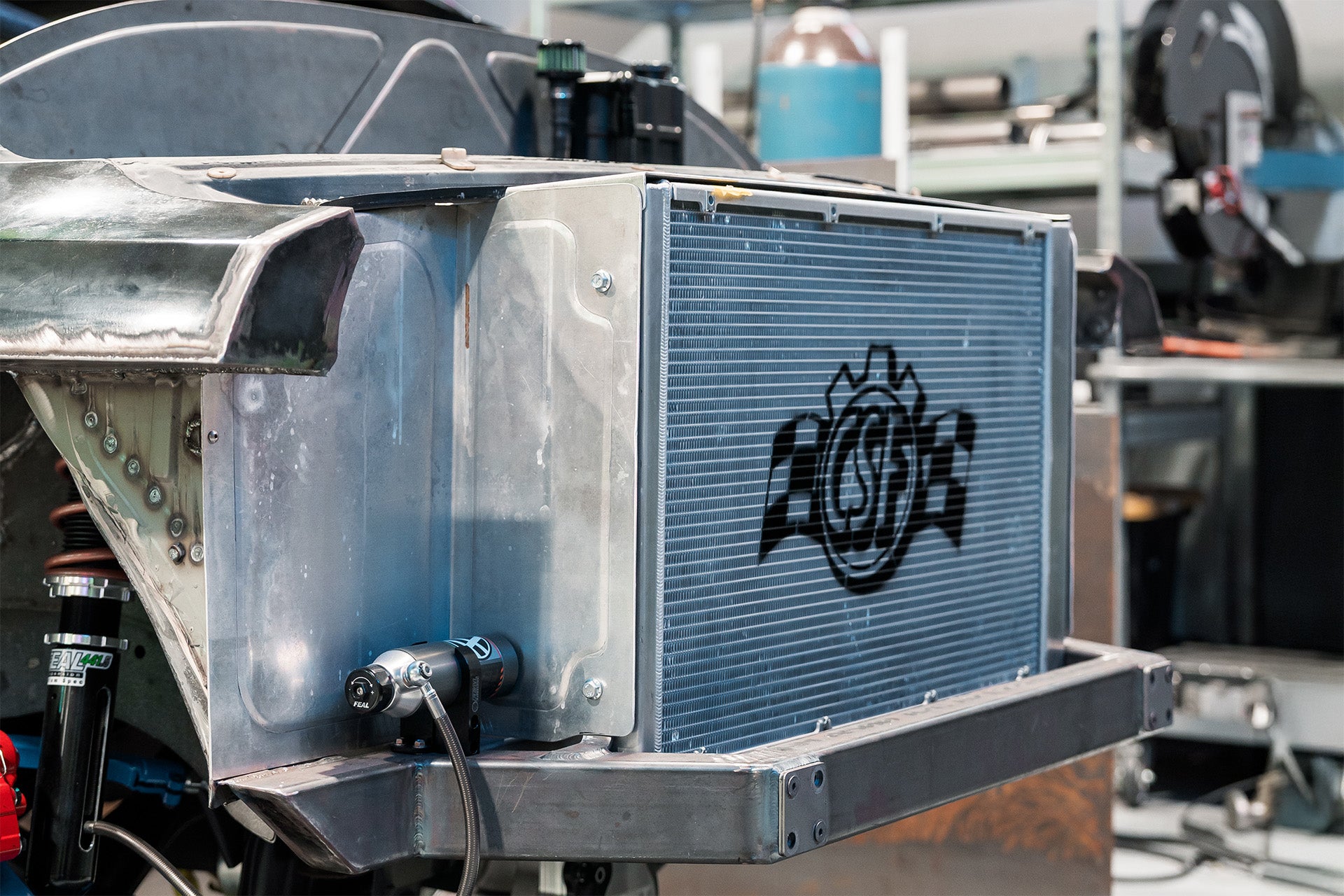

CSF developed and tested the radiator with Drift HQ and Pro/Am drifters over more than a year. Race-use examples include BMW E46 and Nissan S14.9, with competition applications involving Fredric Aasbø's A90 Supra, Matt Shulman's rear-mounted S13 installation and Collin Zielinski's LS powered S14.
Key Features

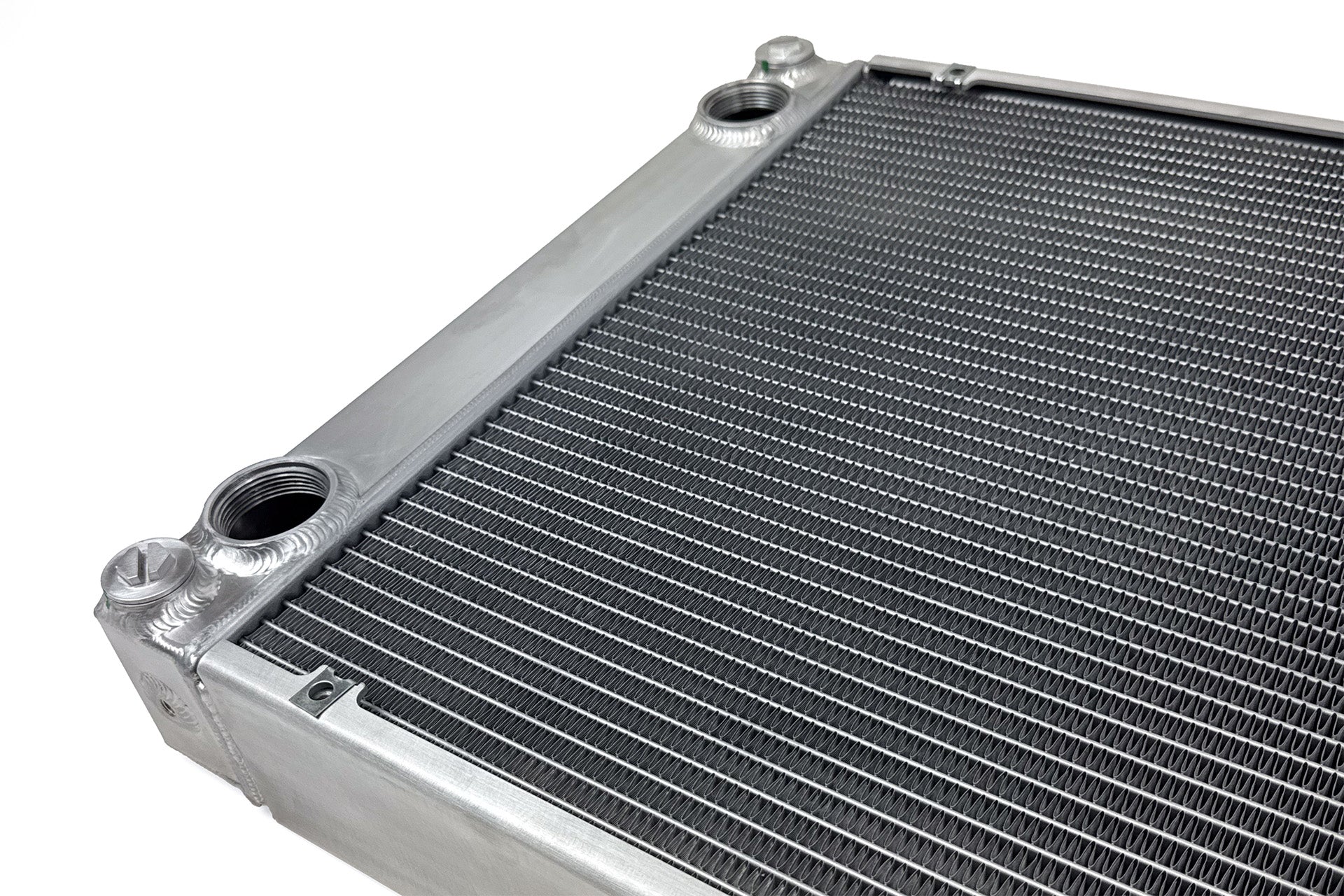

- 100% aluminium TIG-welded construction, individually leak and pressure tested
- Cooling tubes with CSF B-Tube technology
Specifications
- Finish: Hand-brushed satin

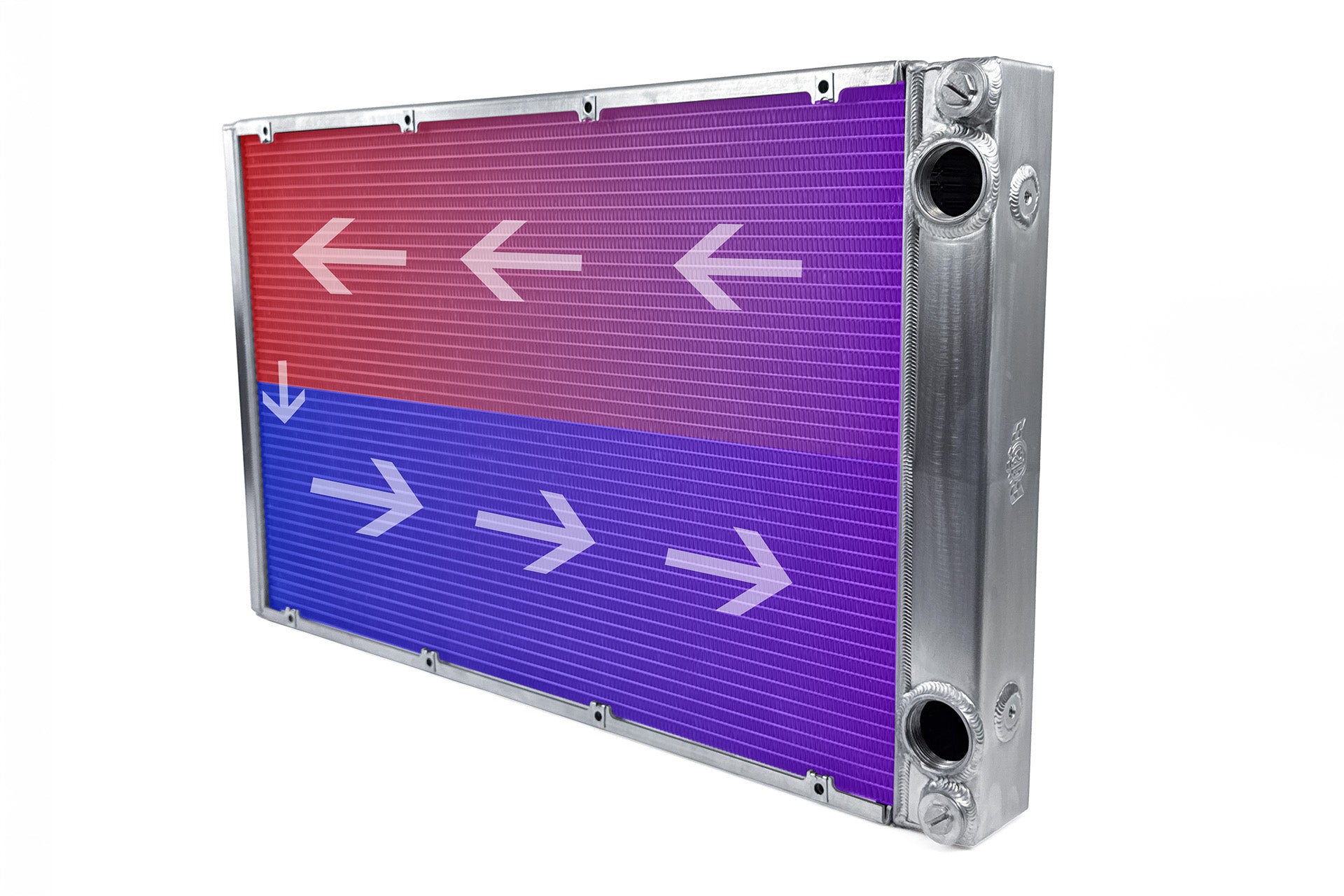

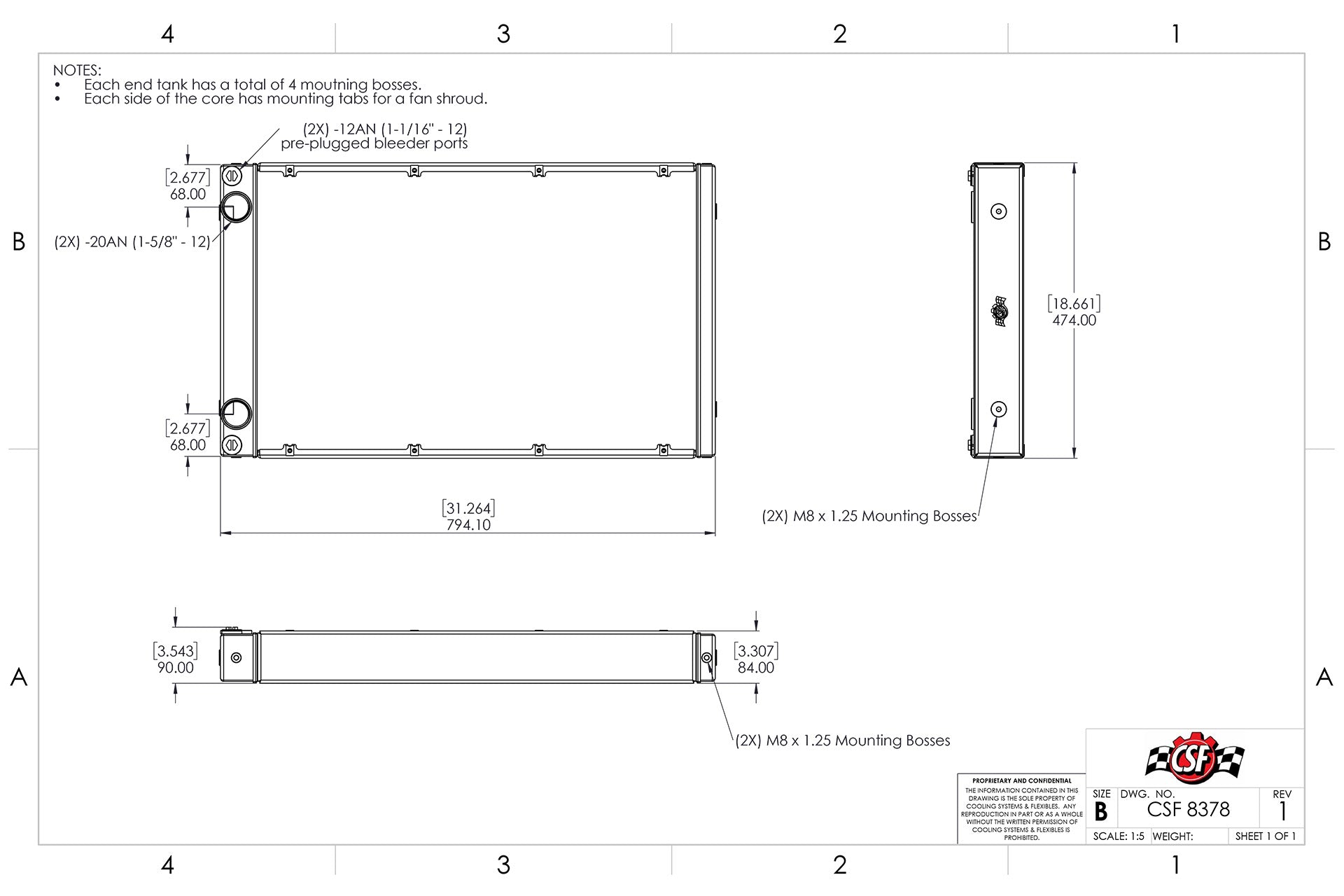

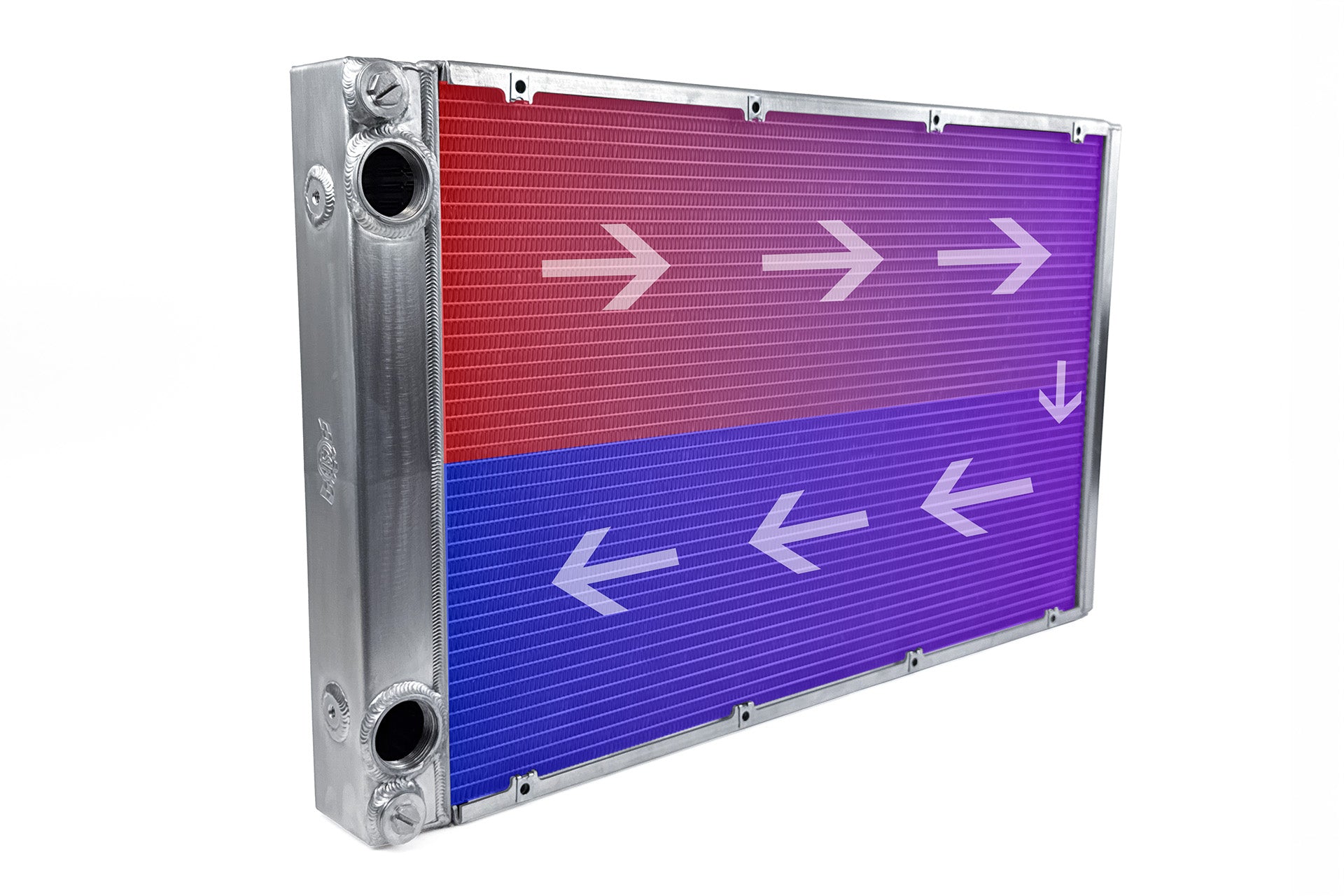

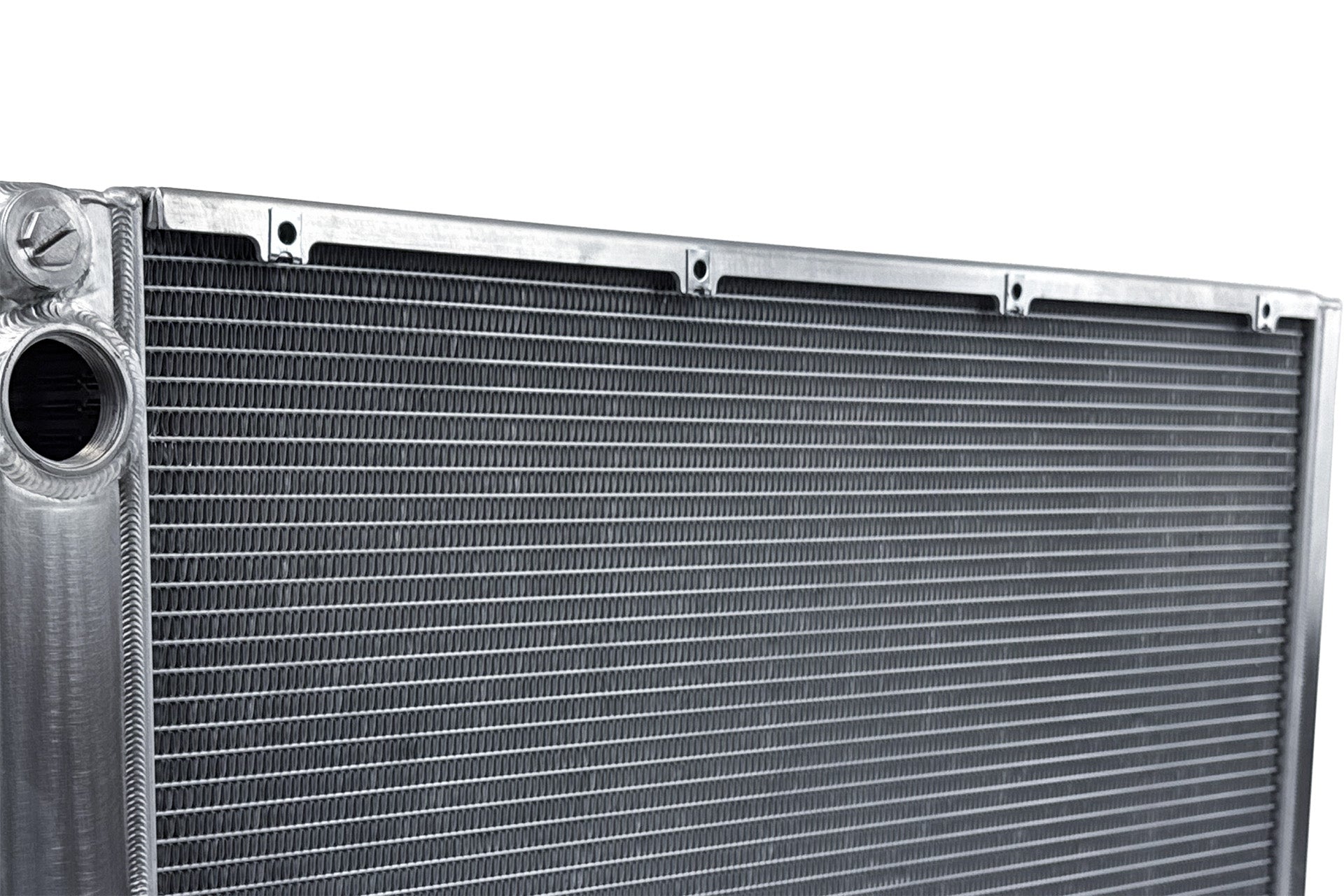

- Core: 2-row dual-pass, 705 mm L x 448 mm H x 68 mm thick (27.75 x 17.5")
- Cooling tubes and fins: 44 rows of cooling tubes and 45 rows of 8 mm multi-louvred fins

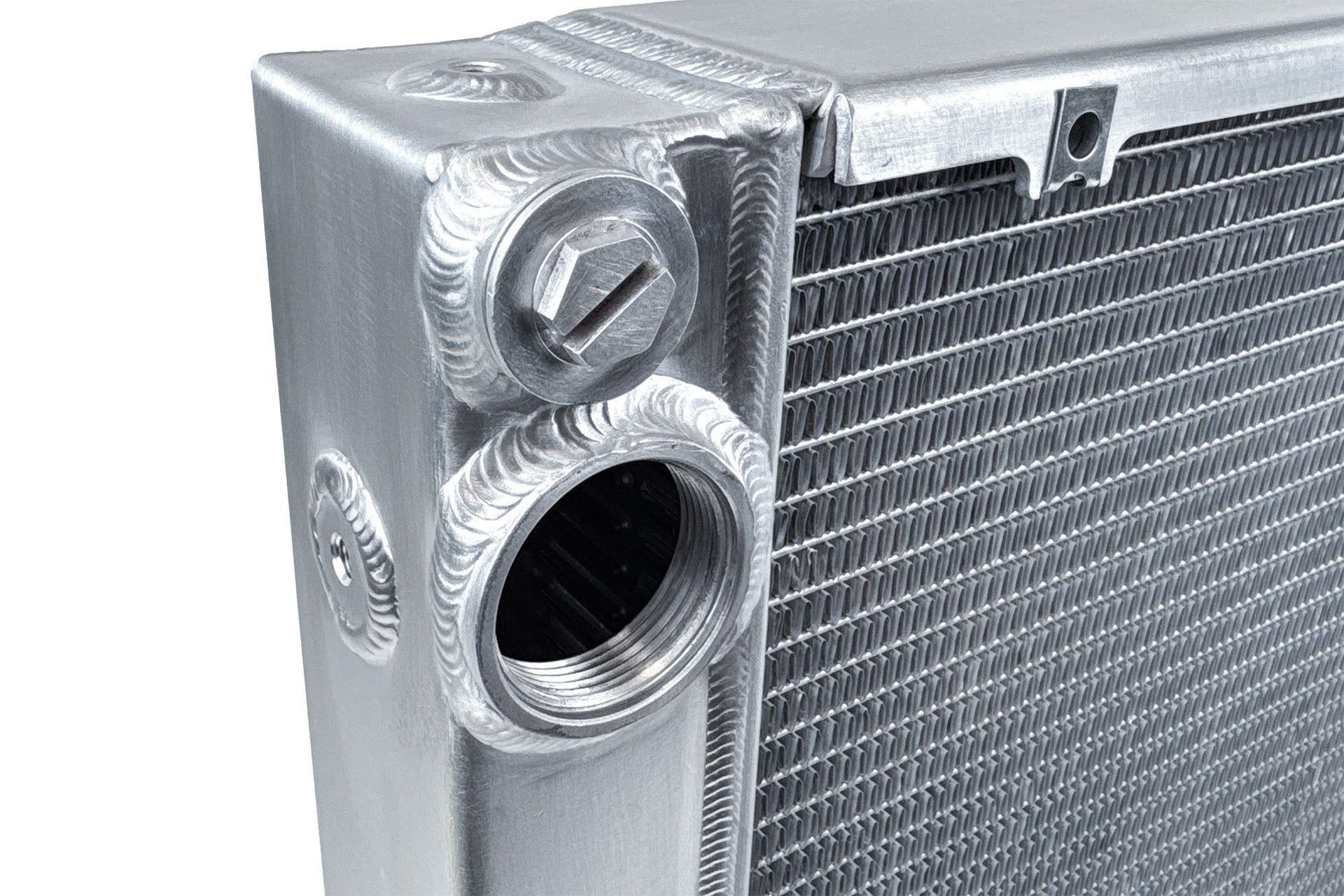

- Inlet / Outlet: -20AN (1 5/8" - 12) threaded female ORB bosses, compatible with -20AN or -16AN fittings
- Auxiliary ports: Two pre-plugged -12AN (1 1/16"-12) ORB ports for sensors, overflow or expansion tank connections, and coolant bleeding

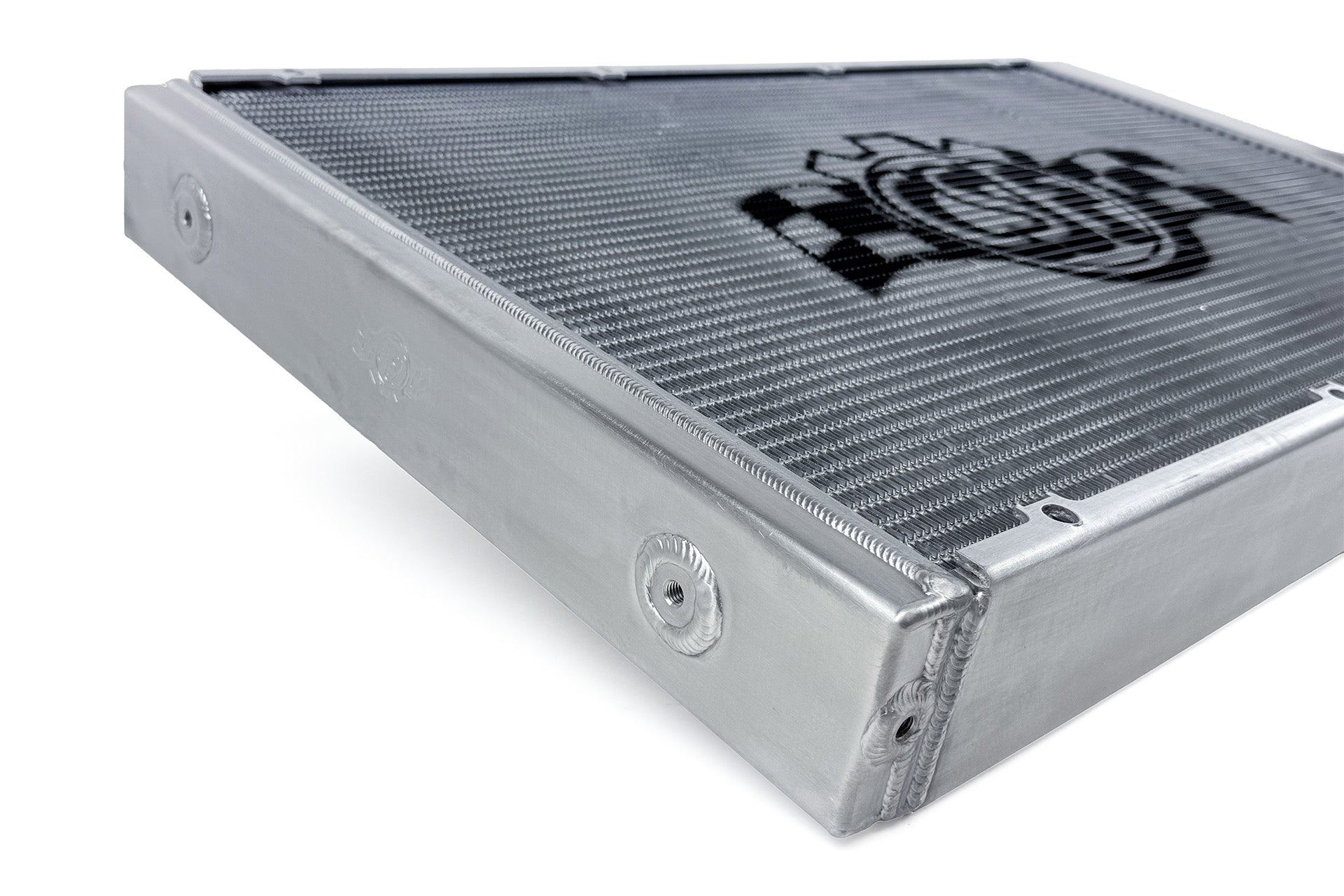

- Mounting bosses: Eight M8 x 1.25: four per tank, with one on top, one underneath and two on the sides
- Warranty: 2-Year Limited

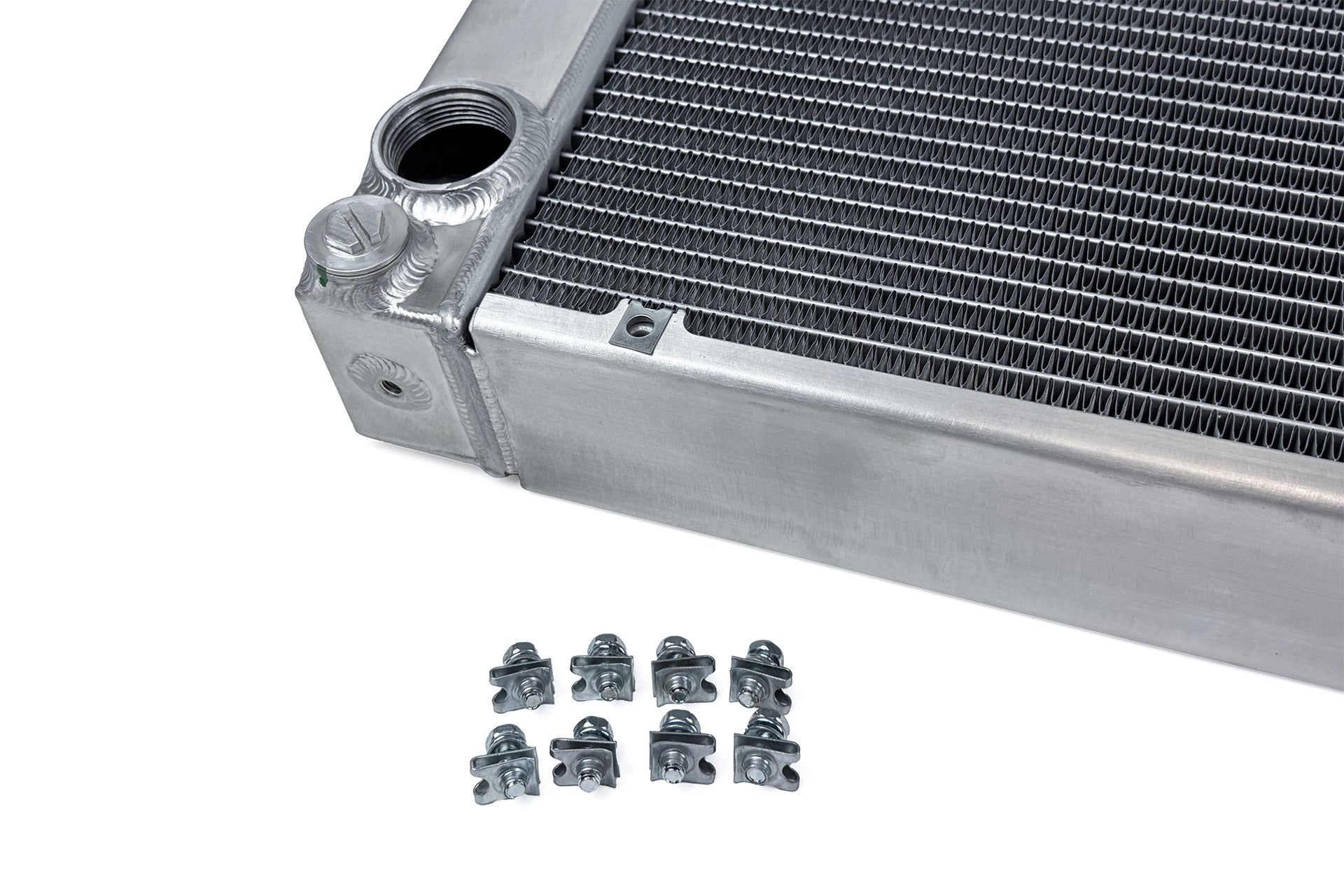

Important This is the bare radiator, not the complete cooling module. The shroud, 14" SPAL brushless fans and jumper harnesses are not included. Fasteners (8 U-Nuts and Bolts) are included for a custom shroud. Inlet/outlet and auxiliary-port fittings are not included; auxiliary-port plugs are included.
Vehicle compatibility
- Universal
