CSF Stepped-Core Intercooler for Toyota GR Corolla / GR Yaris - Black

SKU: CSF8285B
Sale price$1,250.10 Regular price$1,389.00
Save $138.90

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

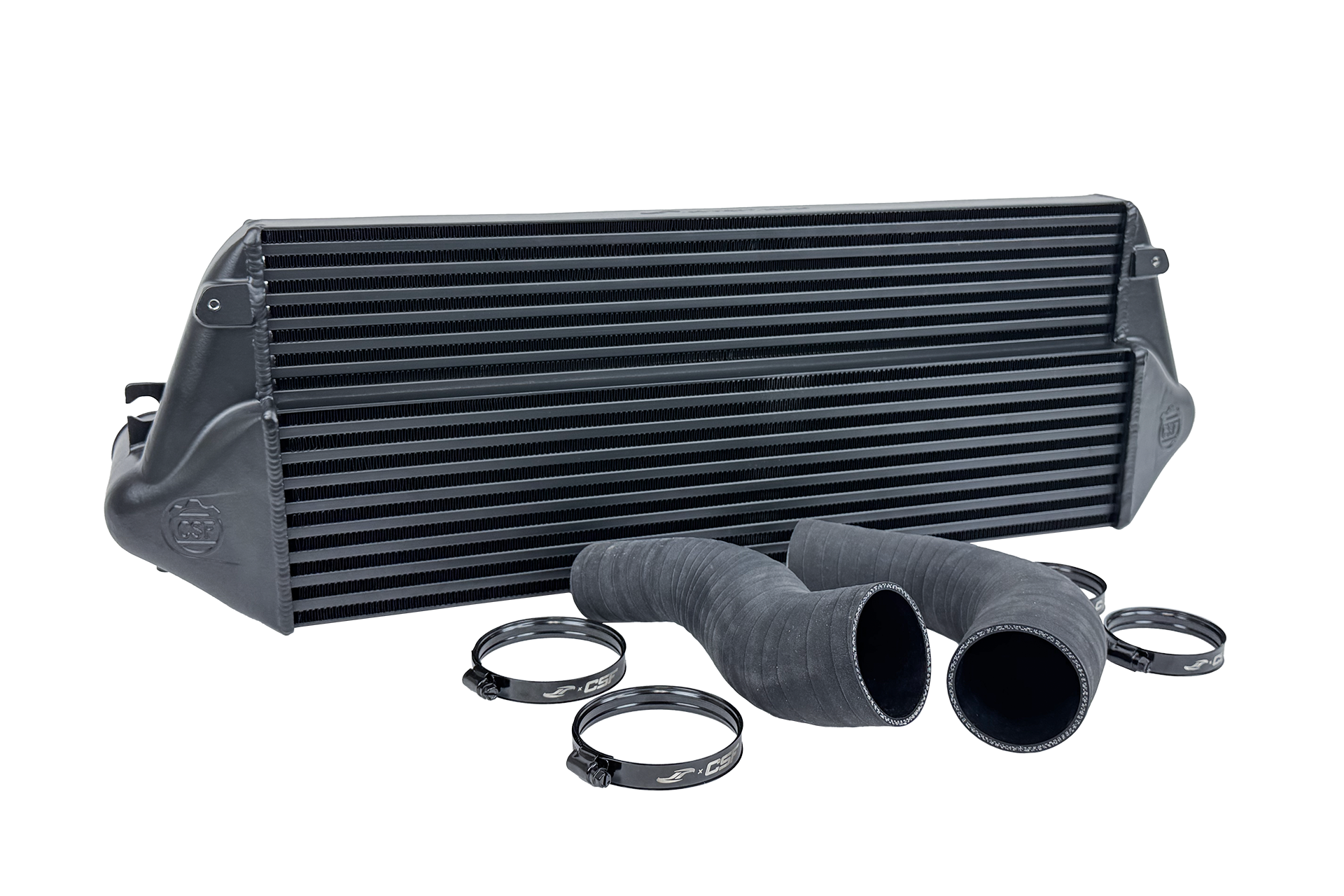

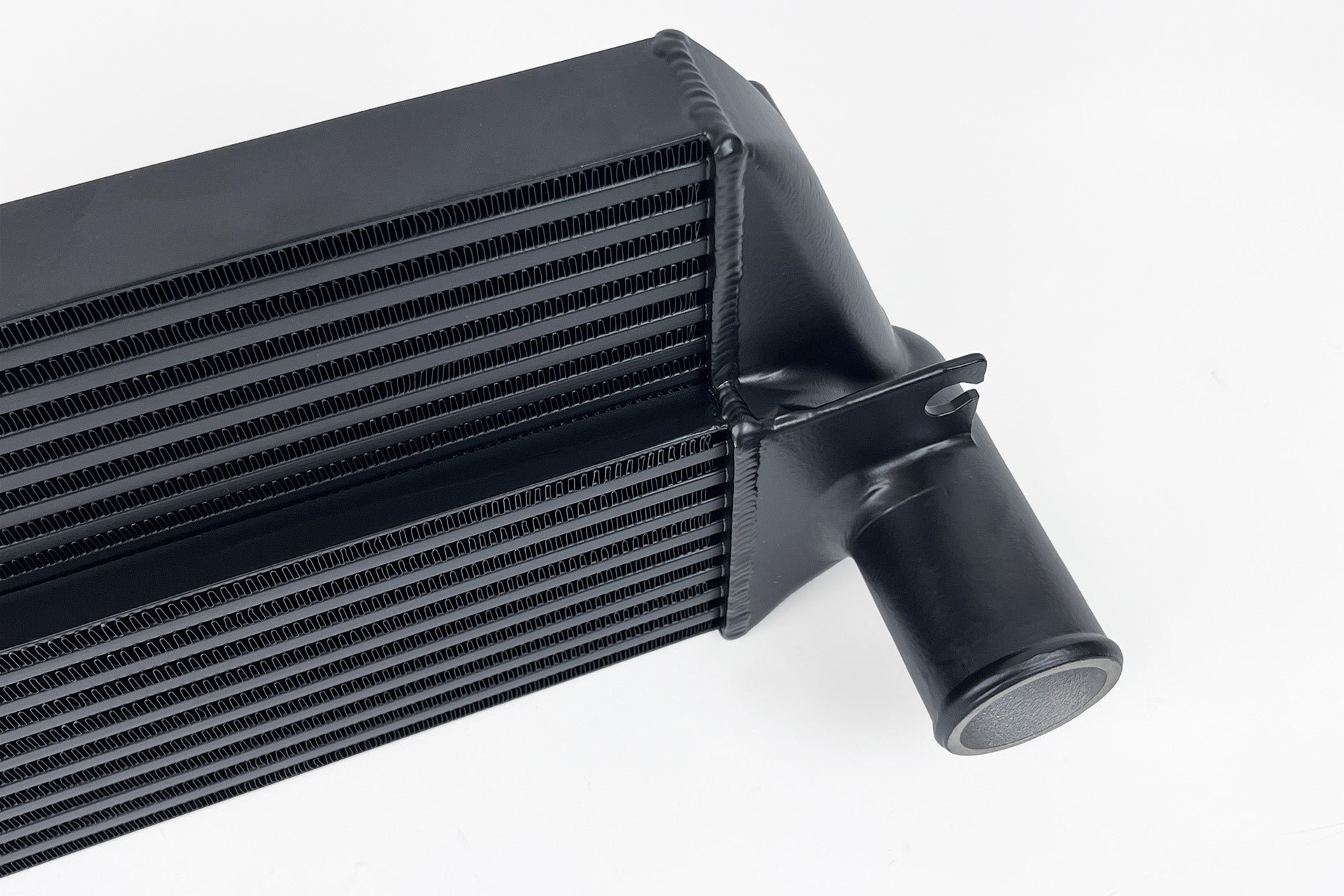

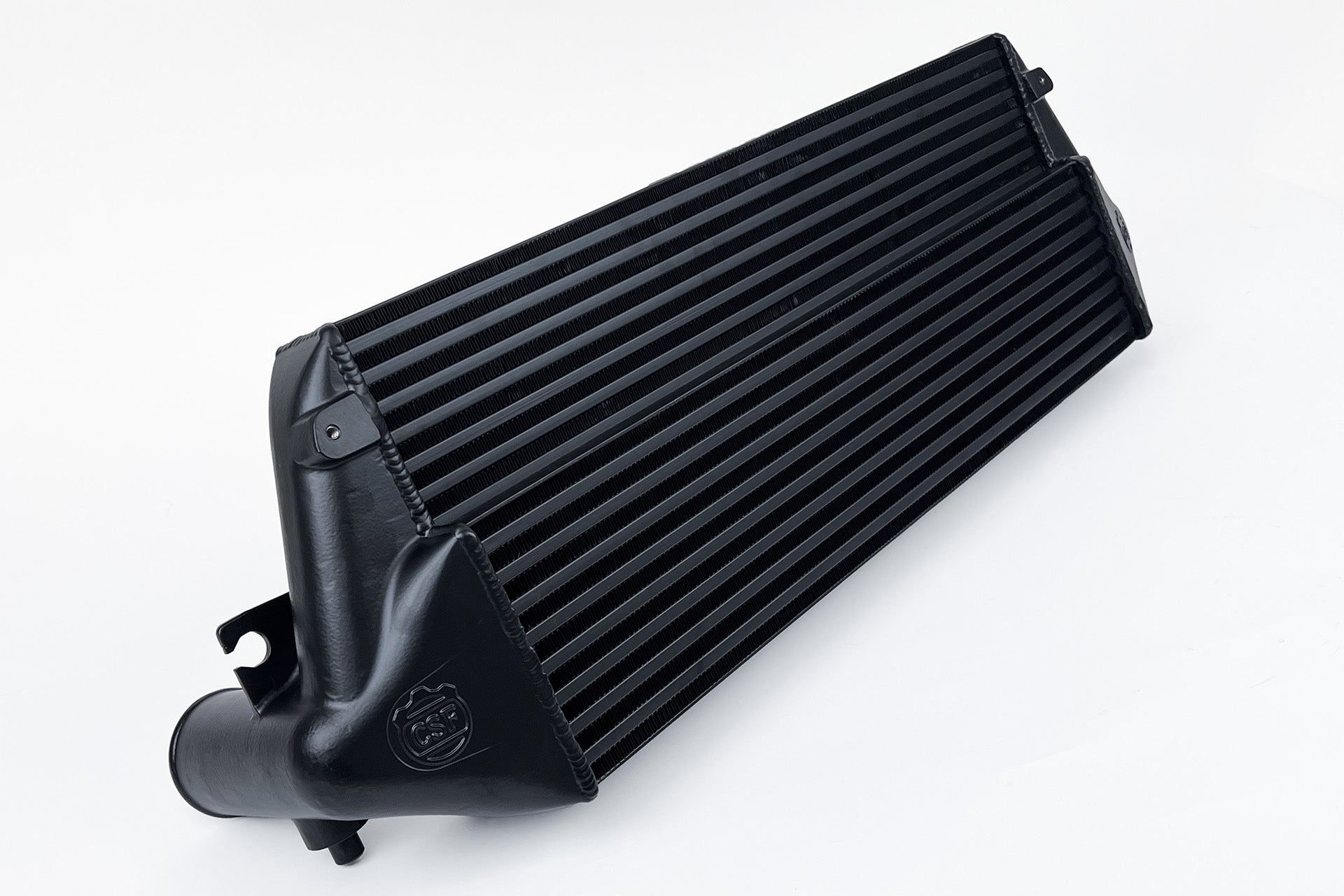

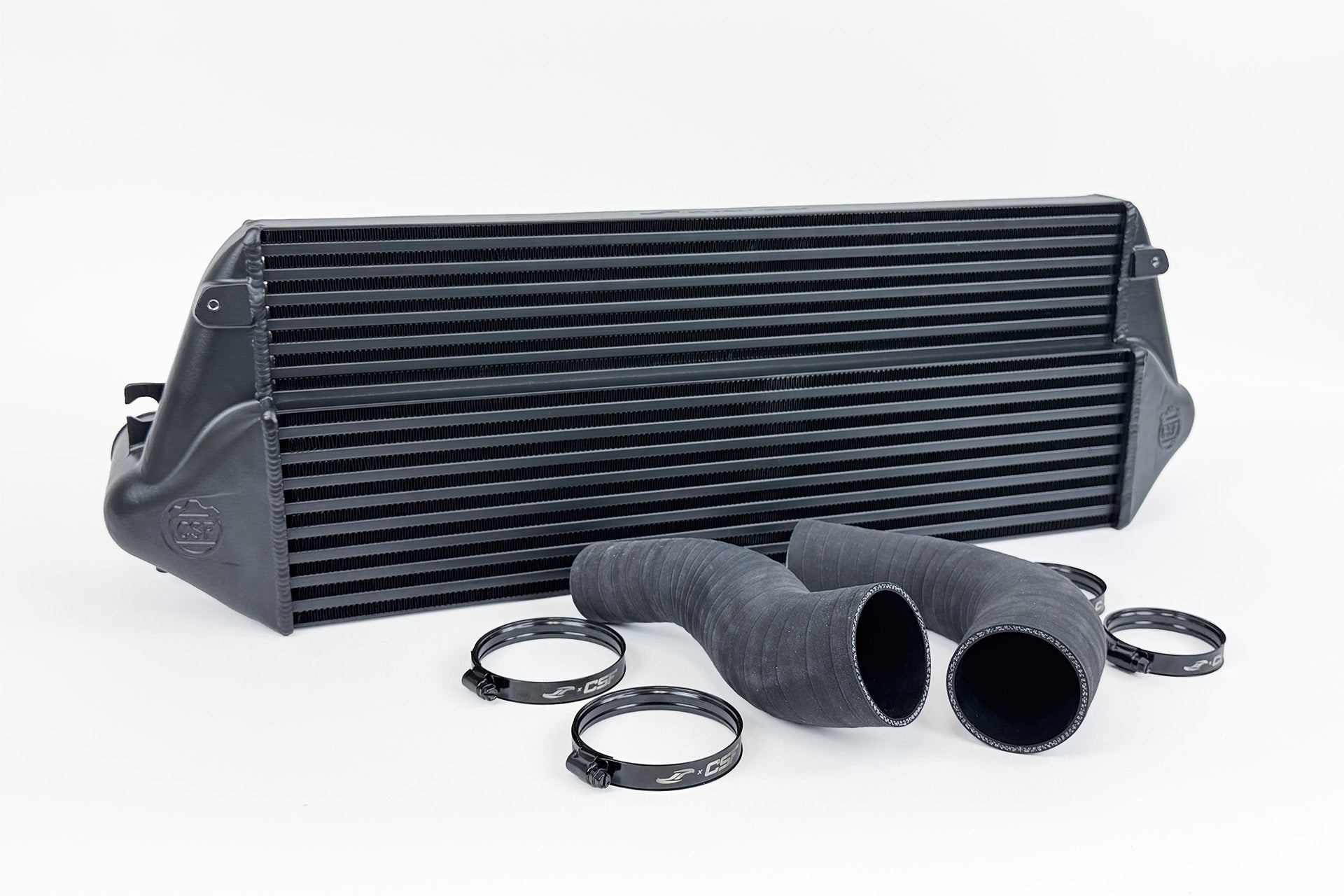

The CSF x Jackson Racing Stepped Core Intercooler in black features an aluminium tube-and-fin core, cast aluminium end tanks and 100% TIG-welded construction.

Key Features

  • Includes matte black 5-ply silicone hoses and bead-lock clamps
  • Individually leak and pressure tested
  • The stepped core gives a 45% larger core volume and 73% more surface area than the OE cooler

Specifications

  • Cooling tubes and fin rows: 15 cooling tubes and 16 cooling fin rows
  • Fin height: 8.5 mm bottom and 7.5 mm top
  • Core thickness: 86 mm bottom and 40 mm top
  • Hose connections: Factory 1.85" (47 mm) charge pipes to 2.5" (63.5 mm) inlet/outlet connections
  • Warranty: 2-Year Limited
  • OEM part numbers: Toyota 17940-18020, JD127000-1630 and 17940-18010

⚠ Fitment Notes

Confirmed to fit the 2025+ GR Corolla with both Automatic and Manual Transmissions.

⚠International Fitment Notes

The CSF x Jackson Racing Intercooler fits the 2020+ GR Yaris with some modifications.

Vehicle compatibility

Engine: Turbocharged 1.6L L3

  • Toyota GR Corolla Circuit Edition 2023–2024
  • Toyota GR Corolla Core 2023–2025
  • Toyota GR Corolla Morizo Edition 2023
  • Toyota GR Corolla Premium 2024–2025
  • Toyota GR Corolla Premium Plus 2025
  • Toyota GR Yaris 2020–2025; Requires modifications for fitment
