ST Easy Fit 25mm + 30mm Spacer Kit 5x112/57.1 for VW (3H) Arteon
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

ST Easy Fit 25mm + 30mm Spacer Kit 5x112/57.1 for VW (3H) Arteon
Sale price$692.55
Regular price$729.00 (/)
ST Easy Fit packages bundle front and rear wheel spacers with the matching mounting hardware and ST adapters for a specific car, giving the maximum spacer width approved with the factory wheels and the recommended tyre sizes. This kit is developed for the VW Arteon 4motion (3H).
Key Features
- Front and rear spacers with mounting hardware
- Matching ST adapters included
Specifications
- Front width: 25 mm per axle (12.5 mm per wheel)
- Rear width: 30 mm per axle (15 mm per wheel)
- Front system: DZX
- Rear system: DZX
- Bolt pattern (PCD): 5x112
- Centre bore: 57.1 mm
- Vehicle wheel fastening: M14x1.5
- Tested front wheel/Tyre: 245/35 R20 tyre on 8x20 ET40 wheel
- Tested rear wheel/Tyre: 245/35 R20 tyre on 8x20 ET40 wheel
- Material: Aluminium with composite adapters

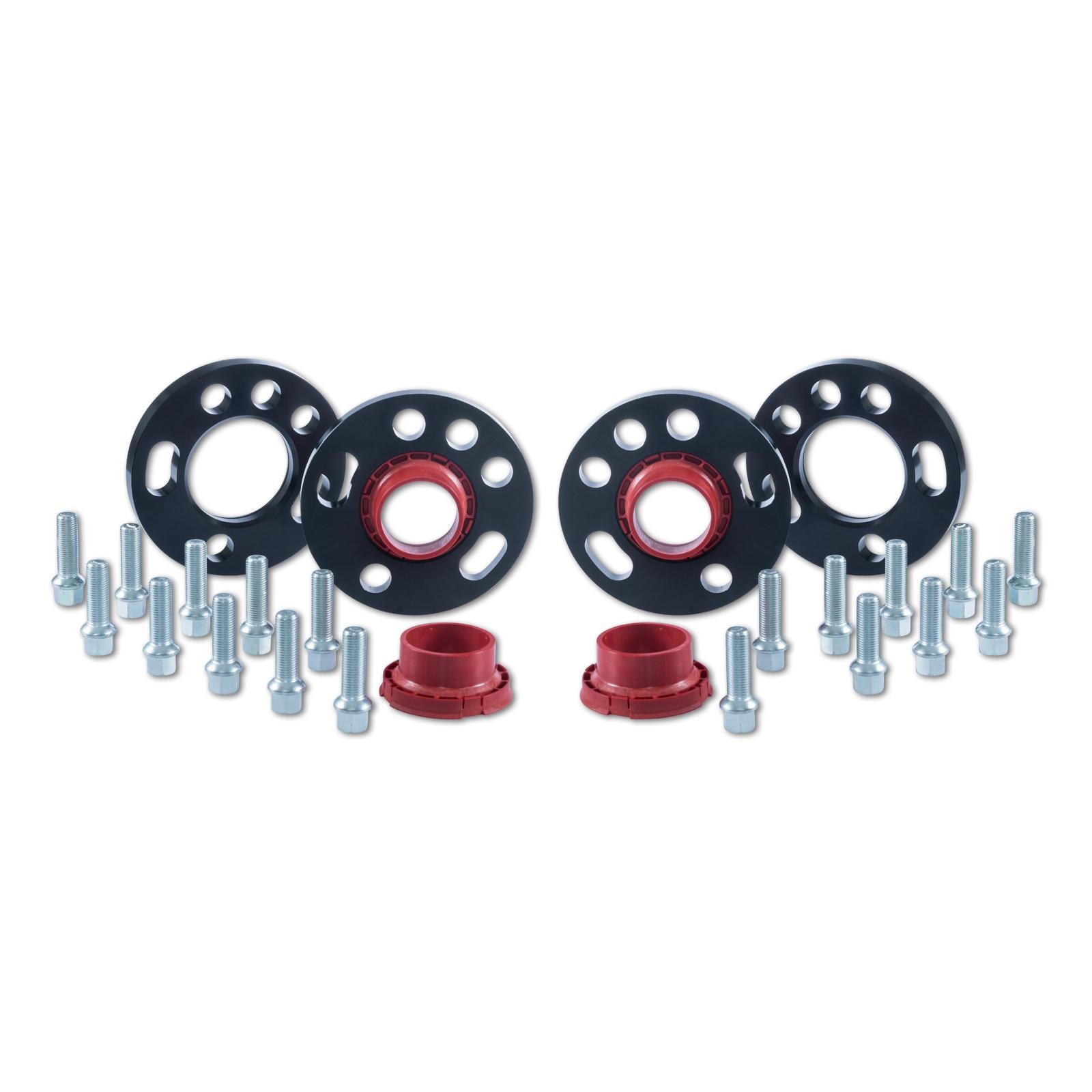

- Supplied as: 4 wheel spacer discs, adapters, mounting material
Note Spacer widths apply to the tested wheel and tyre combinations listed.
Attention!! Wheel/tyre combination!!
Wheel mounting
| Bolt pattern | 5x112 |
|---|---|
| Hub bore (front) | 57.1mm |
| Hub bore (rear) | 57.1mm |
| Width per axle (front) | 25mm |
| Width per axle (rear) | 30mm |
| System | Easy Fit |
| Tested wheel (front) | 245/35 R20 Pirelli P Zero _ 8x20 ET40 |
| Tested wheel (rear) | 245/35 R20 Pirelli P Zero _ 8x20 ET40 |
| Thread | Front: Bolt: M14x1.5x40mm Ball R13 17mm wrench size silver Rear: Bolt: M14x1.5x43mm Ball R13 17mm wrench size silver |
| Wheel offset limit | 40 |
| Material | Aluminium, composite material |
| Supplied as | 4 wheel spacer discs, adapters, mounting material |
