Eventuri Hybrid Carbon Airbox for BMW M3 (E46) - w/o Intake

SKU: EVE-E46ABX-CF-PLM
Sale price$5,199.00

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


The Eventuri Hybrid Airbox System is a world-first intake solution for the BMW E46 M3. It delivers the aggressive, race-inspired sound of the CSL airbox with the driveability and plug-and-play simplicity of a traditional intake. Until now, E46 M3 owners wanting the CSL airbox sound had to run the engine without the MAF sensor, which often meant expensive ECU conversions or remaps and hurt throttle response and driveability. The Hybrid Airbox uses the OEM MAF sensor, so no remap is needed.

The airbox uses Eventuri's patented Venturi carbon fibre housing, which provides an aerodynamically efficient airflow path and maintains laminar flow to reduce drag on the engine. This version is supplied without the Eventuri intake, so existing E46 M3 owners with an Eventuri intake can reuse their filter housing and scoop. The Hybrid Airbox system comes in 2 configurations, with and without the Eventuri intake.

Key Features

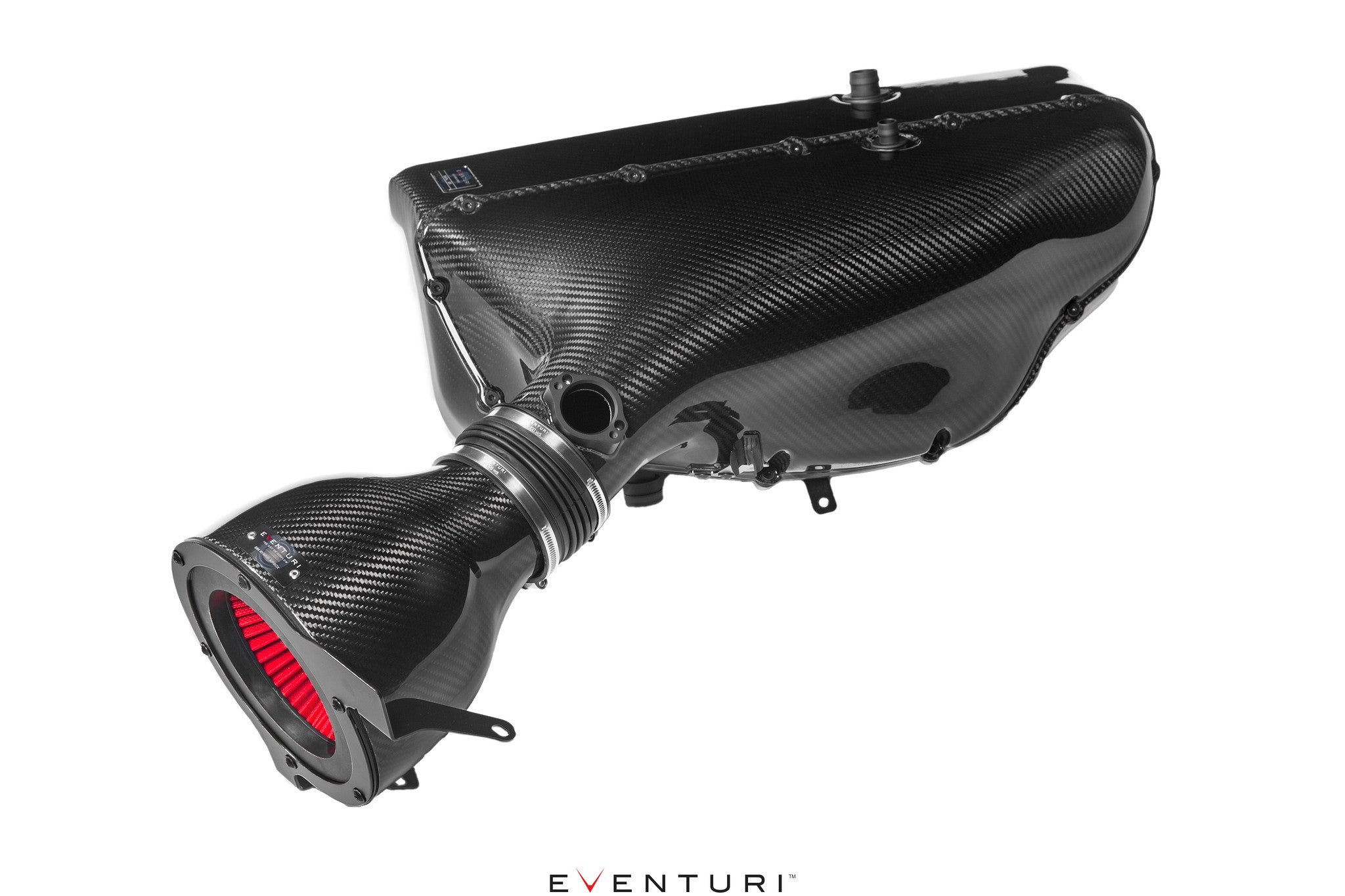

  • Main airbox in prepreg carbon fibre houses the 6 trumpets and the breather system connectors, and is designed to resonate under load to produce the sought-after CSL sound
  • Trumpets are injection moulded from glass fibre reinforced thermoplastic for accuracy and smooth internal surfaces, with CNC-machined stainless steel rings so they do not deform when the silicone couplers are tightened
  • Mechanical fasteners and gaskets between the trumpets and airbox, and on the breather adapters, give an airtight seal that is not affected by heat cycles and vibration
  • Snorkel channels airflow smoothly from the intake to the trumpet area and incorporates the MAF tube section, where the OEM sensor is secured to a CNC-machined MAF boss; custom screws cut into plastic securing clips so they do not loosen under vibration

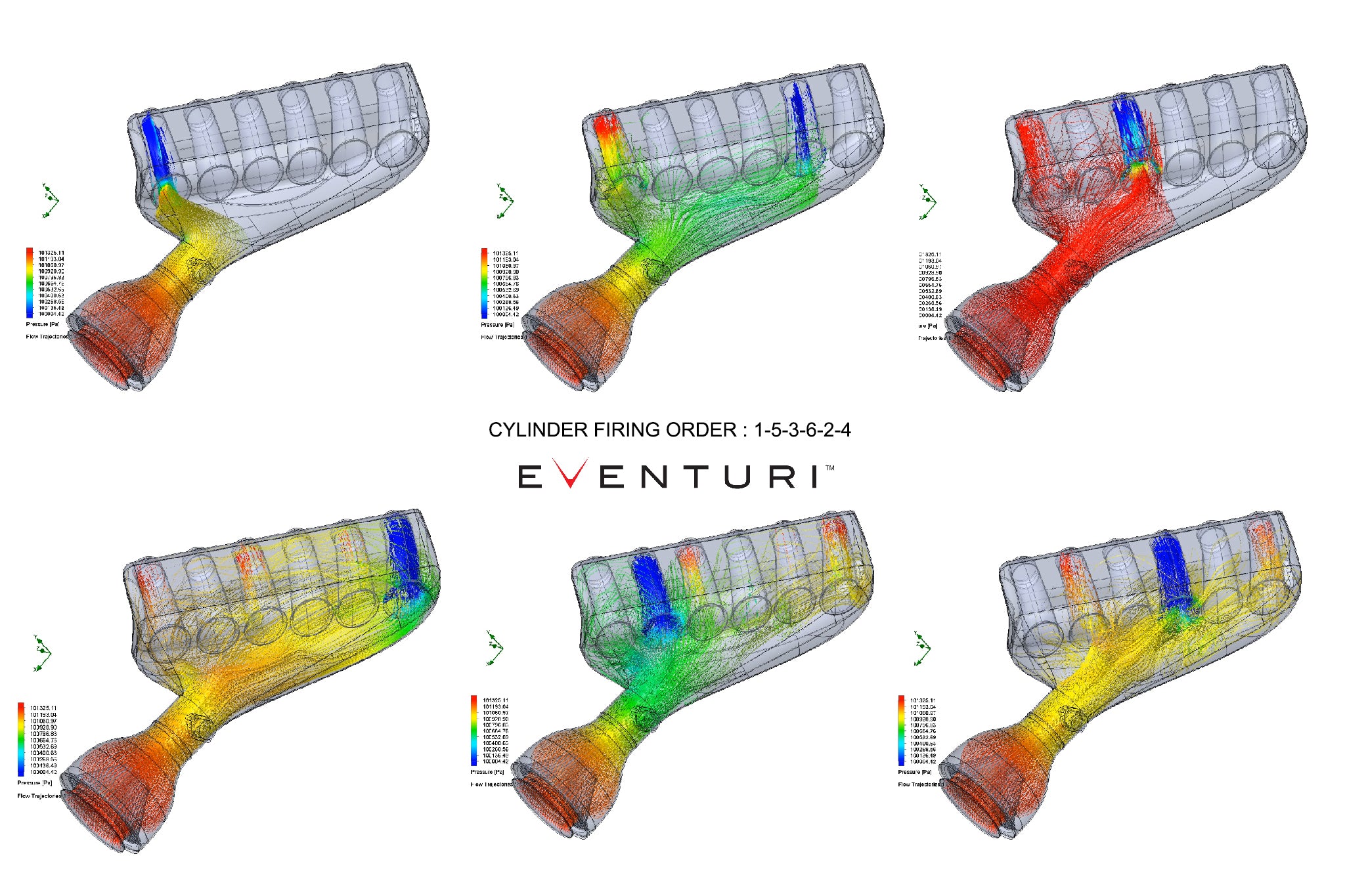

  • Airbox shape was optimised over several iterations with CFD simulation so the trumpets have adequate flow without starvation
  • Complete package including the breather hoses; the OEM MAF sensor is retained, so no aftermarket tune is needed
  • Eventuri quotes a performance increase of 20-22hp, 8-13ft-lb with an OEM ECU tune

Specifications

  • Configuration: Hybrid Airbox without intake (the full configuration adds the carbon filter housing, filter and cold air scoop)
  • Airbox: Carbon fibre main airbox and carbon fibre airbox snorkel with MAF tube
  • Trumpets: 6 thermoplastic moulded, with stainless steel reinforcement rings
  • Hardware: Stainless steel brackets and flanges, CNC-machined breather adapters, custom EPDM flexible coupler, silicone couplers
  • Hoses: Crankcase breather hose and additional vacuum tubing
  • Reuses: Existing Eventuri filter housing and cold air scoop
Note The SMG reservoir relocation kit is the only additional part required.

Vehicle compatibility

  • BMW E46 M3 with an existing Eventuri intake.

Airbox-only version; intake not included.

Fitment requirements

  • Airbox only: needs the Eventuri E46 M3 intake (filter housing and scoop) already fitted.
