Eventuri Black Carbon Intake for BMW M3 (E9X) - Gloss
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

Eventuri Black Carbon Intake for BMW M3 (E9X) - Gloss
Sale price$1,889.00
Regular price (/)

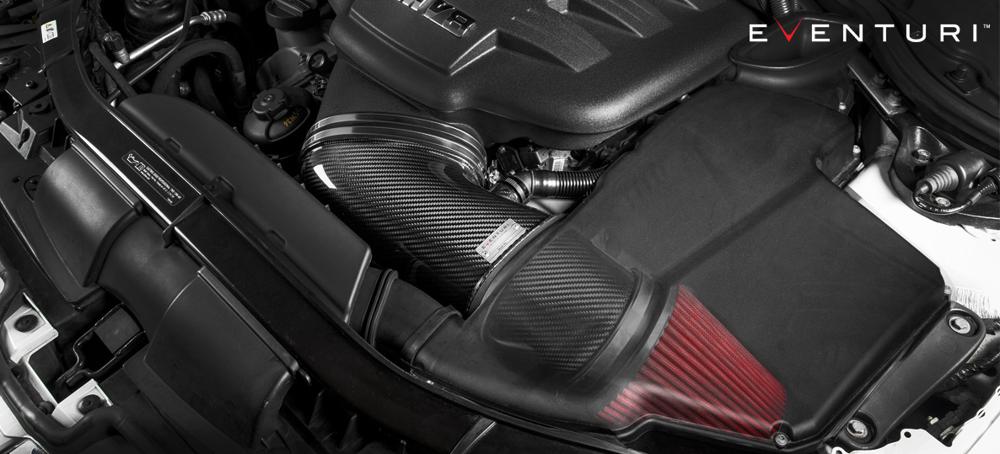

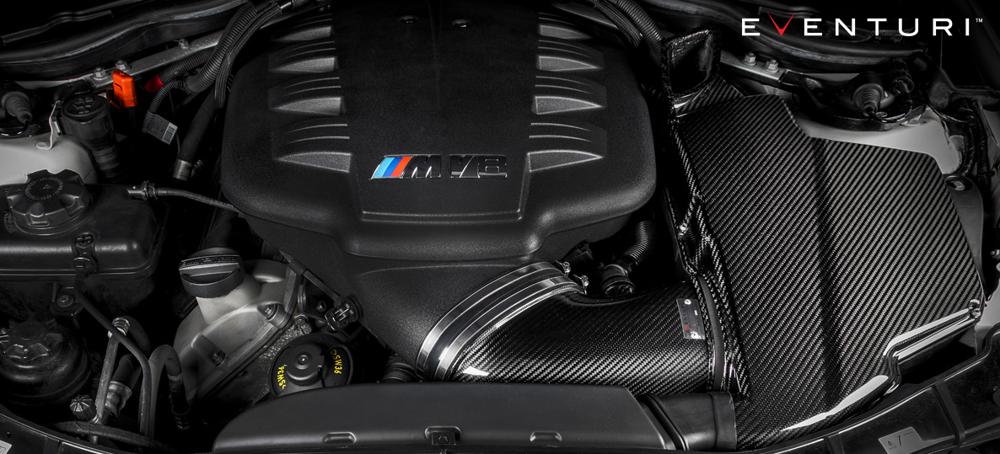

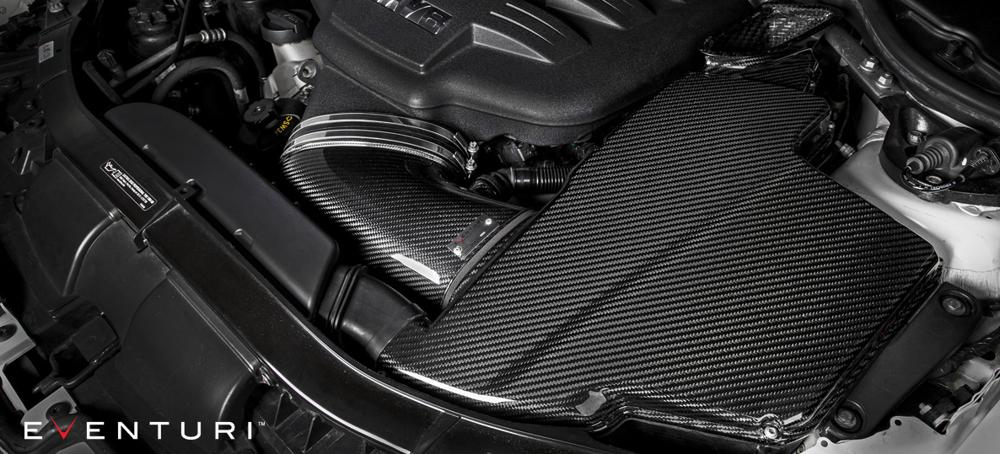

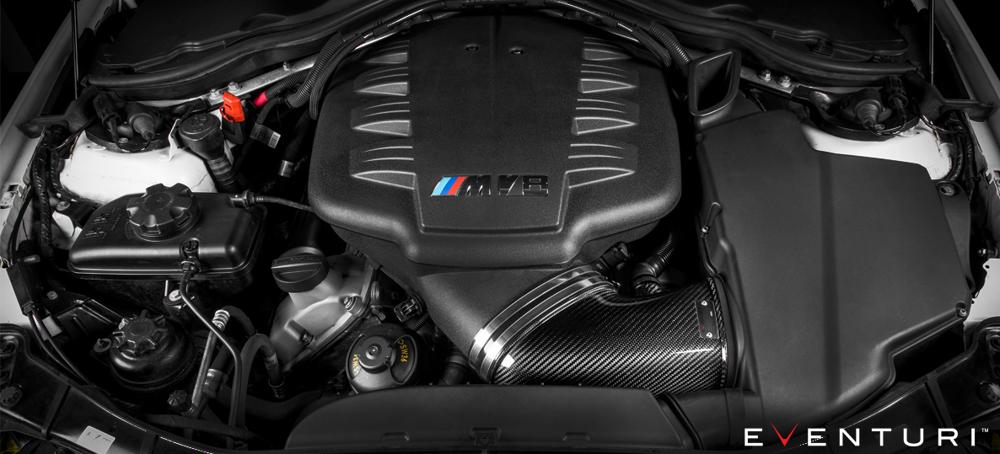

The Eventuri Black Carbon Intake for the BMW M3 (E9X), gloss finish, improves one of the best designed stock intake systems. The stock E9X airbox has an excellent flow path and ambient air feed, but the inlet tube between the airbox and inlet manifold is restrictive. Eventuri redesigns the tube and keeps the airbox, letting the V8 breathe more efficiently, and adds a scoop to increase airflow through the airbox and lower inlet temperatures further.
Key Features

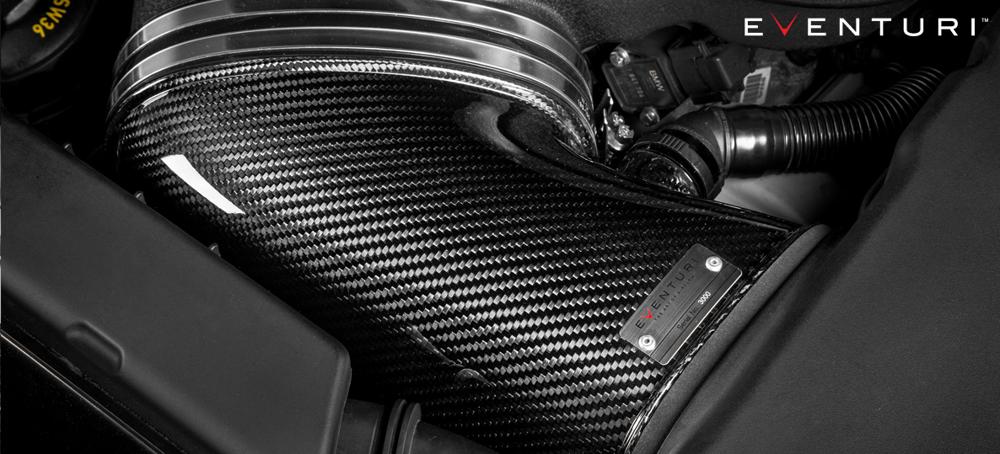

- 1-piece carbon fibre intake tube has no internal interfaces. The stock tube has 2 concertina sections for flexibility, which introduce interfaces and turbulence. The Eventuri tube moves with the engine through a compressible neoprene band at the airbox, so no flexible section is needed
- The tube transitions gradually from a circular opening at the filter to an oval exit at the manifold, more efficiently than the stock tube, which changes from a rectangular opening to an oval one. The stock tube also has a large exposed internal face at the filter connection

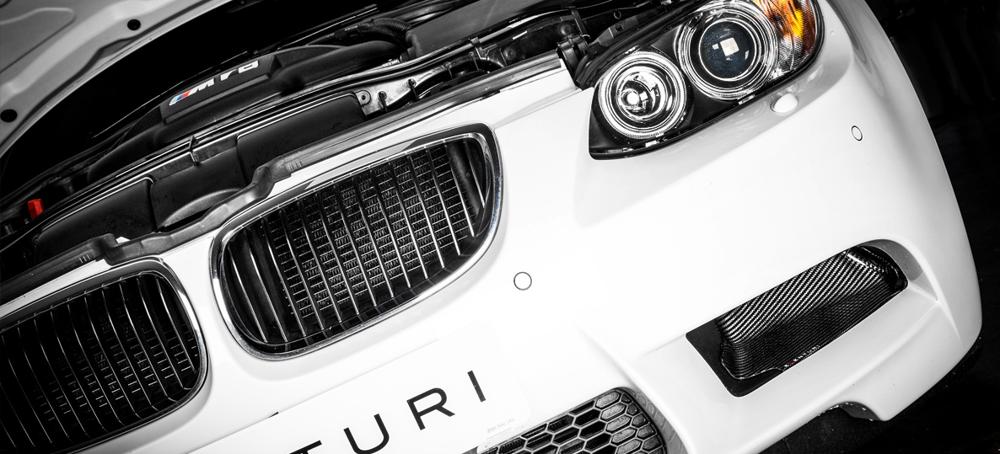

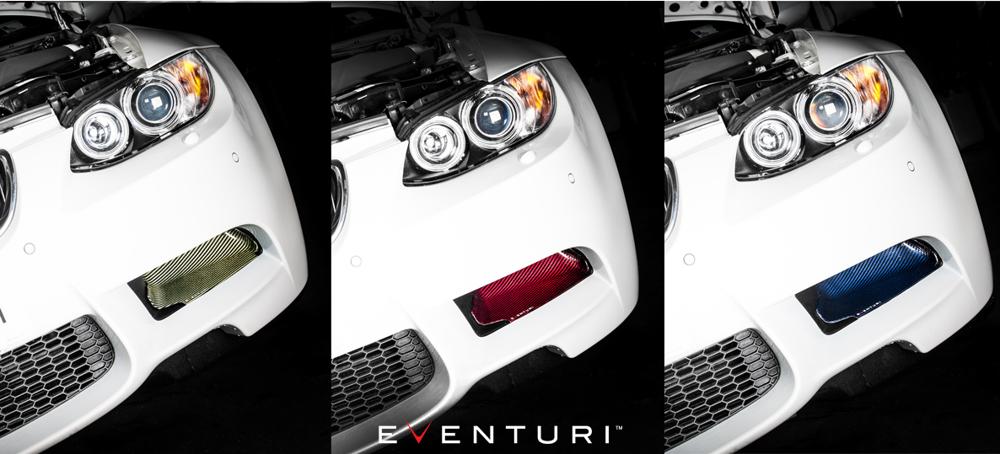

- The airbox is fed cold air by 2 feeds: a lower feed from underneath the headlamp and an upper feed from behind the kidney grilles. The lower is the primary feed, but its duct has a large ridge just before the airbox opening. The carbon scoop sits on top of the stock duct and curves up sooner to remove the ridge, increasing entry airspeed and lowering intake temperatures
- The upper feed provides much less air because airflow has to change direction through 90 degrees twice and the duct narrows significantly before the airbox
- A stainless steel debris shield attached to the filter deflects debris and water, with no negative impact on performance
- Eventuri quotes a performance gain of 8-10hp, 10-12ft-lb on the dyno and 16hp, 14Nm on an Insoric road dyno
- Vbox road testing on a car with a primary decat and stage 2 tune showed 100-200km/h acceleration reduced by approximately 0.3 seconds with just the intake added
- Eventuri quotes an intake air temperature difference with ambient of 7.5°C with the stock airbox against 4.5°C with the Eventuri
Specifications
- Part number (gloss): EVE-E9X-CF-INT
- Part number (matte): EVE-E9X-CFM-INT
- Engine: V8
- Filter: High-flow urethane cone filter

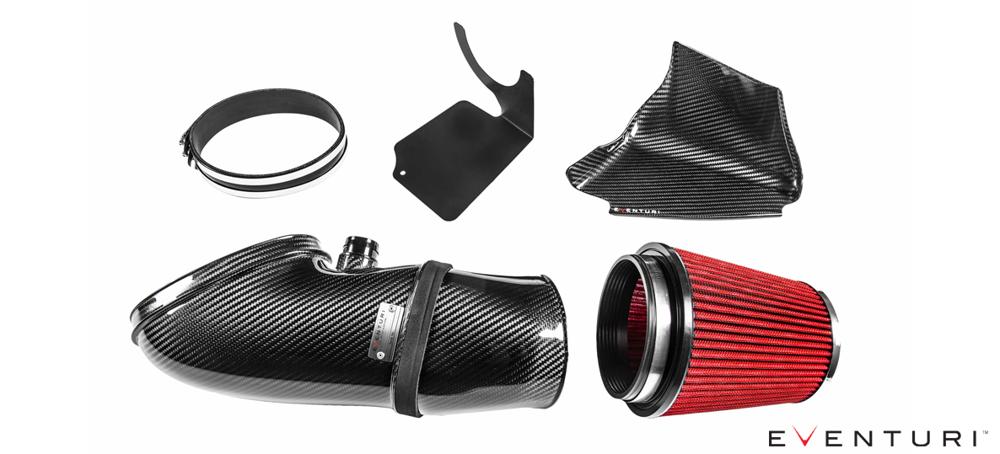

- Set contents: Carbon fibre intake tube, high-flow urethane cone filter, carbon fibre inlet scoop, CNC machined breather adapter, laser cut stainless steel debris guard, silicone coupler and OEM specification clamps
Vehicle compatibility
- BMW E9X M3 V8.
Retains the stock airbox.
