Eventuri Black Carbon Intake for BMW M3 (E9X) - Matte

SKU: EVE-E9X-CFM-INT
Sale price$1,889.00

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

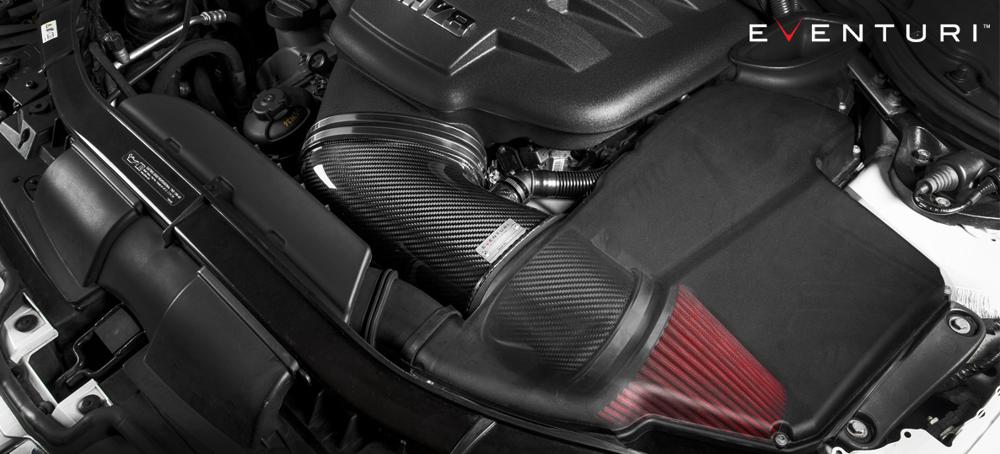

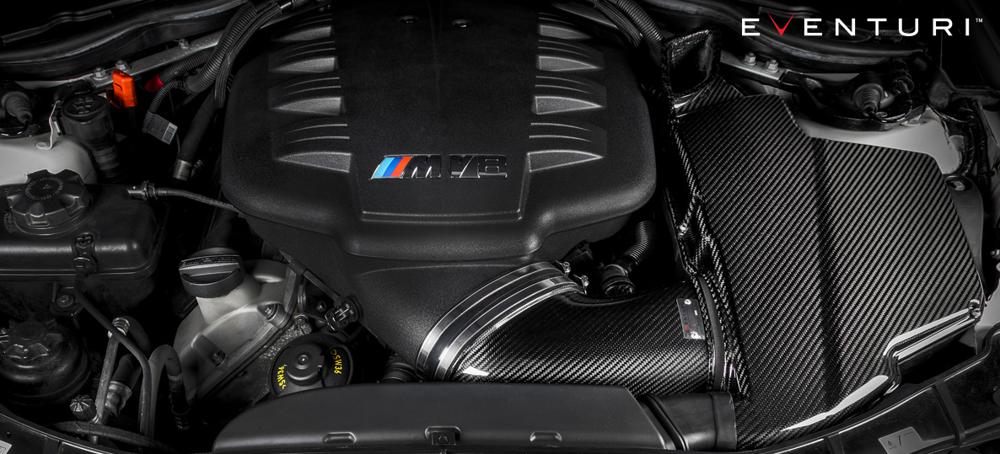

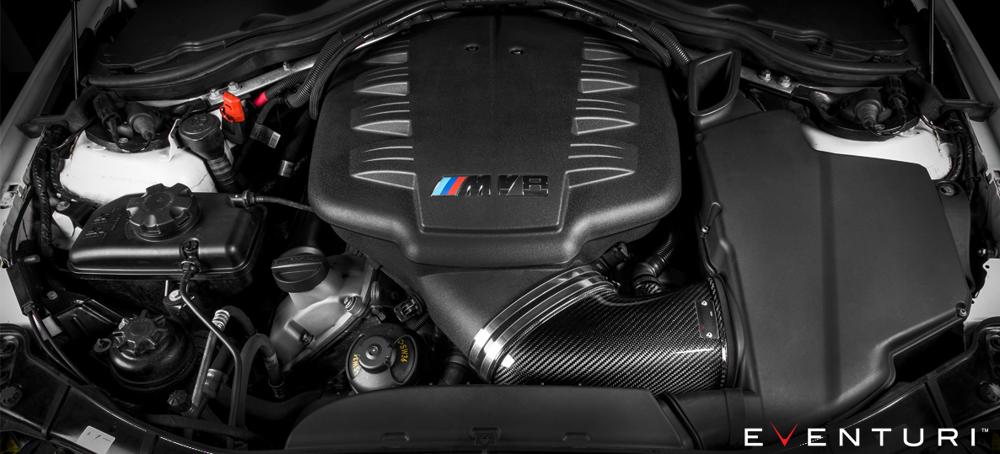

The Eventuri Black Carbon Intake in matte finish suits the BMW E9X M3. Designed for its V8 engine, the system retains the stock airbox while replacing the inlet tube and adding a carbon fibre inlet scoop to improve airflow.

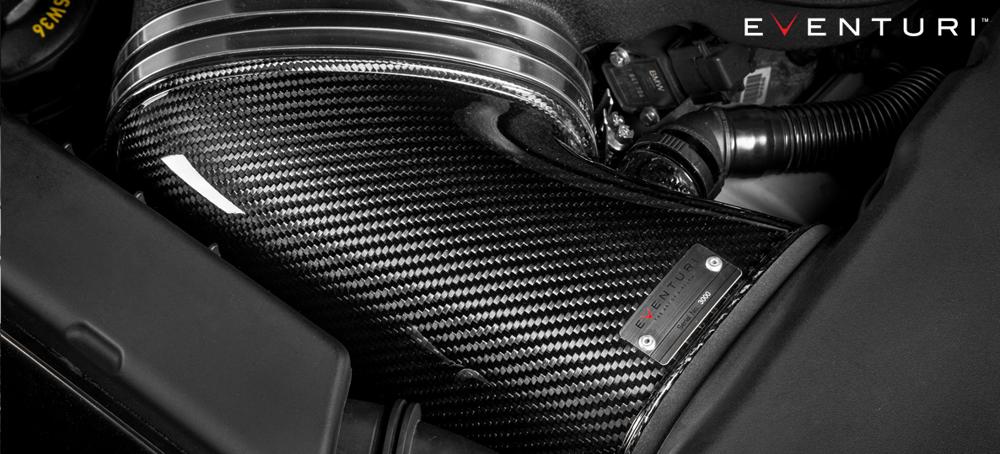

The one-piece carbon fibre intake tube has no internal interfaces and transitions from a circular filter opening to an oval manifold opening. A compressible neoprene band seals the tube to the stock airbox while allowing movement with the engine. The scoop sits over the stock lower duct to provide a smoother airflow path into the airbox. The filter-mounted debris shield deflects water and debris without impeding airflow.

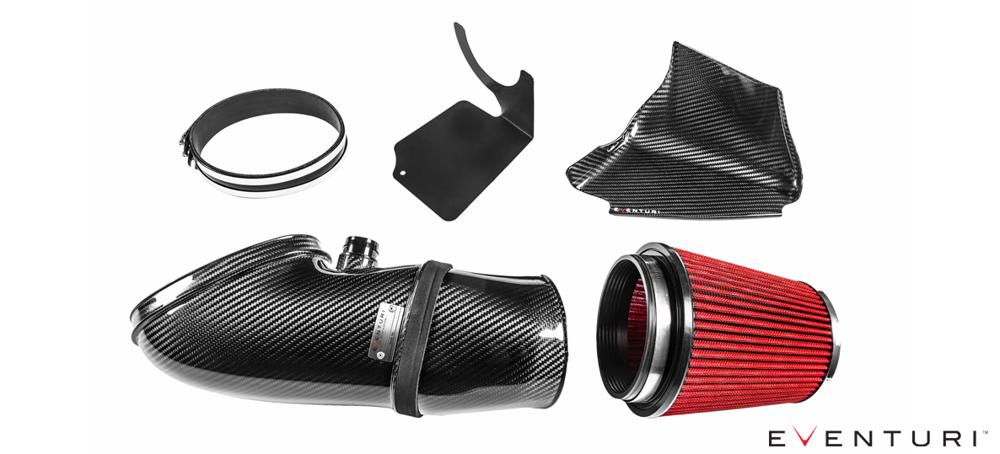

Specifications

  • Finish: Matte
  • Intake tube: One-piece carbon fibre
  • Filter: High-flow urethane cone
  • Breather adapter: CNC-machined
  • Debris guard: Laser-cut stainless steel
  • Hardware: Silicone coupler and OEM specification clamps

Reported dyno gains are 8-10hp and 10-12ft-lb, with repeated runs showing approximately 9hp and 11ft-lb across the RPM range rather than only at peak. Testing was conducted back-to-back on the same day, with temperatures monitored and the bonnet closed for both configurations. The stock intake was tested first, followed by the Eventuri installation while the car remained on the dyno. Improved part-throttle and full-throttle response was also reported.

Road-based Insoric testing recorded gains of 16hp and 14Nm. The reported inlet air temperature difference from ambient was Stock 7.5C: Eventuri 4.5C. V-Box testing recorded a 0.3-second reduction in 100-200kph acceleration. Vbox acceleration testing covered 60-130mph and 100-200Km/h on the same stretch of road on the same day. The test car had a primary decat and stage 2 tune for all runs.

ECU data logging using a Bavarian Technic diagnostics tool compared both intake systems in 4th gear to the redline. Air mass flow was higher throughout the RPM range, with a larger difference at higher RPM. At approximately 5000rpm, the inlet air temperature difference from ambient was 9.6 Degrees C with the stock intake and 5.3 Degrees C with Eventuri; air mass flow was 635 kg/h and 650 kg/h respectively. At approximately 8300rpm, the temperature differences were 7.6 Degrees C and 4.7 Degrees C, with air mass flow of 1168 kg/h and 1202 kg/h respectively.

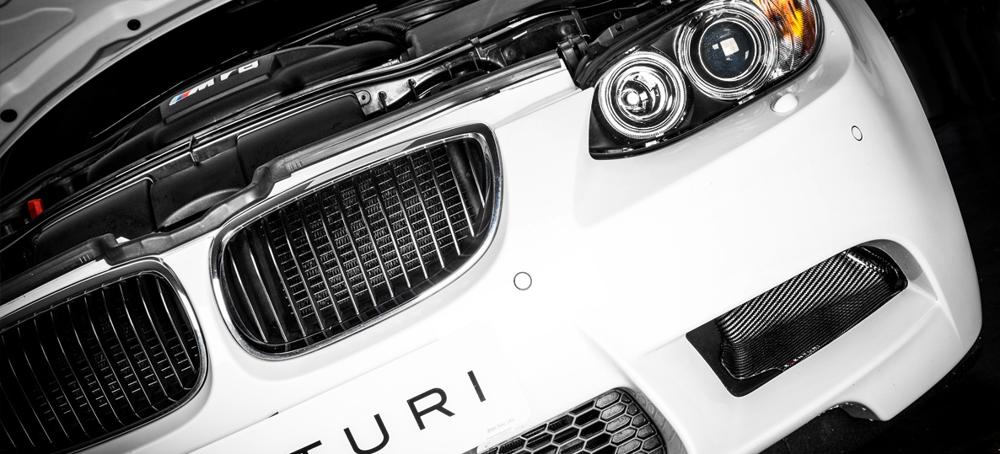

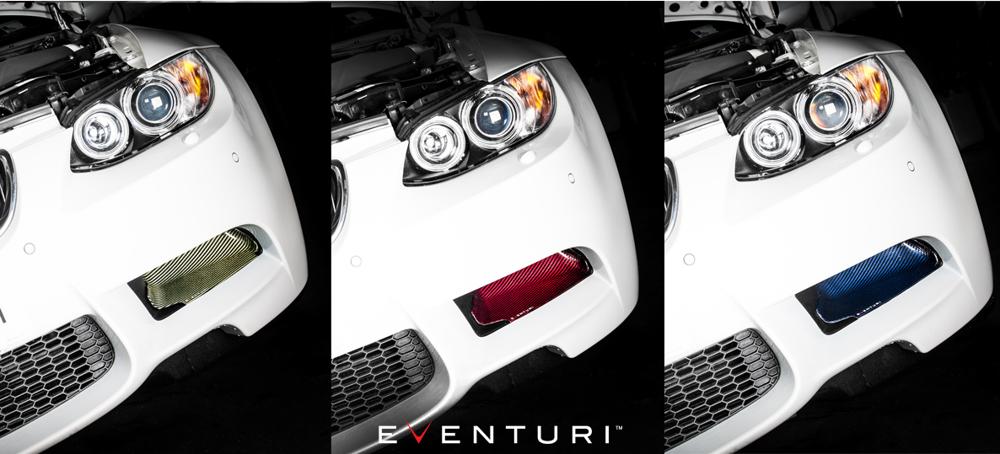

The stock airbox receives air from underneath the headlamp and behind the kidney grills. The scoop addresses a ridge in the lower duct that restricts entry into the airbox. Road data logging recorded a 2-degree reduction in intake air temperature using the scoop. A fixed-position leaf-blower test with an air speed meter recorded an almost 50% increase in air entry speed.

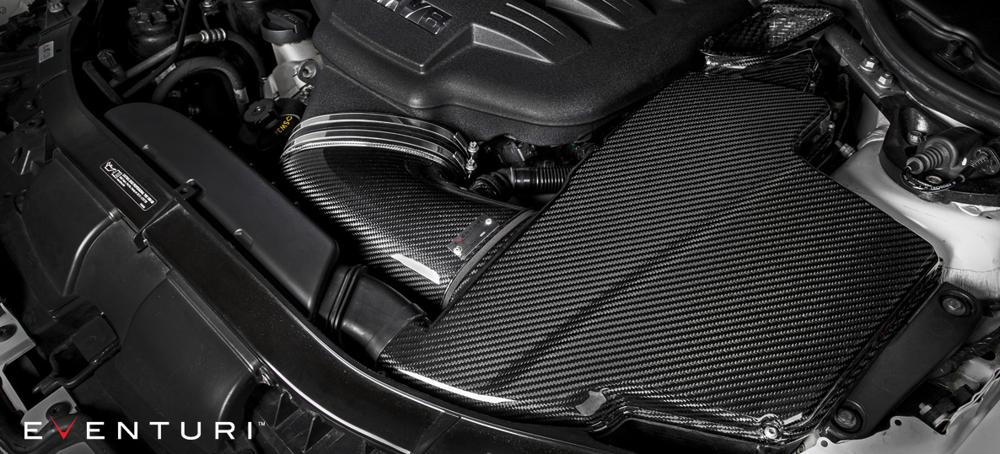

Note The optional Carbon Airbox Lid shown in some images is not included.

Vehicle compatibility

  • BMW E9X M3 V8.

Retains the stock airbox.
