Eventuri Carbon Intake for Toyota GR Supra 2.0 (A90) - B48

SKU: EVE-A90B48-INT
Sale price$3,079.00

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


The Eventuri Carbon Intake for the Toyota Supra MK5 2.0 (B48 engine) gives the turbo a less restrictive flow path while keeping inlet temperatures low. The Supra intake system sits next to the exhaust manifold, which rapidly heat soaks the engine bay, so a fully sealed intake is the only way to keep intake air temperatures to a minimum.

Key Features

  • Dual feed airbox: a secondary feed from an additional opening into the wheel arch area supplements the single stock air feed. A scoop at the back of the airbox protrudes into the wheel arch, with an internal splash guard to deflect water away from the filter
  • Heat shield with a gold reflective layer on the exhaust manifold side combats radiant heat transfer, and a rubber seal around the intake tube keeps heated air out of the airbox
  • The airbox is as large as possible to maximise volume, with a recess for potential strut braces
  • A removable panel on the side of the airbox facing the headlamp lets the optional headlamp duct provide a direct feed of cold air to the filter for race applications
  • The smooth carbon inlet tube replaces the stock convoluted tube, which has multiple faces that can cause eddies, and has CNC machined fittings for the temperature sensor and breather adapter
  • Bespoke dry cone filter has an internal flow guiding cone and a cleanable, high-temperature stable urethane base, with a significantly larger surface volume than the stock panel filter

Specifications

  • Inlet tube internal diameter: 111 mm (4.4") opening, or 109 mm (4.3") at the filter end, against 80.8 mm (3.2") for the OEM tube
  • Inlet tube area: 82% larger in cross-sectional area than stock
  • Material: 100% pre-preg carbon fibre, no fibreglass
  • Filter: Double-layered non-woven mesh, ISO tested

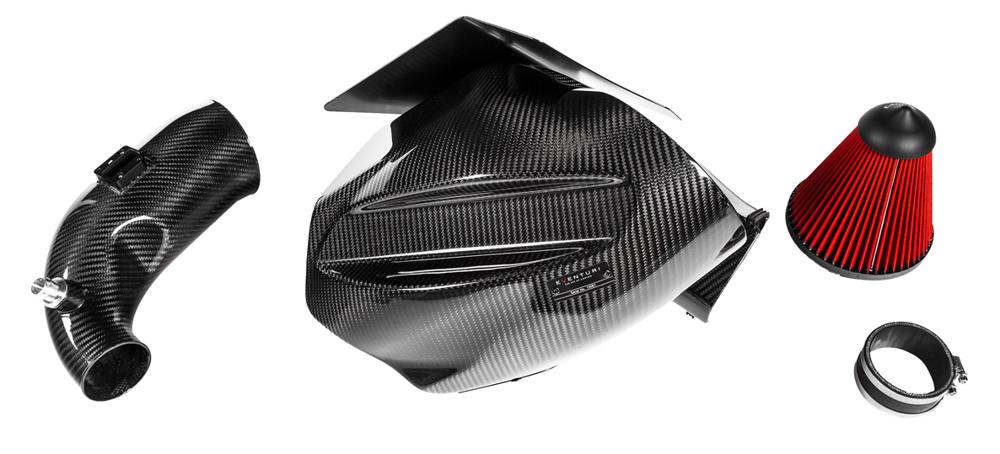

  • Set contents: Carbon fibre airbox with dual feeds, bespoke high-flow dry cone filter, carbon fibre inlet tube with 111 mm opening ID, CNC machined temperature sensor mount, CNC machined breather adapter, heat shield with gold reflective backing, laser cut stainless steel brackets, silicone coupler with OEM specification clamps

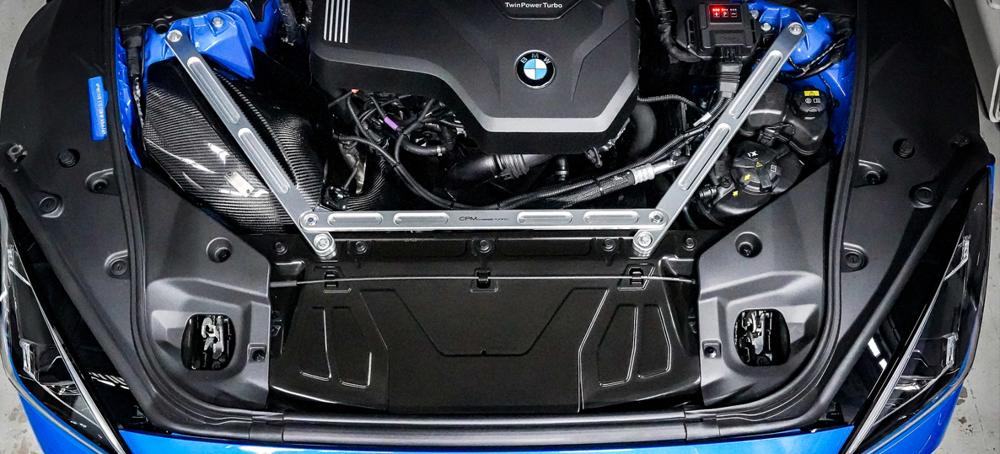

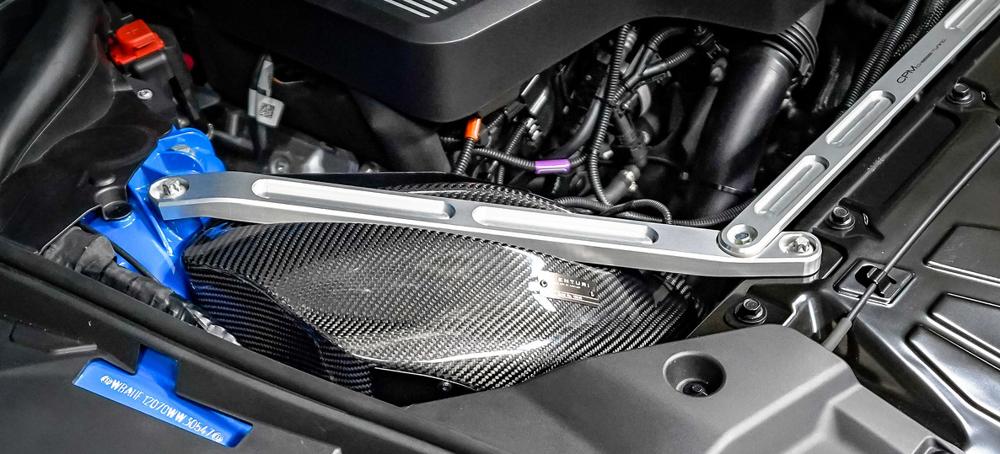

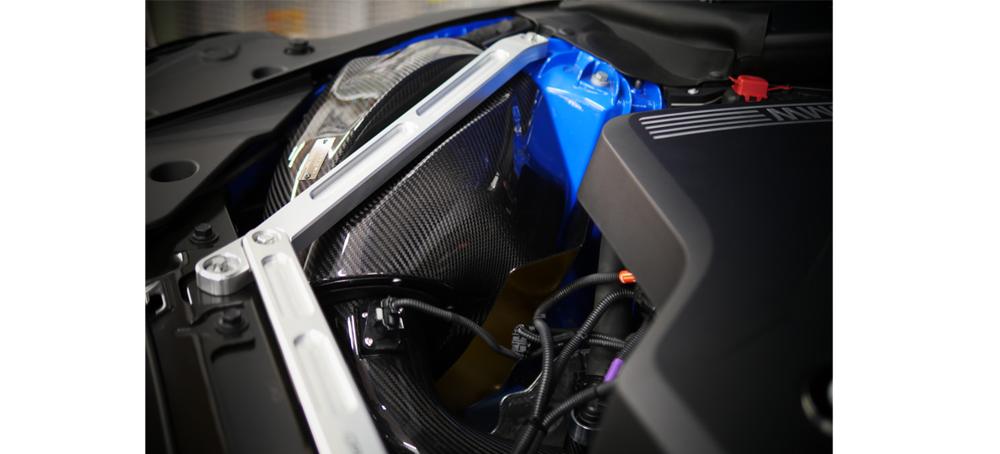

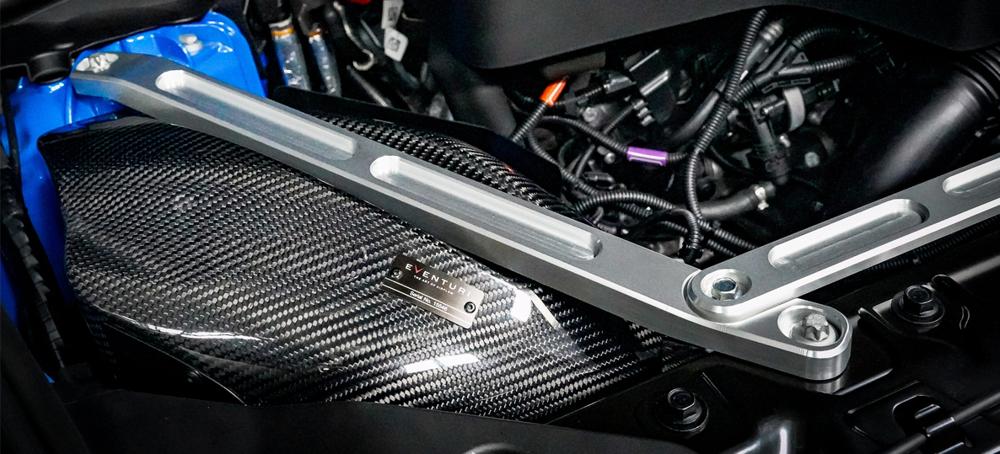

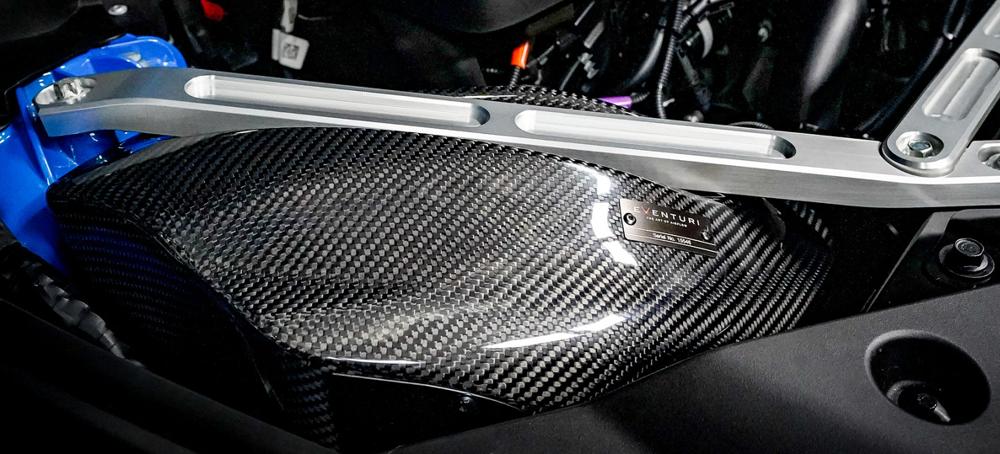

Note Images show the intake fitted to a BMW Z4 B48.

Vehicle compatibility

  • Toyota Supra MK5 - 2.0 B48, up to 2024.
