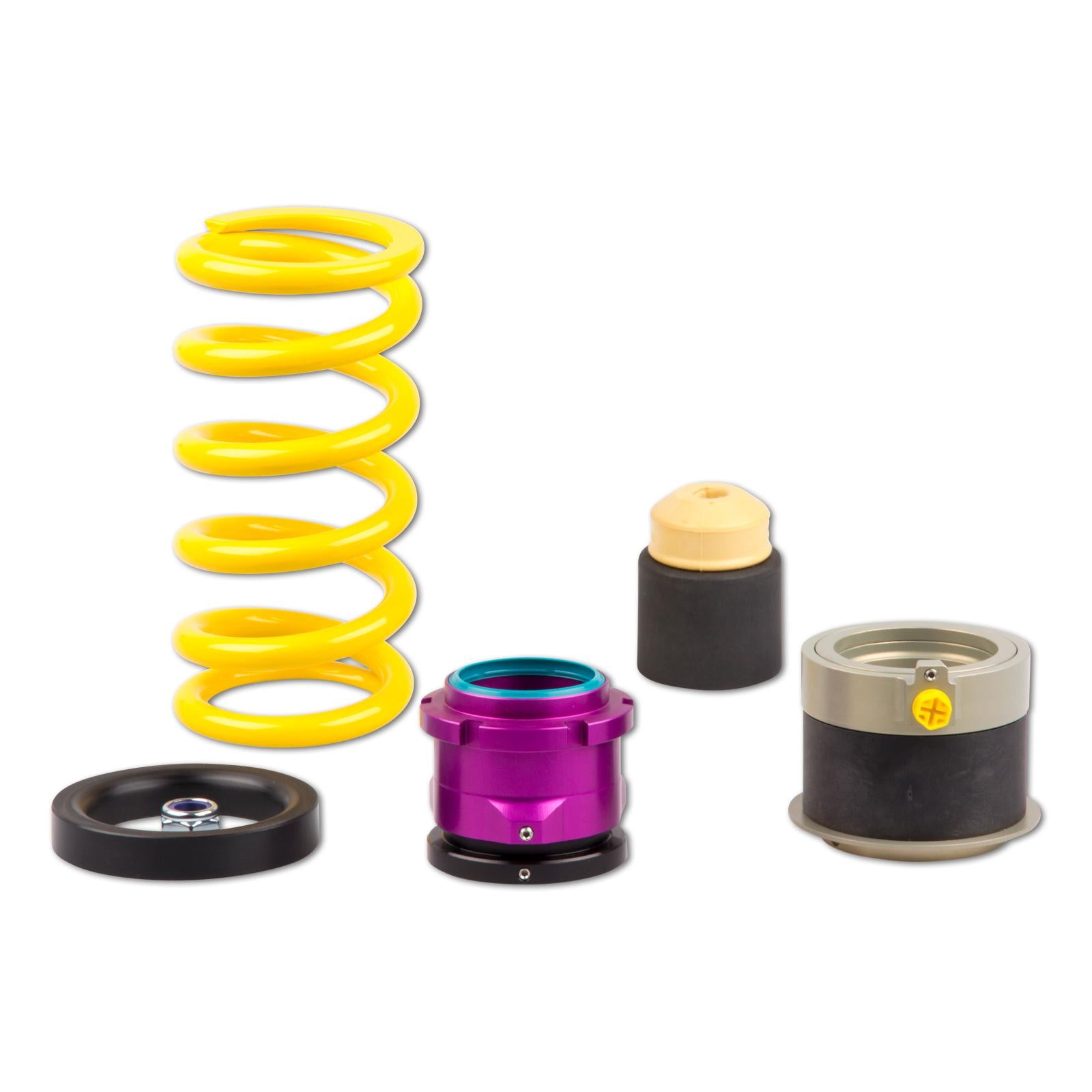

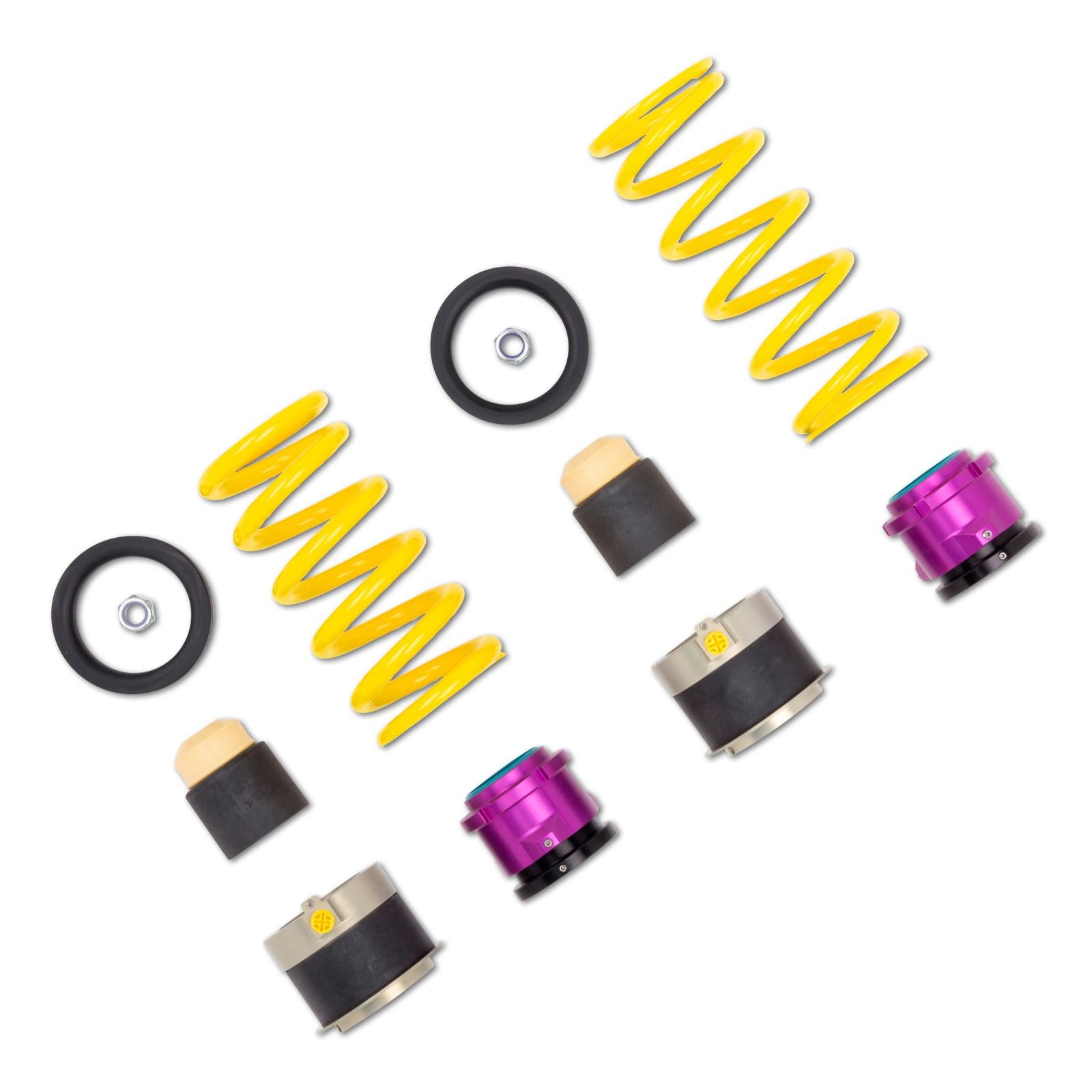

KW HLS 4 Hydraulic Lift System for VW (MK4) Golf GTI / Seat (1M) Leon Cupra R - for KW Dampers
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

KW HLS 4 Hydraulic Lift System for VW (MK4) Golf GTI / Seat (1M) Leon Cupra R - for KW Dampers
Sale price$7,855.55
Regular price$8,269.00 (/)
KW's Hydraulic Lift System (HLS) raises the front axle (HLS 2) or both axles (HLS 4) at the push of a button, helping a lowered car clear speed humps, steep driveways and car park ramps without damage to splitters, underbody panels or the sump. Hydraulic lines and pump are matched to the vehicle, and the system is supplied for use with KW or factory dampers as listed below. This kit is developed for the VW Golf GTI (MK4) / Seat Leon Cupra R (1M).
Key Features
- Lift at the push of a button
- Vehicle-specific hydraulic lines and pump
Specifications
- HLS version: HLS 4 for KW dampers
- Lift axle(s): Front and rear axles
- Front lowering: 45–65 mm
- Rear lowering: 35–65 mm
- Front axle load: up to 1,020 kg
- Rear axle load: up to 1,020 kg

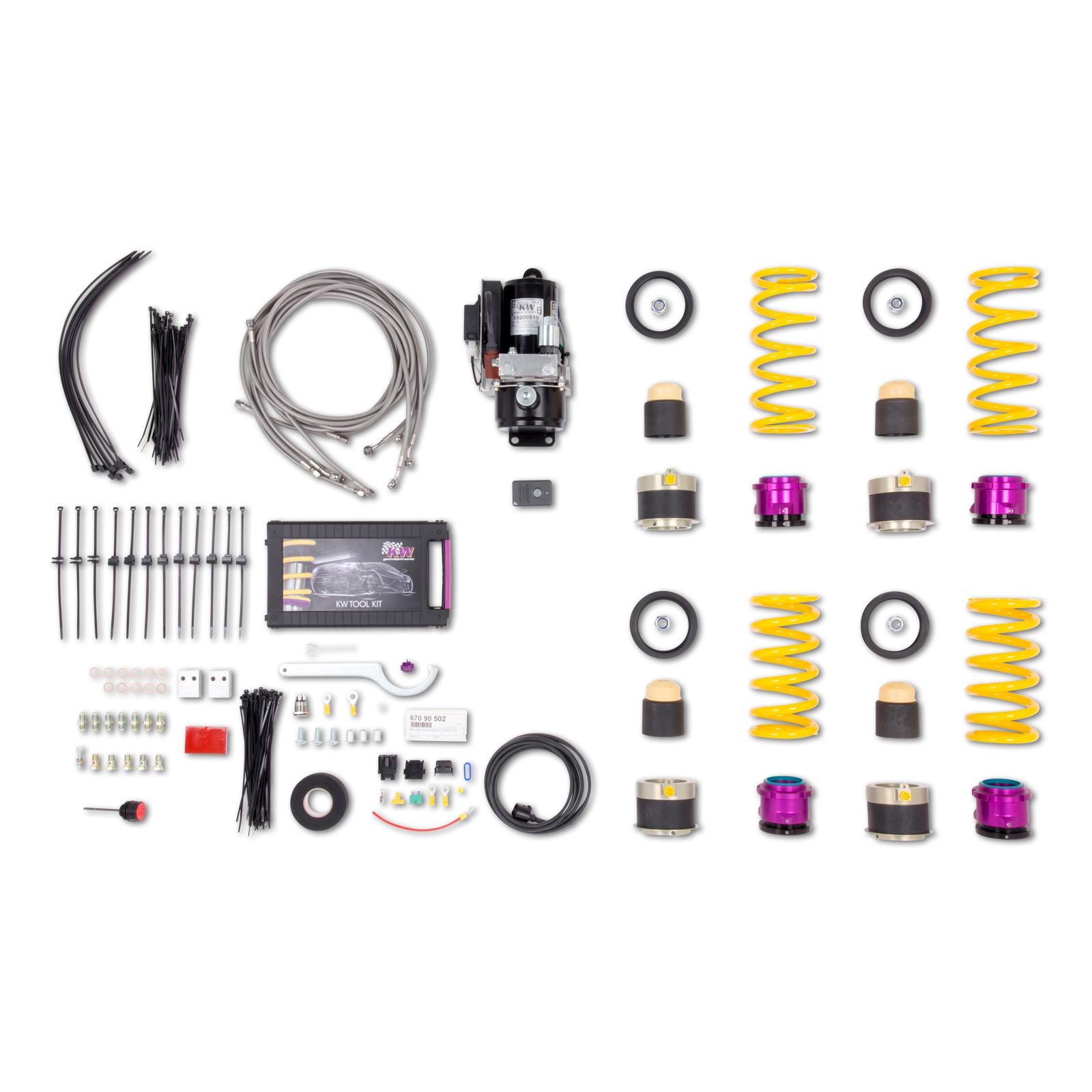

- Supplied as: Set (front + rear axle) including springs for KW coilover kit
Front axle load up to 1,020 kg; Rear axle load up to 1,020 kg.
See the Disclaimer tab for reference notes.
| Year | Make | Model | Variant | Engine | Drive | Refs |
|---|---|---|---|---|---|---|
| 1997–2008 | VW | Golf IV (1J_) | 2.8 VR6 | Petrol · 130 kW · 2.8L · 6-cyl | Front-Wheel Drive | 2, 13 |
| 1997–2008 | VW | Golf IV (1J_) | 2.0 | Petrol · 85 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 13 |
| 1997–2008 | VW | Golf IV (1J_) | 1.9 TDI | Diesel · 85 kW · 1.9L · 4-cyl | Front-Wheel Drive | 2, 13 |
| 1999–2006 | Seat | Leon (1M1) | 1.6 | Petrol · 74 kW · 1.6L · 4-cyl | Front-Wheel Drive | 2, 13 |
| 1999–2006 | Seat | Leon (1M1) | 1.8 20V | Petrol · 92 kW · 1.8L · 4-cyl | Front-Wheel Drive | 2, 13 |
| 1999–2006 | Seat | Leon (1M1) | 1.9 TDI | Diesel · 66 kW · 1.9L · 4-cyl | Front-Wheel Drive | 2, 13 |
| 1999–2006 | Seat | Leon (1M1) | 1.9 TDI | Diesel · 81 kW · 1.9L · 4-cyl | Front-Wheel Drive | 2, 13 |
| 1999–2006 | Seat | Leon (1M1) | 1.4 16V | Petrol · 55 kW · 1.4L · 4-cyl | Front-Wheel Drive | 2, 13 |
| 1999–2006 | Seat | Leon (1M1) | 1.8 20V T | Petrol · 132 kW · 1.8L · 4-cyl | Front-Wheel Drive | 2, 13 |
| 1999–2006 | Seat | Leon (1M1) | 1.9 SDI | Diesel · 50 kW · 1.9L · 4-cyl | Front-Wheel Drive | 2, 13 |
| 1997–2008 | VW | Golf IV (1J_) | 1.6 16V | Petrol · 77 kW · 1.6L · 4-cyl | Front-Wheel Drive | 2, 13 |
| 1997–2008 | VW | Golf IV (1J_) | 1.9 TDI | Diesel · 74 kW · 1.9L · 4-cyl | Front-Wheel Drive | 2, 13 |
| 1997–2008 | VW | Golf IV (1J_) | 1.9 TDI | Diesel · 110 kW · 1.9L · 4-cyl | Front-Wheel Drive | 2, 13 |
| 1997–2008 | VW | Golf IV (1J_) | 1.6 | Petrol · 75 kW · 1.6L · 4-cyl | Front-Wheel Drive | 2, 13 |
| 1997–2008 | VW | Golf IV (1J_) | 2.3 V5 | Petrol · 125 kW · 2.3L · 5-cyl | Front-Wheel Drive | 2, 13 |
| 1999–2006 | Seat | Leon (1M1) | 1.6 16 V | Petrol · 77 kW · 1.6L · 4-cyl | Front-Wheel Drive | 2, 13 |
| 1999–2006 | Seat | Leon (1M1) | 1.9 TDI | Diesel · 110 kW · 1.9L · 4-cyl | Front-Wheel Drive | 2, 13 |
| 1997–2008 | VW | Golf IV (1J_) | 1.9 TDI | Diesel · 96 kW · 1.9L · 4-cyl | Front-Wheel Drive | 2, 13 |
| 1997–2008 | VW | Golf IV (1J_) | 1.8 T GTI | Petrol · 132 kW · 1.8L · 4-cyl | Front-Wheel Drive | 2, 13 |
| 1997–2008 | VW | Golf IV (1J_) | 1.6 FSI | Petrol · 81 kW · 1.6L · 4-cyl | Front-Wheel Drive | 2, 13 |
| 1999–2006 | Seat | Leon (1M1) | 1.8 T Cupra R | Petrol · 154 kW · 1.8L · 4-cyl | Front-Wheel Drive | 2, 13 |
| 1999–2006 | Seat | Leon (1M1) | 1.8 T Cupra R | Petrol · 165 kW · 1.8L · 4-cyl | Front-Wheel Drive | 2, 13 |
| 1999–2006 | Seat | Leon (1M1) | 1.9 TDI | Diesel · 96 kW · 1.9L · 4-cyl | Front-Wheel Drive | 2, 13 |
| 1999–2006 | Seat | Leon (1M1) | 1.9 TDI | Diesel · 74 kW · 1.9L · 4-cyl | Front-Wheel Drive | 2, 13 |
| 1997–2008 | VW | Golf IV (1J_) | 1.6 | Petrol · 74 kW · 1.6L · 4-cyl | Front-Wheel Drive | 2, 13 |
| 1997–2008 | VW | Golf IV (1J_) | 2.8 VR6 | Petrol · 147 kW · 2.8L · 6-cyl | Front-Wheel Drive | 2, 13 |
| 1999–2006 | Seat | Leon (1M1) | 2.8 | Petrol · 150 kW · 2.8L · 6-cyl | Front-Wheel Drive | 2, 13 |
| 1999–2006 | Seat | Leon (1M1) | 1.6 | Petrol · 75 kW · 1.6L · 4-cyl | Front-Wheel Drive | 2, 13 |
| 1997–2008 | VW | Golf IV (1J_) | 1.8 | Petrol · 127 kW · 1.8L · 4-cyl | Front-Wheel Drive | 2, 13 |
| 1997–2008 | VW | Golf IV (1J_) | 1.9 TDI | Diesel · 66 kW · 1.9L · 4-cyl | Front-Wheel Drive | 2, 13 |
| 1997–2008 | VW | Golf IV (1J_) | 1.9 TDI | Diesel · 81 kW · 1.9L · 4-cyl | Front-Wheel Drive | 2, 13 |
| 1997–2008 | VW | Golf IV (1J_) | 1.9 SDI | Diesel · 50 kW · 1.9L · 4-cyl | Front-Wheel Drive | 2, 13 |
| 1997–2008 | VW | Golf IV (1J_) | 1.4 16V | Petrol · 55 kW · 1.4L · 4-cyl | Front-Wheel Drive | 2, 13 |
| 1997–2008 | VW | Golf IV (1J_) | 1.8 | Petrol · 92 kW · 1.8L · 4-cyl | Front-Wheel Drive | 2, 13 |
| 1997–2008 | VW | Golf IV (1J_) | 1.8 T | Petrol · 110 kW · 1.8L · 4-cyl | Front-Wheel Drive | 2, 13 |
| 1997–2008 | VW | Golf IV (1J_) | 2.3 V5 | Petrol · 110 kW · 2.3L · 5-cyl | Front-Wheel Drive | 2, 13 |
- Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
- Note 13: The original anti-sway has to be rebuilt. KW Part No. Anti-sway bar see references 7.
