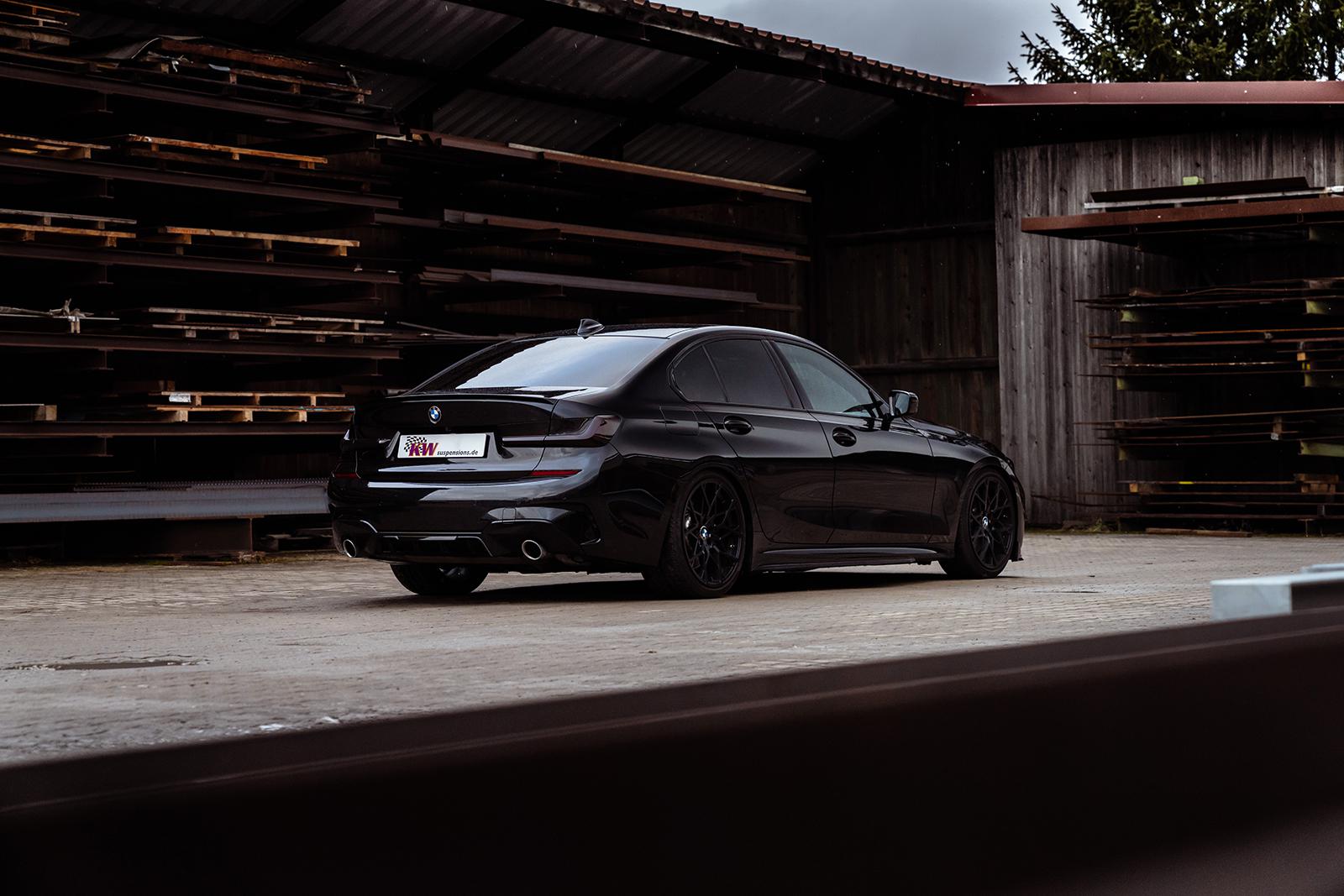

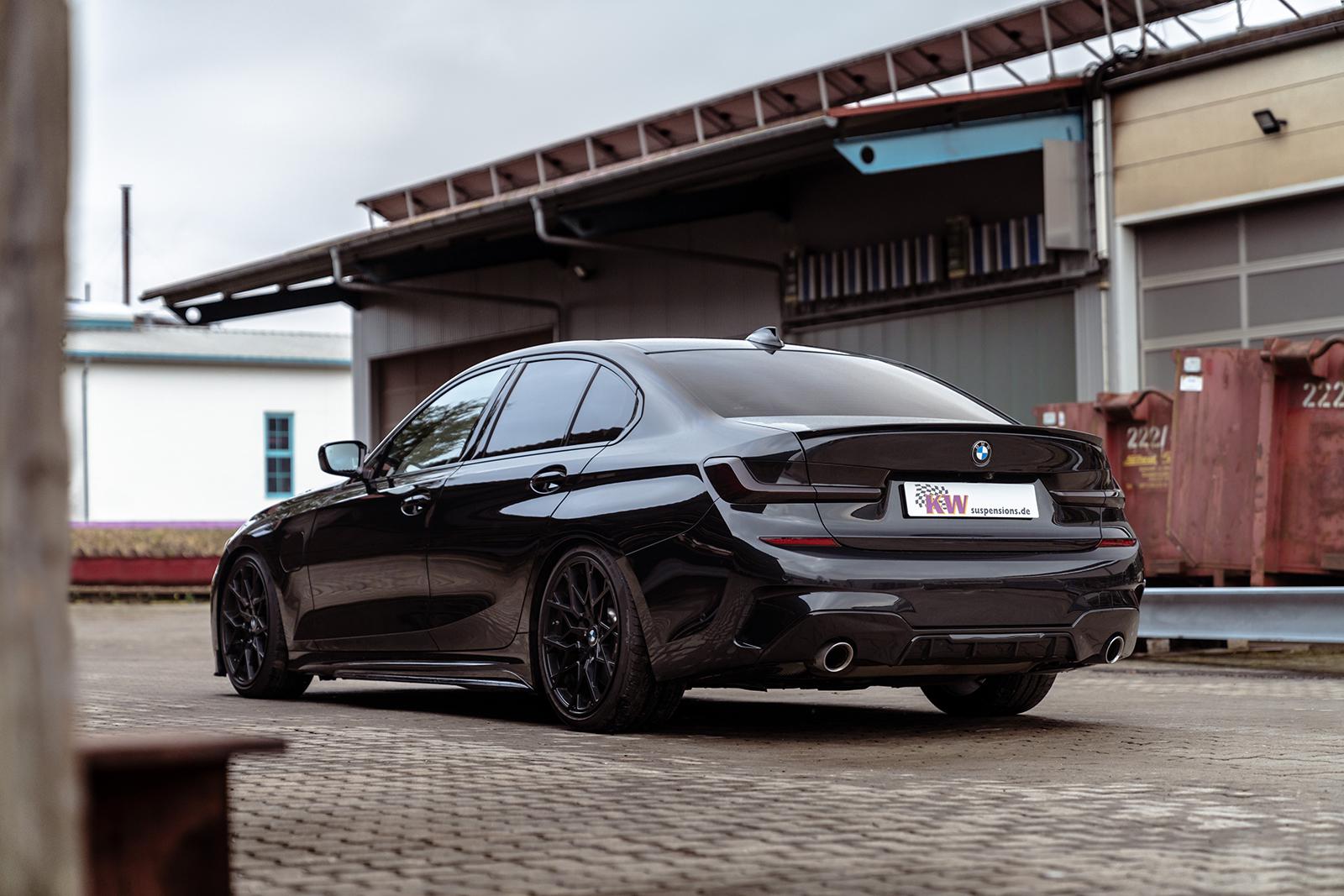

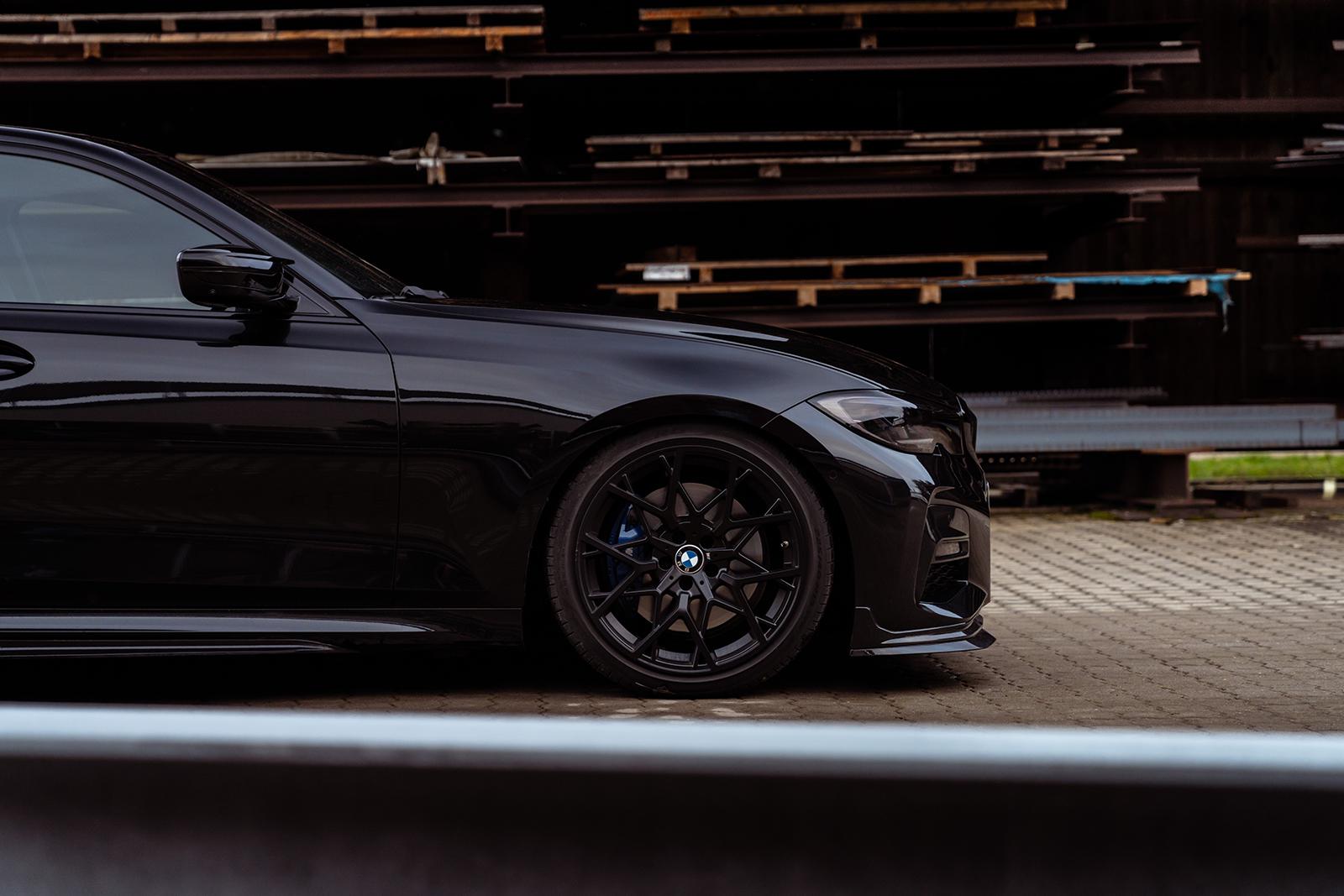

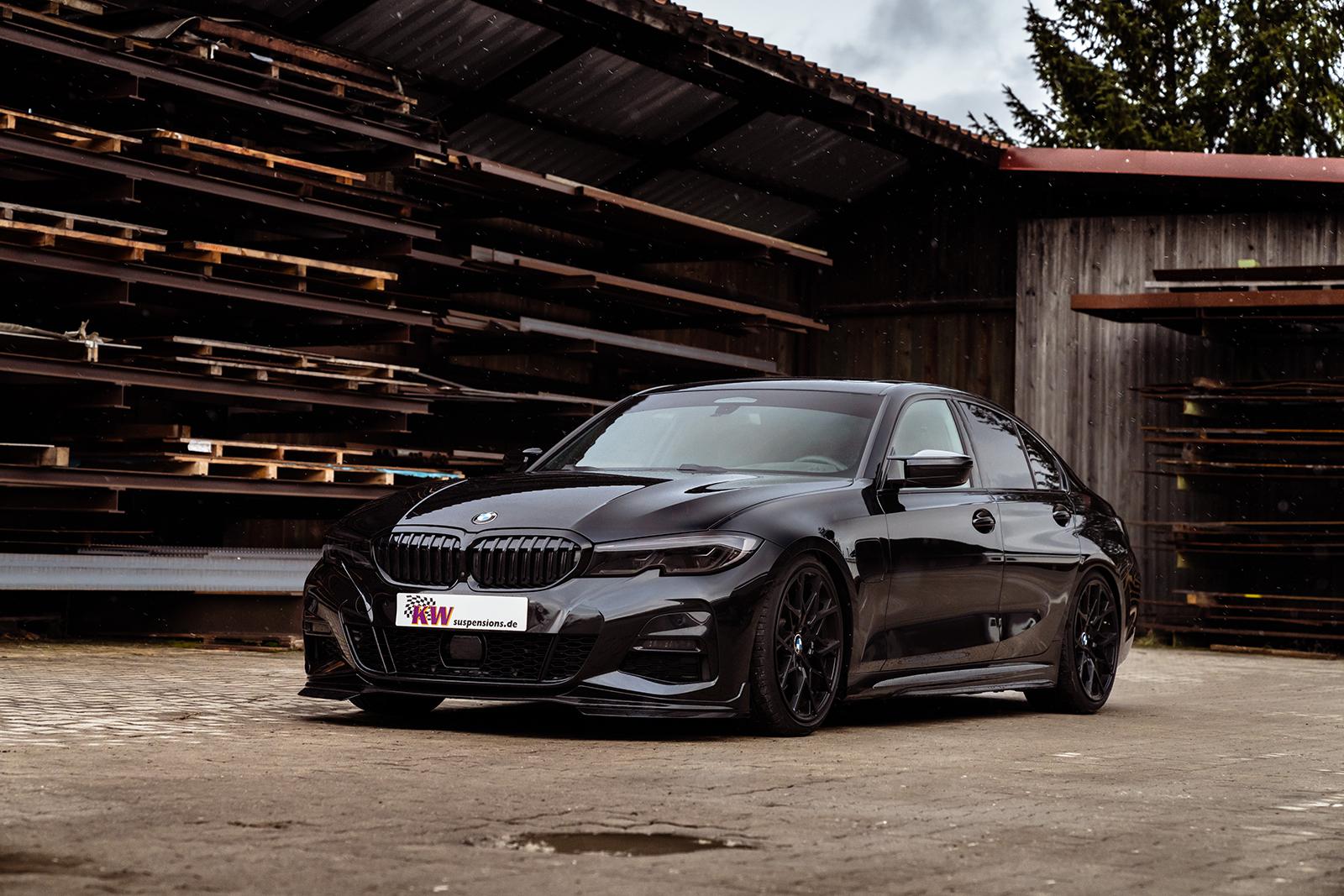

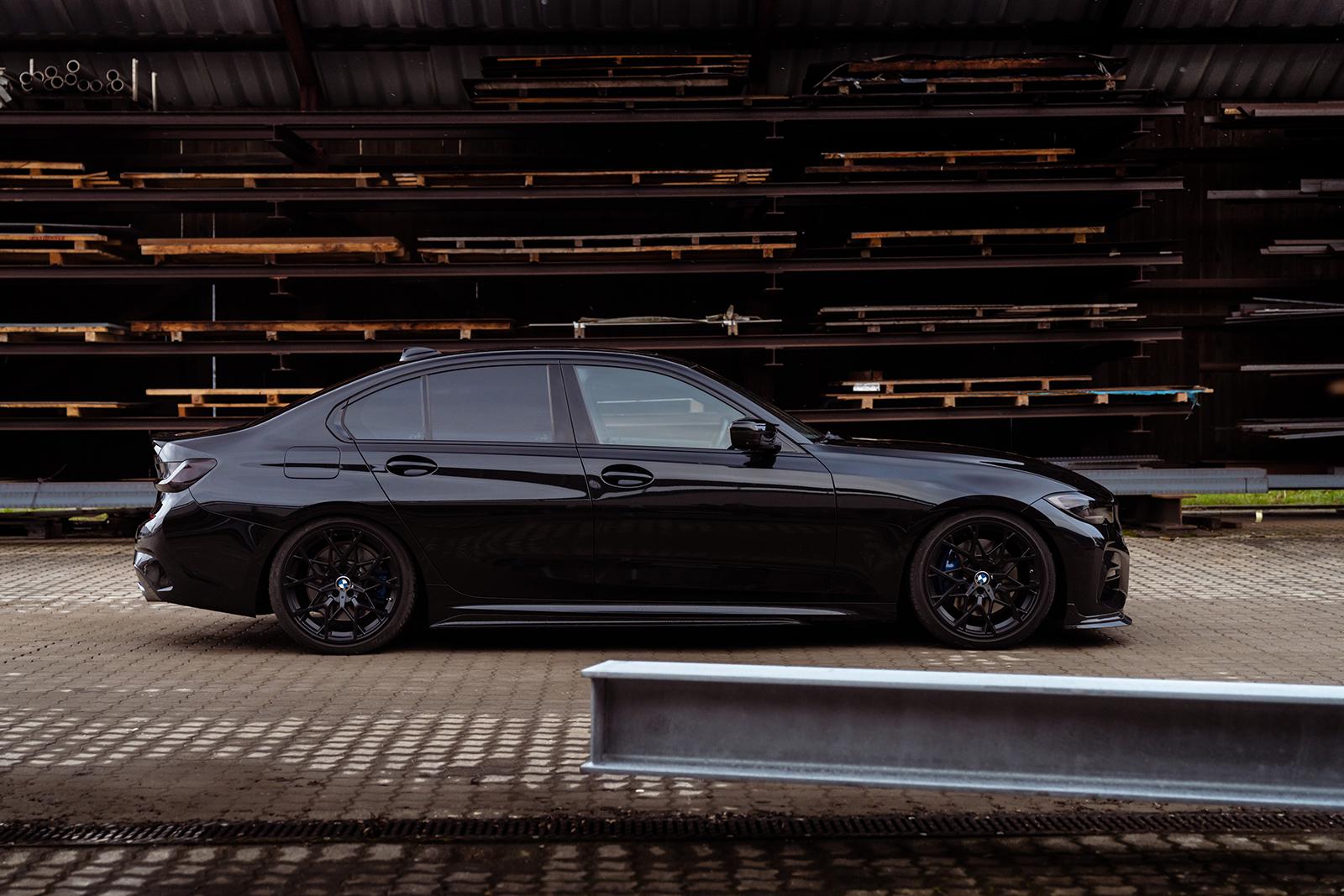

KW Coilover Kit V3 for BMW (G20/G21) 330e - AWD
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

KW's V3 offers independent adjustment of rebound damping (16 clicks) and compression damping (12 clicks), technology carried over from KW's motorsport programme. KW develops a vehicle-specific base setup on its 7-post rig and in road and track testing, from which the damping can be tuned for comfort or sharper handling. Ride height is continuously adjustable within the tested range. This kit is developed for the BMW 330e xDrive (G20) / 330e xDrive Touring (G21).
Key Features
- Rebound damping adjustable in 16 clicks
- Compression damping adjustable in 12 clicks
- Continuous ride height adjustment within the tested range
Specifications
- Version: V3
- Damping: Adjustable rebound and compression
- Material: Stainless steel
- Front lowering: 40–60 mm
- Rear lowering: 40–60 mm
- Front axle load: up to 1,100 kg
- Rear axle load: up to 1,405 kg
- Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers
Front axle load up to 1,100 kg; Rear axle load up to 1,405 kg.
For vehicles without electronic damper control.
See the Disclaimer tab for reference notes.
| Year | Make | Model | Variant | Engine | Drive | Refs |
|---|---|---|---|---|---|---|
| 2018+ | BMW | 3 (G20, G80) G3L | 330 e Plug-in-Hybrid xDrive | Petrol/Electric · 135 kW · 2.0L · 4-cyl | All-Wheel Drive | 2, 37, 67 |
| 2018+ | BMW | 3 (G20, G80) G3L | 330 e Plug-in-Hybrid xDrive | Petrol/Electric · 215 kW · 2.0L · 4-cyl | All-Wheel Drive | 2, 37, 67 |
| 2019+ | BMW | 3 Touring (G21, G81) G3K | 330 e Plug-in-Hybrid xDrive | Petrol/Electric · 135 kW · 2.0L · 4-cyl | All-Wheel Drive | 2, 37, 67 |
| 2019+ | BMW | 3 Touring (G21, G81) G3K | 330 e Plug-in-Hybrid xDrive | Petrol/Electric · 215 kW · 2.0L · 4-cyl | All-Wheel Drive | 2, 37, 67 |
| 2019+ | BMW | 3 Touring (G21, G81) G3K | 320 e Plug-in-Hybrid xDrive | Petrol/Electric · 150 kW · 2.0L · 4-cyl | All-Wheel Drive | 2, 37, 67 |
| 2019+ | BMW | 3 Touring (G21, G81) G3K | 320 E PLUG-IN-HYBRID XDRIVE | Petrol/Electric · 120 kW · 2.0L · 4-cyl | All-Wheel Drive | 2, 37, 67 |
- Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
- Note 37: For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list.
- Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
