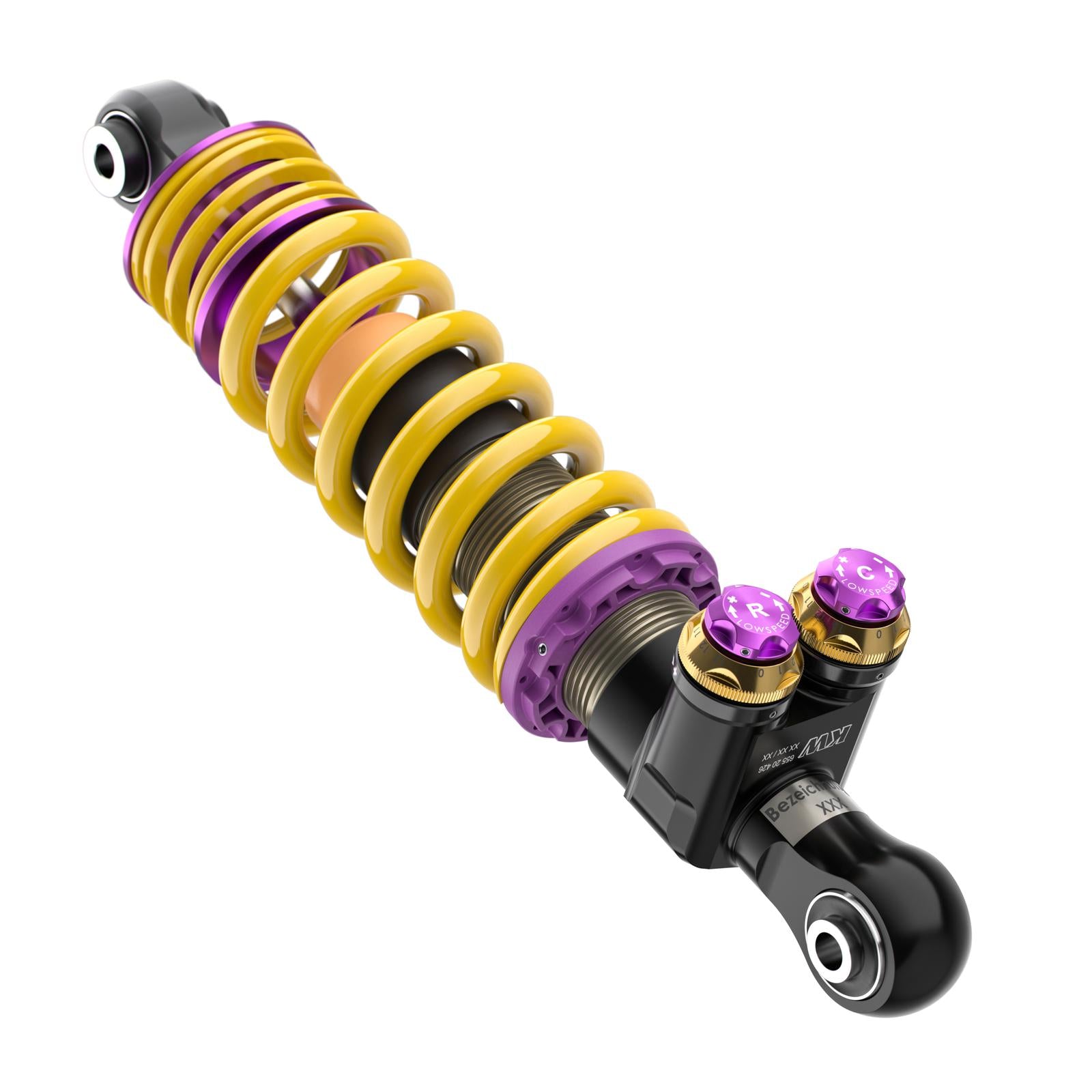

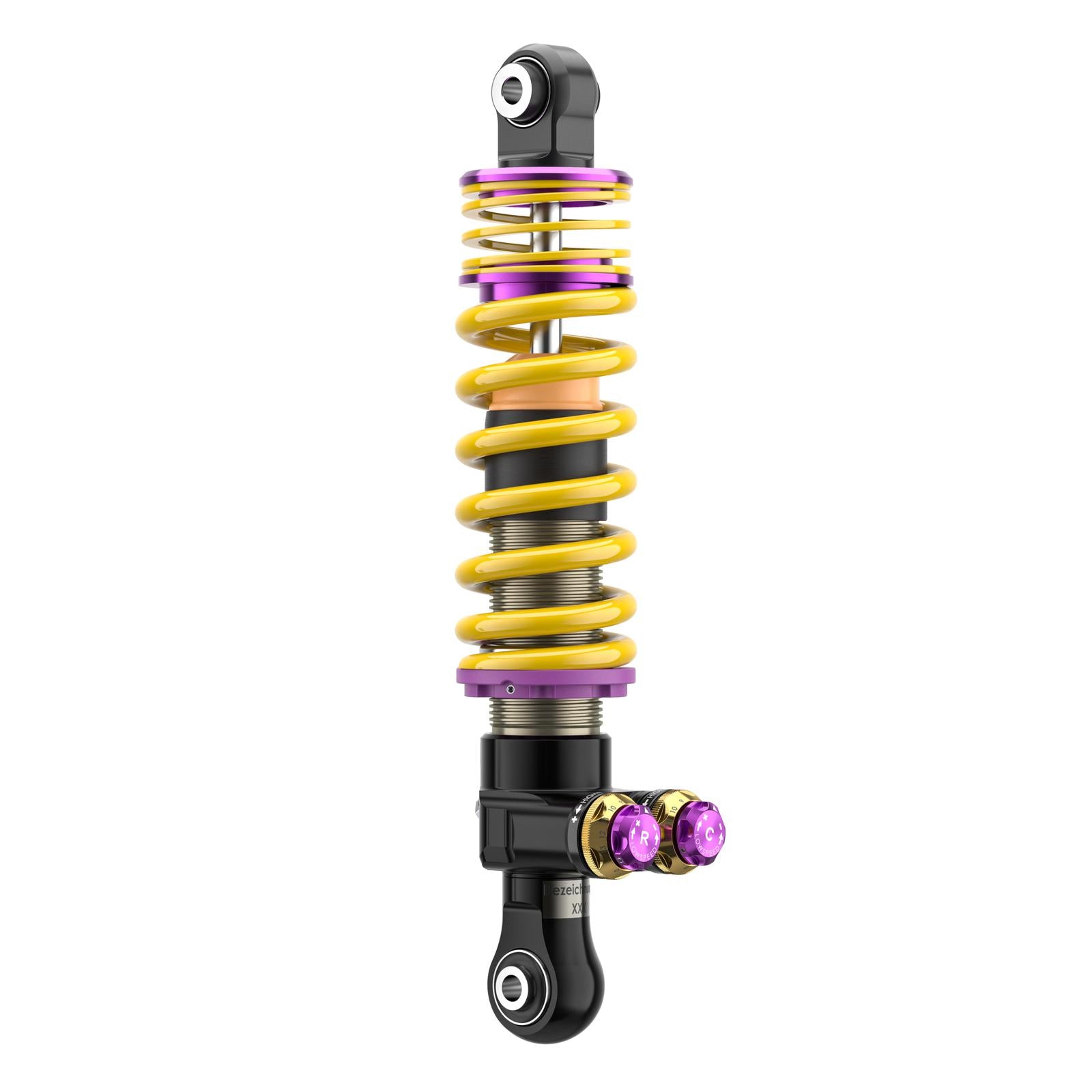

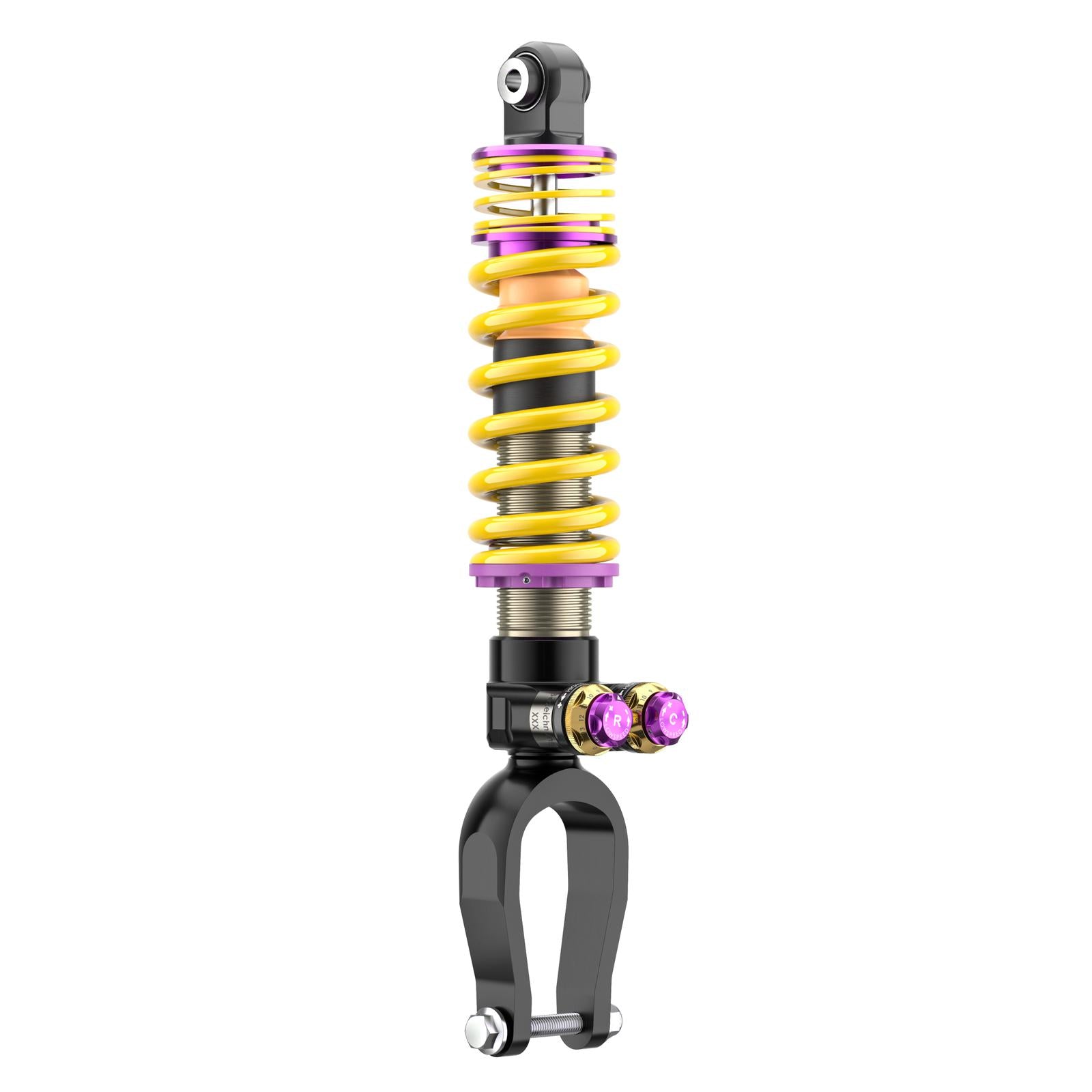

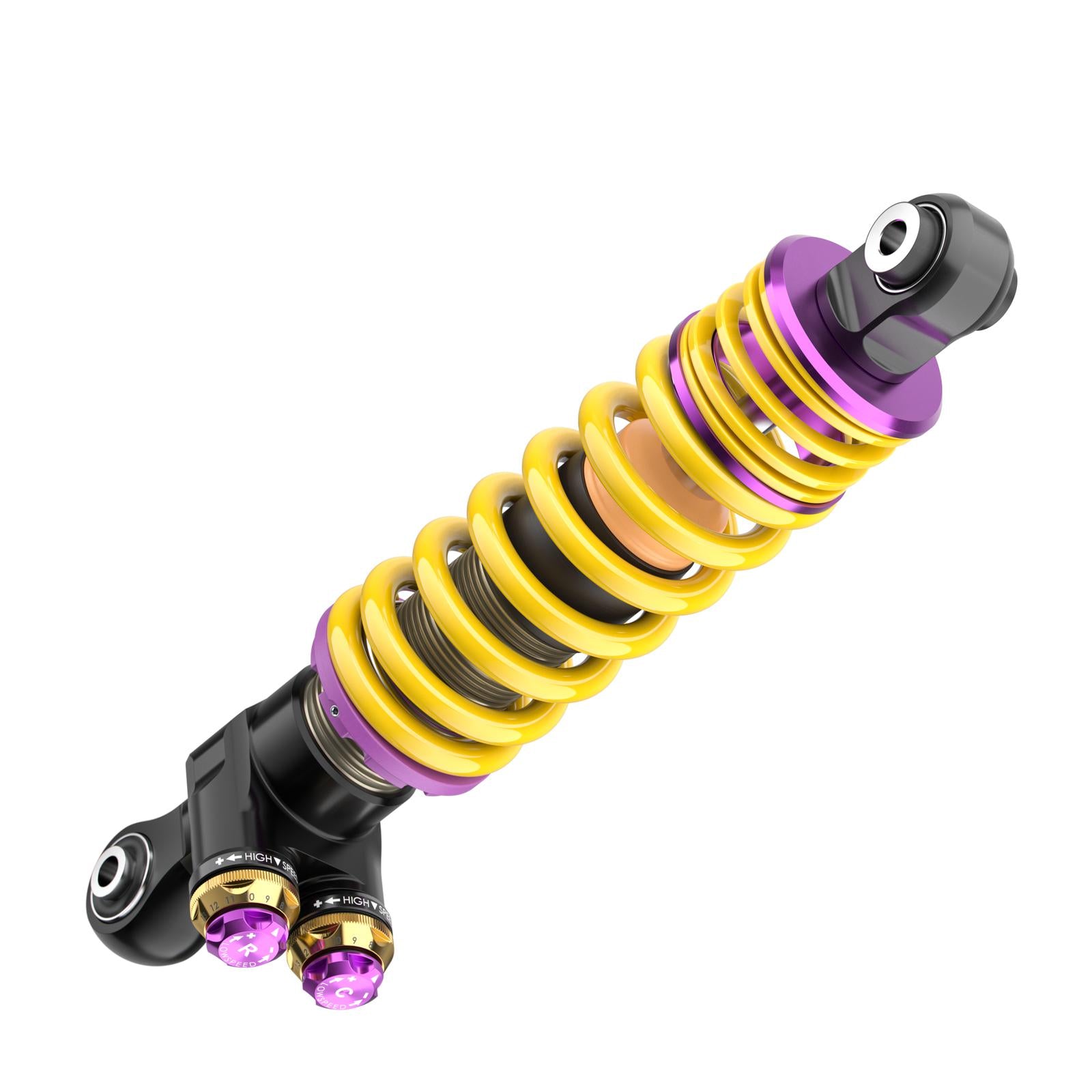

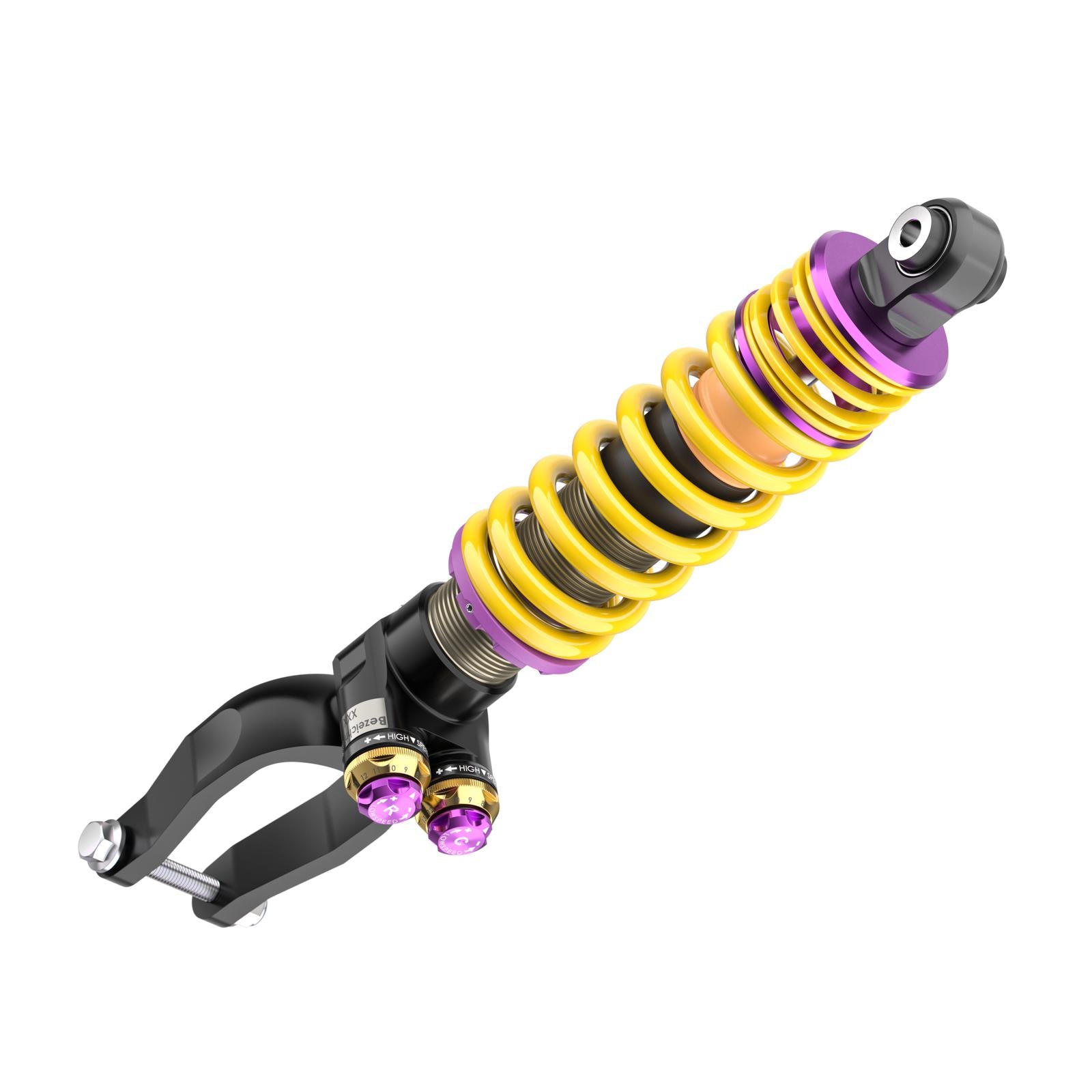

KW Coilover Kit V5 for Lamborghini Aventador / Aventador S / Aventador SV / Roadster

SKU: 30911007
Sale price$20,272.05 Regular price$21,339.00
Save $1,066.95

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


KW's V5 uses KW Solid Piston technology, with low- and high-speed valve units connected in series and mounted separately from the damper inner tube and piston rod. Compression and rebound are each adjustable in 14 clicks in both the low- and high-speed range, and the dampers respond without delay to small inputs, giving more platform support than a conventional damper. This kit is developed for the Lamborghini Aventador / Aventador S / Aventador SV / Roadster AWD.

Key Features

  • Four-way adjustable dampers
  • KW Solid Piston technology
  • 14 clicks each for low- and high-speed compression and rebound

Specifications

  • Version: V5
  • Damping: Adjustable rebound and compression
  • Material: Aluminium
  • Front lowering: 15–35 mm
  • Rear lowering: 5–25 mm
  • Front axle load: up to 1,000 kg
  • Rear axle load: up to 1,200 kg
  • Supplied as: Front axle + rear axle coilover struts

Front axle load up to 1,000 kg; Rear axle load up to 1,200 kg.

For vehicles without electronic damper control.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2011+LamborghiniAventador Coupe6.5 LP 750-4 AWDPetrol · 552 kW · 6.5L · 12-cylAll-Wheel Drive1, 37, 67, 90
2011+LamborghiniAventador Coupe6.5 LP 720-4 AWDPetrol · 530 kW · 6.5L · 12-cylAll-Wheel Drive1, 37, 67, 90
2013+LamborghiniAventador Targa6.5 LP 700-4 SV AWDPetrol · 552 kW · 6.5L · 12-cylAll-Wheel Drive1, 37, 67, 90
2011+LamborghiniAventador Coupe6.5 LP 740-4 AWDPetrol · 544 kW · 6.5L · 12-cylAll-Wheel Drive1, 37, 67, 90
2013+LamborghiniAventador Targa6.5 LP 740-4 S AWDPetrol · 544 kW · 6.5L · 12-cylAll-Wheel Drive1, 37, 67, 90
2013+LamborghiniAventador Targa6.5 LP 720-4 AWDPetrol · 530 kW · 6.5L · 12-cylAll-Wheel Drive1, 37, 67, 90
2013+LamborghiniAventador Targa6.5 LP 700-4 AWDPetrol · 515 kW · 6.5L · 12-cylAll-Wheel Drive1, 37, 67, 90
2011+LamborghiniAventador Coupe6.5 LP 700-4 AWDPetrol · 515 kW · 6.5L · 12-cylAll-Wheel Drive1, 37, 67, 90
  • Note 1: Height adjustable on the front and rear axles (threaded strut housings).
  • Note 37: For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list.
  • Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
  • Note 90: Aluminium suspensions struts.
