KW Coilover Kit V1 for Audi (8V) A3 / Seat (5F) Leon / Skoda (5E) Octavia III / VW (MK7) Golf
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

KW's V1 is the entry model in its street coilover range, pairing height-adjustable struts with a damper setup that KW pre-configures for each vehicle. Ride height is continuously adjustable within the tested range using a dirt-resistant trapezoidal thread and composite collar, so it can still be changed easily years after fitting. Corrosion-resistant springs and bump stops are built for a long service life. This kit is developed for the Audi A3 (8V) / Seat Leon (5F) / Skoda Octavia III (5E) / VW Golf VII.
Key Features
- Vehicle-specific, factory-set damping
- Continuous ride height adjustment within the tested range
- Trapezoidal thread with composite adjuster collar
Specifications
- Version: V1
- Damping: Fixed, vehicle-specific setting
- Material: Stainless steel
- Front lowering: 30–60 mm
- Rear lowering: 30–55 mm
- Front axle load: up to 1,080 kg
- Rear axle load: up to 1,050 kg
- Front strut diameter (vehicle): 55 mm
- Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers
Front axle load up to 1,080 kg; Rear axle load up to 1,050 kg.
For vehicles without electronic damper control.
For cars without electronic damping.
References 2, 37, 57. See the Disclaimer tab for reference notes.
| Year | Make | Model | Drive | Variants | Notes | Refs |
|---|---|---|---|---|---|---|

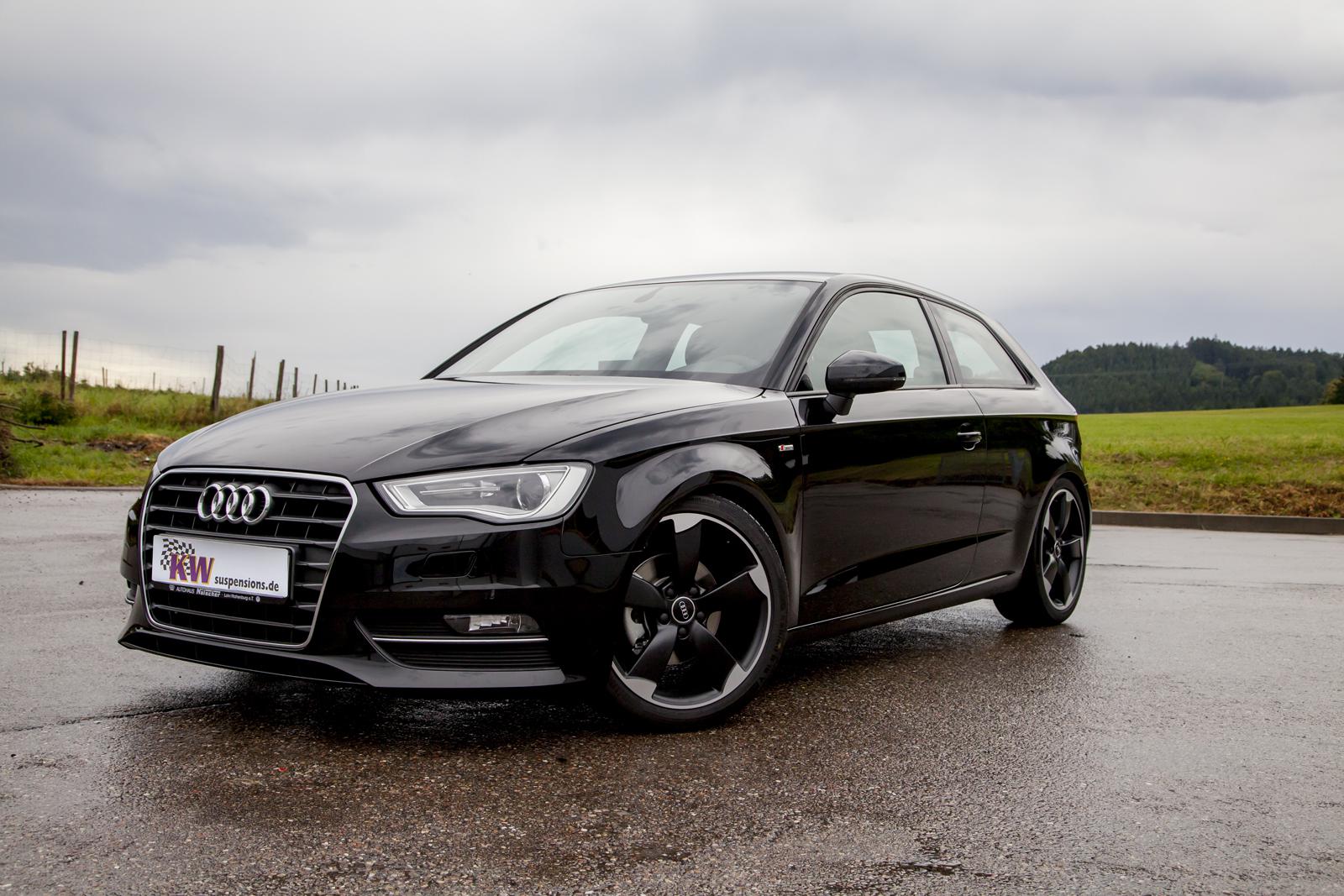

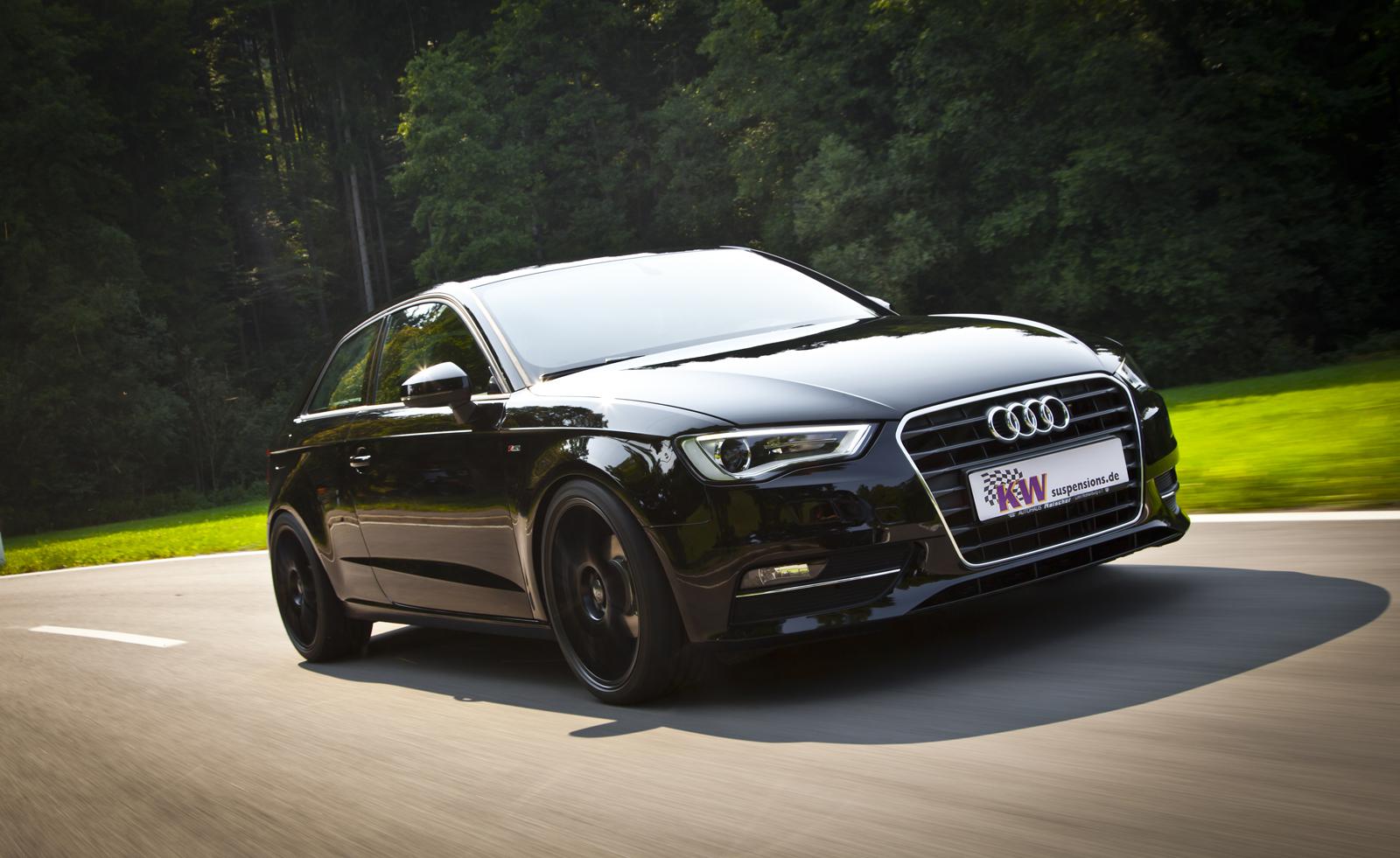

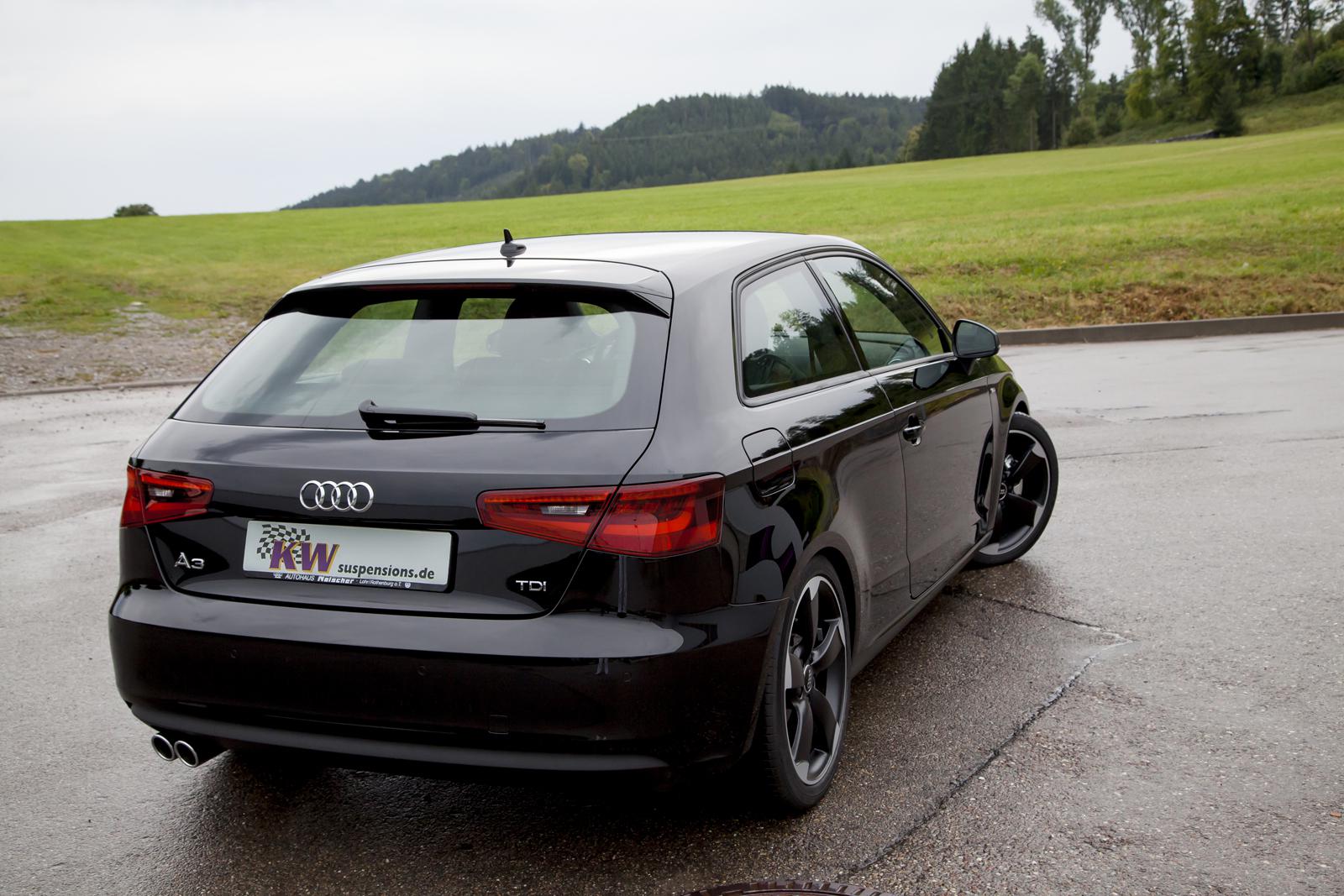

| 2012–2020 | Audi | A3 (8V) 8V1, 8VK | Front-Wheel Drive | 1.0 TFSI, 1.2 TFSI, 1.4 TFSI, 1.4 TSI, 1.5 TFSI, 1.6 TDI, 1.8 TFSI, 2.0 TDI, 2.0 TFSI | For cars without electronic damping | 2, 37, 57 |

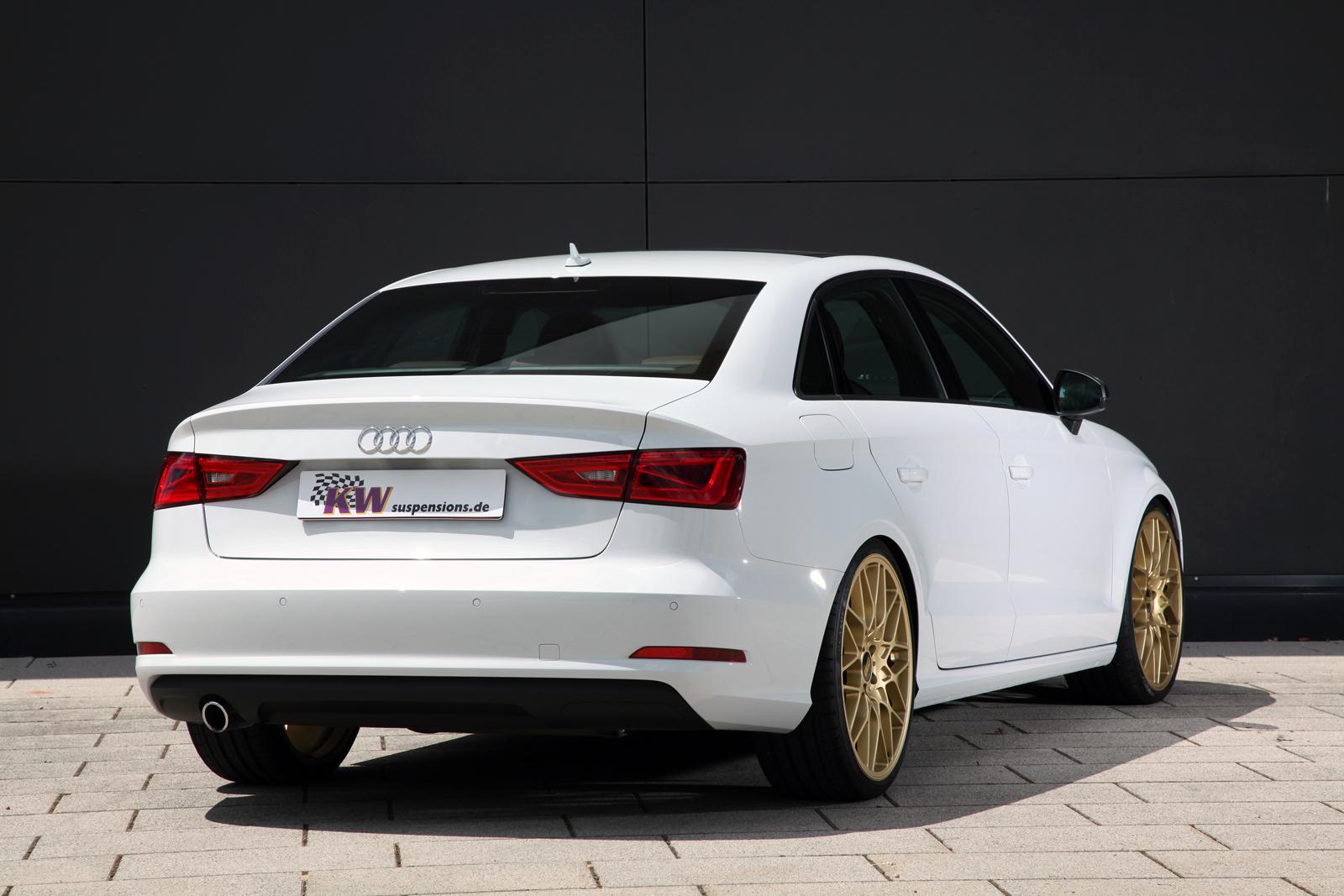

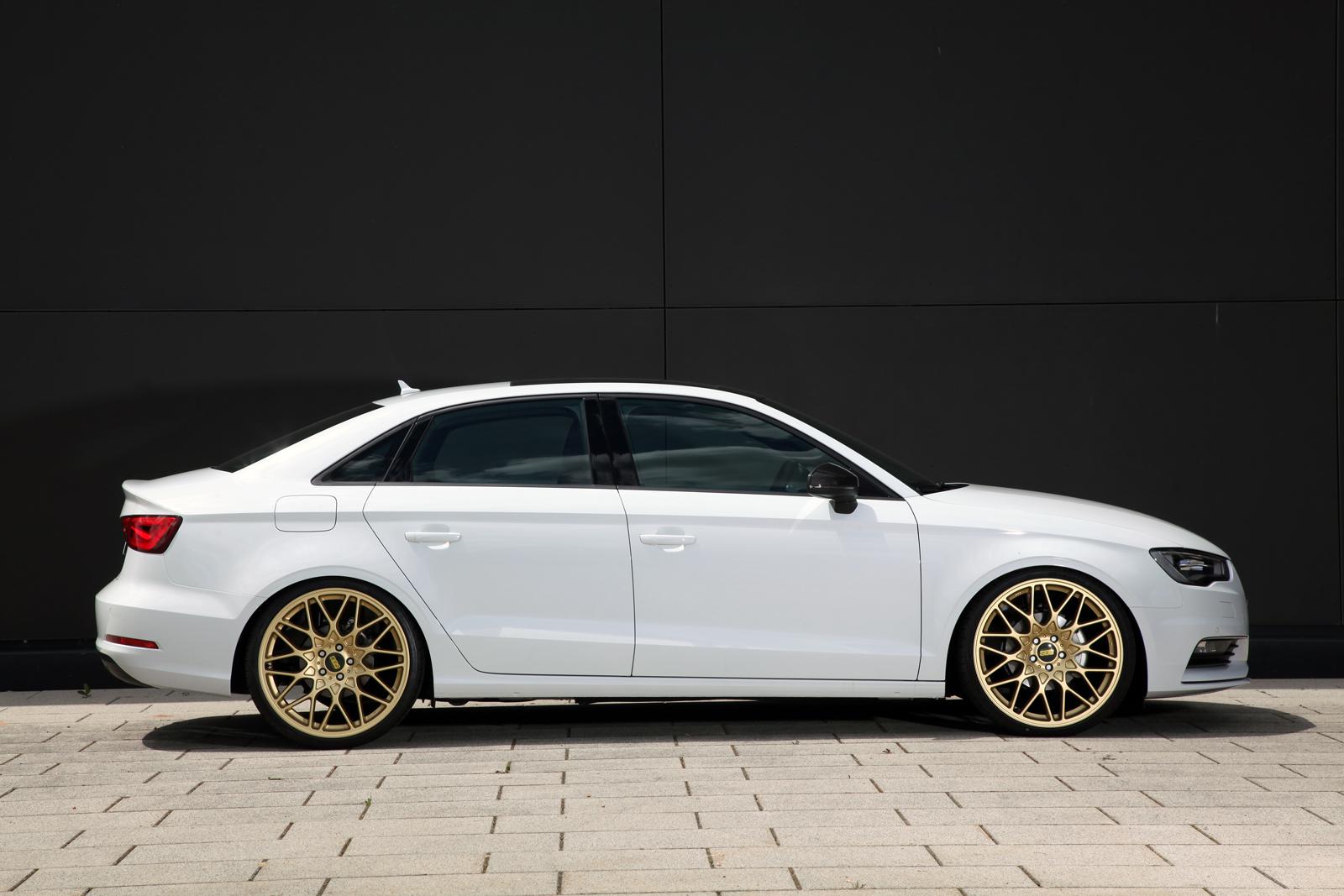

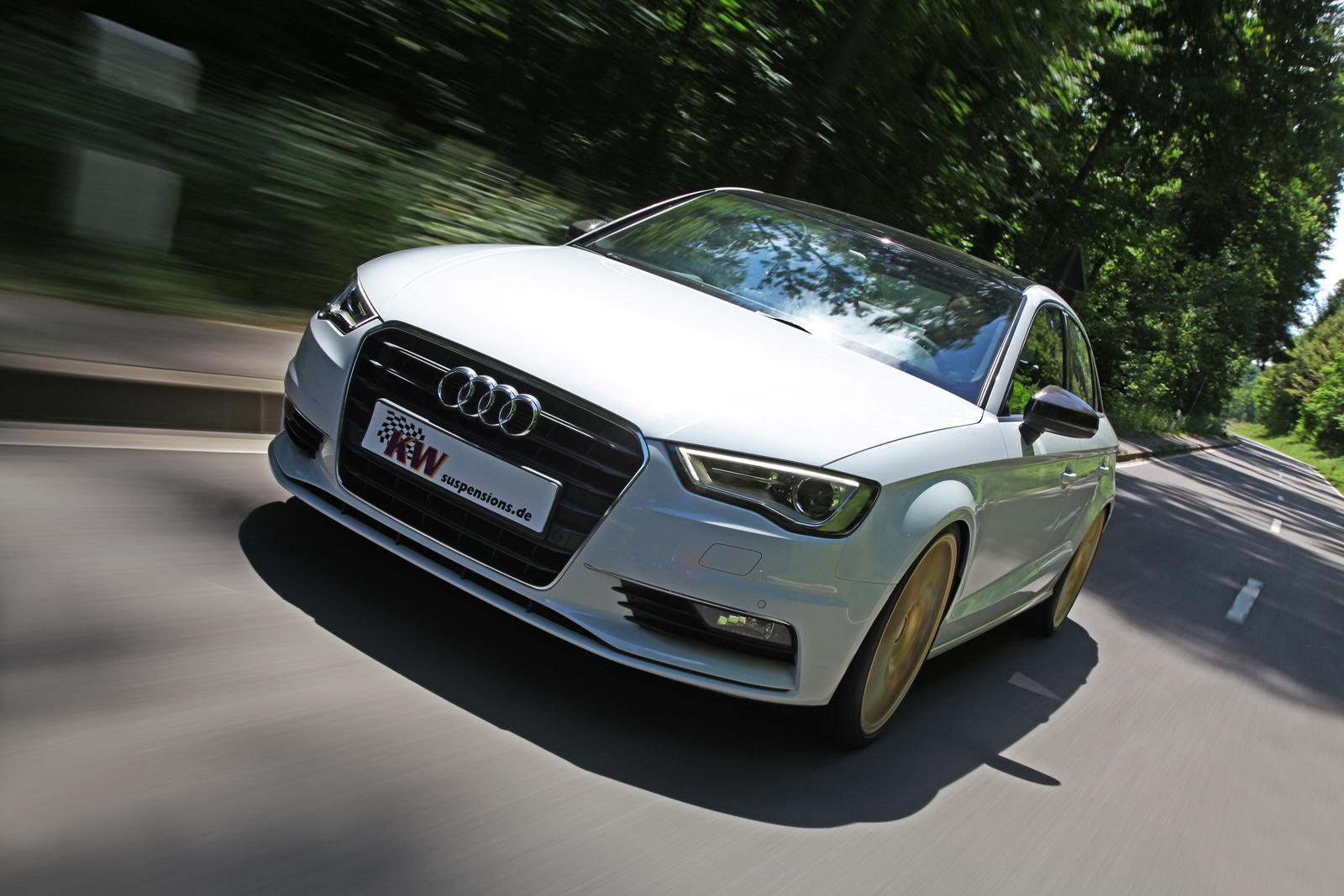

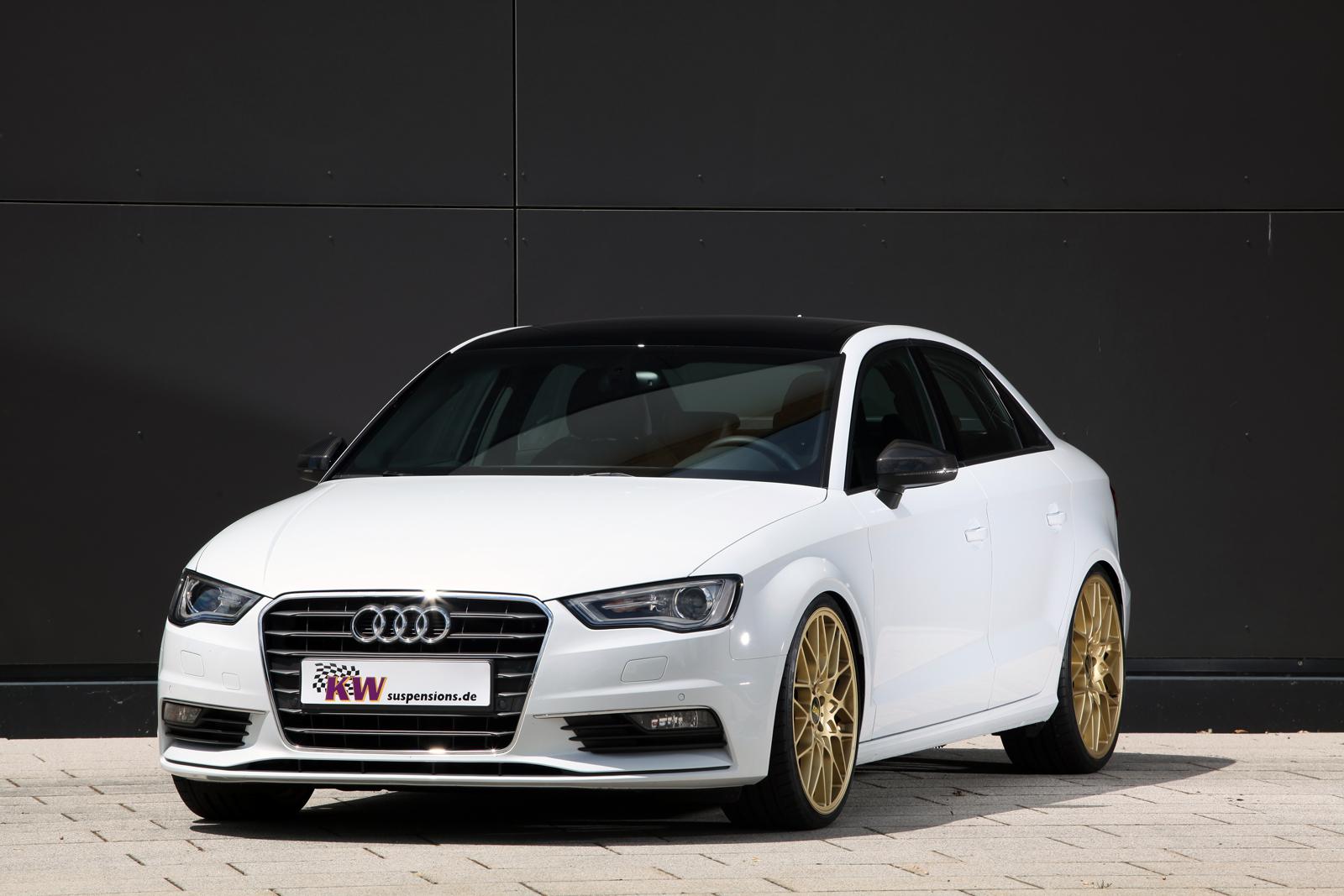

| 2013–2021 | Audi | A3 Saloon (8V) 8VS, 8VM | Front-Wheel Drive | 1.0 TFSI, 1.2 TFSI, 1.4 TFSI, 1.4 TSI, 1.5 TFSI, 1.6 TDI, 1.8 TFSI, 2.0 TDI, 2.0 TFSI, 30 TDI, 30 TFSI, 35 TDI, 35 TFSI, 40 TFSI | For cars without electronic damping | 2, 37, 57 |

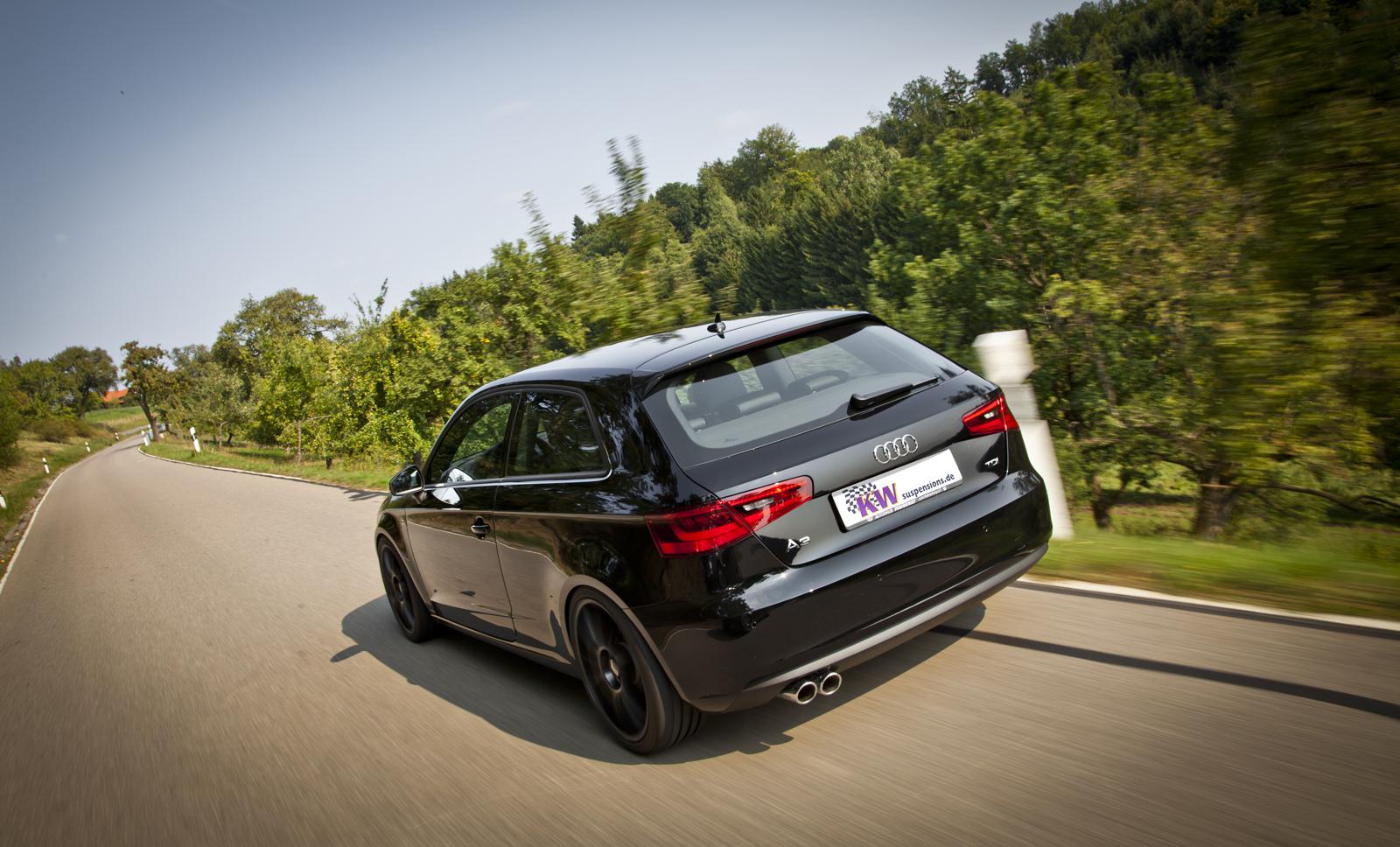

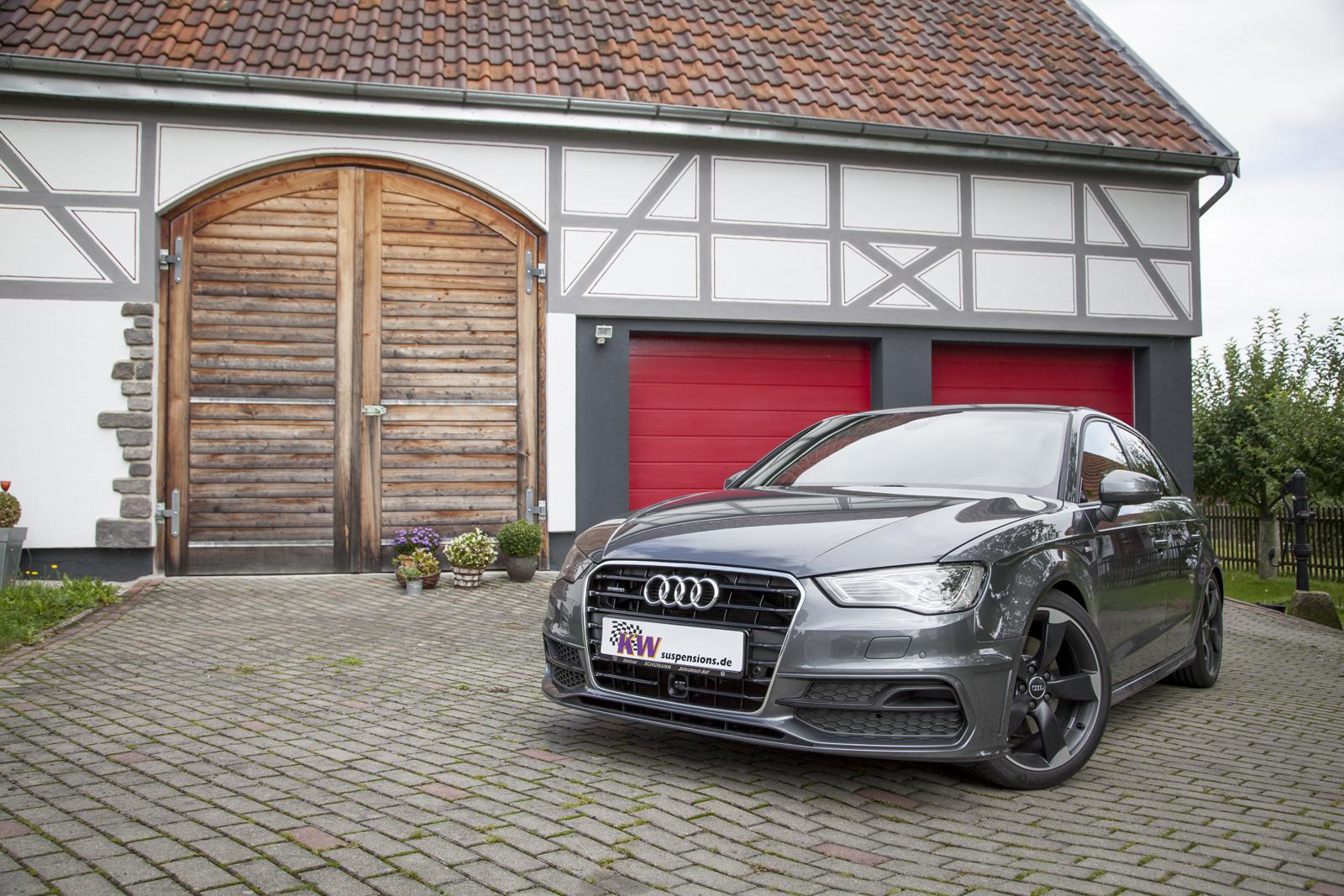

| 2012–2021 | Audi | A3 Sportback (8V) 8VA, 8VF | Front-Wheel Drive | 1.0 TFSI, 1.2 TFSI, 1.4 TFSI, 1.4 TSI, 1.5 TFSI, 1.6 TDI, 1.8 TFSI, 2.0 TDI, 2.0 TFSI, 30 TDI, 30 TFSI, 35 TDI, 35 TFSI, 40 TFSI | For cars without electronic damping | 2, 37, 57 |
| 2012–2021 | Seat | Leon (5F1) | Front-Wheel Drive | 1.0 TSI, 1.0 TSi, 1.2 TSI, 1.4 TSI, 1.5 TSI, 1.6 TDI, 1.8 TSI, 2.0 TDI, 2.0 TSI | 2, 37, 57 | |
| 2013–2018 | Seat | Leon SC (5F5) | Front-Wheel Drive | 1.0 TSI, 1.2 TSI, 1.4 TSI, 1.6 TDI, 1.8 TSI, 2.0 TDI | 2, 37, 57 | |
| 2012–2021 | Skoda | Octavia III (5E3, NL3, NR3) | Front-Wheel Drive | 1.0 TSI, 1.2 TSI, 1.4 TSI, 1.5 TSI, 1.6, 1.6 TDI, 1.8 TSI, 2.0 TDI, 2.0 TSI | For cars without DCC | 2, 37, 57 |
| 2012–2020 | Skoda | Octavia III Combi (5E5, 5E6) | Front-Wheel Drive | 1.0 TSI, 1.2 TSI, 1.4 TSI, 1.5 TSI, 1.6 SRE, 1.6 TDI, 1.8 TSI, 2.0 TDI, 2.0 TSI | For cars without DCC | 2, 37, 57 |

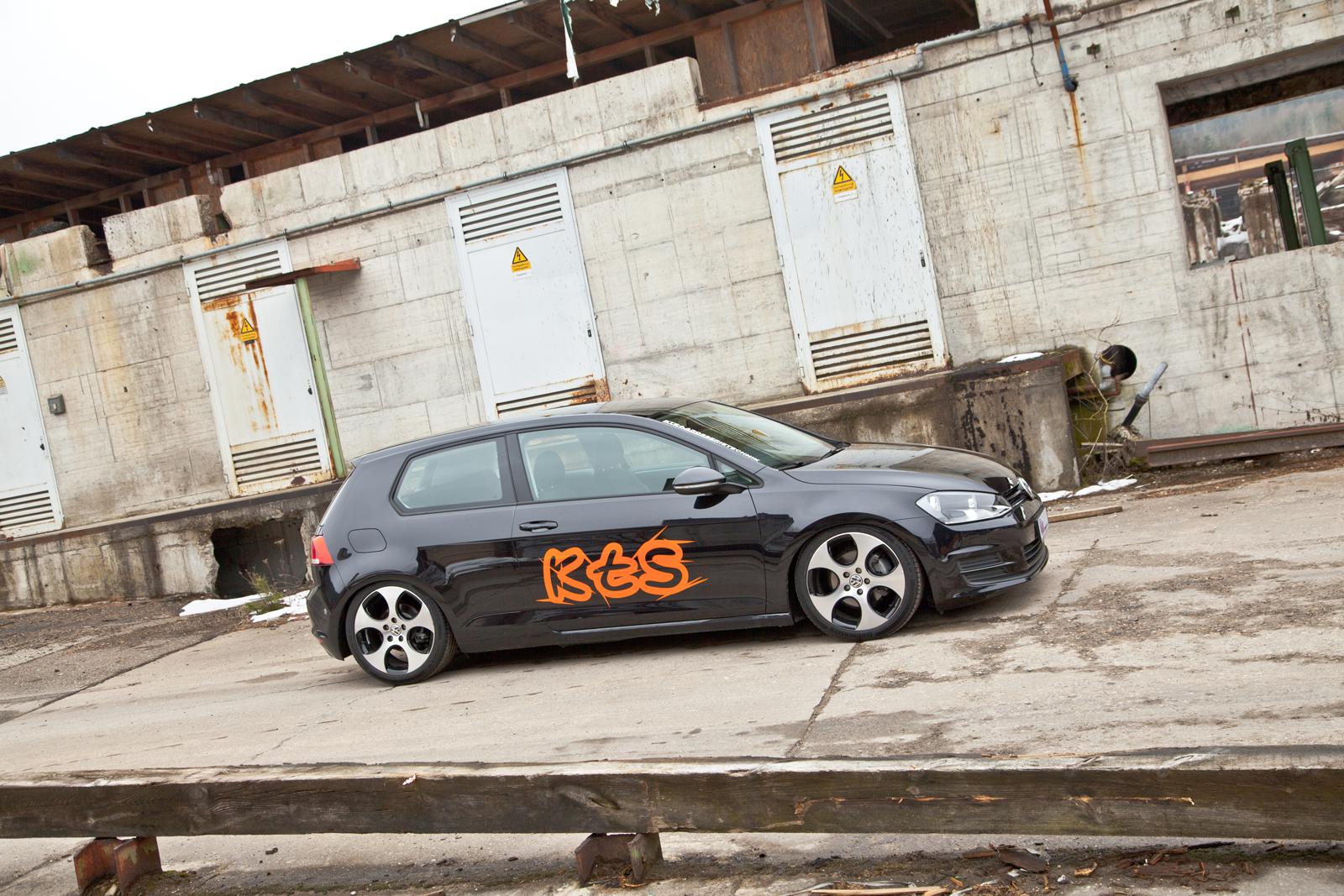

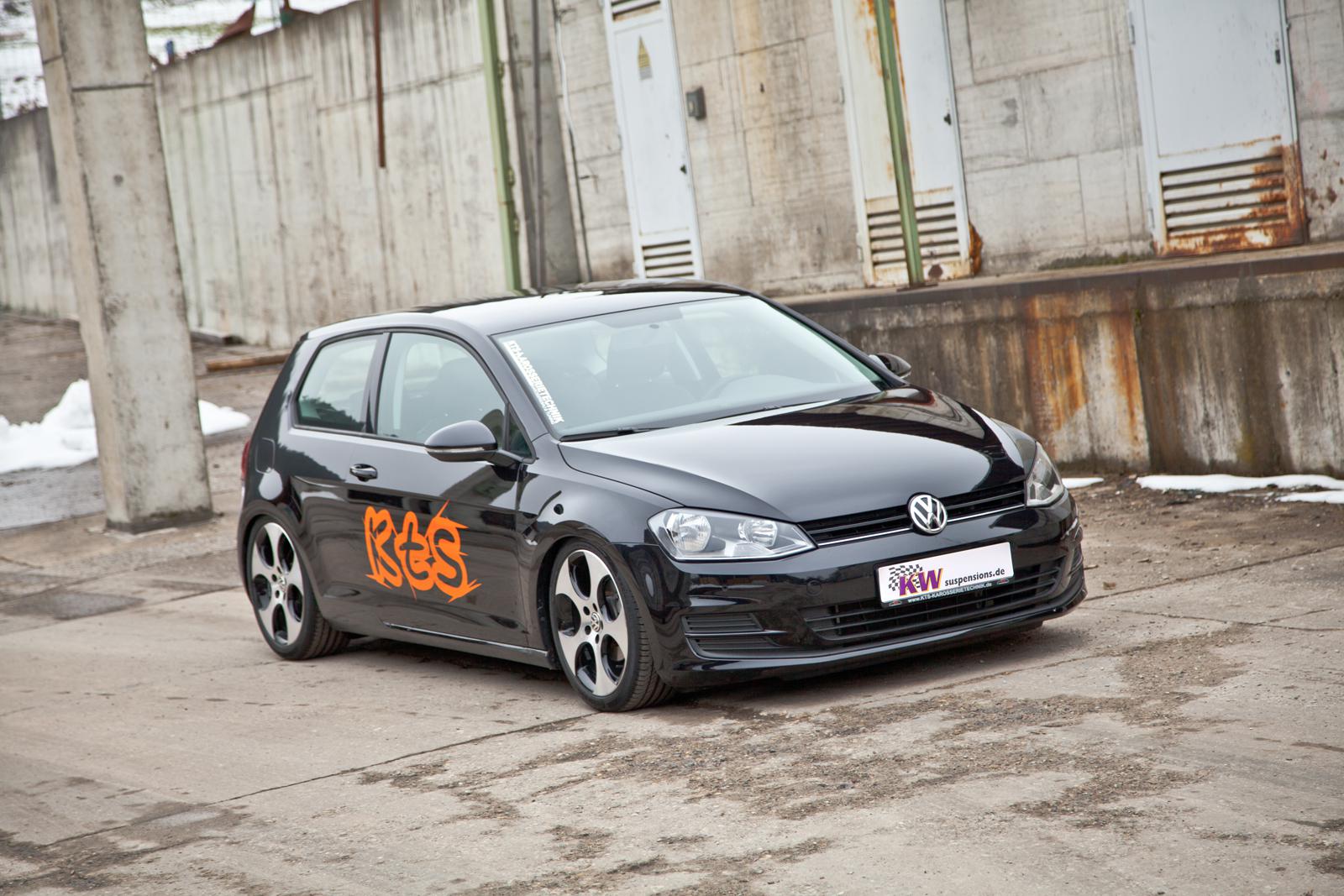

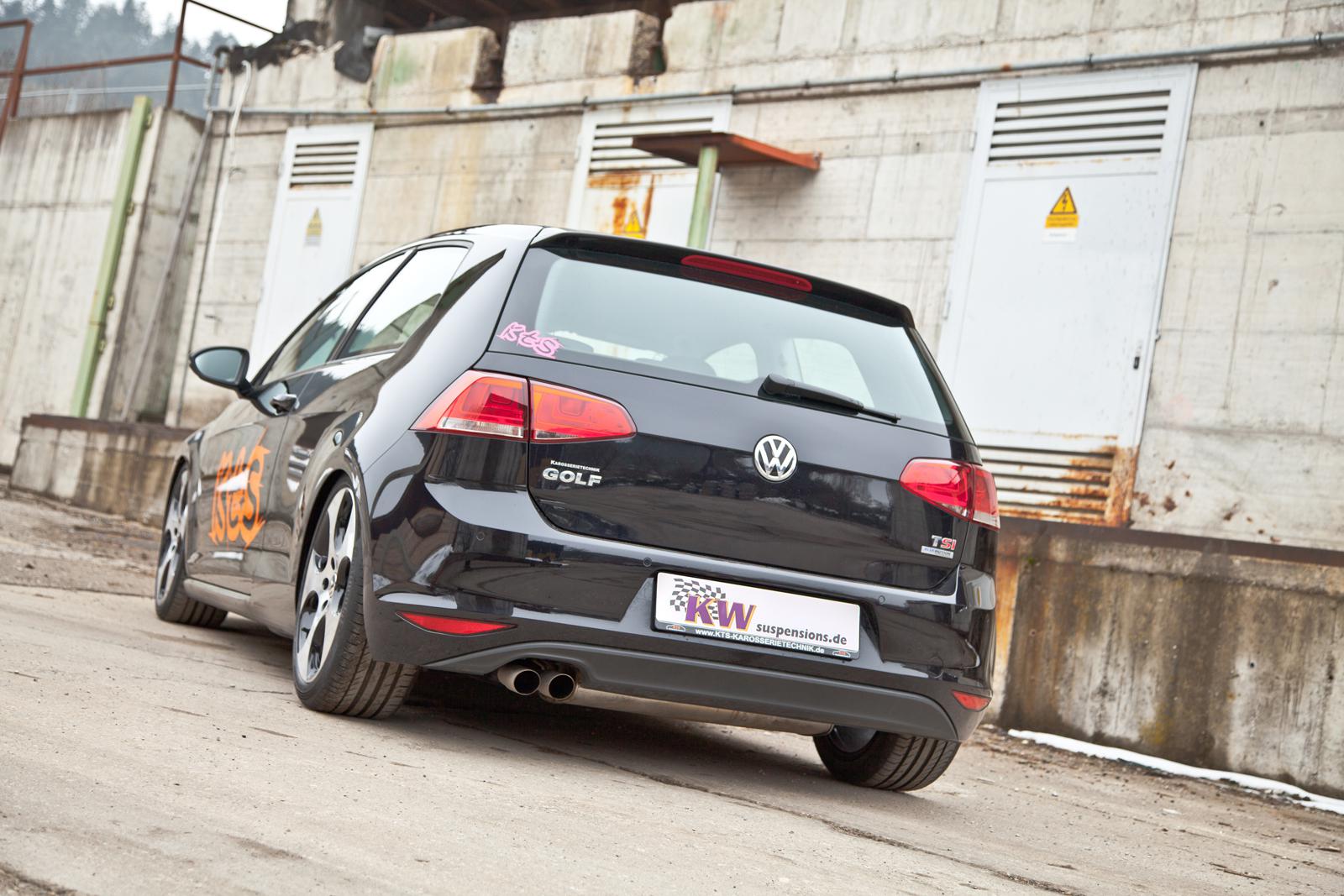

| 2012–2021 | VW | Golf VII (5G1, BQ1, BE1, BE2, AU) | Front-Wheel Drive | 1.0 TSI, 1.2 TSI, 1.4 TSI, 1.5 TSI, 1.6, 1.6 TDI, 1.8 TSI, 2.0 GTD, 2.0 TDI | For cars without DCC | 2, 37, 57 |
- Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
- Note 37: For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list.
- Note 57: Only for cars with a clamp diameter of 55mm on the front axle.
