KW Coilover Kit V1 for Audi (C5) RS6

SKU: 10210053
Sale price$2,106.30 Regular price$3,009.00
Save $902.70

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

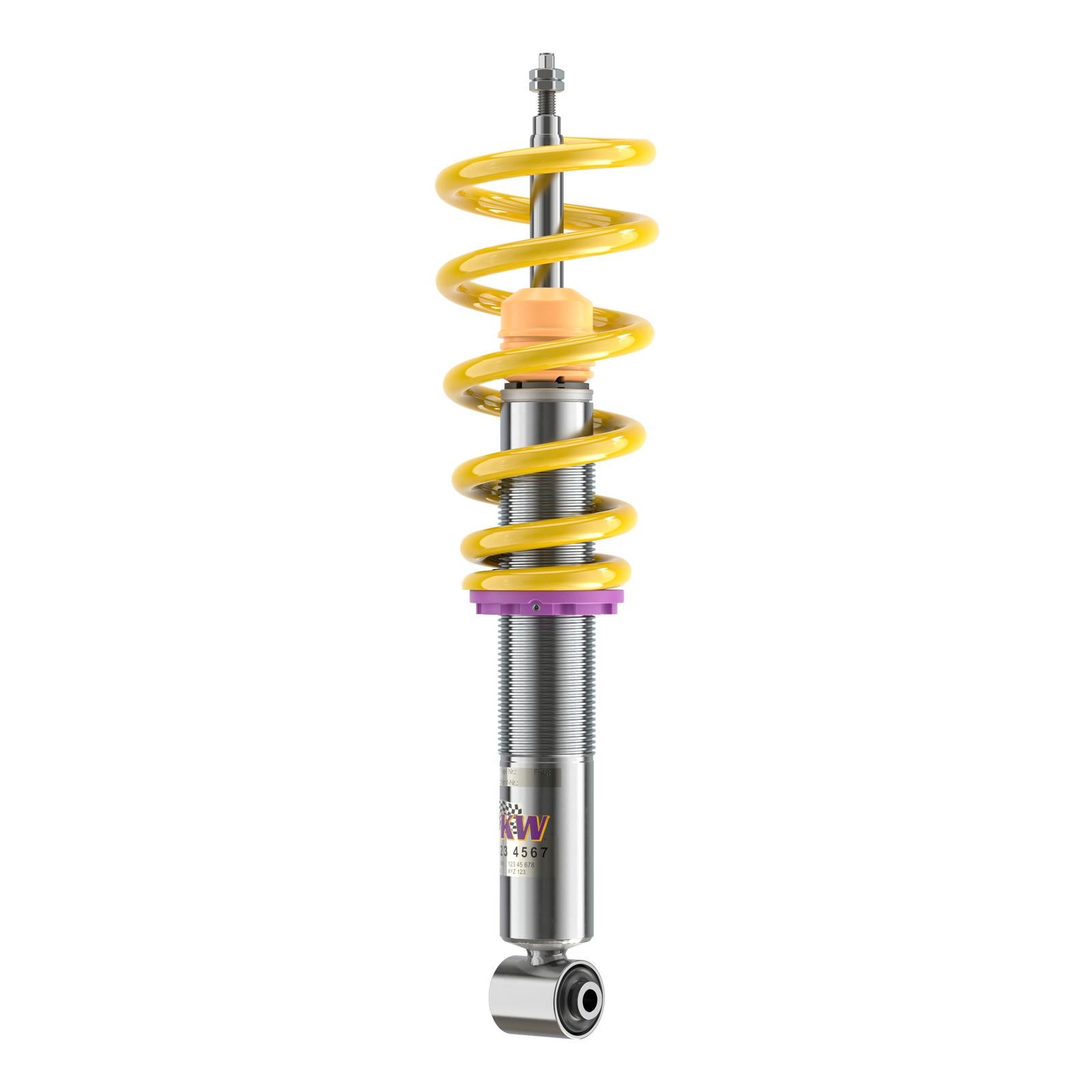

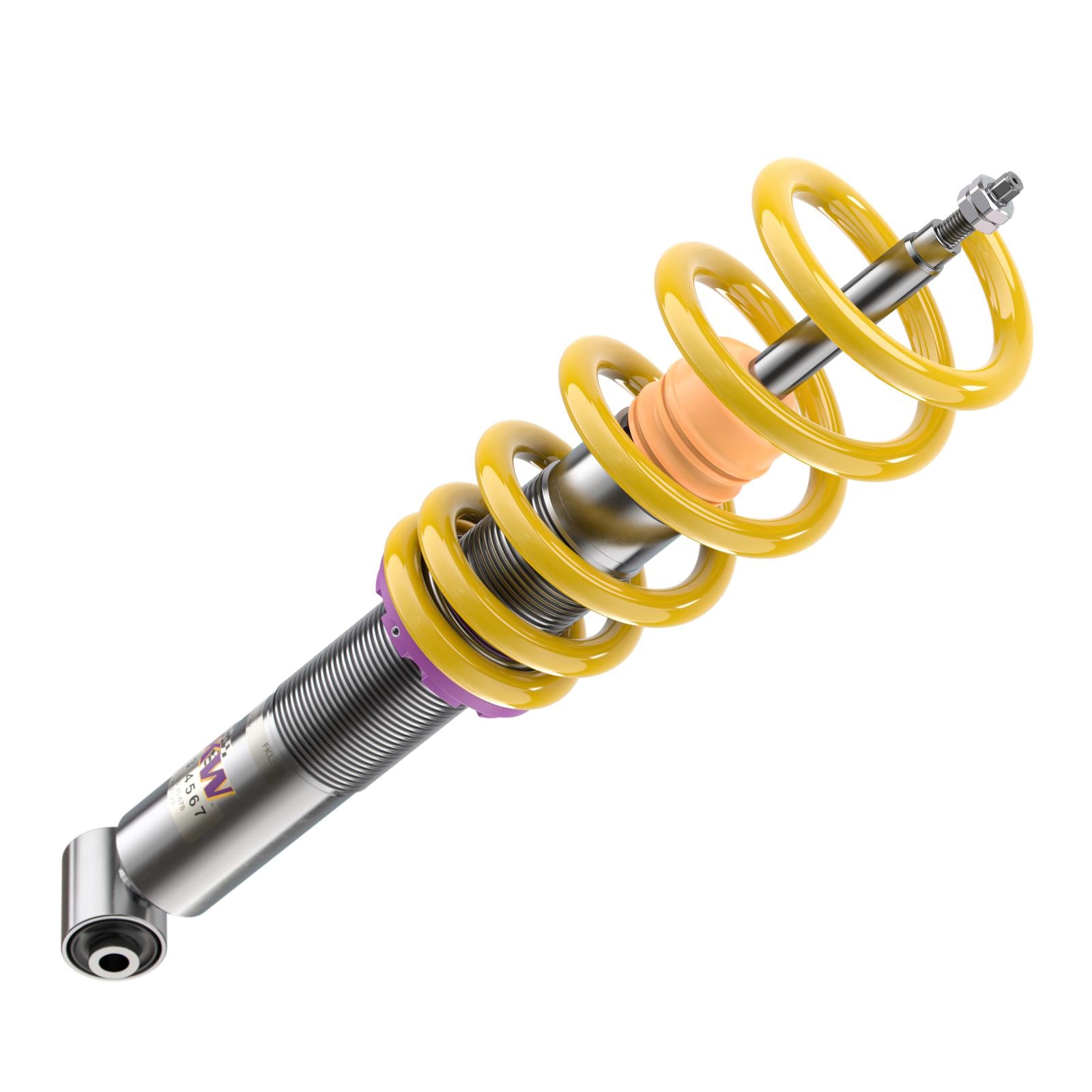

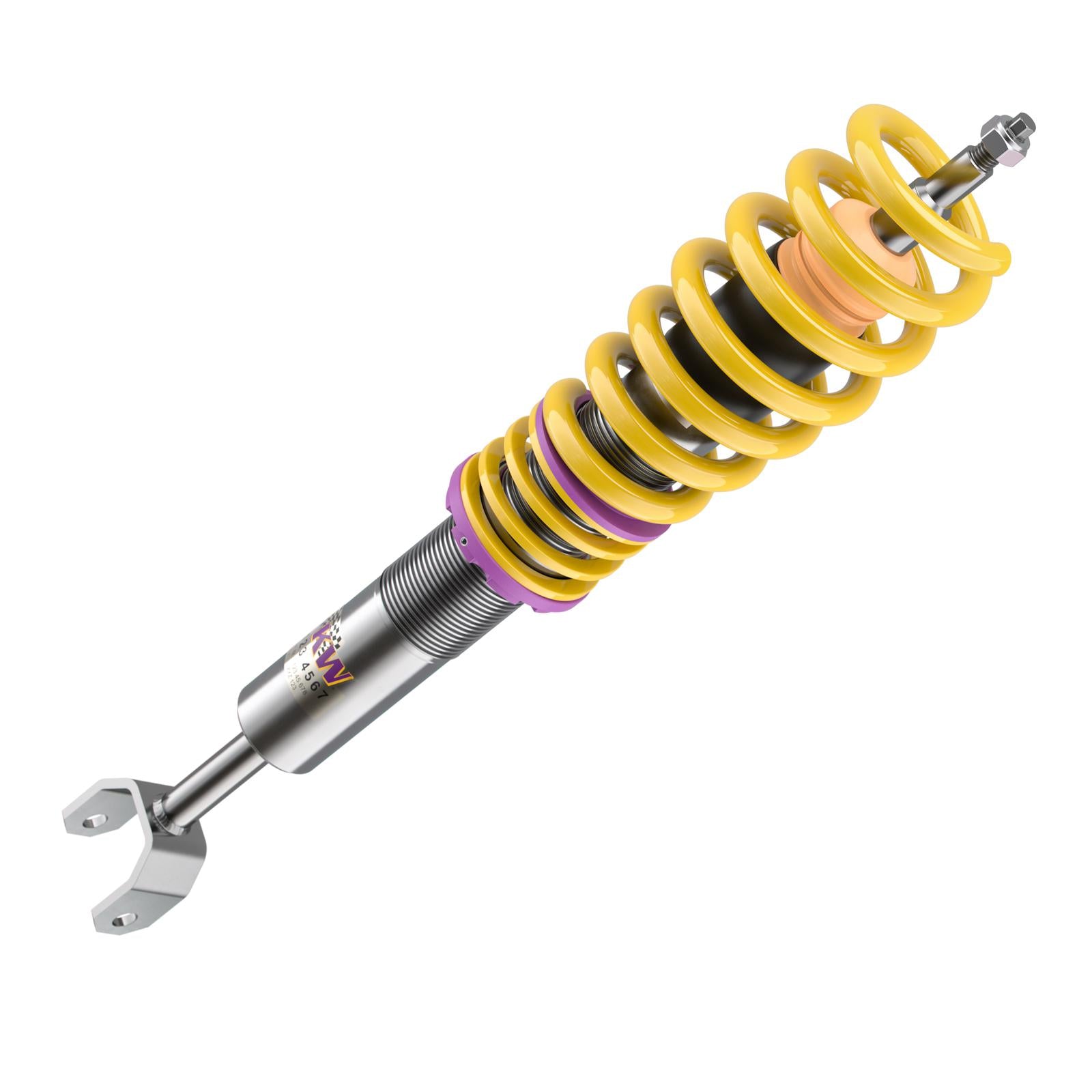

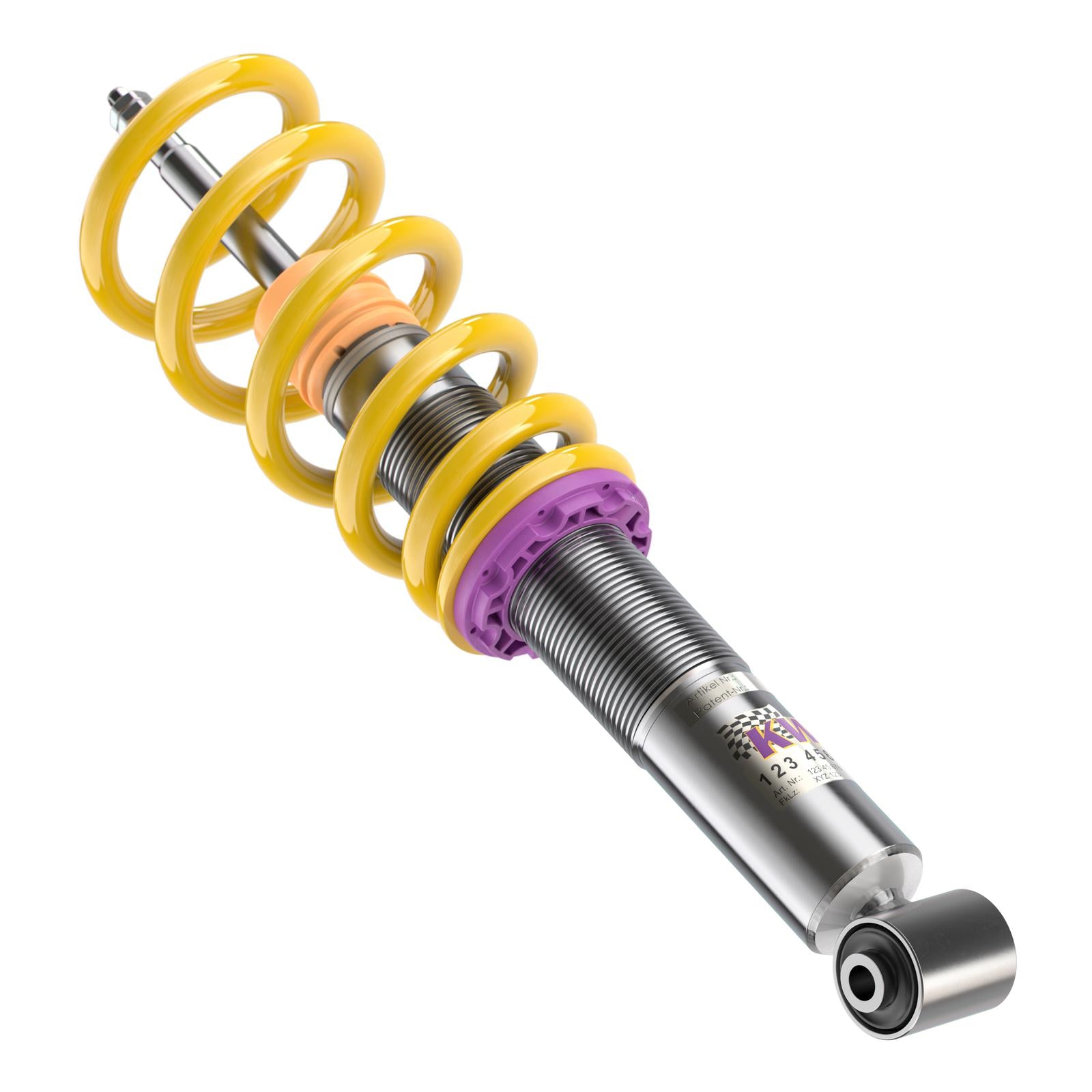

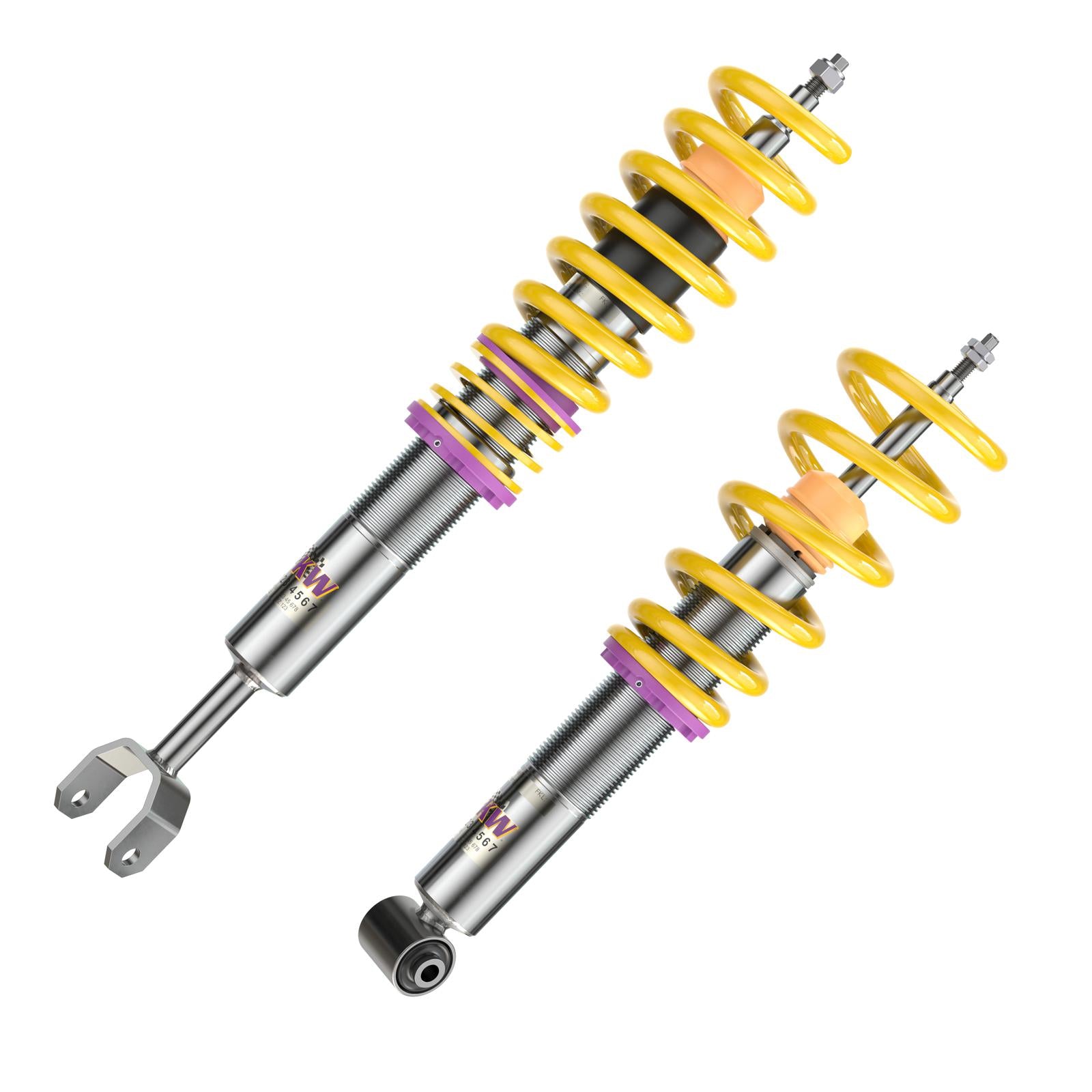

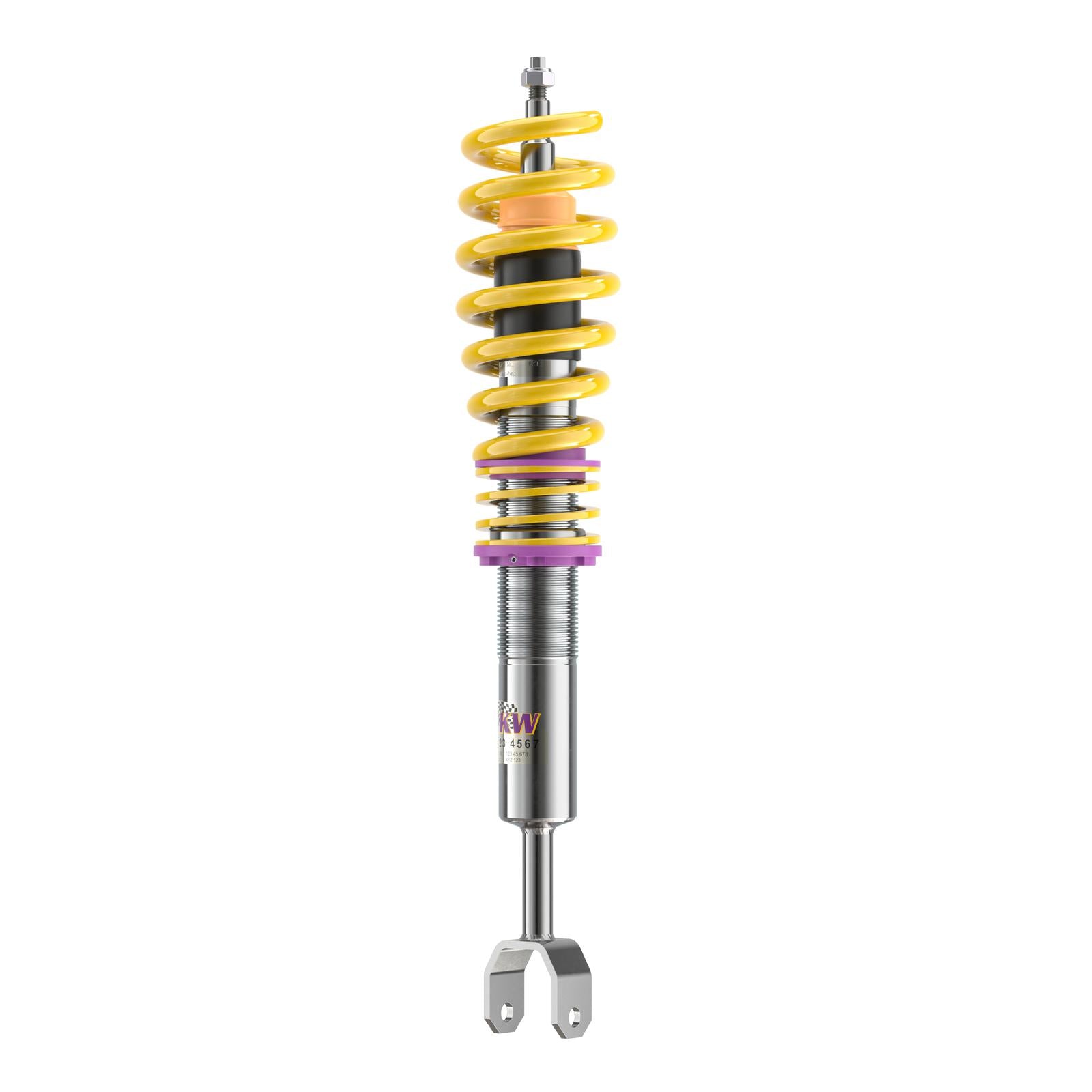

KW's V1 is the entry model in its street coilover range, pairing height-adjustable struts with a damper setup that KW pre-configures for each vehicle. Ride height is continuously adjustable within the tested range using a dirt-resistant trapezoidal thread and composite collar, so it can still be changed easily years after fitting. Corrosion-resistant springs and bump stops are built for a long service life. This kit is developed for the Audi RS6 (C5).

Key Features

  • Vehicle-specific, factory-set damping
  • Continuous ride height adjustment within the tested range
  • Trapezoidal thread with composite adjuster collar

Specifications

  • Version: V1
  • Damping: Fixed, vehicle-specific setting
  • Material: Stainless steel
  • Front lowering: 10–30 mm
  • Rear lowering: 15–35 mm
  • Front axle load: up to 1,255 kg
  • Rear axle load: up to 1,200 kg

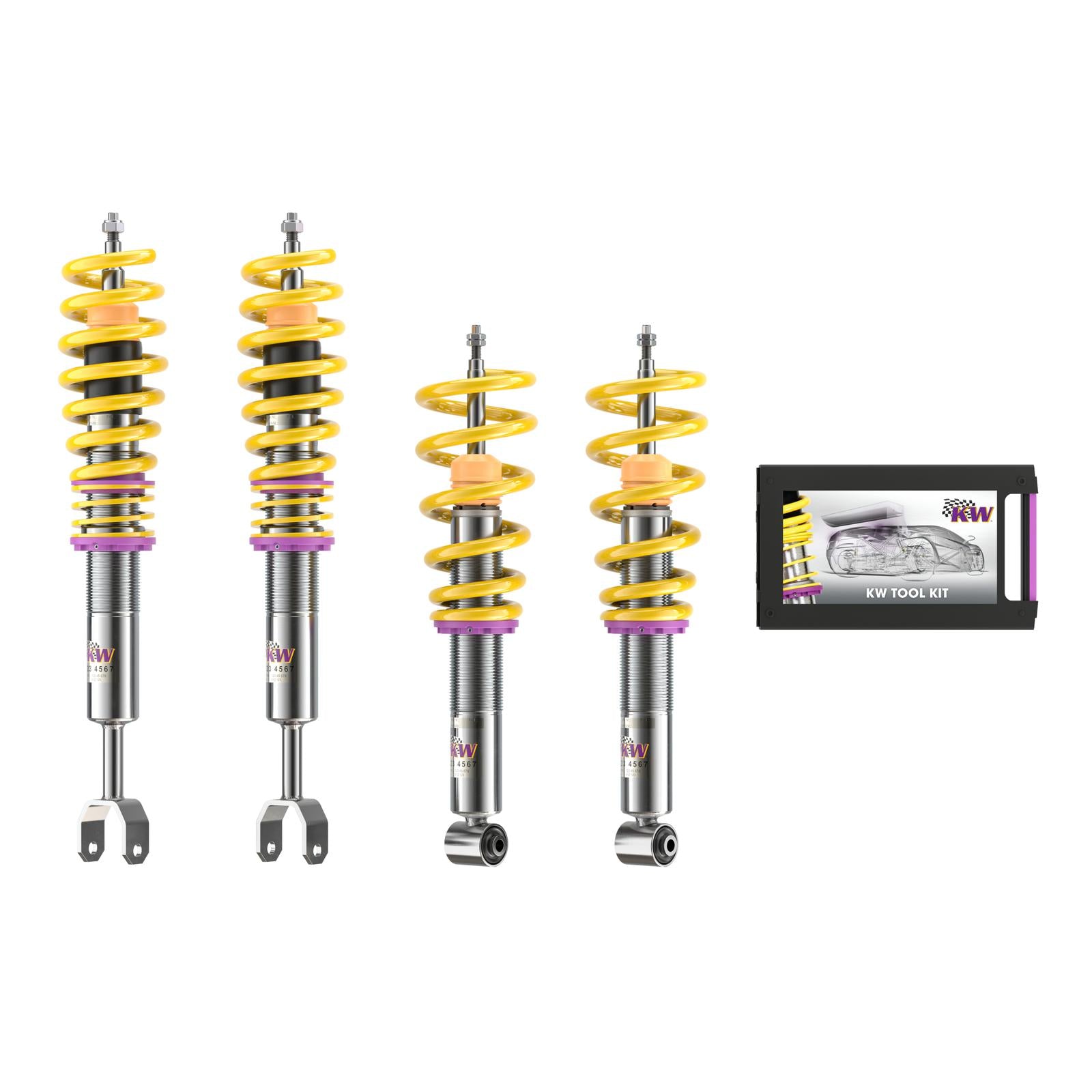

  • Supplied as: Front axle + rear axle coilover struts

Front axle load up to 1,255 kg; Rear axle load up to 1,200 kg.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
1997–2005AudiA6 (4B) 4B2, C5RS6 quattroPetrol · 331 kW · 4.2L · 8-cylAll-Wheel Drive1
1997–2006AudiA6 Avant (4B) 4B5, C5RS6 quattroPetrol · 331 kW · 4.2L · 8-cylAll-Wheel Drive1
1997–2006AudiA6 Avant (4B) 4B5, C5RS6 plus quattroPetrol · 353 kW · 4.2L · 8-cylAll-Wheel Drive1
  • Note 1: Height adjustable on the front and rear axles (threaded strut housings).
