KW Coilover Kit V1 for Audi (C6) A6

SKU: 10210049
Sale price$2,316.30 Regular price$3,309.00
Save $992.70

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

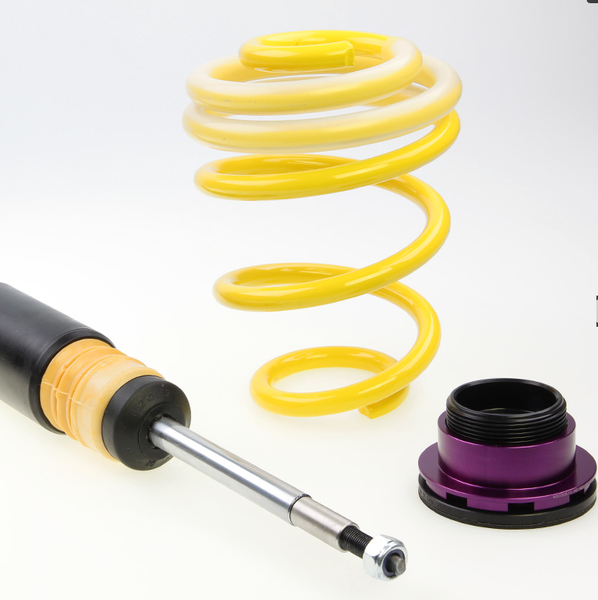

KW's V1 is the entry model in its street coilover range, pairing height-adjustable struts with a damper setup that KW pre-configures for each vehicle. Ride height is continuously adjustable within the tested range using a dirt-resistant trapezoidal thread and composite collar, so it can still be changed easily years after fitting. Corrosion-resistant springs and bump stops are built for a long service life. This kit is developed for the Audi A6 (C6).

Key Features

  • Vehicle-specific, factory-set damping
  • Continuous ride height adjustment within the tested range

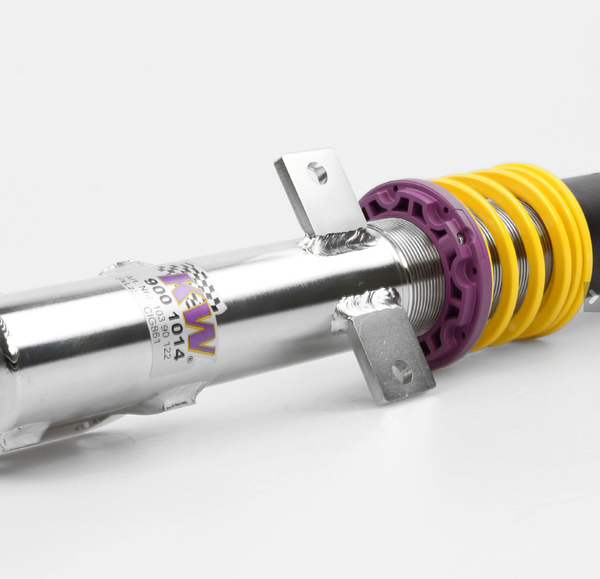

  • Trapezoidal thread with composite adjuster collar

Specifications

  • Version: V1
  • Damping: Fixed, vehicle-specific setting
  • Material: Stainless steel
  • Front lowering: 35–65 mm
  • Rear lowering: 35–65 mm
  • Front axle load: up to 1,240 kg
  • Rear axle load: up to 1,205 kg

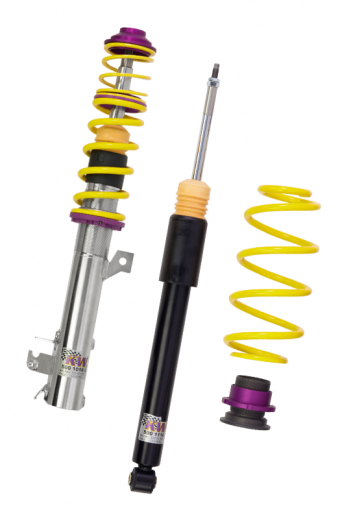

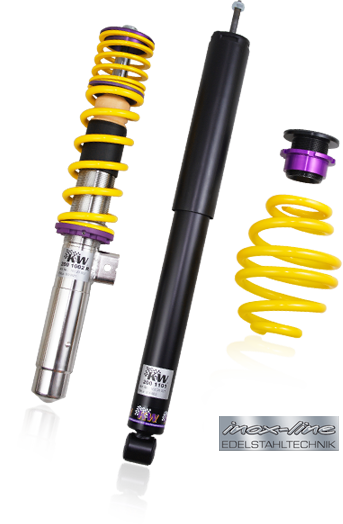

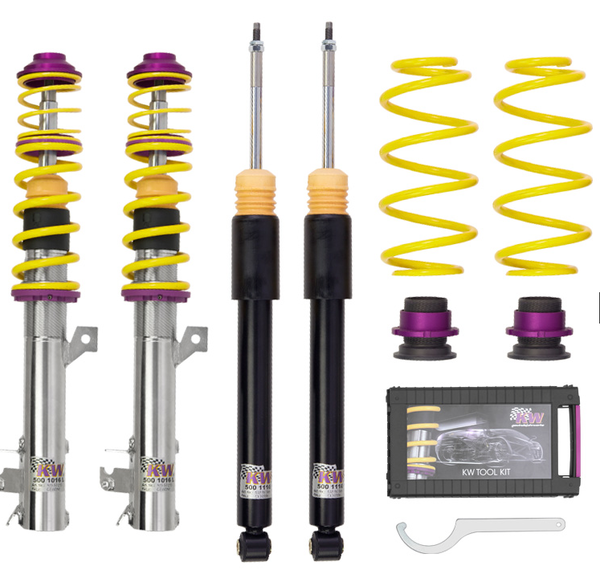

  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers

Front axle load up to 1,240 kg; Rear axle load up to 1,205 kg.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2004–2011AudiA6 (4F) 4F2, C62.0 TDIDiesel · 89 kW · 2.0L · 4-cylFront-Wheel Drive2, 8, 62
2004–2011AudiA6 (4F) 4F2, C62.0 TDIDiesel · 100 kW · 2.0L · 4-cylFront-Wheel Drive2, 8, 62
2004–2011AudiA6 (4F) 4F2, C62.0 TDIDiesel · 103 kW · 2.0L · 4-cylFront-Wheel Drive2, 8, 62
2004–2011AudiA6 (4F) 4F2, C62.0 TDIDiesel · 120 kW · 2.0L · 4-cylFront-Wheel Drive2, 8, 62
2004–2011AudiA6 (4F) 4F2, C62.0 TDIDiesel · 125 kW · 2.0L · 4-cylFront-Wheel Drive2, 8, 62
2004–2011AudiA6 (4F) 4F2, C62.0 TFSIPetrol · 125 kW · 2.0L · 4-cylFront-Wheel Drive2, 8, 62
2004–2011AudiA6 (4F) 4F2, C62.4Petrol · 130 kW · 2.4L · 6-cylFront-Wheel Drive2, 8, 62
2004–2011AudiA6 (4F) 4F2, C62.4 quattroPetrol · 130 kW · 2.4L · 6-cylAll-Wheel Drive2, 8, 62
2004–2011AudiA6 (4F) 4F2, C62.7 TDIDiesel · 120 kW · 2.7L · 6-cylFront-Wheel Drive2, 8, 62
2004–2011AudiA6 (4F) 4F2, C62.8 FSIPetrol · 140 kW · 2.8L · 6-cylFront-Wheel Drive2, 8, 62
2004–2011AudiA6 (4F) 4F2, C62.8 FSIPetrol · 154 kW · 2.8L · 6-cylFront-Wheel Drive2, 8, 62
2004–2011AudiA6 (4F) 4F2, C62.8 FSIPetrol · 162 kW · 2.8L · 6-cylFront-Wheel Drive2, 8, 62
2004–2011AudiA6 (4F) 4F2, C62.8 FSI quattroPetrol · 140 kW · 2.8L · 6-cylAll-Wheel Drive2, 8, 62
2004–2011AudiA6 (4F) 4F2, C62.8 FSI quattroPetrol · 154 kW · 2.8L · 6-cylAll-Wheel Drive2, 8, 62
2004–2011AudiA6 (4F) 4F2, C62.8 FSI quattroPetrol · 162 kW · 2.8L · 6-cylAll-Wheel Drive2, 8, 62
2004–2011AudiA6 (4F) 4F2, C63.0Petrol · 160 kW · 3.0L · 6-cylFront-Wheel Drive2, 8, 62
2004–2011AudiA6 (4F) 4F2, C63.0 quattroPetrol · 160 kW · 3.0L · 6-cylAll-Wheel Drive2, 8, 62
2004–2011AudiA6 (4F) 4F2, C63.2 FSIPetrol · 188 kW · 3.1L · 6-cylFront-Wheel Drive2, 8, 62
2004–2011AudiA6 (4F) 4F2, C63.2 FSIPetrol · 195 kW · 3.2L · 6-cylFront-Wheel Drive2, 8, 62
2004–2011AudiA6 (4F) 4F2, C63.2 FSI quattroPetrol · 183 kW · 3.1L · 6-cylAll-Wheel Drive2, 8, 62
2004–2011AudiA6 (4F) 4F2, C63.2 FSI quattroPetrol · 188 kW · 3.1L · 6-cylAll-Wheel Drive2, 8, 62
  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
  • Note 8: Not for vehicles with automatic self levelling control / air suspension.
  • Note 62: Not for cars with electronic damping.
