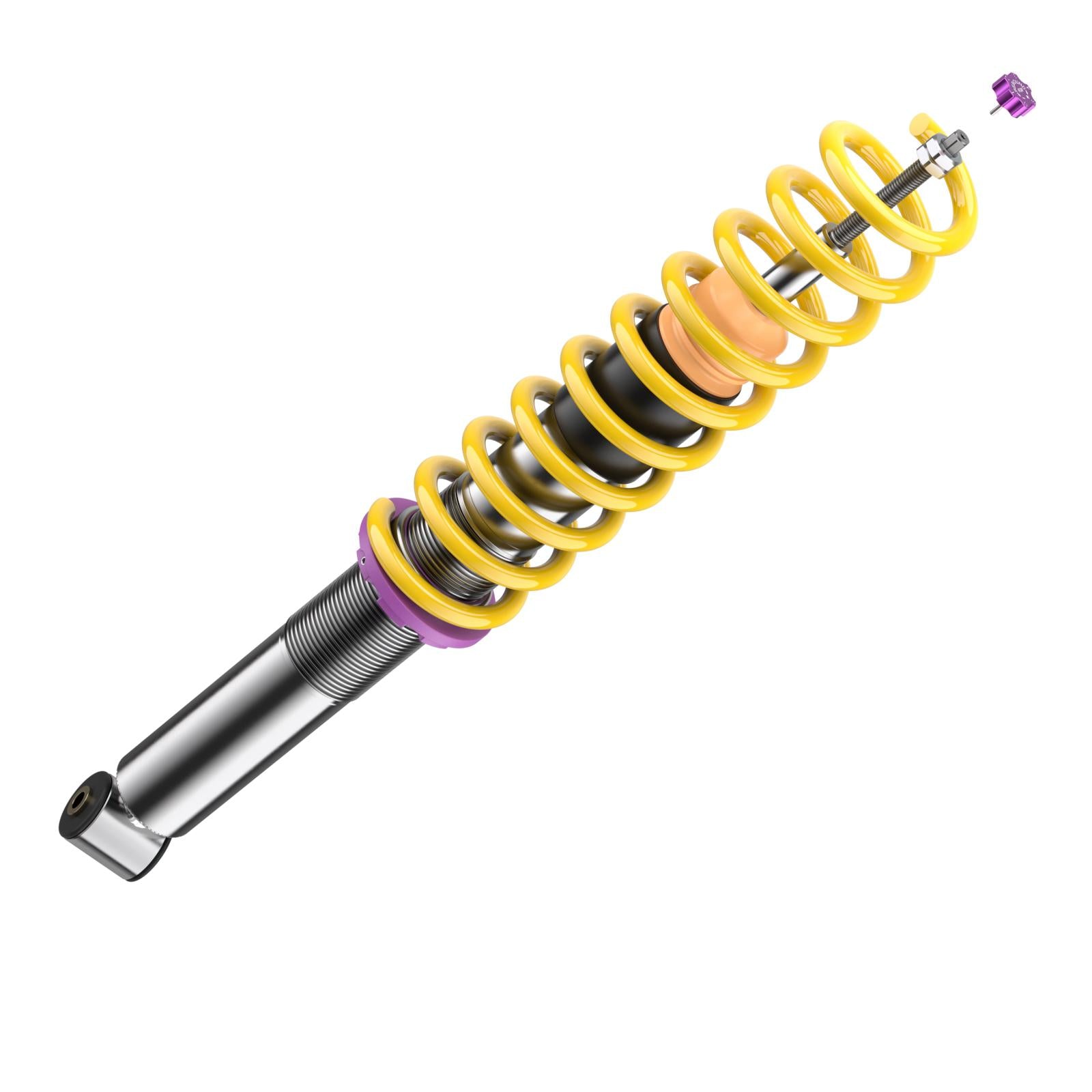

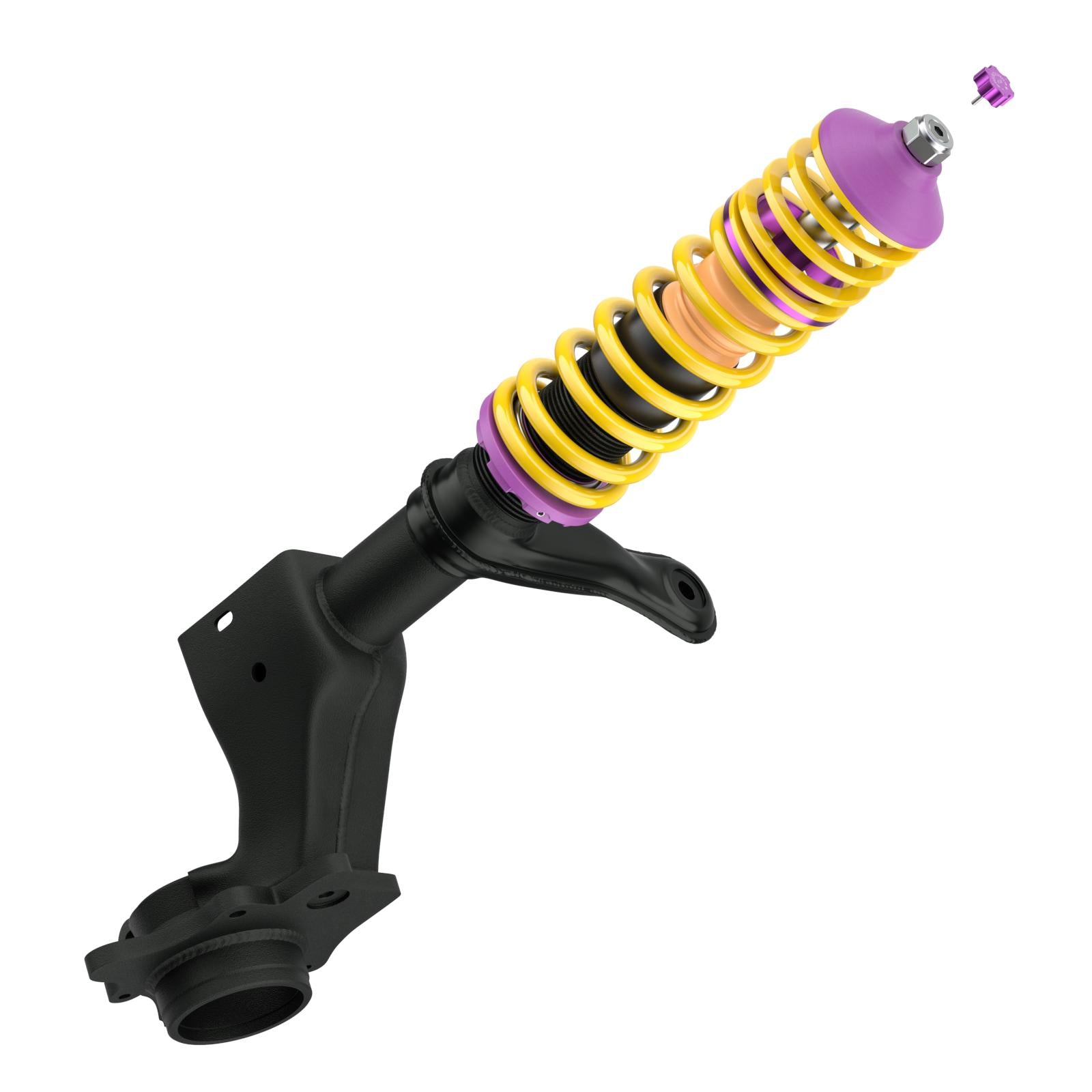

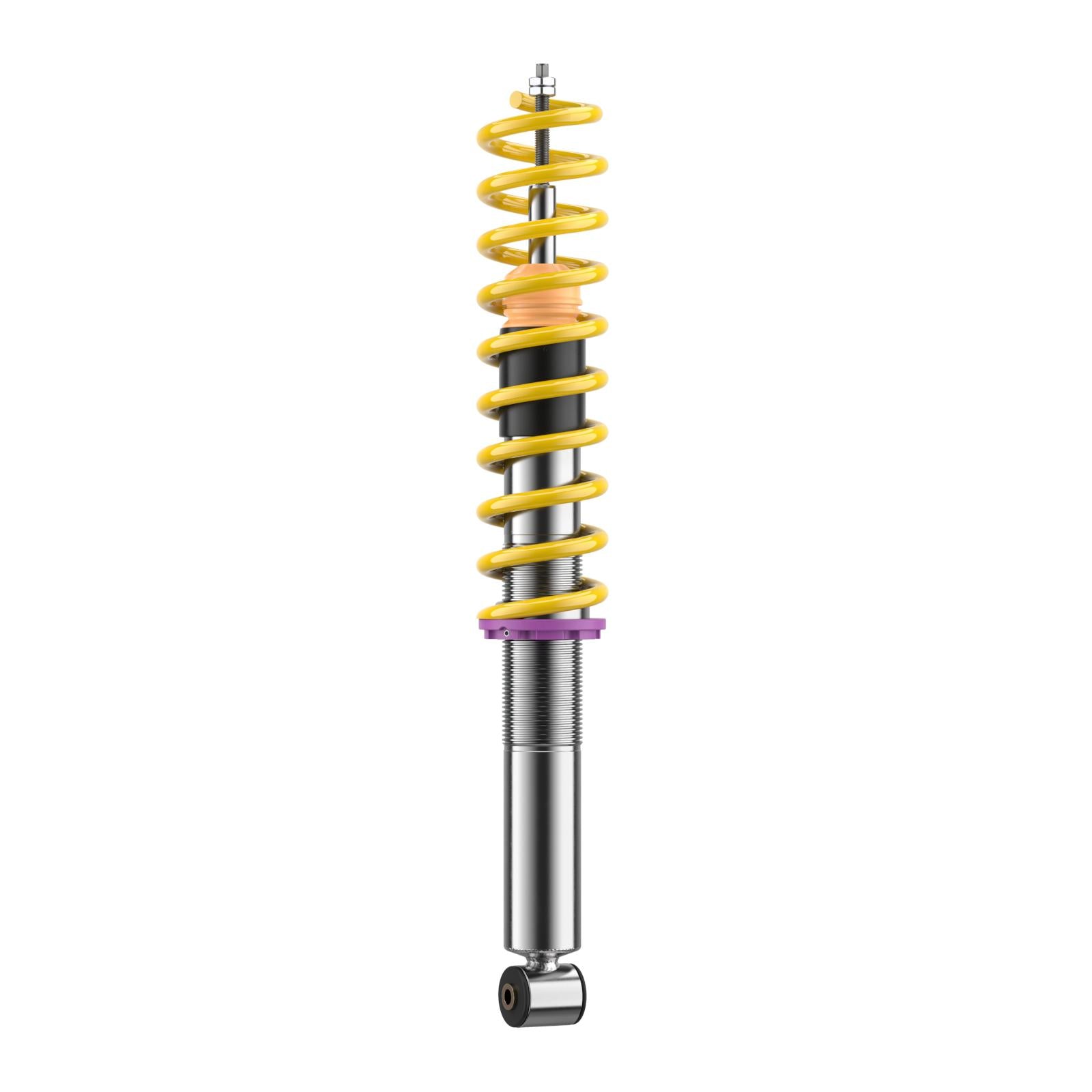

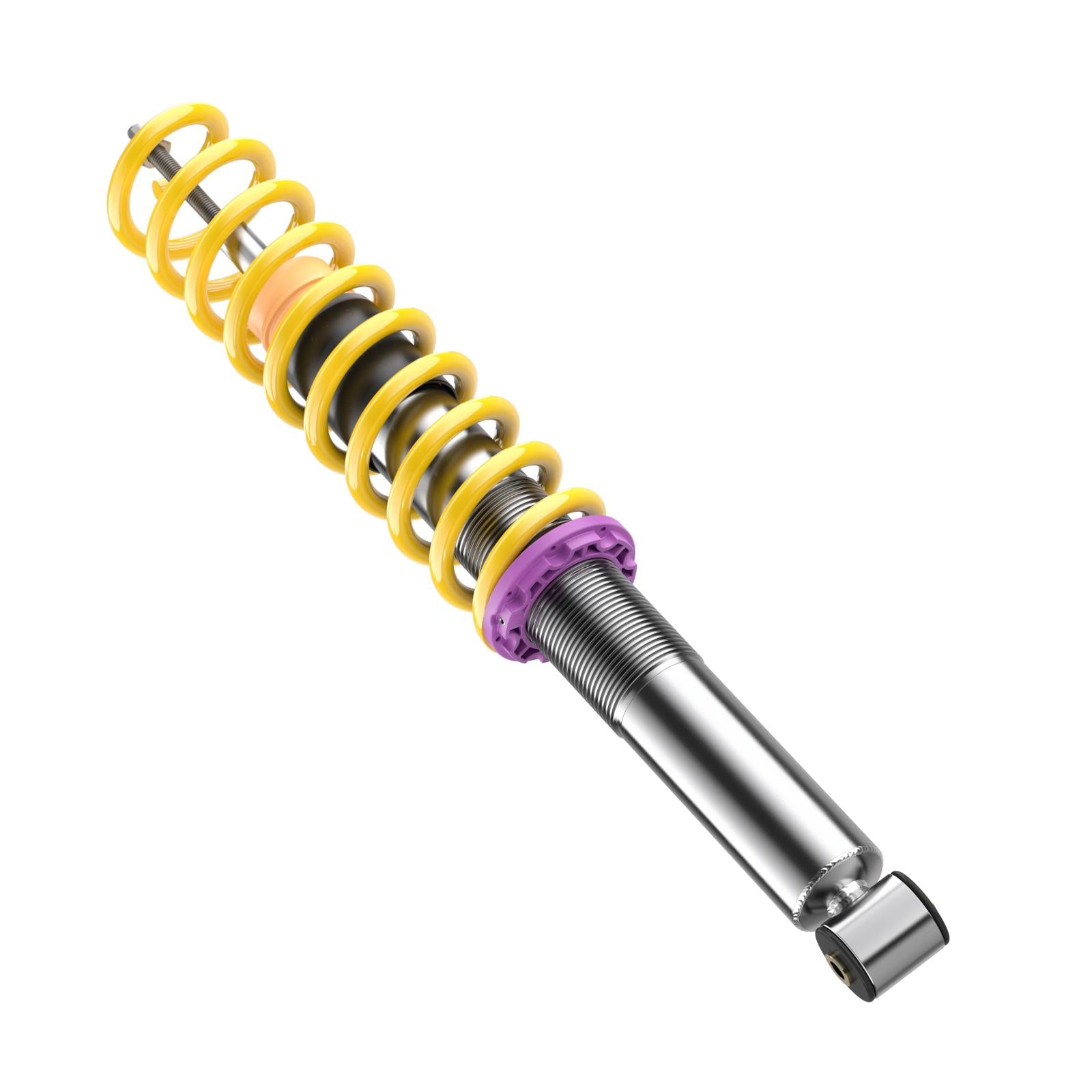

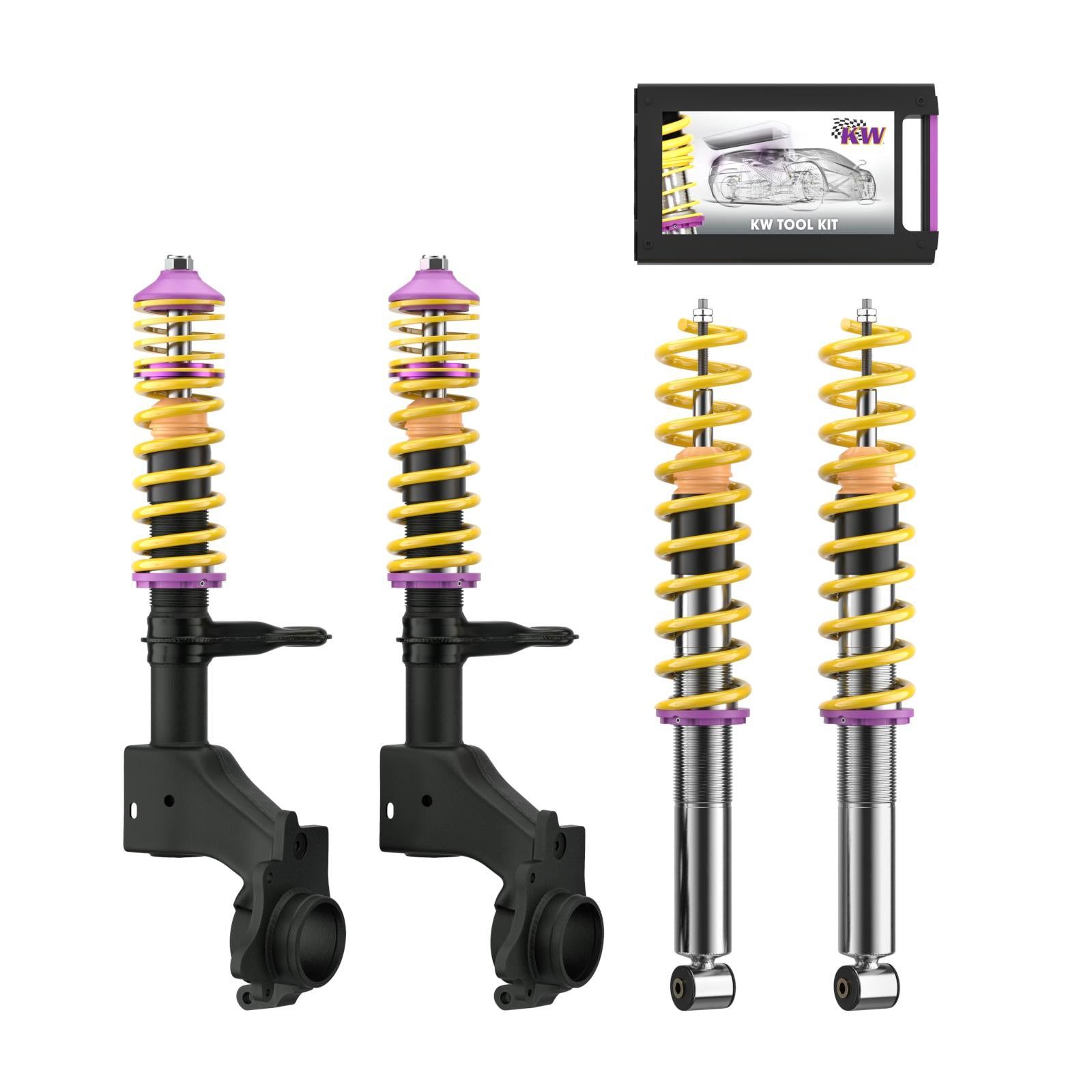

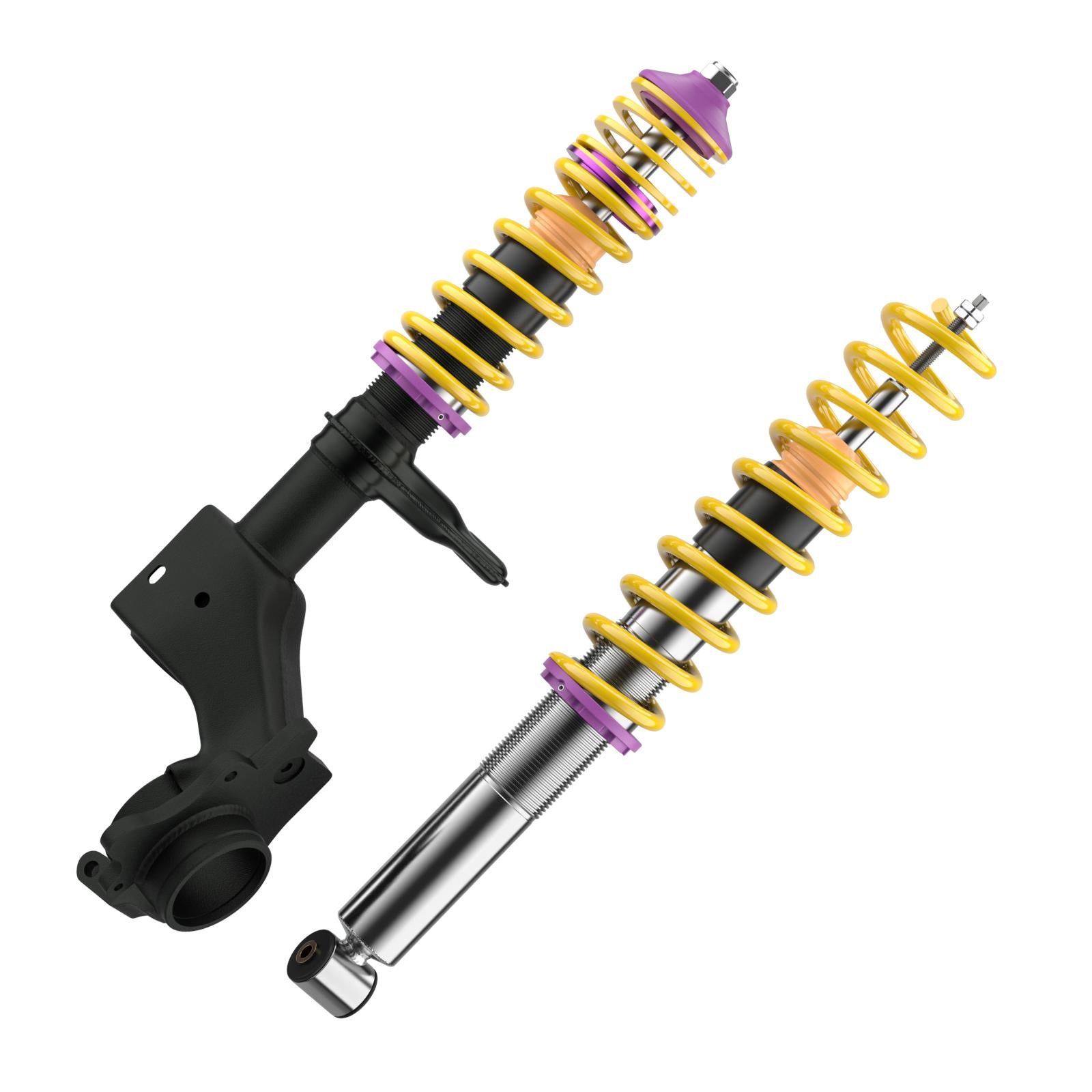

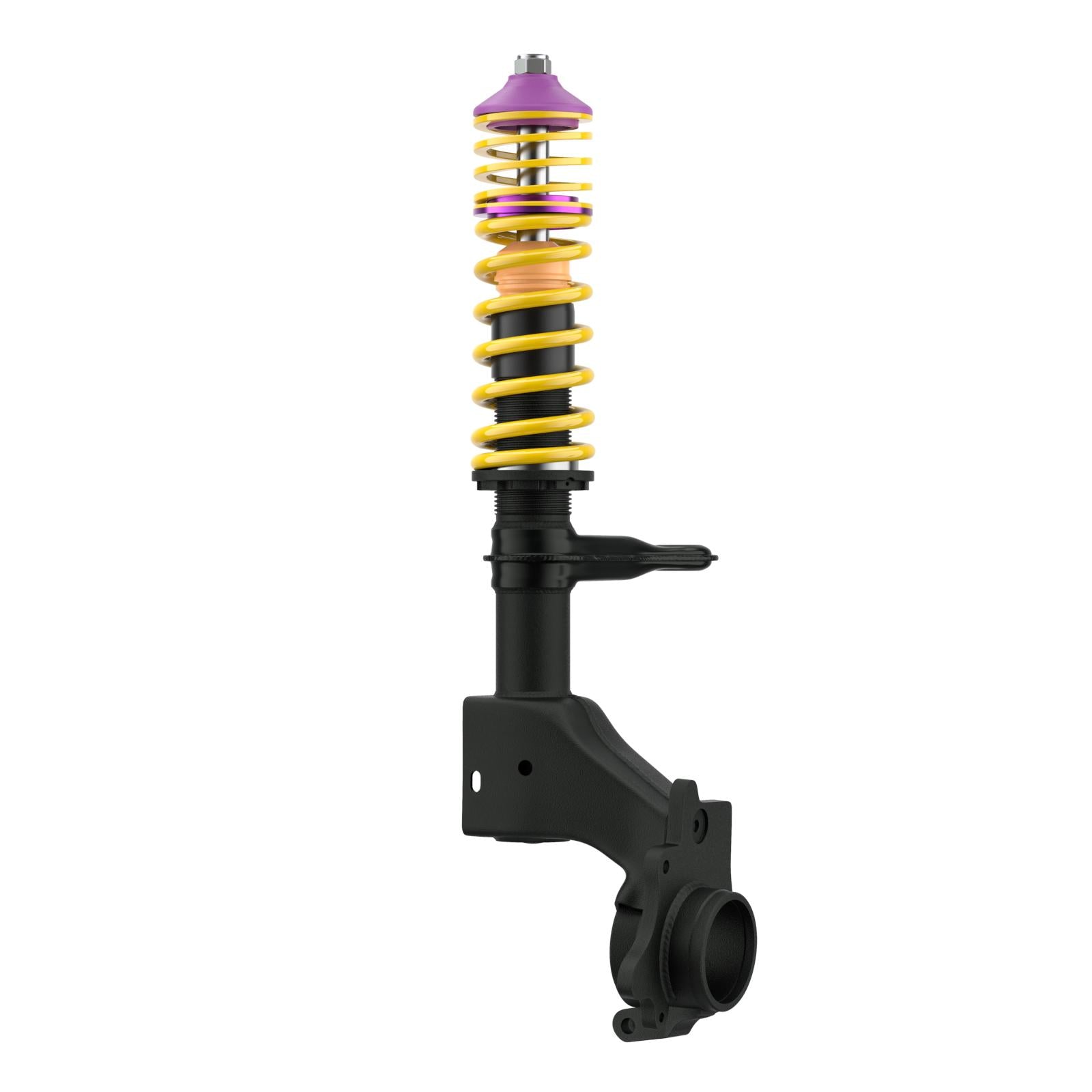

KW Coilover Kit V1 for BMW (E34) M5 3.6L - w/o EDC

SKU: 10220030
Sale price$2,435.30 Regular price$3,479.00
Save $1,043.70

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


KW's V1 is the entry model in its street coilover range, pairing height-adjustable struts with a damper setup that KW pre-configures for each vehicle. Ride height is continuously adjustable within the tested range using a dirt-resistant trapezoidal thread and composite collar, so it can still be changed easily years after fitting. Corrosion-resistant springs and bump stops are built for a long service life. This kit is developed for the BMW M5 (E34).

Key Features

  • Vehicle-specific, factory-set damping
  • Continuous ride height adjustment within the tested range
  • Trapezoidal thread with composite adjuster collar

Specifications

  • Version: V1
  • Damping: Fixed, vehicle-specific setting
  • Material: Galvanised steel
  • Front lowering: 25–55 mm
  • Rear lowering: 25–55 mm
  • Front axle load: up to 1,050 kg
  • Rear axle load: up to 1,300 kg
  • Supplied as: Front axle + rear axle coilover struts (Original front axle strut housings modified)
Note For cars without electronic damping. The original front strut housings are modified by KW and must be sent in advance.

Front axle load up to 1,050 kg; Rear axle load up to 1,300 kg.

For vehicles without electronic damper control.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveNotesRefs
1987–1995BMW5 (E34) 5/H, M5/H, X5/HM5Petrol · 232 kW · 3.5L · 6-cylRear-Wheel DriveFor cars without electronic damping1, 6, 18, 38, 40, 41, 62, 82
1987–1995BMW5 (E34) 5/H, M5/H, X5/HM5 CatPetrol · 232 kW · 3.5L · 6-cylRear-Wheel DriveFor cars without electronic damping1, 6, 18, 38, 40, 41, 62, 82
  • Note 1: Height adjustable on the front and rear axles (threaded strut housings).
  • Note 6: When using original tyres, wheel offset spacers may be required.
  • Note 18: For front dome bearing caps with a diameter of 80 mm, new parts are required. (BMW Part No.: dome bearings 31 331 139 452 + washer 31 331 116 983 + collar 31 331 110 196).
  • Note 38: If the rear axle shock absorber of the car is equipped with M12 thread - you need to modify the supporting bearing unit to M10 thread. Therefore please buy the following BMW parts from the car manufacturer: supporting bearing 33 52 1 132 270, washer disc 33 52 1 136 063, disc 33 52 1 129 565.
  • Note 40: Original struts need to be sent in advance for modification.
  • Note 41: Coilover kits where the strut housings are being modified are only available in galvanised finish.
  • Note 62: Not for cars with electronic damping.
  • Note 82: Production on demand. Please ask for delivery time.
